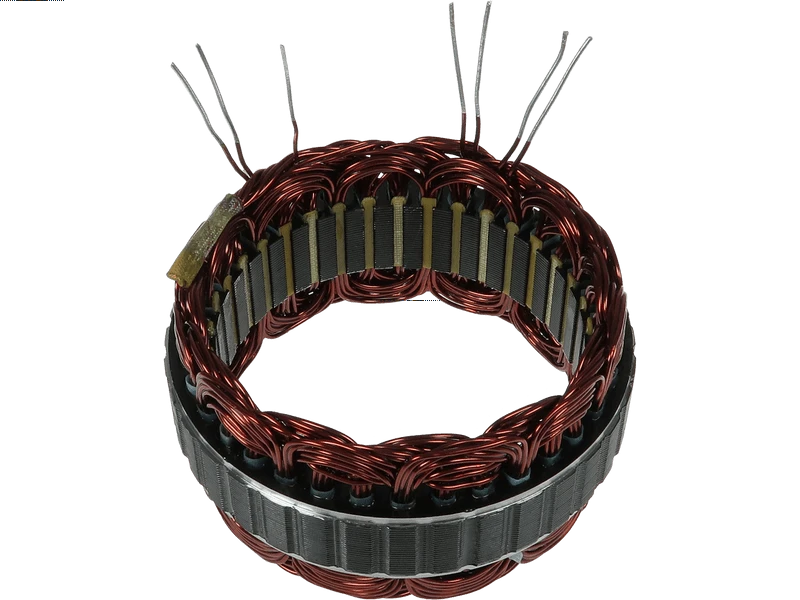

AS2009 - Brand new AS-PL Alternator stator

Name: Brand new AS-PL Alternator stator
Brand: AS-PL
SKU: AS2009
Price: 150.01 NZD
Availability: InStock

Brand new AS-PL Alternator stator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

HITACHI

Price:

NZ$ 150.01 including GST

NZ$ 130.44 excluding GST

UOM:

each

Product Code:

AS2009

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Reference Information
Video/Publications
Add Your Number

LR1110705 LR1110705B LR1110706B LR1110706C LR1110706E LR1110706F LR1110707C LR1110707F LR1110707G LR1110707H LR1110707J LR1110709 LR1110709B LR1110710B LR1110710C LR1110710E LR1110718 LR1110720 LR1110723B LR1110723C LR1110723E 231000L701 231002Y000 2310031U01 231004P105 231006P000

Amp	110 A
Height (H.1)	63 mm
Height (H.2)	22 mm
Inside Diameter (I.D.1)	108 mm
Lam. Stack Height (H.3)	28 mm
No./Leads	4 qty
Outside Diameter (O.D.1)	139.3 mm
Outside Diameter (O.D.2)	136.5 mm
Outside Diameter of Windings (O.D.3)	130 mm
Unit Type	HITACHI
Voltage	12 V

138716 27-8117 CSR20022AS 23102-31U01 L1110G-2200 SSR20022 STA3118 1113999 WST89104 S/3039

138716 27-8117 231006P000 231002Y000 LR1110710E LR1110710C LR1110710B LR1110718 LR1110706F LR1110706E LR1110706C LR1110706B A2043 L1110G-2200 231000L701 231004P105 2310031U01 CSR20022AS SSR20022 LR1110723E LR1110707J 1113999 WST89104 LR1110723C S/3039 LR1110707H LR1110723B LR1110707 LR1110707G LR1110707F LR1110709 LR1110705B LR1110707C LR1110709B 23102-31U01 LR1110720 LR1110705
