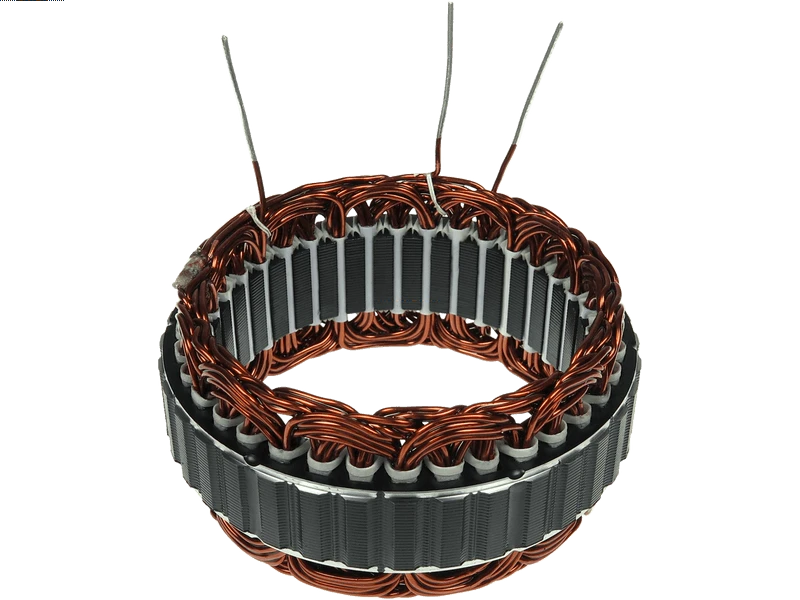

AS2003 - Brand new AS-PL Alternator stator

Name: Brand new AS-PL Alternator stator
Brand: AS-PL
SKU: AS2003
Price: 111.57 NZD
Availability: InStock

Brand new AS-PL Alternator stator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

HITACHI

Price:

NZ$ 111.57 including GST

NZ$ 97.02 excluding GST

UOM:

each

Product Code:

AS2003

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Reference Information
Video/Publications
Add Your Number

A2001 LR170505 LR170505B LR170506 LR170506B LR170510B LR170511 LR170511B LR170740B LR170745 LR170745B LR170752 LR170752B LR170752C LR170758 8971502000 8971502001 8972410210 231000S200 231000Y700 2310032J03

Amp	70 A
Height (H.1)	58.3 mm
Height (H.2)	22.1 mm
Inside Diameter (I.D.1)	98 mm
Lam. Stack Height (H.3)	26.5 mm
No./Leads	3 qty
Outside Diameter (O.D.1)	128.6 mm
Outside Diameter (O.D.2)	125.8 mm
Outside Diameter of Windings (O.D.3)	117.5 mm
Unit Type	HITACHI
Voltage	12 V

WST8923 1113758 L170G-9200 CQ1120016 T-V00509 SSR20018 138188 CSR20018AS STA3008 27-8107 L170G-6200

LR170511 LR170752 LR170758 LR170511B SSR20018 CSR20018AS 8972410210 LR170745B LR170505B T-V00509 8971502000 8971502001 138188 WST8923 1113758 LR170506 LR170505 LR170745 CQ1120016 LR170510B LR170740B LR170752C LR170752B A2001 231000Y700 231000S200 27-8107 L170G-6200 2310032J03 LR170506B L170G-9200
