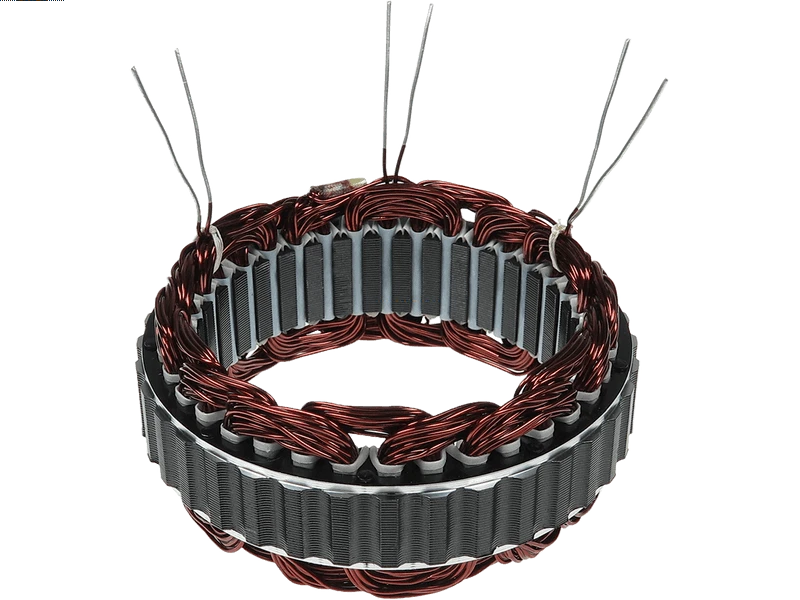

Brand new AS-PL Alternator stator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 113.56 including GST
NZ$ 98.75 excluding GST
or four payments of $28.39
with
Learn More
each
AS2002
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
LR170420 LR170420B 8970417900Specifications
| Amp | 70 A |
| Height (H.1) | 57.90 mm |
| Height (H.2) | 22.10 mm |
| Inside Diameter (I.D.1) | 104.30 mm |
| Lam. Stack Height (H.3) | 26.70 mm |
| No./Leads | 3 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 138.90 mm |
| Outside Diameter (O.D.2) | 135.40 mm |
| Outside Diameter of Windings (O.D.3) | 126 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
| 1111338 | POWERMAX |
| 136262 | CARGO |
| CQ1120015 | CQ |
| CSR20014AS | CASCO |
| F032136262 | CARGO |
| L170-22002 | HITACHI |
| S/3015 | ORME |
| SSR20014 | SANDO |
| STA3112 | ELECTROLOG |
| WST8920 | WOODAUTO |
