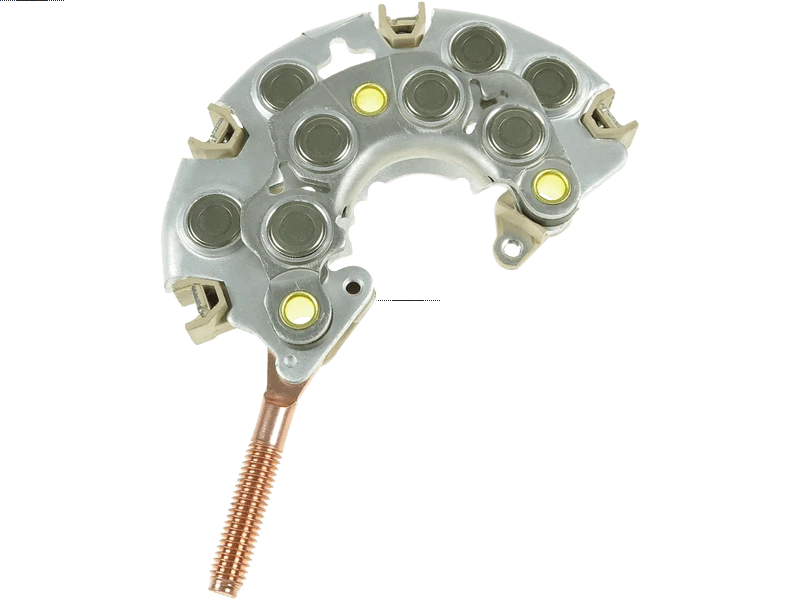

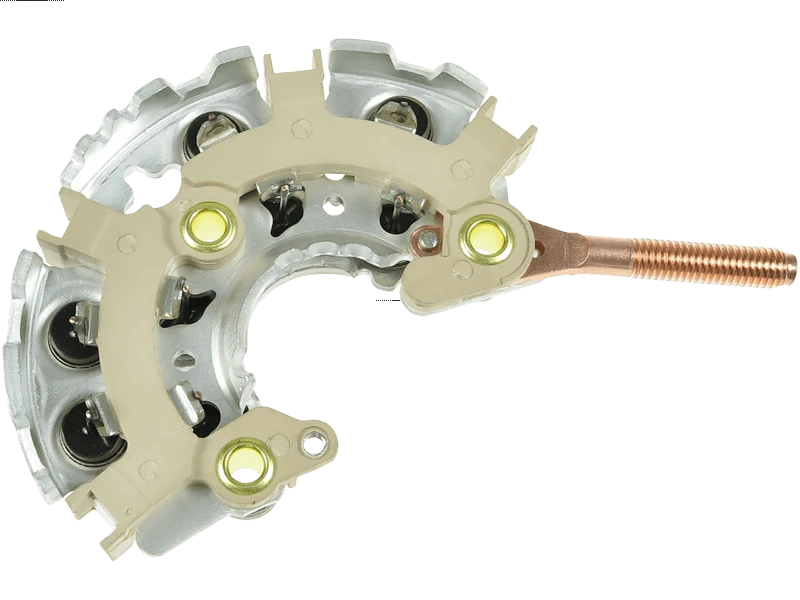

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 57.64 including GST
NZ$ 50.12 excluding GST
or four payments of $14.41
with
Learn More
each
ARC6013S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
1002116020 1002116030 1002116031 1002116040 1002116050 1002116051 1002116060 1002116100 1002116110 1002116120 1002116130 1002116131 1002116140 1002116150 1002116190 1002116350 1002118410 1012117892 1022110512 1022110981 1022114080 2R8310300AB XR8310300BC XR8310300BD32 XR8310300CC 2R83AB XR83BC XR83CC 1002116330 1012117010Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 30 mm |
| Diode Amp Rating | 40 A |
| Diodes (Main) | 8 qty |
| Height (H.1) | 22.7 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 114 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | DENSO |
| With Attached Bracket | No |
Reference Information
| 021580-3750 | DENSO |
| 021580-3990 | DENSO |
| 021580-4040 | DENSO |
| 021580-4100 | DENSO |
| 021580-4430 | DENSO |
| 021580-4690 | DENSO |
| 215980 | ERA |
| 27357-50030 | TOYOTA |
| 27357-50060 | TOYOTA |
| 27357-75060 | TOYOTA |
| 31127-PR7-A01 | HONDA |
| AEN1732 | KRAUF |
| AEN1733 | KRAUF |
| AM-26733 | AUTO MAGNETO |
| AM-26733E | AUTO MAGNETO |
| AM-26733I | AUTO MAGNETO |
| AM-26733U | AUTO MAGNETO |
| INR732PAL | WAI / TRANSPO |
| INR733PAL | WAI / TRANSPO |
| RCT6024 | ELECTROLOG |
| RCT6082 | ELECTROLOG |
| RCT6088 | ELECTROLOG |
| UD13877ARC | AS-PL |
Video/Publications
1002116100 1002116140 1012117892 1002116020 1002116120 1012117010 1002116060 1002116040 A6662S 2R83AB 1022114080 A6868S A6141 A6361 A6360 1022110512 A6380 XR83CC 1002118410 1002116030 1002116031 1002116130 1002116350 1002116131 1002116110 1002116330 XR8310300CC 1002116050 1002116051 1002116150 A6512S 1002116190 XR8310300BD32 XR8310300BC 1022110981 2R8310300AB XR83BCView your shopping basket or Browse other items in Rectifier.
