Associated Numbers
0123510004 0123510018 0123510021 0123510060 0123510074 0123510075 0123510105Specifications

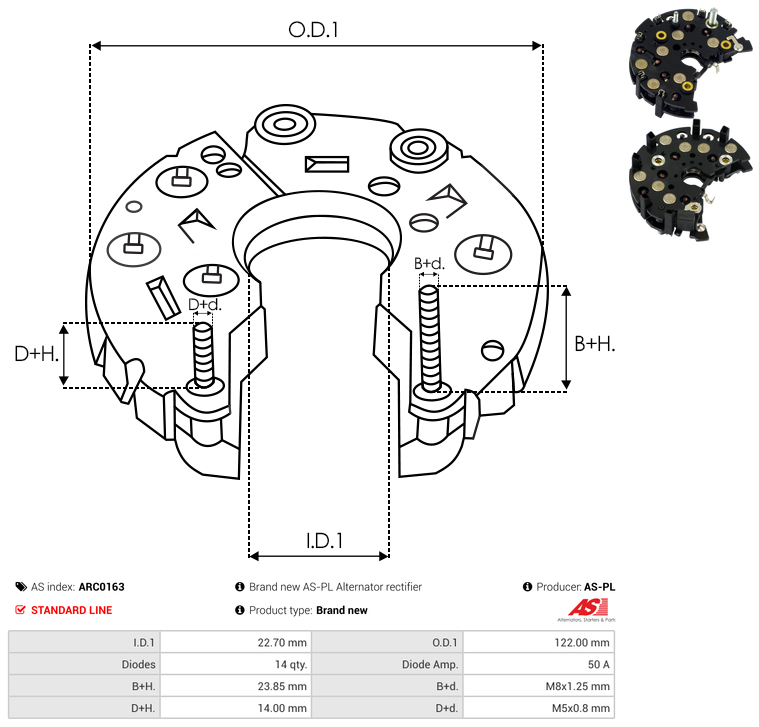

| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 23.85 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 14 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M5x0.8 mm |
| D+ Thread Height (D+H) | 14 mm |
| Inside Diameter (I.D.1) | 22.7 mm |
| Outside Diameter (O.D.1) | 122 mm |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
81116736 1127319035 RB-108H 215930 1127319710 RCT1145 138076 1127319635 RTF39919Video/Publications
123510074 81116736 RB-108H 123510060 123510021 123510075 0123510060 0123510074 0123510075 0123510021 1127319710 1127319635 1127319035 0123510004 0123510105 0123510018 123510004 215930 123510018 138076 RTF39919 123510105Add Your Number
