Associated Numbers
0124515116Specifications

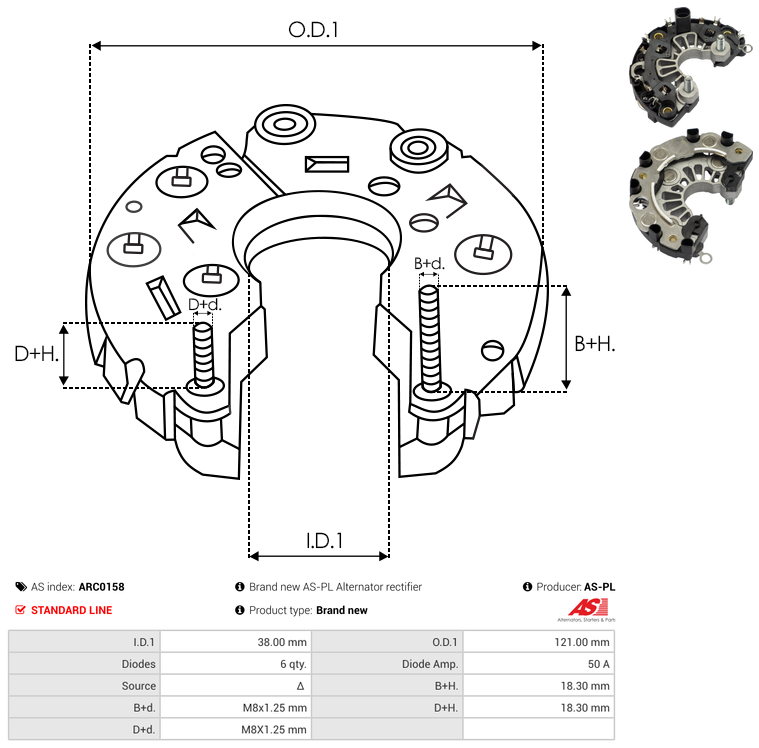

| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 18.3 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8X1.25 mm |
| D+ Thread Height (D+H) | 18.3 mm |
| Inside Diameter (I.D.1) | 38 mm |
| Outside Diameter (O.D.1) | 121 mm |
| Reg/Rec Combo | No |
| Source | ∆ |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
F00M133209 RCT1057Video/Publications
124515116 F00M133209 0124515116Add Your Number
