Associated Numbers
0124625018 0124625023 0124525137 MC00743Specifications

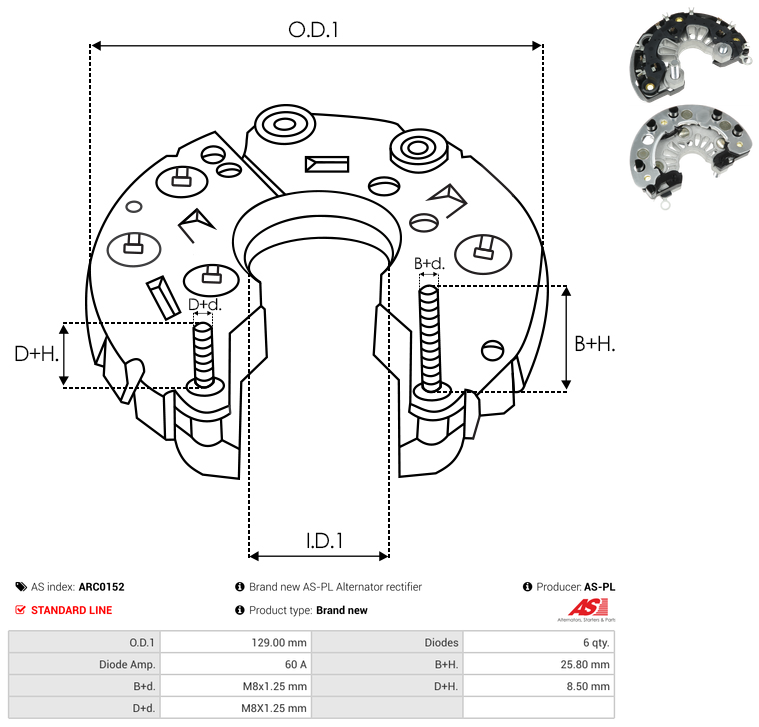

| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 25.8 mm |
| Diode Amp Rating | 60 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8X1.25 mm |
| D+ Thread Height (D+H) | 8.5 mm |
| Outside Diameter (O.D.1) | 129 mm |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
IBR257 F00M133257 RCT1059 038903359FVideo/Publications
IBR257 124525137 124625018 0124625023 0124525137 F00M133257 124625023 0124625018 038903359F MC00743Add Your Number
