ARC0136 - Brand new AS-PL Alternator rectifier

Name: Brand new AS-PL Alternator rectifier
Brand: AS-PL
SKU: ARC0136
Price: 73.28 NZD
Availability: InStock

Brand new AS-PL Alternator rectifier

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 73.28 including GST

NZ$ 63.72 excluding GST

UOM:

each

Product Code:

ARC0136

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Reference Information
Video/Publications
Add Your Number

01240AC30B 01240AC5HB 01240AD39A 01240AD39B 0124315025 0124315033 0124315034 0124325165 A0532S 0124315021

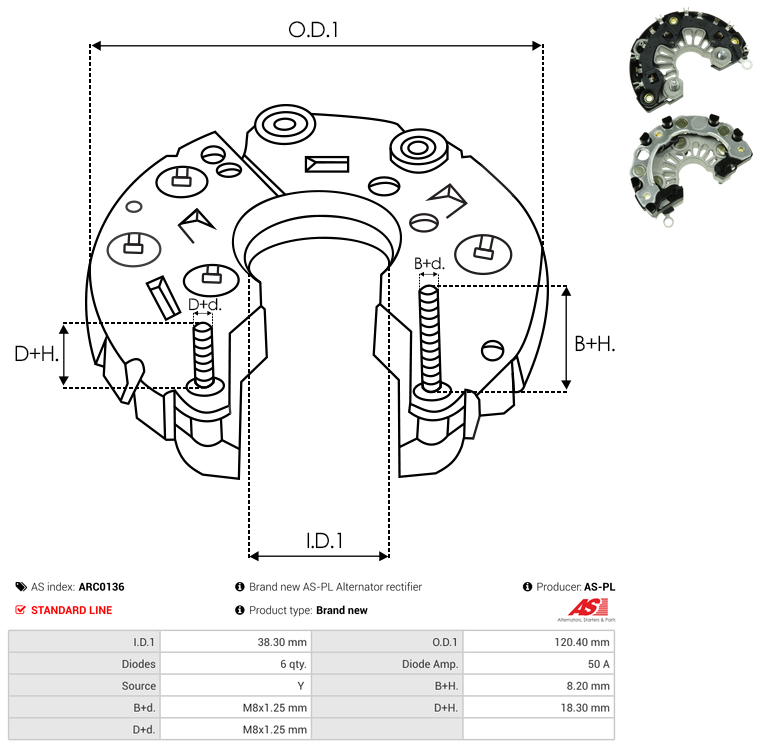

B+ Stud Diameter & Thread Pitch (B+d)	M8x1.25 mm
B+ Thread Length (B+H)	8.2 mm
Diode Amp Rating	50 A
Diodes (Main)	6 qty
D+ Stud Diameter & Thread Pitch (D+d)	M8x1.25 mm
D+ Thread Height (D+H)	18.3 mm
Inside Diameter (I.D.1)	38.3 mm
Outside Diameter (O.D.1)	120.4 mm
Reg/Rec Combo	No
Source	Y
Unit Type	BOSCH
With Attached Bracket	No

235694 RCT1052 IBR238 RTF39804 F00M123238 133714 F00M123323 RES11301

0124325165 124315021 235694 124315025 IBR238 A0785S A0210 0124315018 RES11301 01240AC30B 0124315025 01240AD39A 0124315021 01240AD39B 124325165 01240AC5HB RTF39804 0124325158 F00M123323 A0532S A0506 124315033 124655093 124315034 124325158 133714 A0738S 0124655093 0124315034 0124315033 124315018 F00M123238
