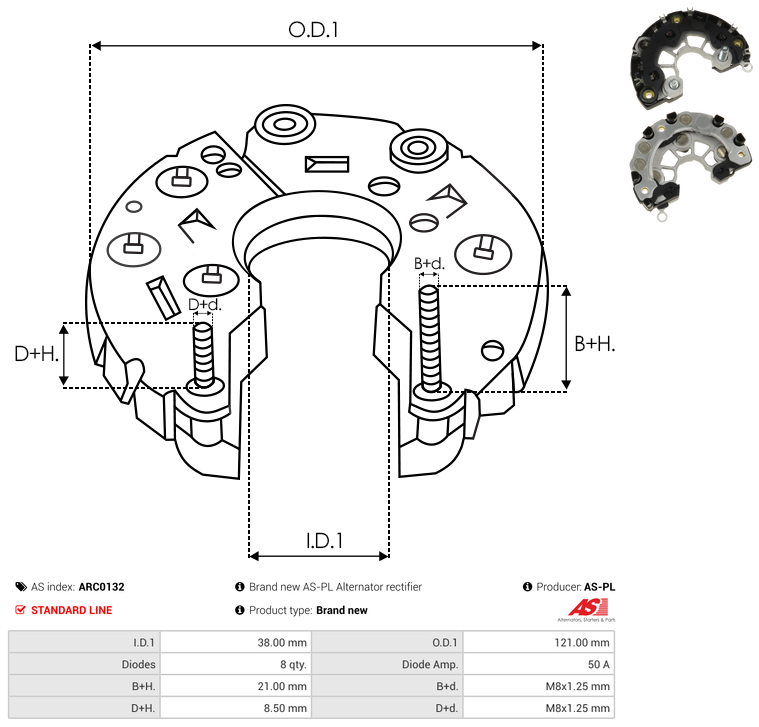

Specifications
B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
B+ Thread Length (B+H) | 21 mm |
Diode Amp Rating | 50 A |
Diodes (Main) | 8 qty |
D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
D+ Thread Height (D+H) | 8.5 mm |
Inside Diameter (I.D.1) | 38 mm |
Outside Diameter (O.D.1) | 121 mm |
Reg/Rec Combo | No |
Unit Type | BOSCH |
With Attached Bracket | No |
Video/Publications
A0633S 0124325109Add Your Number
