Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 107.16 including GST
NZ$ 93.18 excluding GST
or four payments of $26.79
with
Learn More
UOM:
each
Product Code:
ARC0109S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

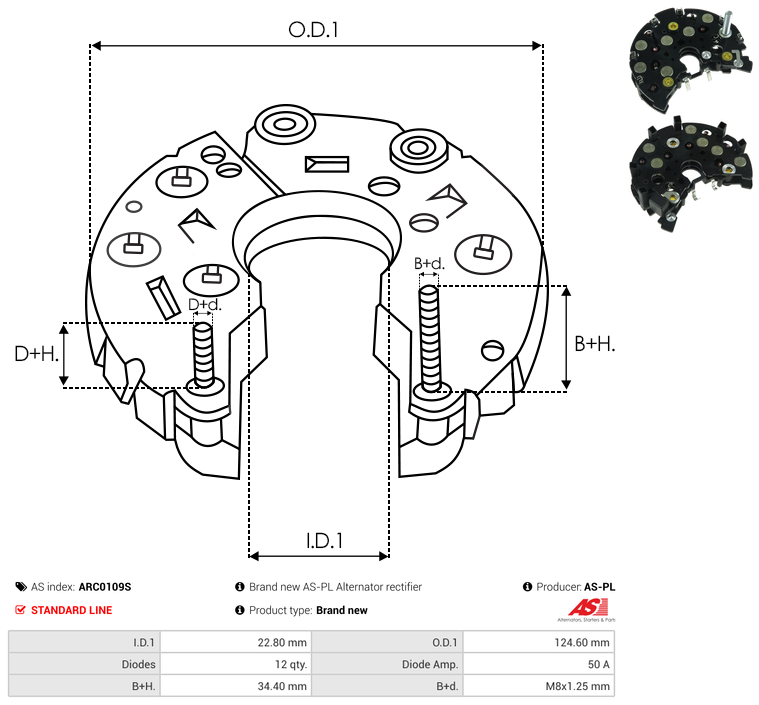

0123515022 0123515004 0123515030Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 34.40 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 12 qty |
| Inside Diameter (I.D.1) | 22.80 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 124.60 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 1127319643 | BOSCH |
| 1127319652 | BOSCH |
| 1127319691 | BOSCH |
| 1127319692 | BOSCH |
| 139252 | CARGO |
| 216166 | ERA |
| 81115902 | POWERMAX |
| CQ1080161 | CQ |
| F032139252 | CARGO |
| IBR692 | WAI / TRANSPO |
| RCT1155 | ELECTROLOG |
| RTF39816 | WOODAUTO |
| UD03087ARC | AS-PL |
Video/Publications
0123515001 0123515002 0123515004 0123515007 0123515010 0123515022 0123515030View your shopping basket or Browse other items in Rectifier.
