Associated Numbers
A3TG1891ZEB A5096Specifications

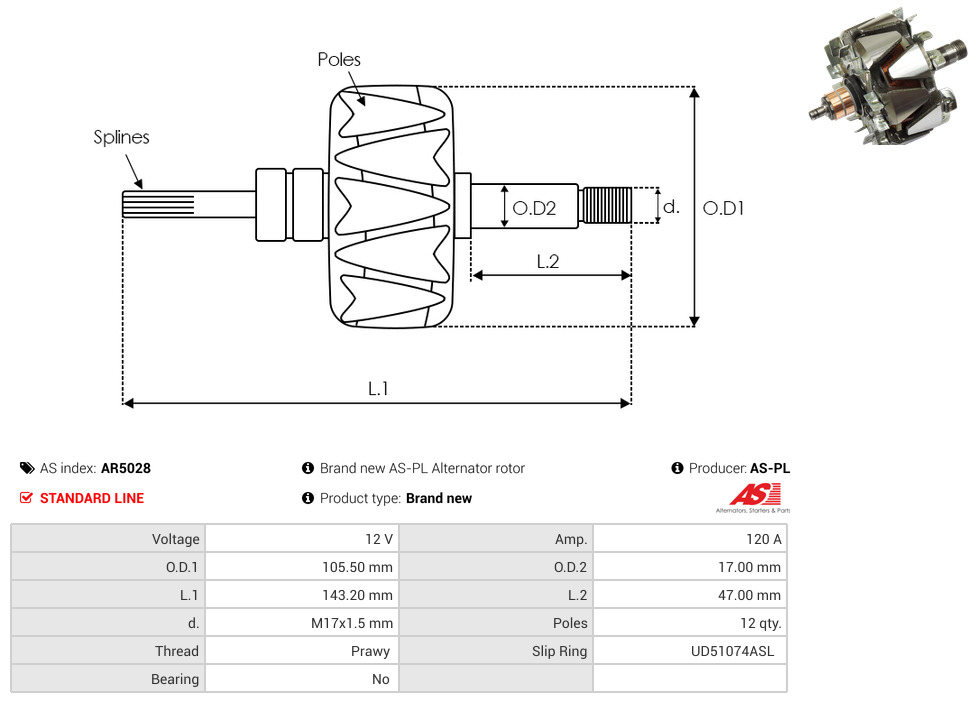

Amp | 120 A |
Fitted with Bearing | No |
Length (L.1) | 143.2 mm |
Length (L.2) | 47 mm |
Outside Diameter (O.D.1) | 105.5 mm |
Outside Diameter (O.D.2) | 17 mm |
Poles | 12 qty |
Slip Ring to Suit | UD51074ASL |
Thread Direction | Right |
Thread size & pitch (d.) | M17x1.5 mm |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Reference Information
UD02400ARVideo/Publications
A3TG0491 A3TG2681 A3TG1891ZEB A3TJ2391 A3TJ1181 A3TJ1191 A5213 UD02400AR A5104 A5137 A5055 A5242 A5254 A5211 A5096 A5060 A3TG3181 A3TG1291Add Your Number
