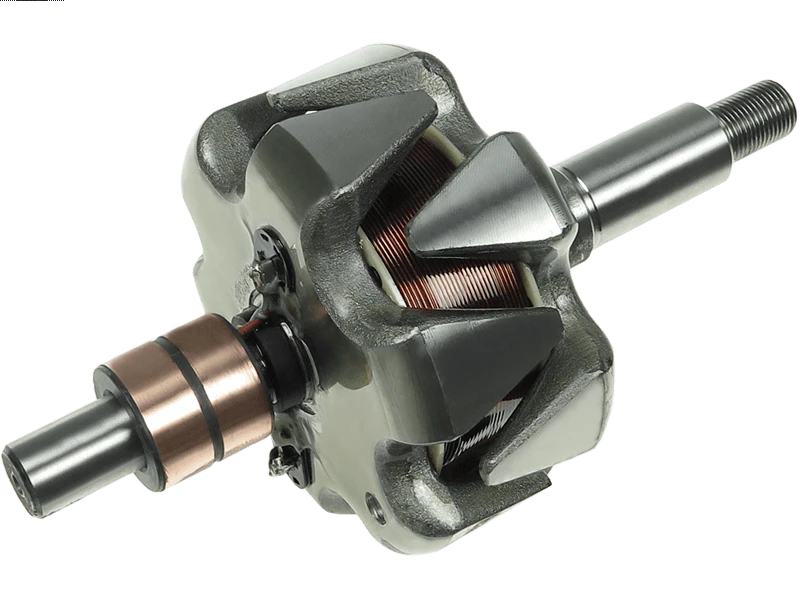

AR1012S - Brand new AS-PL Alternator rotor

Name: Brand new AS-PL Alternator rotor
Brand: AS-PL
SKU: AR1012S
Price: 175.05 NZD
Availability: InStock

Brand new AS-PL Alternator rotor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DELCO

Price:

NZ$ 175.05 including GST

NZ$ 152.22 excluding GST

UOM:

each

Product Code:

AR1012S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Reference Information
Video/Publications
Add Your Number

A1023 1117894 1117945 1117903 1117926 1117956 1117962 1117920 1117937 1117932 1117891 1117934 1117886 1117966 1117933 1117922 1117911 1117916 1117963 1117936 1117952 1117949 1117946 1117885 1117914 1117947 1117928 1117892 1117955 1117904 1117958 1117899 1117917 1117918 1117925 1117964 1117951 1117898 1117931 1117950 1117896 1117953 1117948 1117940 1117927 1117919 1117942 1117912 1117954 1117887 1117959 1117880 1117906 1117913 1117895 1117921 1117839 1117929 1117890 1117924 1117905 1117961

Amp	145 A
Length (L.1)	209 mm
Length (L.2)	83 mm
Outside Diameter (O.D.1)	107.6 mm
Outside Diameter (O.D.2)	22 mm
Poles	12 qty
Slip Ring to Suit	ASL9035
Thread size & pitch (d.)	UNF 5/8" - 18G mm
Unit Type	DELCO
Voltage	12 V

10470606 28-131 232818 D3186 WRT67057 66-01-3296 AVD2818 10467263 ROT2637 UD46454AR 2801-2112

1117906 1117949 1117905 1117942 1117904 1117948 1117903 1117947 1117946 1117945 1117940 232818 WRT67057 AVD2818 2801-2112 66-01-3296 1117933 1117932 1117899 A1036 1117898 1117931 10467263 1117937 1117936 1117934 1117892 1117891 1117890 1117896 28-131 1117895 1117894 1117929 1117928 1117927 1117966 1117922 1117921 1117920 1117964 1117887 A1023 1117886 1117963 1117926 1117925 1117924 1117880 1117962 1117885 1117961 1117919 1117918 1117917 1117916 1117839 1117911 1117955 1117954 1117953 19020309 1117952 1117959 A1017 1117914 1117958 1117913 1117956 1117912 19020306 10470606 1117951 1117950 D3186 UD46454AR
