Associated Numbers

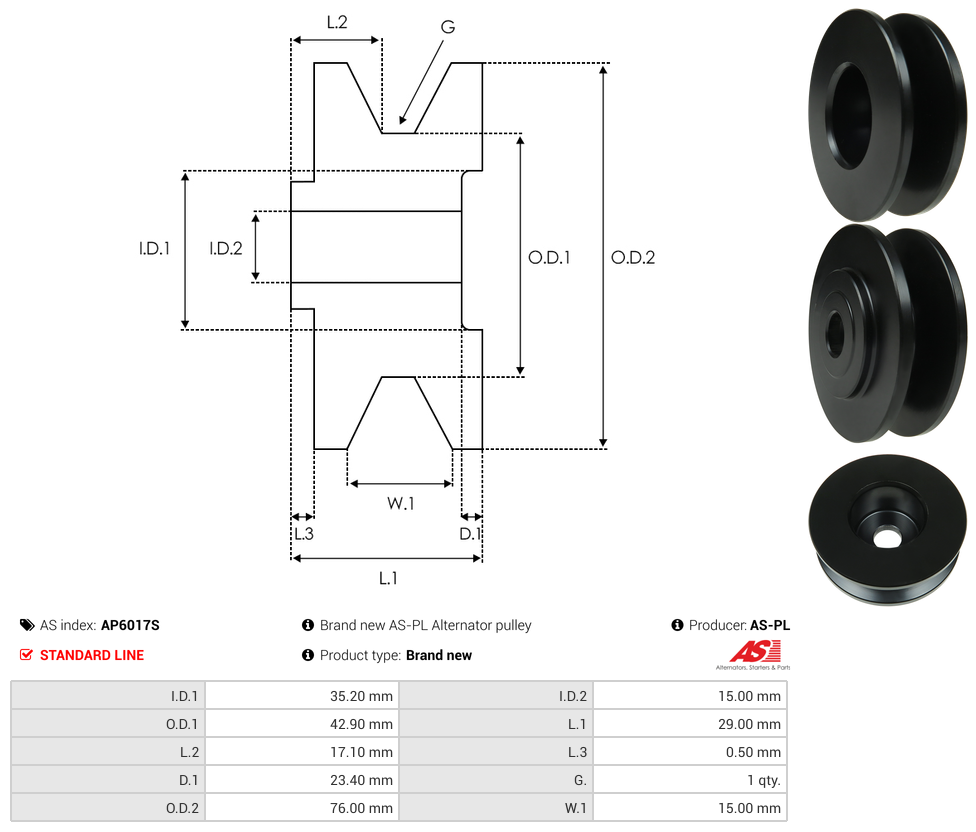

A6020 2706078301 1002114000 1002114001 1002114002 1002114003 1002114004 1002114100 1002114101 1002114103 1002114104 1002114190 1002114191 1002114910 1002114911 1002116930 1002116940 1002116941 1002116950 1002116951 1002116960Specifications
| Depth (D.1) | 23.40 mm |
| Inside Diameter (I.D.1) | 35.20 mm |
| Inside Diameter (I.D.2) | 15 mm |
| Length 3 (L.3) | 0.50 mm |
| Length (L.1) | 29 mm |
| Length (L.2) | 17.10 mm |
| OEM Product | No |
| On Sale Item | Yes |
| Outside Diameter (O.D.2) | 76 mm |
| Outside Diameter (O.D.2) | 42.90 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Unit Type | DENSO |
| Width (W.1) | 15 mm |
Reference Information
| UD42234AP | AS-PL |
| UD45193AP | AS-PL |
