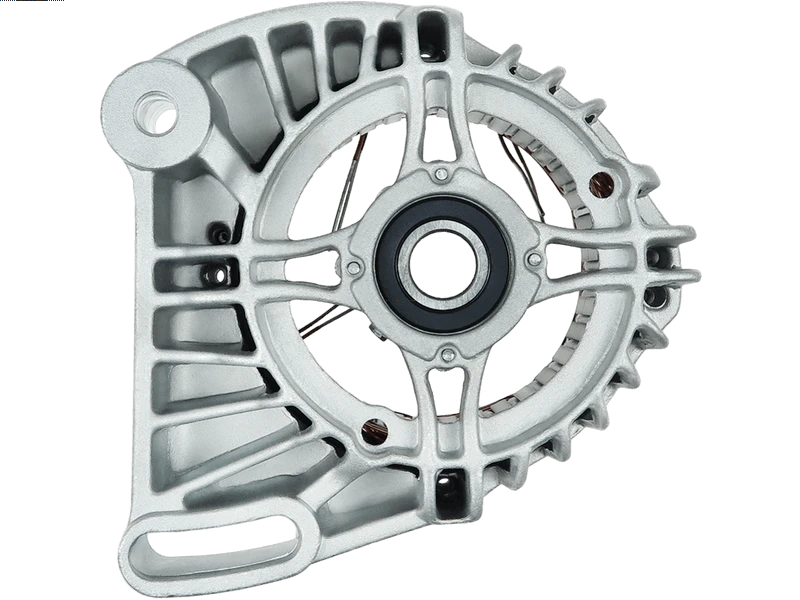

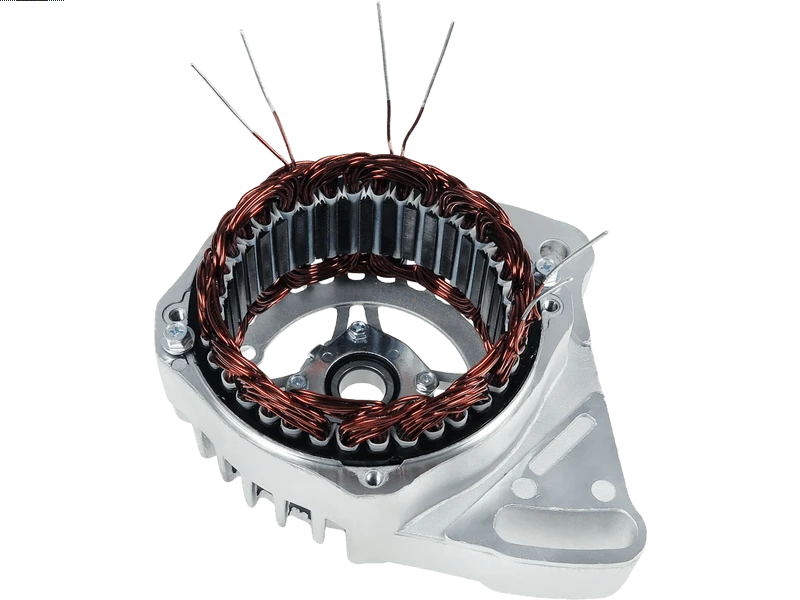

Brand new AS-PL Alternator D.E. bracket with stator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 142.90 including GST
NZ$ 124.26 excluding GST
or four payments of $35.73
with
Learn More
UOM:
each
Product Code:
ABR4045
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063321626010 063321747010 63321626 63321713 63321747 63321867 063321200010 063321270010 063321600010 063321600020 063321671010 063321712010 63320200 63320219 63320253 63320500 63321200 63321270 63321600 63321712 63321742 A4003Specifications
| Amp | 65 A |
| Height (H.1) | 65.00 mm |
| Inside Diameter (I.D.1) | 92.00 mm |
| Inside Diameter (I.D.2) | 40 mm |
| Lam. Stack Height (H.3) | 29.20 mm |
| No./Leads | 3 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 118.00 mm |
| Outside Diameter of Windings (O.D.3) | 109.40 mm |
| Position | DE Bracket |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Reference Information
| 083608351010 | MAGNETI MARELLI |
| 083608351020 | MAGNETI MARELLI |
| 083616551010 | LUCAS |
| 138171 | CARGO |
| 231010 | CARGO |
| 83608351 | MAGNETI MARELLI |
| 83610691 | MAGNETI MARELLI |
| 83616551 | MAGNETI MARELLI |
| 9946082 | FIAT |
| 9946537 | FIAT |
| AFE8171 | KRAUF |
| CQ1190005 | CQ |
| F032138171 | CARGO |
| F032231010 | CARGO |
| STA4073 | ELECTROLOG |
| WST87878 | WOODAUTO |
| WST89145 | WOODAUTO |
