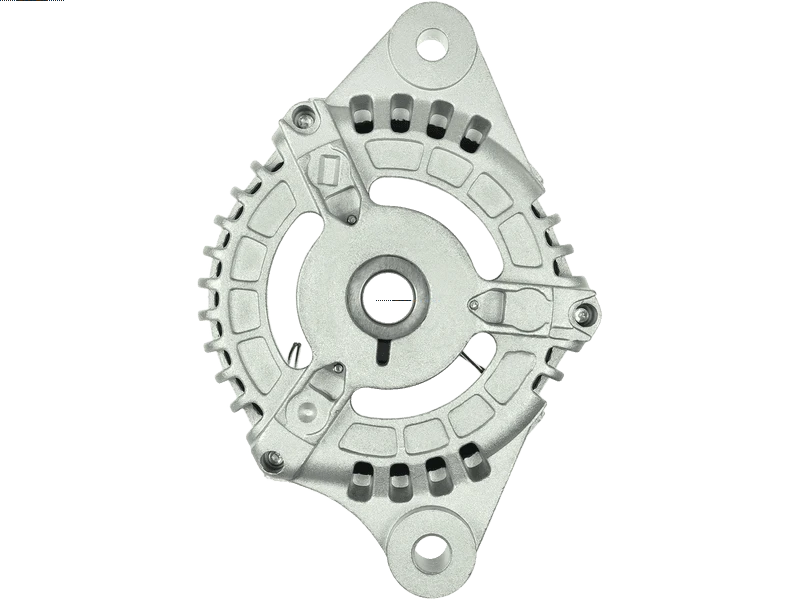

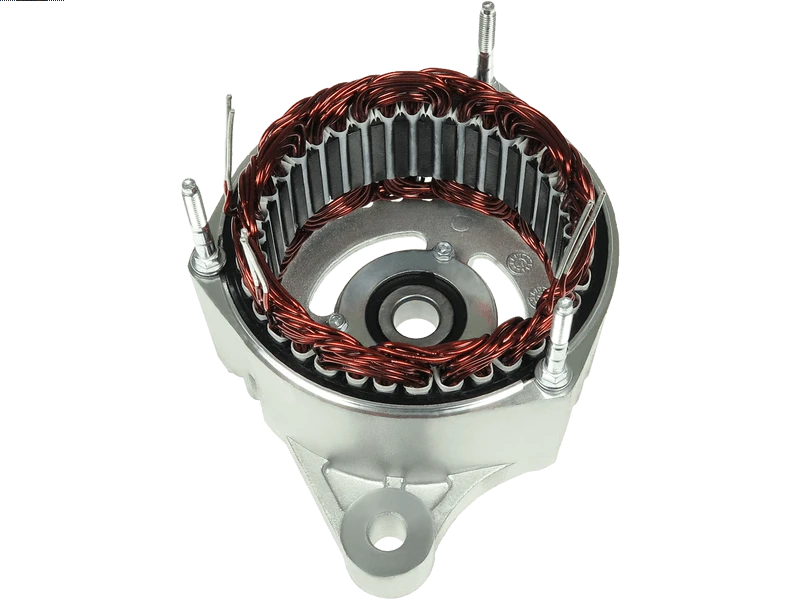

Brand new AS-PL Alternator D.E. bracket with stator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 157.31 including GST
NZ$ 136.79 excluding GST
or four payments of $39.33
with
Learn More
UOM:
each
Product Code:
ABR4026
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
63321801 63321803 63321804Specifications
| Amp | 100 A |
| Height (H.1) | 7.00 mm |
| Inside Diameter (I.D.1) | 129 mm |
| Inside Diameter (I.D.2) | 52 mm |
| Lam. Stack Height (H.3) | 33.00 mm |
| No./Leads | 3 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 129.00 mm |
| Outside Diameter of Windings (O.D.3) | 120.00 mm |
| Position | DE Bracket |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Reference Information
| 137224 | CARGO |
| 231538 | CARGO |
| 83615251 | MAGNETI MARELLI |
| 83615331 | MAGNETI MARELLI |
| 83615351 | MAGNETI MARELLI |
| 83627521 | MAGNETI MARELLI |
| BDEA9028 | ELECTROLOG |
| BDEA9029 | ELECTROLOG |
| BKT41026 | WOODAUTO |
| CSR30014AS | CASCO |
| F032137224 | CARGO |
| F032231538 | CARGO |
| S/217 | ORME |
| SSR30014 | SANDO |
| WST8588 | WOODAUTO |
