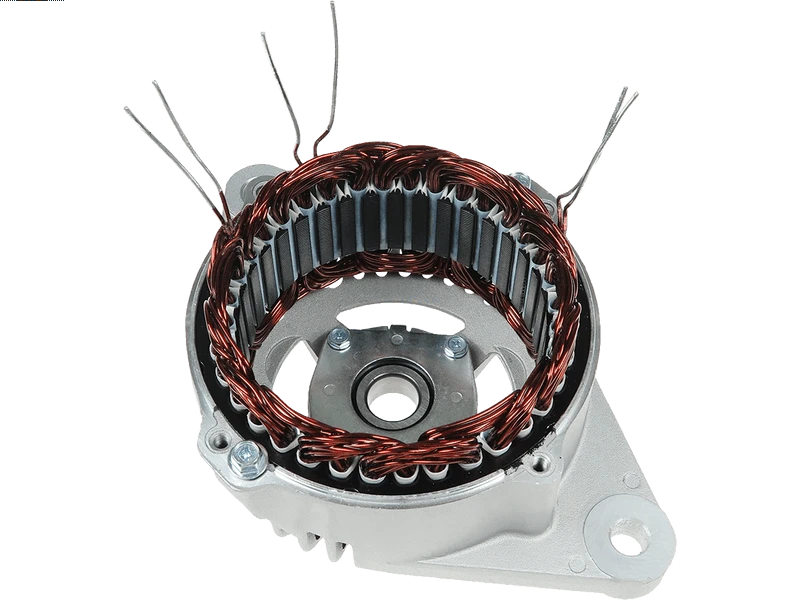

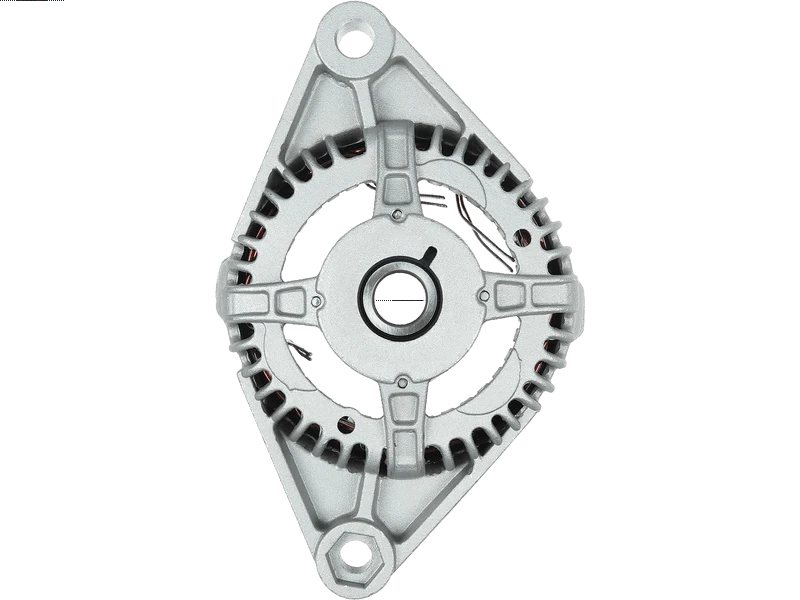

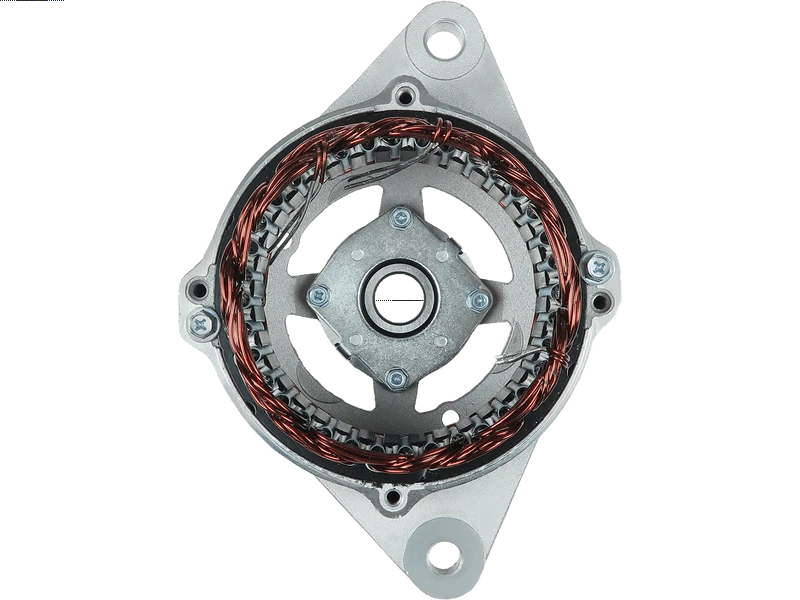

Brand new AS-PL Alternator D.E. bracket with stator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 154.19 including GST
NZ$ 134.08 excluding GST
or four payments of $38.55
with
Learn More
UOM:
each
Product Code:
ABR4019
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063321204010 063321275010 063321282010 063321362010 063321367010 063321615010 063321616010 063321660010 063321661010 63320203 63320263 63320511 63321204 63321251 63321275 63321282 63321362 63321367 63321615 63321616 63321655 63321660 63321661 063321615000 63321205 63321276 63321617Specifications
| Amp | 65 A |
| Height (H.1) | 65.00 mm |
| Inside Diameter (I.D.1) | 92.00 mm |
| Inside Diameter (I.D.2) | 47 mm |
| Lam. Stack Height (H.3) | 29.20 mm |
| No./Leads | 3 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 118.00 mm |
| Outside Diameter of Windings (O.D.3) | 109.40 mm |
| Position | DE Bracket |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Reference Information
| 083608541010 | LUCAS |
| 138456 | CARGO |
| 83608541 | MAGNETI MARELLI |
| CQ1190006 | CQ |
| F032138456 | CARGO |
| STA4075 | ELECTROLOG |
| WST87880 | WOODAUTO |
