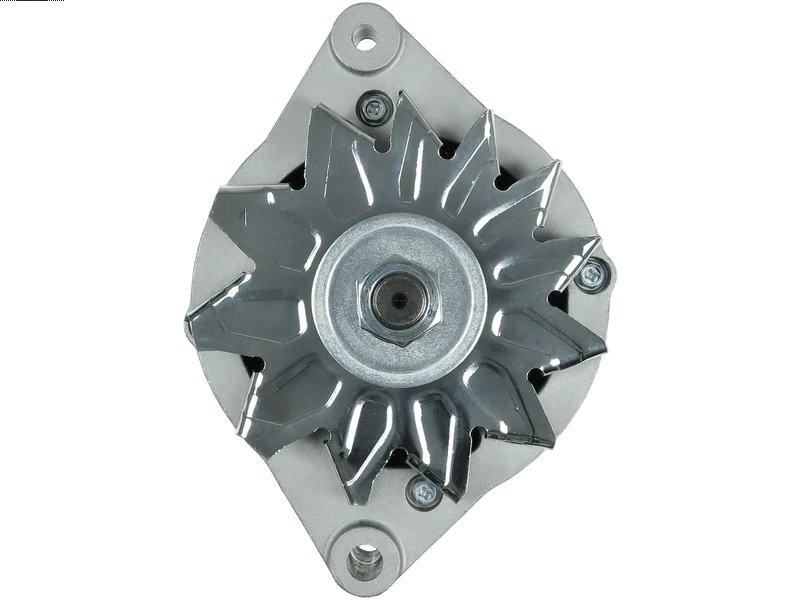

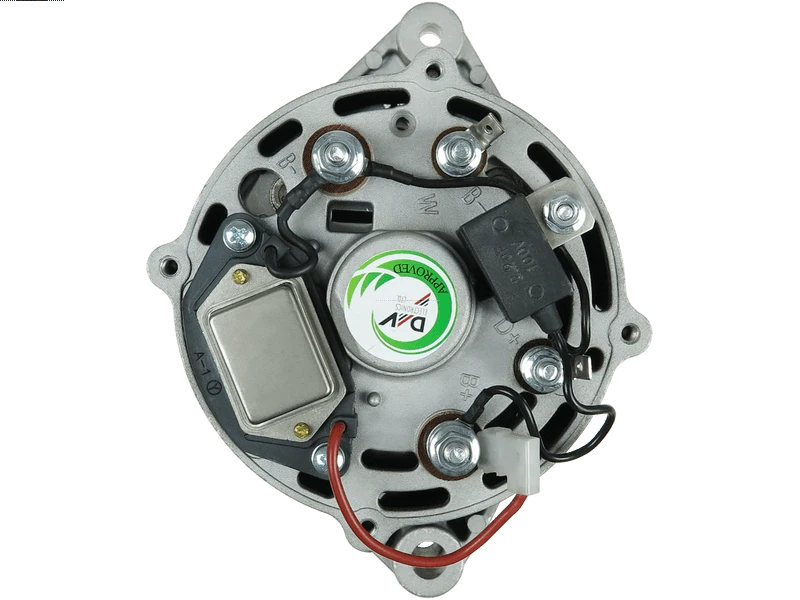

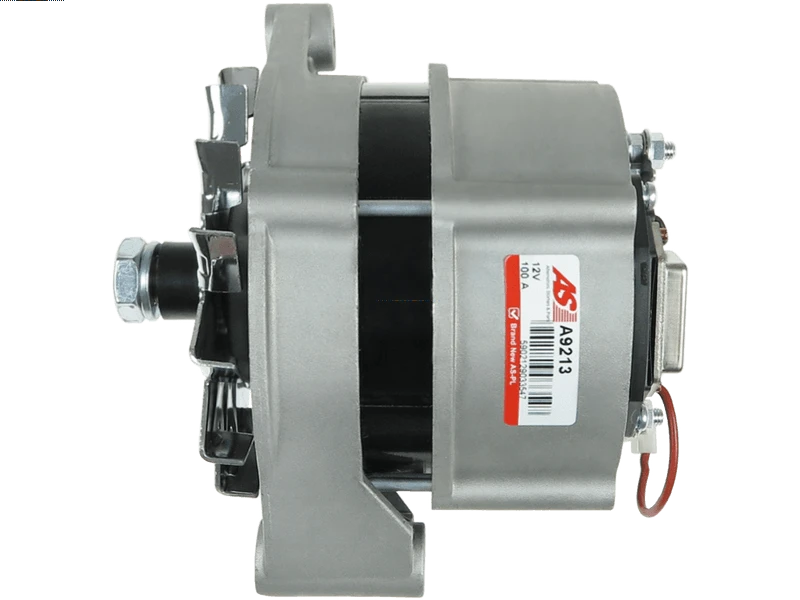

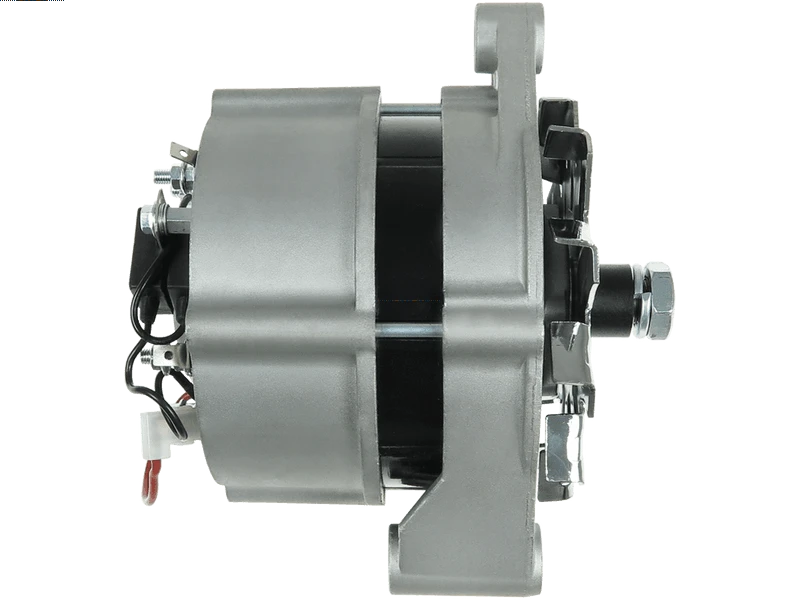

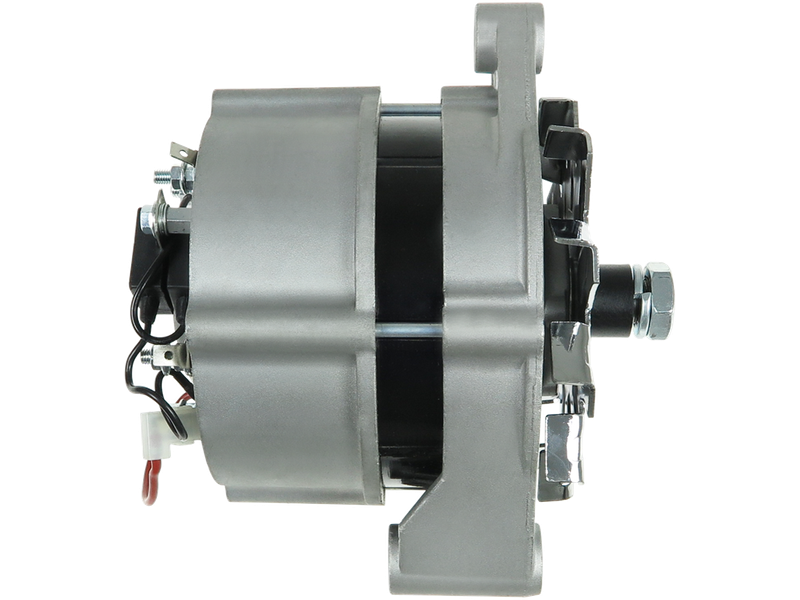

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 265.62 including GST
NZ$ 230.97 excluding GST
or four payments of $66.41
with
Learn More
UOM:
each
Alternative Item:
A3042
Product Code:
A9213
Quantity In Stock Nationally
1 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- < Critical Notes >
Information
11.204.062Associated Numbers
11.204.062 11.205.071 3803260-3 815.019.100 872019-5 8722357 873633 873770 AAK3830 AAK4675 IA1450 MAHMG58 MG58 UD13071A 11203416 Mahle show 11204062 113631 Cargo 113639 12090221 EuroTec 20150113 Prestolite 286813 Elstock 510839 Valeo 72735308 7387 Lester 815019100 PSH 872235 Volvo 8EL730041001 Hella 8SA2004R 90059049 Wilson AAK4352 IA1202 IA1450SEL +line LRA03673 Lucas MG309 110-127 11.203.416 8EL730041-001 CA743IR 110127 20721 10444566 Alanko 11205071 20721N WAI 2381621002 DRI 282159 PIC 444566 89214244 PowerMax A135085 Short code A147896 A158684 A9213 AS-PL AIE1113 Everkraft AL03288 TMI ALT20708 Wood Auto APE1039 Quasar AVA490 AutoTeam CAL15490GS Casco CAL21197 IR5967 Protech LETIA1202 LETIA1450 MAHMG309 PRE20150113 RNLIA1450 RNL WOOALT20708Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 50.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 11.50 mm |
| Insulated Earth | Yes |
| Length (L.1) | 173 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Outside Diameter (O.D.2) | 70 mm |
| Pulley Type | No Pulley |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO PENTA | Engine | [D1-30A] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D1-30B] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-40A] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-40B | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-40C] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-55A] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-55B] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-55C] | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D-75A] | 01.2003-01.2007 |
| VOLVO PENTA | Engine | [MD2010] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [MD2010A] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [MD2010B] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [MD2010C] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [MD2010D] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [MD2020] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2020A] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2020B] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2020C] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2020D] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2040] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2040A] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2040B] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2040C] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD2040D] | 01.1994-01.2002 |
| VOLVO PENTA | Engine | [MD22] | 01.1988-01.2002 |
| VOLVO PENTA | Engine | [MD22A] | 01.1988-01.2002 |
| VOLVO PENTA | Engine | [MD22L] | 01.1988-01.2002 |
| VOLVO PENTA | Engine | [MD22P] | 01.1988-01.2002 |
| VOLVO PENTA | Engine | [TAMD22P] | 01.1995-01.2003 |
| VOLVO PENTA | Engine | [TAMD31A] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31B] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31D] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31L] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31M] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31P] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31S] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD31X] | 01.1985-01.2004 |
| VOLVO PENTA | Engine | [TAMD63L] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [TAMD63P] | 01.1994-01.2005 |
| VOLVO PENTA | Engine | [TAMD71] | 01.1986-01.2000 |
| VOLVO PENTA | Engine | [TAMD71A] | 01.1986-01.2000 |
| VOLVO PENTA | Engine | [TAMD71B] | 01.1986-01.2000 |
| VOLVO PENTA | Engine | [TAMD73P] | 01.1997-01.1999 |
| VOLVO PENTA | Engine | [TAMD74A] | 01.1998-01.2005 |
| VOLVO PENTA | Engine | [TAMD74C] | 01.1998-01.2005 |
| VOLVO PENTA | Engine | [TAMD74L] | 01.1998-01.2005 |
| VOLVO PENTA | Engine | [TAMD74P] | 01.1998-01.2005 |
| VOLVO PENTA | Engine | [TAMD75P] | 01.1998-01.2005 |
| VOLVO PENTA | Engine | [TMD22] | 01.1993-01.2002 |
| VOLVO PENTA | Engine | [TMD22A] | 01.1993-01.2002 |
| VOLVO PENTA | Engine | [TMD22P] | 01.1993-01.2002 |
| VOLVO PENTA | Engine | D1-30A | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D1-30B | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D2-40A | 01.2005-01.2007 |
| VOLVO PENTA | Engine | [D2-40B | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D2-40C | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D2-55A | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D2-55B | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D2-55C | 01.2005-01.2007 |
| VOLVO PENTA | Engine | D-75A | 01.2003-01.2007 |
| VOLVO PENTA | Engine | MD2010 | 01.1994-01.2005 |
| VOLVO PENTA | Engine | MD2010A | 01.1994-01.2005 |
| VOLVO PENTA | Engine | MD2010B | 01.1994-01.2005 |
| VOLVO PENTA | Engine | MD2010C | 01.1994-01.2005 |
| VOLVO PENTA | Engine | MD2010D | 01.1994-01.2005 |
| VOLVO PENTA | Engine | MD2020 | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2020A | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2020B | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2020C | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2020D | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2040 | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2040A | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2040B | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2040C | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD2040D | 01.1994-01.2002 |
| VOLVO PENTA | Engine | MD22 | 01.1988-01.2002 |
| VOLVO PENTA | Engine | MD22A | 01.1988-01.2002 |
| VOLVO PENTA | Engine | MD22L | 01.1988-01.2002 |
| VOLVO PENTA | Engine | MD22P | 01.1988-01.2002 |
| VOLVO PENTA | Engine | TAMD22P | 01.1995-01.2003 |
| VOLVO PENTA | Engine | TAMD31A | 01.1985-01.2004 |
| VOLVO PENTA | Engine | TAMD31B | 01.1985-01.2004 |
| VOLVO PENTA | Engine | TAMD31D | 01.1985-12.2004 |
| VOLVO PENTA | Engine | TAMD31L | 01.1985-01.2004 |
| VOLVO PENTA | Engine | TAMD31M | 01.1985-01.2004 |
| VOLVO PENTA | Engine | TAMD31P | 01.1985-01.2004 |
| VOLVO PENTA | Engine | TAMD31S | 01.1985-01.2004 |
| VOLVO PENTA | Engine | TAMD31X | 01.1985-12.2004 |
| VOLVO PENTA | Engine | TAMD63L | 01.1994-01.2005 |
| VOLVO PENTA | Engine | TAMD63P | 01.1994-01.2005 |
| VOLVO PENTA | Engine | TAMD71 | 01.1986-01.2000 |
| VOLVO PENTA | Engine | TAMD71A | 01.1986-01.2000 |
| VOLVO PENTA | Engine | TAMD71B | 01.1986-01.2000 |
| VOLVO PENTA | Engine | TAMD73P | 01.1997-01.1999 |
| VOLVO PENTA | Engine | TAMD74A | 01.1998-01.2005 |
| VOLVO PENTA | Engine | TAMD74C | 01.1998-01.2005 |
| VOLVO PENTA | Engine | TAMD74L | 01.1998-01.2005 |
| VOLVO PENTA | Engine | TAMD74P | 01.1998-01.2005 |
| VOLVO PENTA | Engine | TAMD75P | 01.1998-01.2005 |
| VOLVO PENTA | Engine | TMD22 | 01.1993-01.2002 |
| VOLVO PENTA | Engine | TMD22A | 01.1993-01.2002 |
| VOLVO PENTA | Engine | TMD22P | 01.1993-01.2002 |
| VOLVO PENTA | Engine 0.8 | [D1-20A] | 01.2005-01.2007 |
| VOLVO PENTA | Engine 0.8 | D1-20A | 01.2003-01.2007 |
| VOLVO PENTA | Engine 0.8 | [D1-20B] | 01.2005-01.2007 |
| VOLVO PENTA | Engine 0.8 | D1-20B | 01.2003-01.2007 |
| VOLVO PENTA | Engine 2.0 | [AD31] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31 | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | [AD31A] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31A | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | [AD31B] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31B | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | [AD31D] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31D | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | [AD31L] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31L | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | [AD31P] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31P | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | [AD31X] | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.0 | AD31X | 01.1986-01.2004 |
| VOLVO PENTA | Engine 2.4 | [KAD32P] | 01.1996-01.2005 |
| VOLVO PENTA | Engine 2.4 | KAD32P | 01.1996-12.2005 |
| VOLVO PENTA | Engine 3.6 | [AD41A] | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | AD41A | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | [AD41B] | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | AD41B | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | [AD41D] | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | AD41D | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | [AD41L] | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | AD41L | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | [AD41P] | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | AD41P | 01.1988-01.2005 |
| VOLVO PENTA | Engine 3.6 | [D41A] | 01.1988-01.1999 |
| VOLVO PENTA | Engine 3.6 | D41A | 01.1988-12.1999 |
| VOLVO PENTA | Engine 3.6 | [D41AD] | 01.1988-01.1999 |
| VOLVO PENTA | Engine 3.6 | D41AD | 01.1988-01.1999 |
| VOLVO PENTA | Engine 3.6 | [D41AL] | 01.1988-01.1999 |
| VOLVO PENTA | Engine 3.6 | D41AL | 01.1988-01.1999 |
| VOLVO PENTA | Engine 3.6 | [D41B] | 01.1988-01.1999 |
| VOLVO PENTA | Engine 3.6 | D41B | 01.1988-12.1999 |
| VOLVO PENTA | Engine 3.6 | [KAD300] | 01.2001-01.2005 |
| VOLVO PENTA | Engine 3.6 | KAD300 | 01.1988-12.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD42A] | 01.1991-01.2001 |
| VOLVO PENTA | Engine 3.6 | KAD42A | 01.1991-01.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD42B] | 01.1991-01.2001 |
| VOLVO PENTA | Engine 3.6 | KAD42B | 01.1991-01.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD42P] | 01.1991-01.2001 |
| VOLVO PENTA | Engine 3.6 | KAD42P | 01.1991-01.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD43P] | 01.1997-01.2005 |
| VOLVO PENTA | Engine 3.6 | KAD43P | 01.1988-12.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD44P] | 01.1997-01.2004 |
| VOLVO PENTA | Engine 3.6 | KAD44P | 01.1997-01.2005 |
| VOLVO PENTA | Engine 3.6 | [KAMD300] | 01.2001-01.2004 |
| VOLVO PENTA | Engine 3.6 | KAMD300 | 01.1997-12.2004 |
| VOLVO PENTA | Engine 3.6 | [KAMD43P] | 01.1997-01.2005 |
| VOLVO PENTA | Engine 3.6 | KAMD43P | 01.1989-12.2005 |
| VOLVO PENTA | Engine 3.6 | [KAMD44P] | 01.1999-01.2004 |
| VOLVO PENTA | Engine 3.6 | KAMD44P | 01.1997-01.2005 |
Reference Information
| 11.204.062 | ISKRA / LETRIKA |
| 11.205.071 | ISKRA / LETRIKA |
| 113631 | CARGO |
| 20721N | WAI |
| 510839 | VALEO |
| 815.019.100.090 | WAI |
| A135.085 | WAI |
| A9213 | AS-PL |
| AAK3830 | ISKRA / LETRIKA |
| AAK4675 | ISKRA / LETRIKA |
| ALT79521 | ELECTROLOG |
| ALT7980 | ELECTROLOG |
| F032113631 | CARGO |
| IA1450 | ISKRA / LETRIKA |
| MAHMG58 | WOODAUTO |
| MG 58 | MAHLE |
| MG58 | MAHLE |
| UD13071A | AS-PL |
Video/Publications
A9213< Critical Notes >
Do not use Splitting Diode Blocks** with this alternator, Use a Voltage Sensitive Relay (VSR) or DC/DC Converter.
** Splitting Diode Blocks were used in many older set ups where the output from the Alternator would run the the 'Common' terminal of the block, then a Starting battery would connect to one Diode, A 'House/Secondary' Battery would connect to the other diode, this keeps both batterys seperate but charged off the 1 Alternator.
This Alternator will not work with these diode set ups and a VSR or DC/DC Converter will be required.
