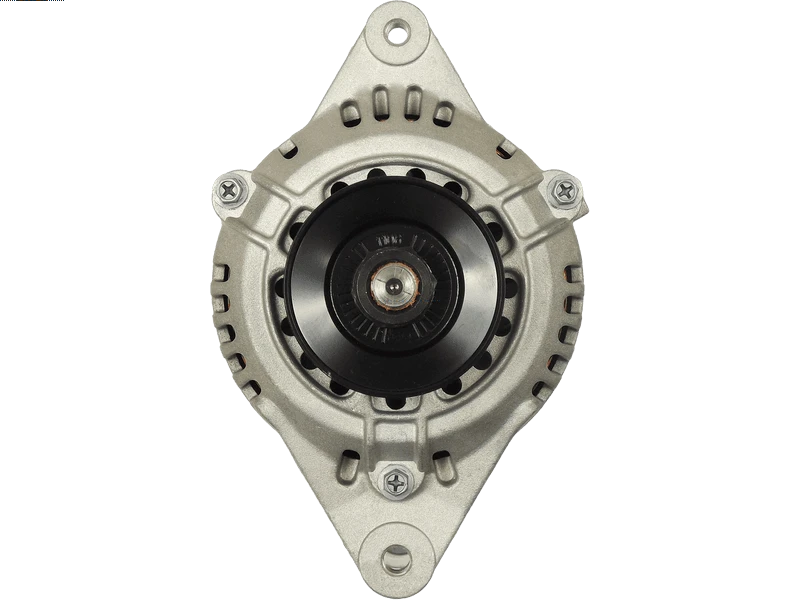

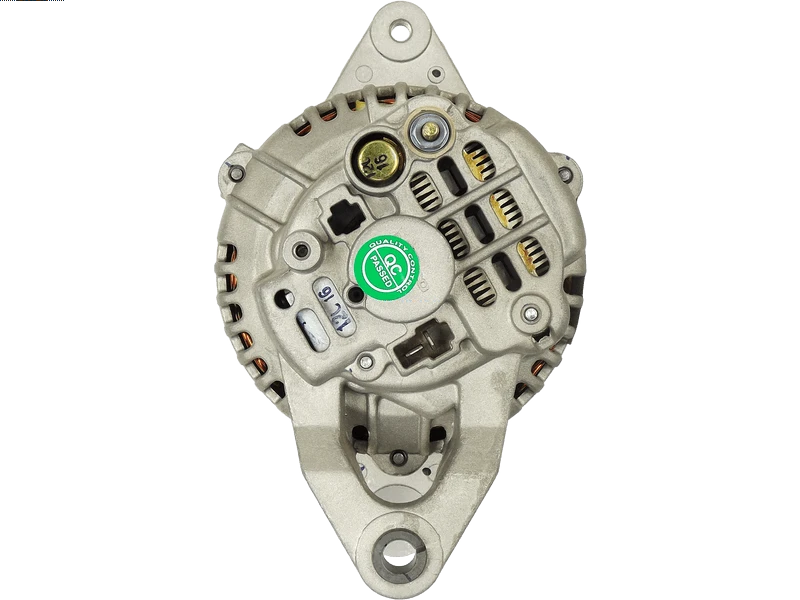

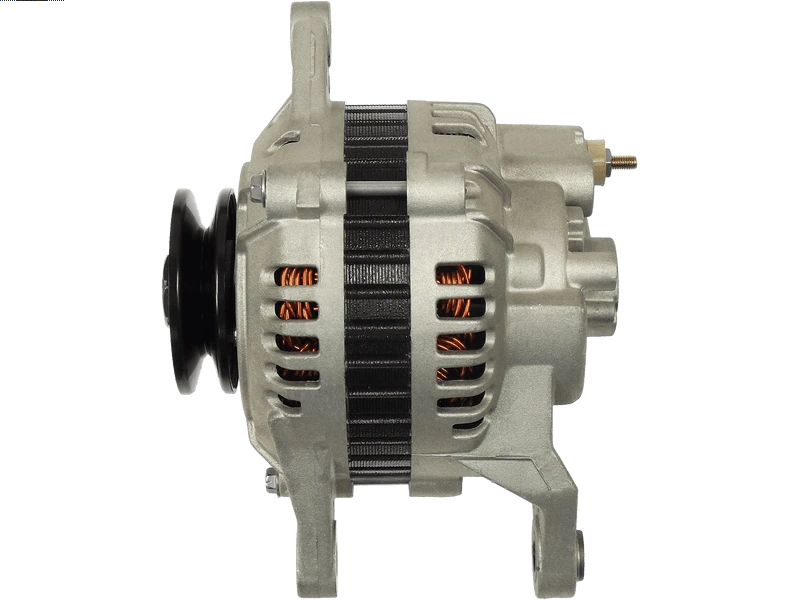

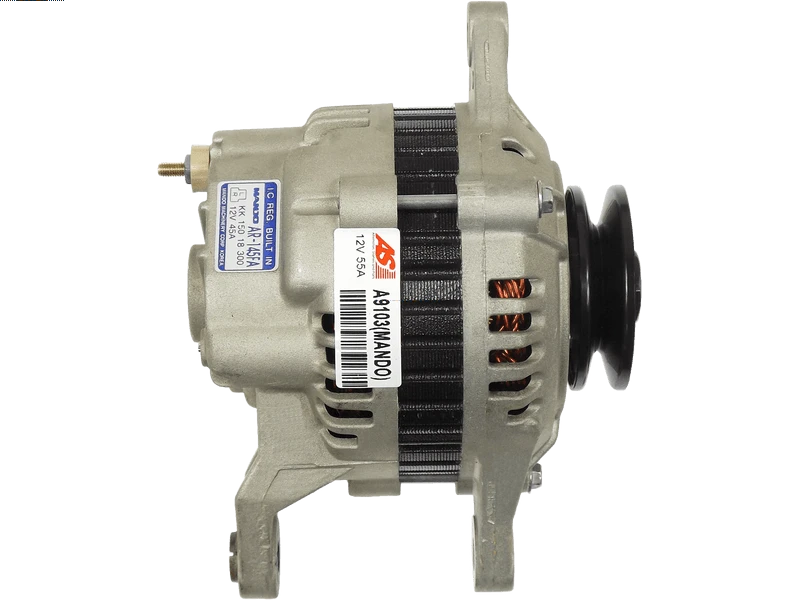

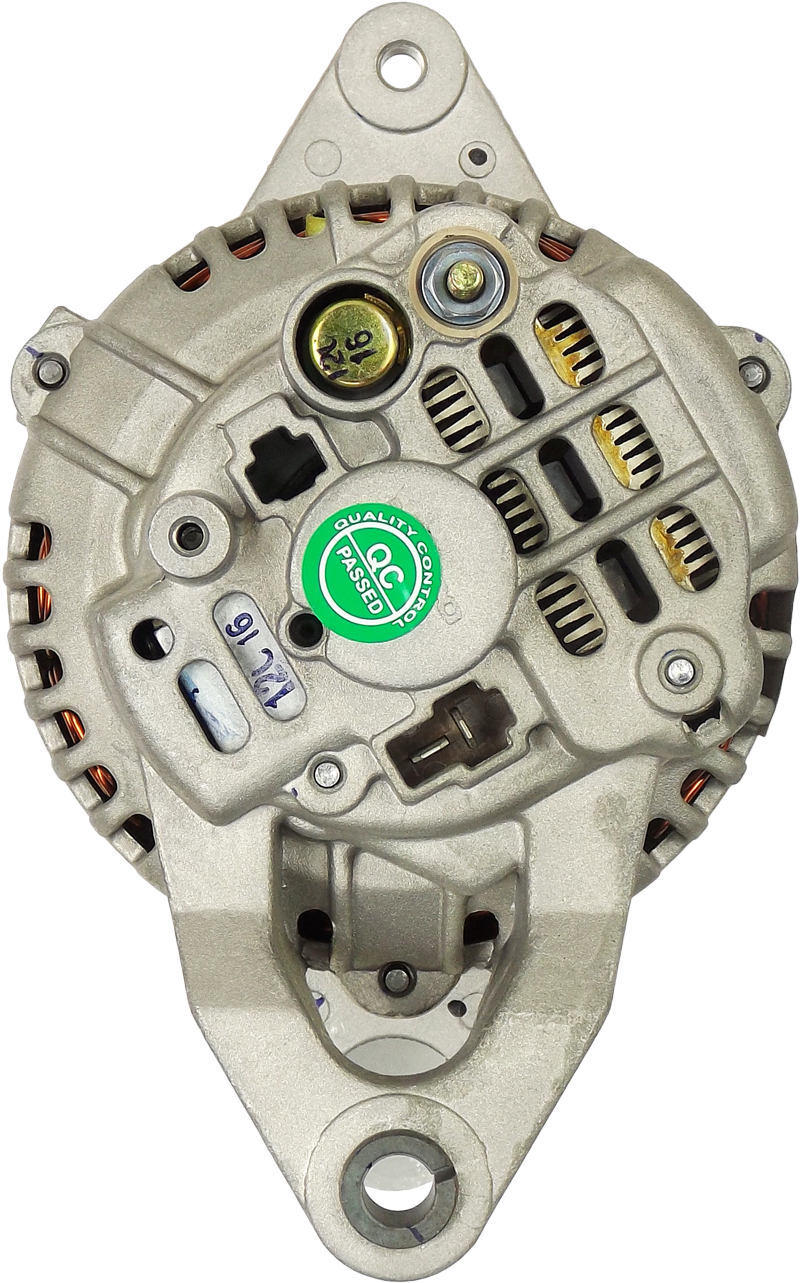

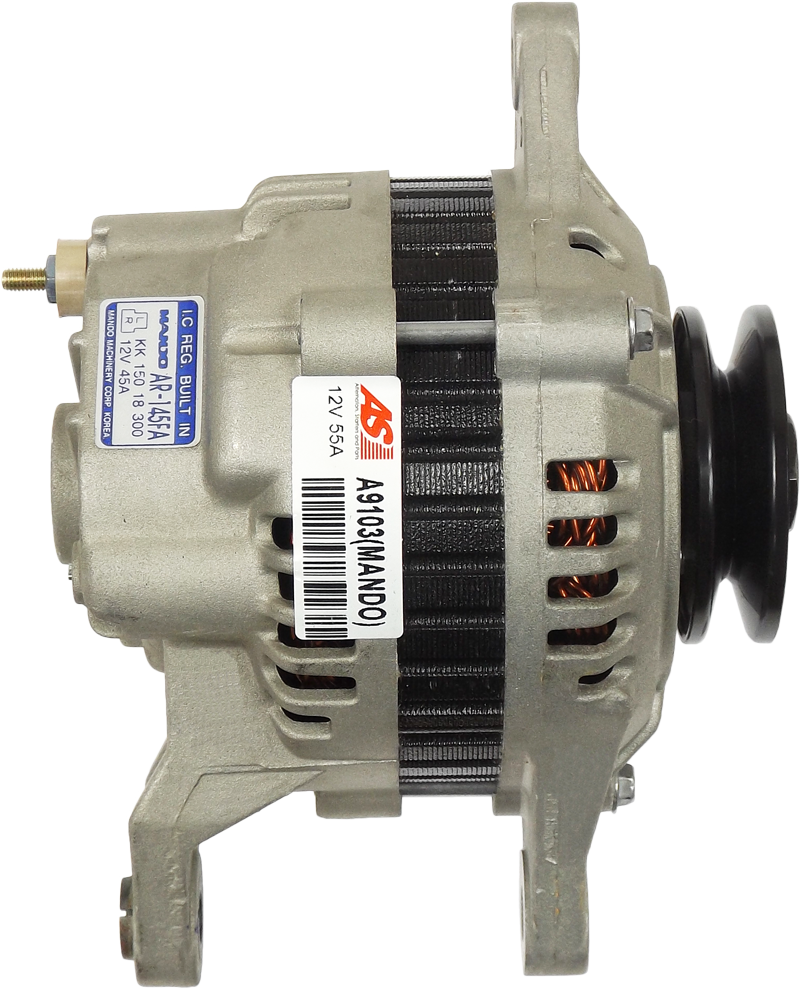

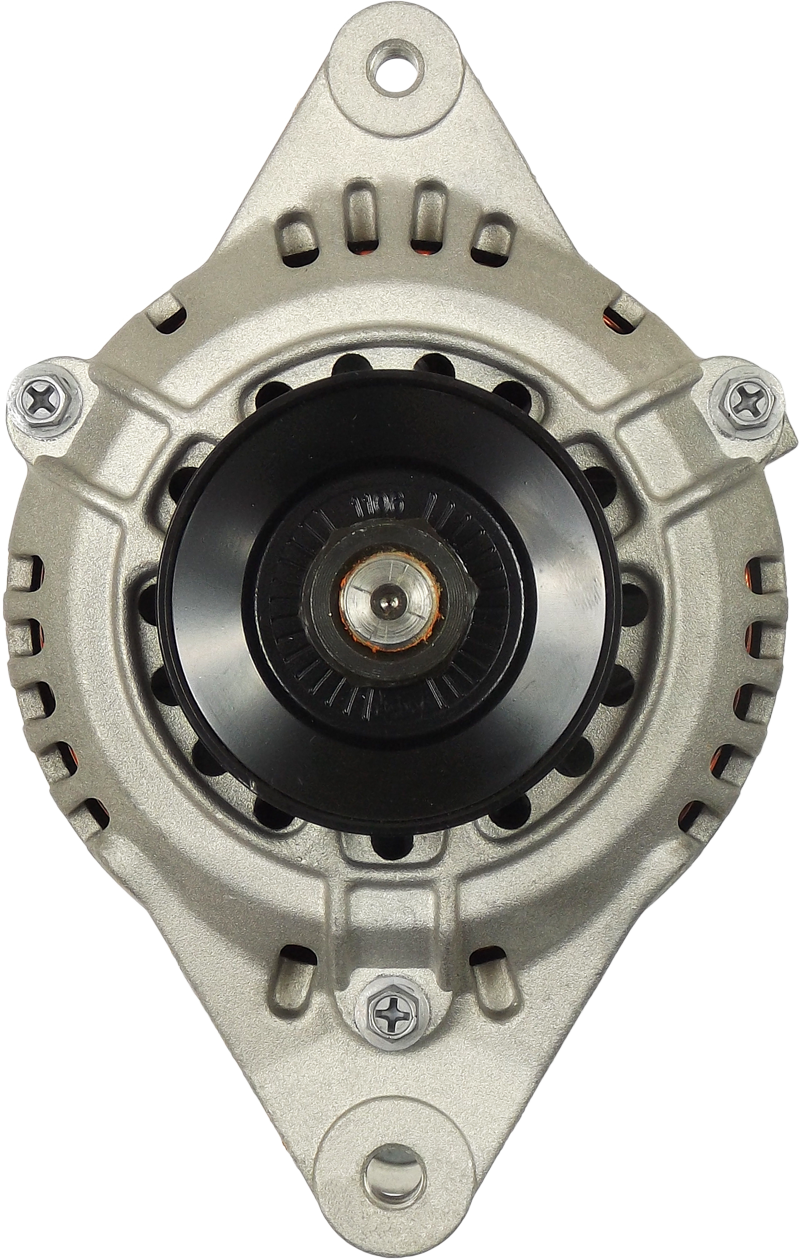

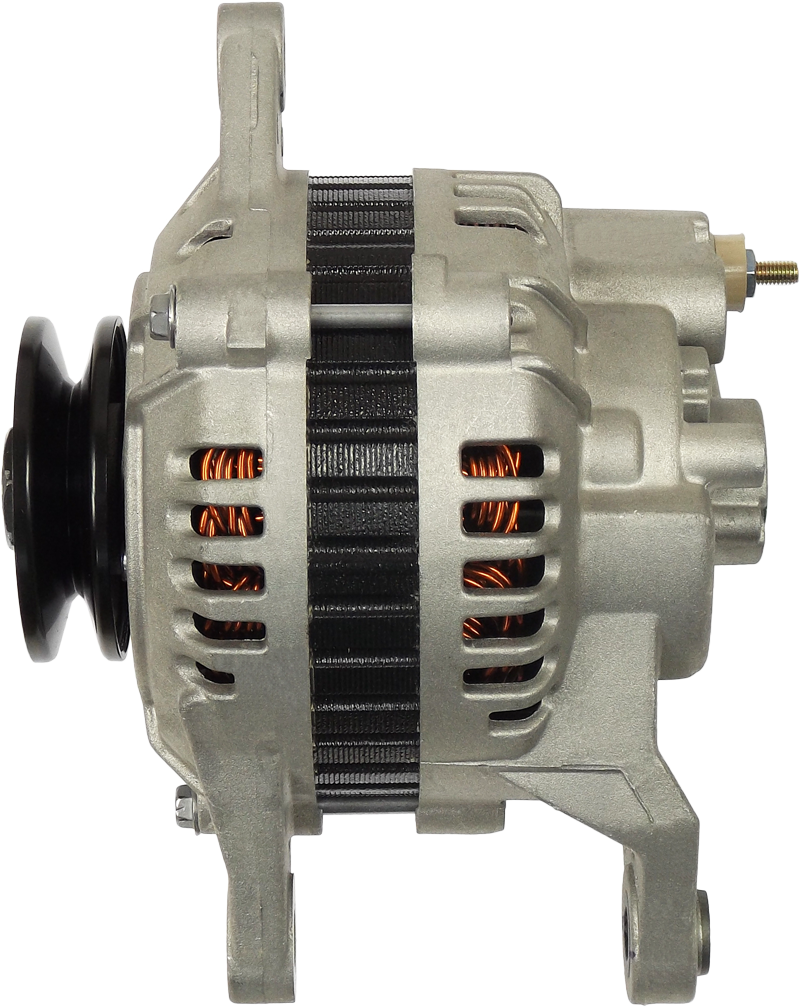

A9103(MANDO) - Brand new OEM MANDO Alternator

Specifications

Amp	45 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	M10x1.25 mm
Diameter (D.3)	10.5 mm
Length (L.1)	160 mm
Mount Inside Length or Pad Mount C-C (C)	66 mm
OEM Product	Yes
Plug Code	PL_2500
Product Line	Premium Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Outside Diameter (O.D.1)	42 mm
Pulley to Mount Distance (A)	42 mm
Pulley Type	SOLID
Unit Type	MANDO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	323 1.1	[E1]	01.1985-12.1987
MAZDA	323 1.3	[E3]	01.1985-12.1987
MAZDA	323 1.3	[E3]	01.1986-12.1987
MAZDA	323 1.5	[E5]	01.1985-12.1987
MAZDA	323 1.5	[E5]	01.1986-12.1987
MAZDA	323 1.6	[B6]	01.1985-12.1987
MAZDA	323 1.6	[B6]	01.1986-12.1993
MAZDA	323 1.6 GT Turbo	[B6]	01.1985-12.1987

Reference Information

40129RI 14916N A005T32571 055918300 B61718300 BJ0118300 E116-18-300B E116-18-300A A2T47371 437490 E116-18-300C CAL35146 A002T07371 18300A F8B718300 600008 A002T17872 B610-18-300C B66518300 A5T23171 E5D418300 B610-18-300B B10118300 B60318300 E50318300 F8B518300 A2T06092 B60118300A B60118300B B60118300C 603006 A2T43671 A5T32571 E5D318300 B603-18-300 B603-18-300A B35918300 LRA702 B61218300A A005T32071 ALT01014 B61218300B E11618300 B61218300C SA985 B10118300A CAL35146ES A2T07371 A002T47371 A005T32071A A005T31671 A2T13471 B60118300 KK150 FE8518300 E61118300 A5T32071A A002T06091 CAL35146GS B61018300A B61018300C A005T30871 CAL35146OS PXPAB-006 JA129 AR-145FA E11618300C DRA3025 B61018300 B65518300 2035146 A002T43671 A5T32071 AEA7102 E356-18-300 E11618300B E11618300A A5T31671 ALT10021 A002T13471 A005T31177 A005T31571 KK150-48300A A005T31971 A2T13571 A2T46871 28-0978 A5T30871 A2T06091 A005T16471 UD02593A 210802 B65518300A ALT5011 CAL35146AS 059918300 0986035791 LRA00702 A5T31177 A5T31571 E116-18-300 B61218300 A002T13571 A005T23171 A5T31971 FE8518300A A2T17872 CAL35146RS A5T16471 B60318300A A002T46871 E5D318300A A002T06092

Video/Publications

A9103(MANDO)
