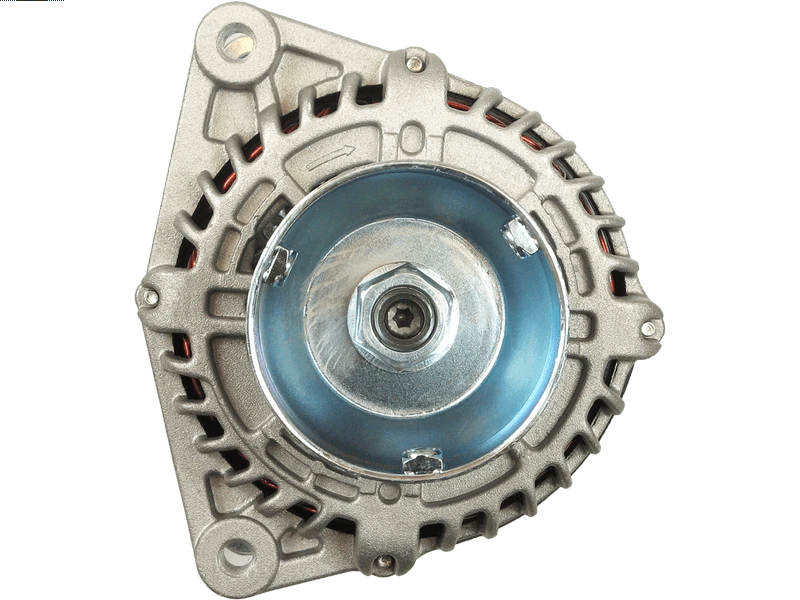

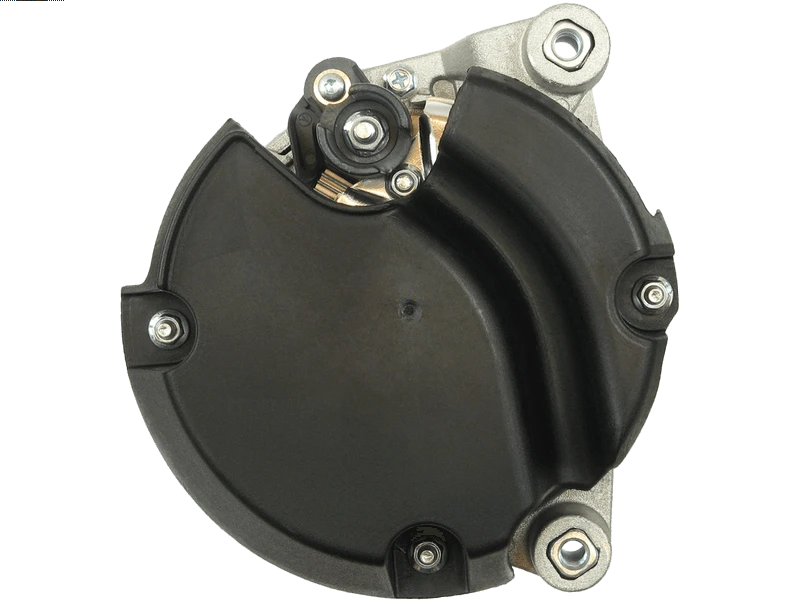

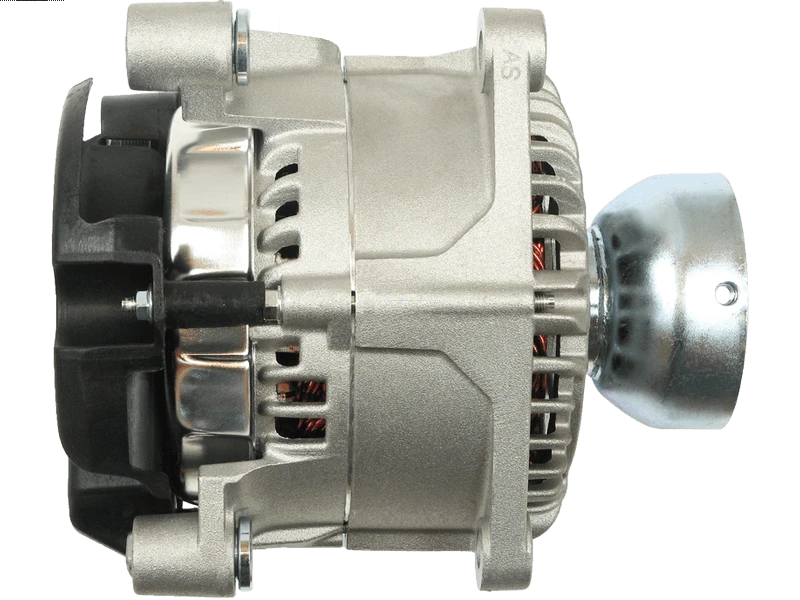

A9012 - Brand new AS-PL Alternator

Specifications

Amp	110 A
Bottom Mounting Foot Width (B)	17 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Length (L.1)	197 mm
Mount Inside Length or Pad Mount C-C (C)	63 mm
OEM Product	No
Outside Diameter (O.D.1)	78.5 mm
Plug Code	PL_3402
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	78 mm
Pulley Type	SOLID
Unit Type	FORD
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Focus 1.8 TDDi	[BHDA]	08.1999-11.2004
FORD	Focus 1.8 TDDi	[BHDB]	08.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DA]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DA]	10.1998-11.2004
FORD	Focus 1.8 TDDi	[C9DB]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DB]	10.1998-11.2004
FORD	Focus 1.8 TDDi	[C9DC]	02.1999-11.2004
FORD	Focus 1.8 TDDi	[C9DC]	10.1998-11.2004
FORD	Tourneo 1.8 TDCi Connect	[RWPA]	08.2006-
FORD	Tourneo Connect 1.8 TDCi	[RWPA]	08.2006-
FORD	Tourneo Connect 1.8 TDCi	[RWPC]	08.2006-
FORD	Tourneo Connect 1.8 TDCi	[RWPD]	08.2006-
FORD	Transit 1.8 16V Connect	[EYPA]	06.2002-
FORD	Transit 1.8 16V Connect	[EYPC]	06.2002-
FORD	Transit 1.8 TDCi Connect	[HCPA]	06.2002-
FORD	Transit 1.8 TDCi Connect	[HCPB]	06.2002-
FORD	Transit 1.8 TDCi Connect DPF		08.2006-
FORD	Transit 1.8 TD Connect	[HCPA]	06.2002-
FORD	Transit 1.8 TD Connect	[HCPB]	06.2002-
FORD	Transit 1.8 TDDi Connect	[BHPA]	06.2002-
FORD	Transit Connect 1.8 16V	[EYPA]	06.2002-
FORD	Transit Connect 1.8 16V	[EYPC]	06.2002-
FORD	Transit Connect 1.8 16V	[EYPD]	06.2002-
FORD	Transit Connect 1.8 16V LPG	[EYPC]	06.2002-
FORD	Transit Connect 1.8 TD	[HCPA]	06.2002-
FORD	Transit Connect 1.8 TD	[HCPB]	06.2002-
FORD	Transit Connect 1.8 TD	[P9PA]	06.2002-
FORD	Transit Connect 1.8 TD	[P9PB]	06.2002-
FORD	Transit Connect 1.8 TD	[P9PC]	06.2002-
FORD	Transit Connect 1.8 TD	[P9PD]	06.2002-
FORD	Transit Connect 1.8 TD	[R3PA]	06.2002-
FORD	Transit Connect 1.8 TD	[RWPE]	06.2002-
FORD	Transit Connect 1.8 TD	[RWPF]	06.2002-
FORD	Transit Connect 1.8 TDCi	[HCPA]	06.2002-
FORD	Transit Connect 1.8 TDCi	[P9PA]	06.2002-
FORD	Transit Connect 1.8 TDCi	[P9PB]	06.2002-
FORD	Transit Connect 1.8 TDCi	[P9PC]	06.2002-
FORD	Transit Connect 1.8 TDCi	[P9PD]	06.2002-
FORD	Transit Connect 1.8 TDCi	[R3PA]	06.2002-
FORD	Transit Connect 1.8 TDCi	[RWPE]	06.2002-
FORD	Transit Connect 1.8 TDCi DPF	[RWPA]	08.2006-
FORD	Transit Connect 1.8 TDCi DPF	[RWPC]	08.2006-
FORD	Transit Connect 1.8 TDCi DPF	[RWPD]	08.2006-
FORD	Transit Connect 1.8 TDDi	[BHPA]	06.2002-
FORD	Transit Connect 1.8 TDDi	[P7PA]	06.2002-
FORD	Transit Connect 1.8 TDDi	[P7PB]	06.2002-
FORD	Transit Connect 1.8 TDDi	[R2PA]	06.2002-

Reference Information

F032UA0084K4K ALT21805 CAL14111GS LRA1171 2T1U-AG RE2T1U10300CG 2T1UCB 27-4830 2T1UCA 595.549.120.230 4371001 ALF1857 ALTL204 RNL1857CA ALT8980 4725 4371000 F032UA0084 986049181 0986049181 595.549.120 116124 2014111 ALF9857UX 2T1U-CF 1376672 301857RI ANM36458X 1376671 CAL14111AS 1904983 1477971 1477972 5T1U10300AA 1429688 1429689 1464784 57094 1464785 4531025 4531026 4374447 2T1U-10300-AL 1229421 595.549.120.280 4374448 2T1U-10300-AB ALT8972 2T1U-10300-AF RE2T1U10300AM 2T1U-10300-AG ALT341 1376695 595.549.120.028 1857697 A9012 DRA4238 8EL011710-831 4394204 AG0491 2T1U10300AC 595.549.120.020 LRA01171 2T1U10300AD 2T1U10300AE 2T1U10300AG 1465173 5128966 2T1U10300AH 2T1U10300AJ 2T1U10300AK 1450643 2T1U10300AL 20-150-01010 2T1U10300AM 5128967 5T1U10300BA 1478187 2T1UAF 23853N 113710 2T1UAH 1762859 0F032UA0084K4K 8EL738211-381 2T1U10300BB 2T1UAB 2T1U10300BC 2T1U10300BD 2T1U10300BE 0F032UA0084 210366 301857RIV 89212185 ALT161110 RNL2T1U10300CC 2T1U10300CA 2T1U10300CB 2T1U10300CC 2T1UBC 2T1U10300CD 2T1U10300CE 32001008 2T1U10300CF 2T1U10300CG 553461RI RM2T1U10300AM ALT161100 437100 STA0258R CA1857IR

Video/Publications

0986049181 113710 116124 1229421 1429688 1477971 20-150-01010 2014111 210366 27-4830 2T1U-10300-AB 2T1U-10300-AG 2T1U-AG 2T1U10300AG 301857RI 301857RIV 32001008 4394204 4531025 4725 57094 595.549.120 89212185 8EL011710-831 8EL738211-381 A9012 AG0491 ALF1857 ALF9857UX ALT161100 ALT161110 ALT21805 ALTL204 CA1857IR CAL14111AS CAL14111GS DRA4238 LRA01171 LRA1171 RNL1857CA RNL2T1U10300CC
