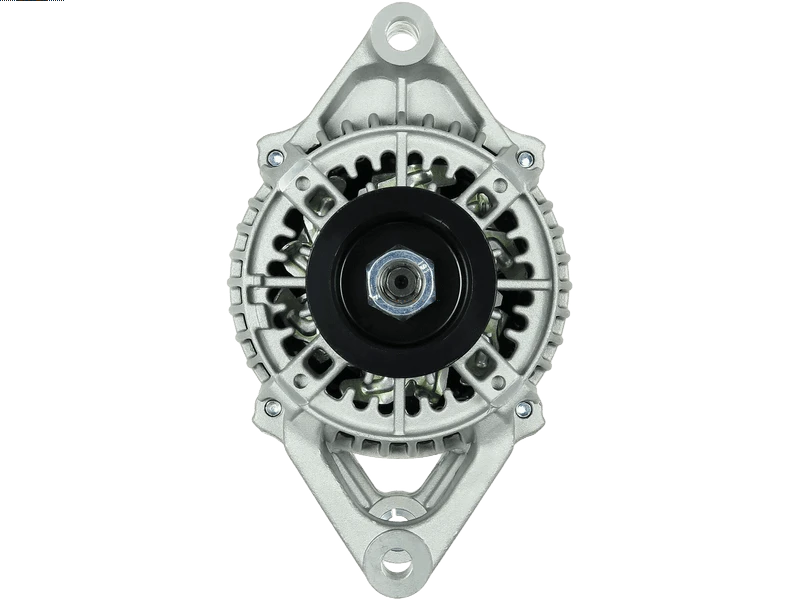

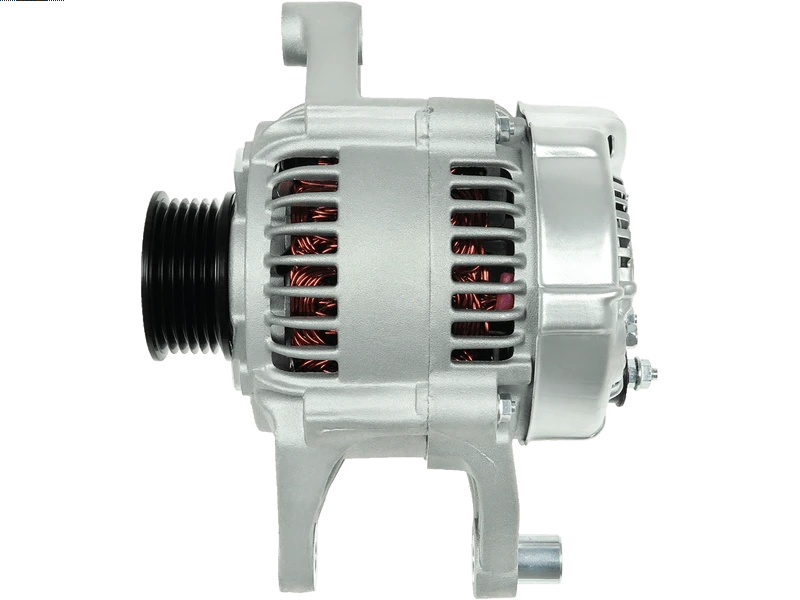

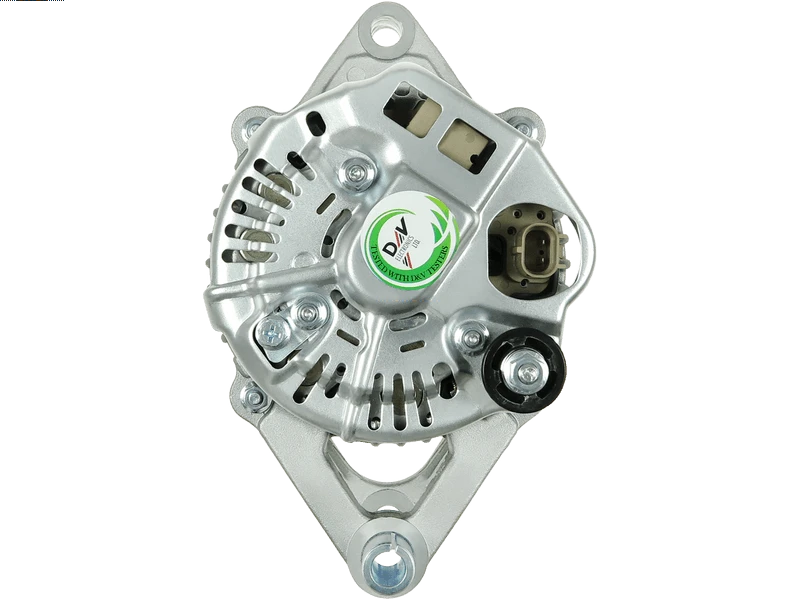

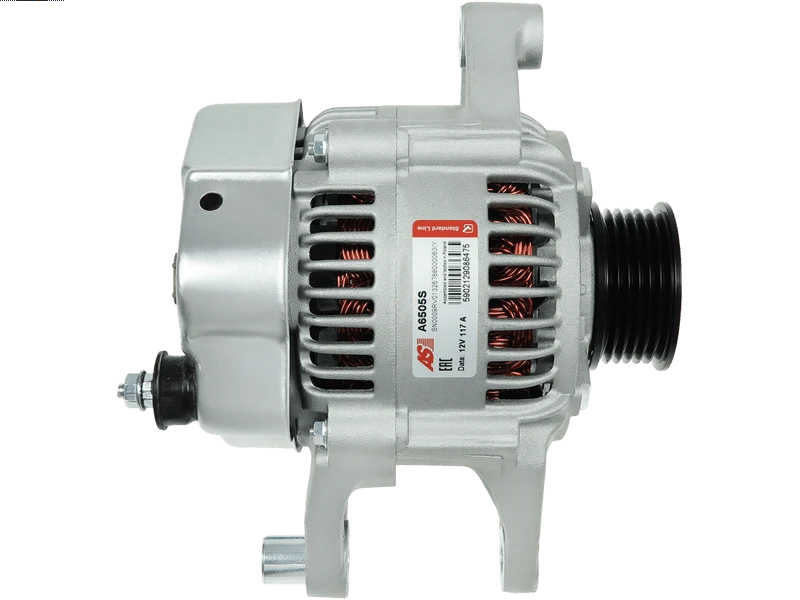

A6505S - Brand new AS-PL Alternator

Specifications

Amp	117 A
Bottom Mounting Foot Width (B)	12 mm
Diameter (D.1)	11.5 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Grooves	6 qty
Length (L.1)	184 mm
Mount Inside Length or Pad Mount C-C (C)	54.5 mm
OEM Product	No
Outside Diameter (O.D.1)	55 mm
Plug Code	PL_2802
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	35 mm
Pulley Type	SOLID
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DODGE	Dakota 2.5		01.1999-01.2000
JEEP	Cherokee 2.5		01.1999-12.1999
JEEP	Cherokee 2.5		01.2000-12.2000
JEEP	Cherokee 4.0		01.2000-12.2000
JEEP	Cherokee 4.0 i	[ERH]	02.1999-
JEEP	Wrangler 2.5		01.1999-12.1999
JEEP	Wrangler 2.5		01.2000-12.2000

Reference Information

113358 RL005685AC 40046 56041822AA ALT30181 DRA0644 2040211 LRA01164 ALN3358 A6505S A-8754 RL041822AA 89214184 121000-3620 90-29-5356N ANM32864X 90-29-5356 CAL40211RS UD90212A CAL40211ES CAL40211GS LRA1164 553142RI 56005685AC 27-4785 CAL40211AS CAL40211 835.559.117 DA1754 13822R CAL40211OS 121000-3610 121000-3670 ALT422110 13822N 121000-3671

Video/Publications

113358 121000-3620 121000-3670 121000-3671 13822N 13822R 2040211 27-4785 40046 553142RI 56005685AC 56041822AA 835.559.117 89214184 90-29-5356 90-29-5356N A-8754 ALN3358 ALT30181 ALT422110 CAL40211 CAL40211AS CAL40211ES CAL40211GS CAL40211OS CAL40211RS DA1754 DRA0644 LRA01164 LRA1164 UD90212A
