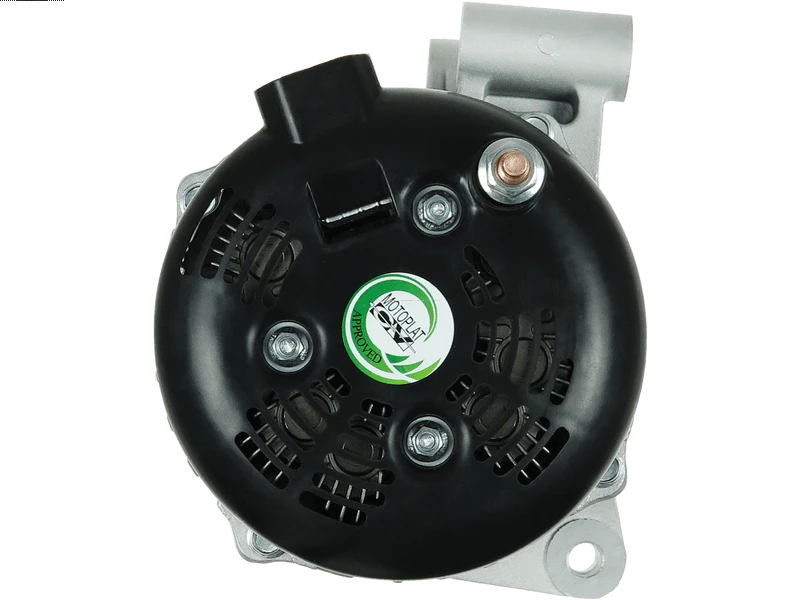

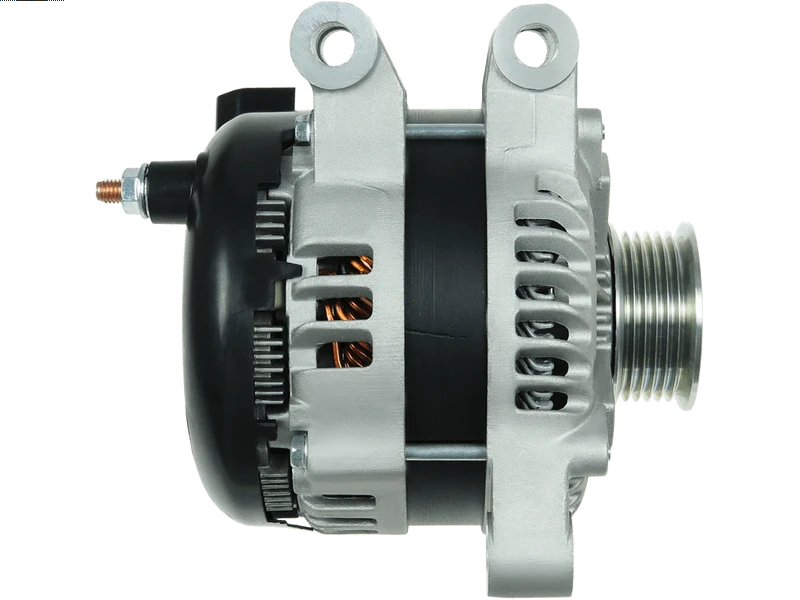

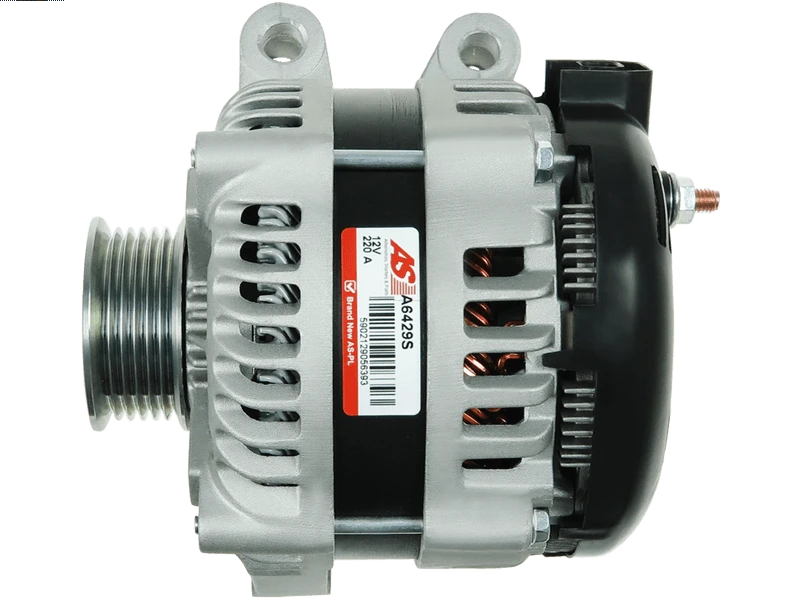

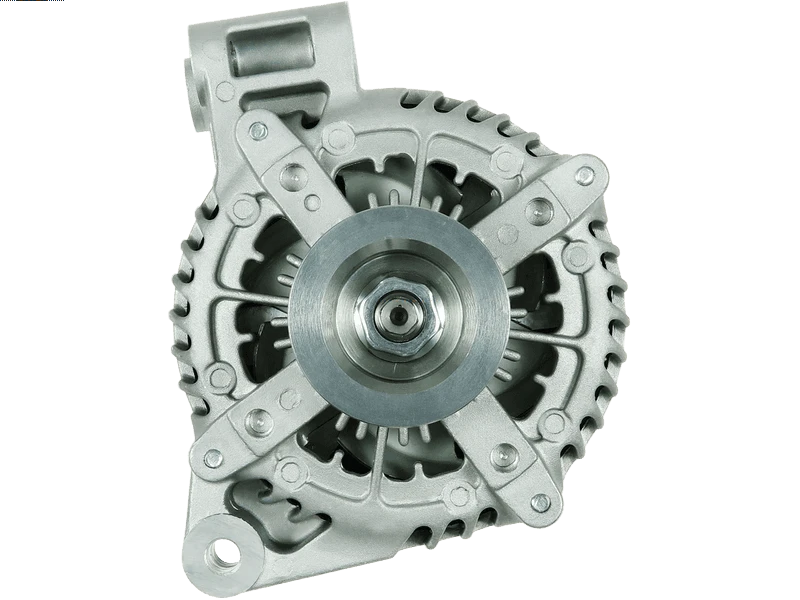

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 740.42 including GST
NZ$ 643.84 excluding GST
or four payments of $185.11
with
Learn More
UOM:
each
Product Code:
A6429S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-6770Associated Numbers
104210-6770 A-80647 UD14174ASpecifications
| Amp | 220 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 25 mm |
| Pad mount thickness (E.2) | 50 mm |
| Pad mount thickness (E.3) | 50 mm |
| Plug Code | PL_2200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 57 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | XTS (1P5) 3.6 | LFX | 09.2011- |
| CADILLAC | XTS 3.6 | 01.2013-12.2014 |
Reference Information
| 104210-6770 | DENSO |
| A-80647 | DIXIE |
| ALT6663 | ELECTROLOG |
| UD14174A | AS-PL |
Video/Publications
A6429SRelated Items
