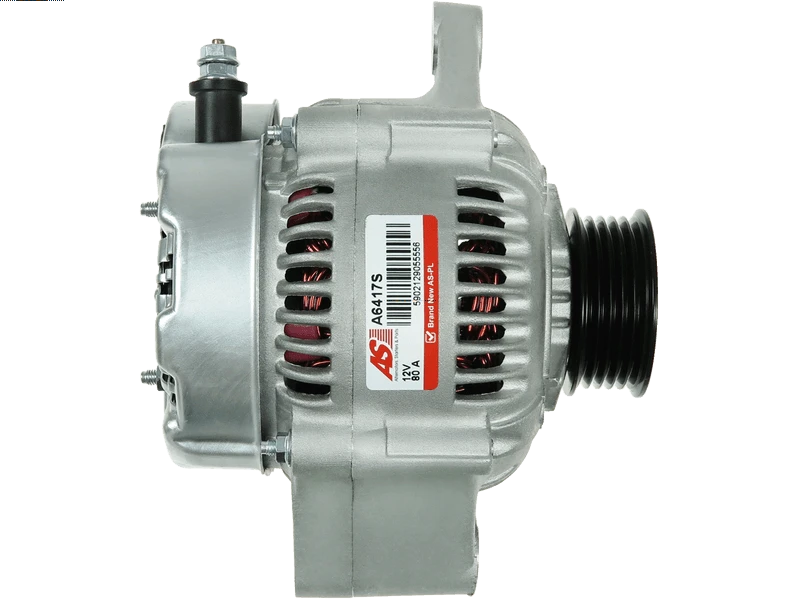

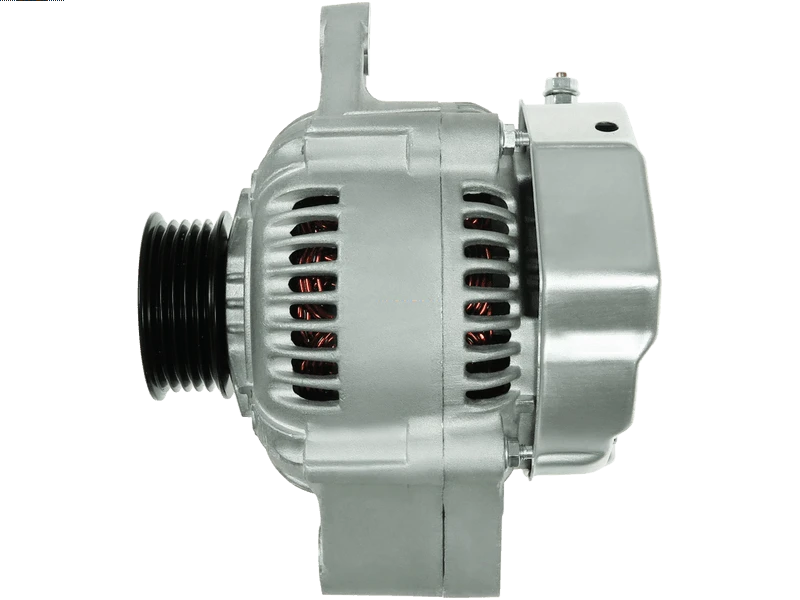

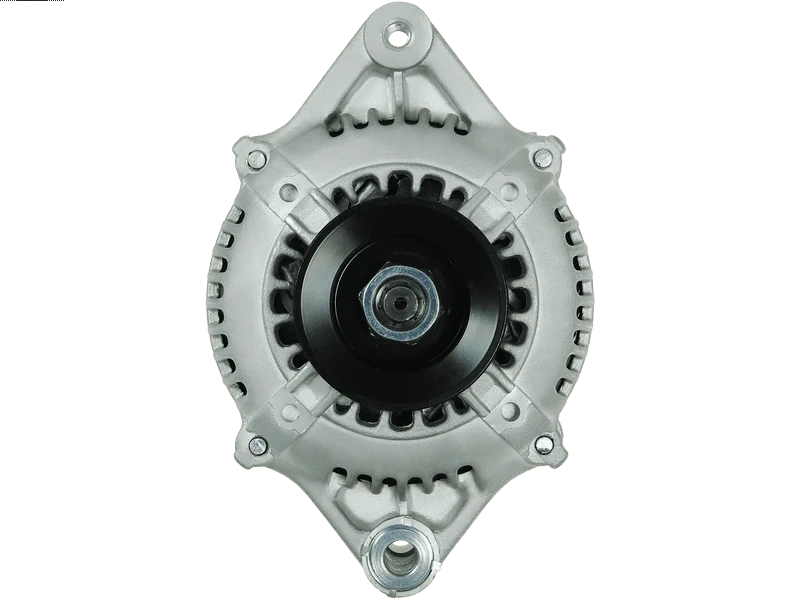

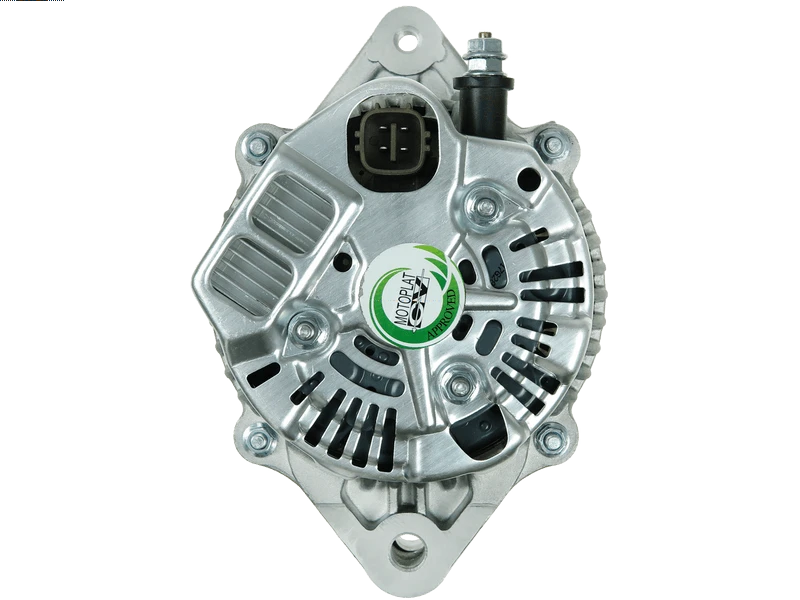

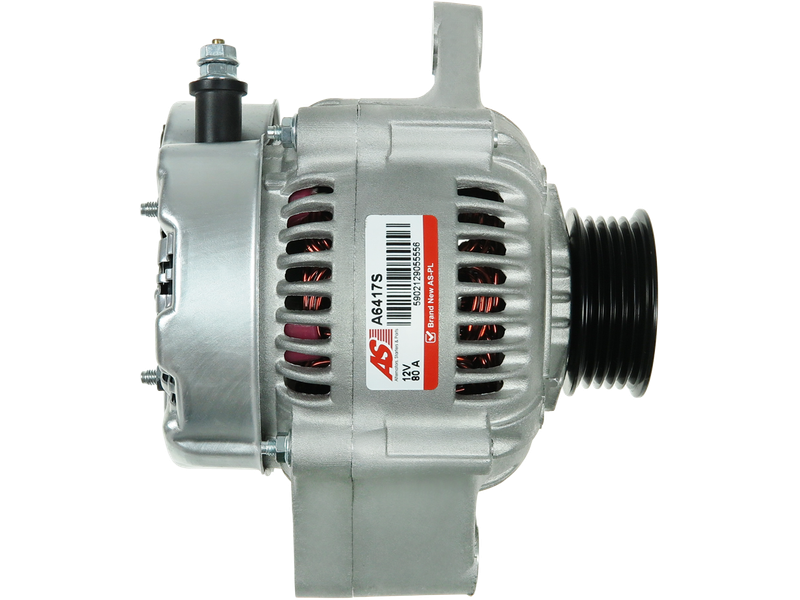

A6417S - Brand new AS-PL Alternator

Brand new AS-PL Alternator
Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 483.73 including GST

NZ$ 420.64 excluding GST
each
A5080
A6417S
No NZ stock
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:
each


102211-9260 114881 2040493 28-7699 302004RI 302004RIM 31400-65J10 31400-80J00 554979RID 9285 A005TG0291 A5TG0291 A6417S AEG1225 ALM0273 ALM0273UX ALM9273 ALN0273 ALN0273AN CA2004IR CAL40493 CAL40493AS CAL40493ES CAL40493GS CAL40493OS CAL40493RS DAN1357 EAA-224017 LRA04090 UD14237A

1022119130 31400-63j00  dxa4089


ALTJ033 3EFFE
A6417S AS-PLList
UD14237A AS-PLList
AEG1225 AUTOELECTRO
114881 CARGO
CAL40493 CASCO
CAL40493AS CASCO
CAL40493ES CASCO
CAL40493GS CASCO
CAL40493OS CASCO
CAL40493RS CASCO
9285 CEVAM
102211-9260 DENSOList
DAN1357 DENSO
EAA-224017 EAA
28-7699 ELSTOCK
CA2004IR HC PARTS
ALM0273 KRAUF
ALM0273UX KRAUF
ALM9273 KRAUF
ALN0273 KRAUF
ALN0273AN KRAUF
302004RI KUHNER
302004RIM KUHNER
554979RID KUHNER
LRA04090 LUCAS
LRA4090 LUCAS
A005TG0291 MITSUBISHIList
A5TG0291 MITSUBISHIList
2040493 SANDO
31400-65J10 SUZUKI
31400-80J00 SUZUKI

ALTJ033 3EFFE
A5080 AS-PLList
UD02329A AS-PL
AEK2957 AUTOELECTRO
114881 CARGO
CAL35238 CASCO
CAL35238AS CASCO
CAL35238ES CASCO
CAL35238GS CASCO
CAL35238OS CASCO
CAL35238RS CASCO
9285 CEVAM
DRA0561 DELCO
102211-9260 DENSOList
57254 EAI
28-5571 ELSTOCK
9090595 FRIESEN
CA2004IR HC PARTS
8EL738212-351 HELLA
302004RI KUHNER
302004RIM KUHNER
11.2004 LAUBER
LRA02957 LUCAS
LRA2957 LUCAS
A005TG0291 MITSUBISHIList
A5TG0291 MITSUBISHIList
89212588 POWERMAX
185.515.080 PSH
20137832BN REAL
20137832OE REAL
RNLA5TG0291 RNL
2035238 SANDO
SB273 SOVEREIGN
31400-65J10 SUZUKI
31400-80J00 SUZUKI
23955R WAI / TRANSPO
DXA4098 anj584 anj584gq 65-8494
0210802090 Denso
1022119260 Denso
1022119261 Denso
114881 Cargo
12060995 EuroTec
185515075 PSH
285571 Elstock
287699 Elstock
3140080J00 Suzuki
3140080J01 Suzuki
DAN1357 Denso
DRA0561 Remy
DRA0561N Remy
LRA02957 Lucas
MXA2076 66-6685 65-6685-3

Amp80 A
Diameter (D.1)M8x1.25 mm
Diameter (D.2)10 mm
Grooves5 qty
Length (L.1)154 mm
Measurement (A)91 mm
Outside Diameter (O.D.1)55 mm
Pivot Foot Length (B)58.5 mm
Plug CodePL_4001
Pulley TypeSOLID
Unit TypeDENSO
Voltage12 V
SUZUKI Grand Vitara 1.6 [M16A] 03.2015-
SUZUKI Grand Vitara 1.6 4x4 [M16A] 03.2015-
SUZUKI Grand Vitara 2.0 [J20A] 10.2005-
SUZUKI SX4 1.6 [M16A] 10.2007-
SUZUKI SX4 1.6 4x4 [M16A] 10.2007-
SUZUKI Swift 1.3 4WD [M13A] 01.2006-
102211-9260 114881 2040493 28-7699 302004RI 302004RIM 31400-65J10 31400-80J00 554979RID 9285 A005TG0291 A5TG0291 A6417S AEG1225 ALM0273 ALM0273UX ALM9273 ALN0273 ALN0273AN ALTJ033 CA2004IR CAL40493 CAL40493AS CAL40493ES CAL40493GS CAL40493OS CAL40493RS DAN1357 EAA-224017 LRA04090 LRA4090 UD14237A 209500

Will Replace 31400-63J00 / 102211-9130 however you may want to reuse the old pulley.

the new alternator is 5 rib where the 31400-63J00 is 4 Rib
