Associated Numbers
100211-6120 100211-7840 100211-8410 111781 195.566.060 195.566.080 20132054BN 2040450 27060-17020 27060-17030 27060-17040 401294RI 401295RI ALT30043 CAL40450 CAL40450AS CAL40450ES CAL40450GS CAL40450OS CAL40450RS UD12530A UNIT BOM 290-5344
65-8342
65-8348
ANJ006HO
ANJ006OER
ANJ006
0986045921 Bosch ruil
1002116120 Denso
1002118410 Denso show
1002118410SEL +line
12060589 EuroTec
195566080 PSH
23079 Lucas
2706011730 Toyota
2706017030 Toyota
283717 Elstock
90295221 Wilson
9051291F Friesen
9660218841 PSA
ATA555 ATK
ATA594 ATK
J5112091 Nipparts
JA1295IR HC
L68970 ATL
LRA01859 Lucas
LRA1859 Lucas
TRA035 TWA
dxa4041 dxa432 dxa433U dxa8110 DXA4048
0986045921 Bosch ruil
1002116120 Denso
1002118410 Denso show
1002118410SEL +line
12060589 EuroTec
195566080 PSH
23079 Lucas
2706011730 Toyota
2706017030 Toyota
283717 Elstock
90295221 Wilson
9051291F Friesen
9660218841 PSA
ATA555 ATK
ATA594 ATK
J5112091 Nipparts
JA1295IR HC
L68970 ATL
LRA01859 Lucas
LRA1859 Lucas
TRA035 TWA

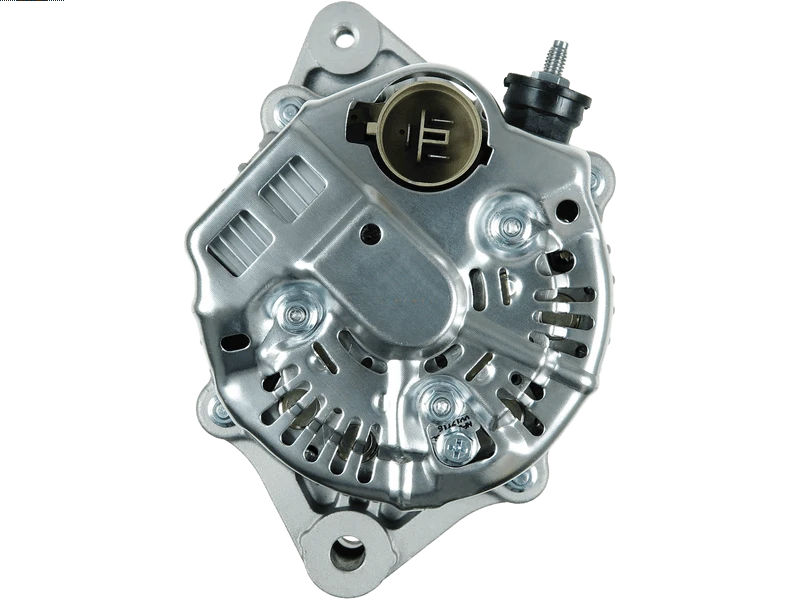

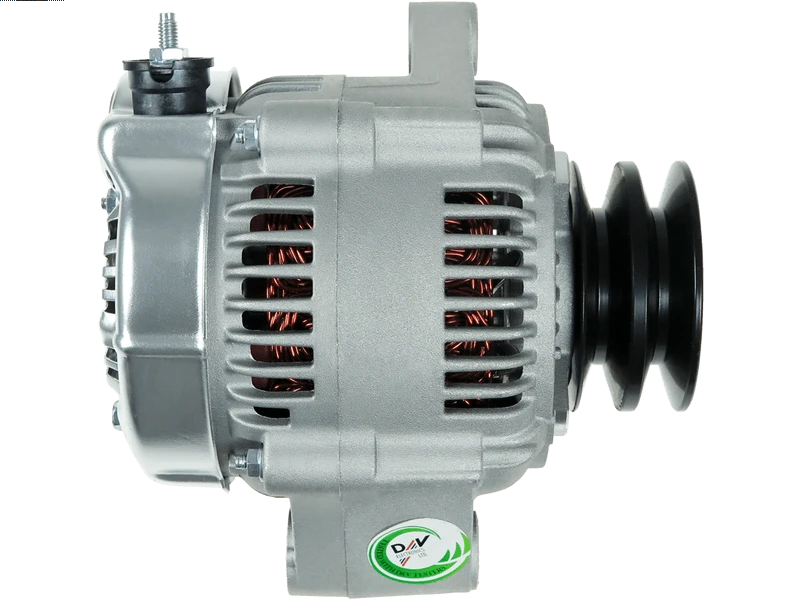

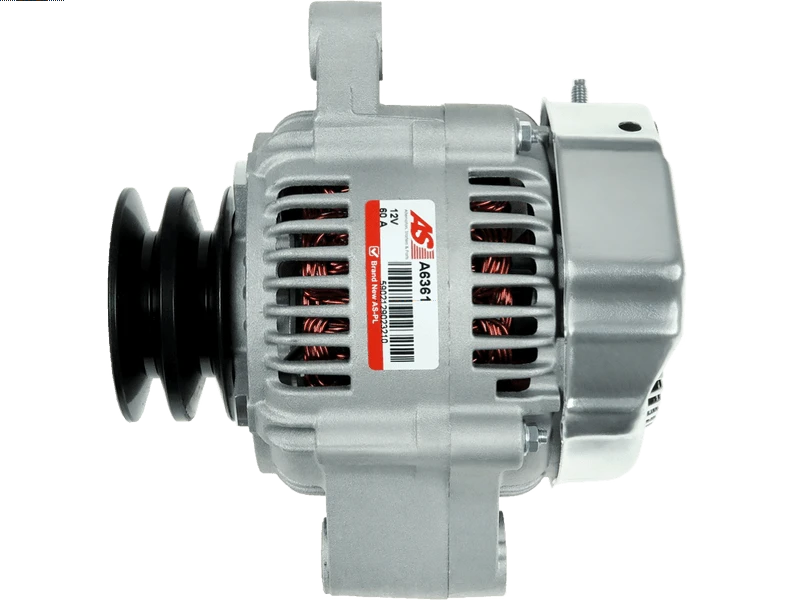

Specifications
| Amp | 80 A |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Grooves | 2 qty |
| Length (L.1) | 171 mm |
| Outside Diameter (O.D.1) | 47 mm |
| Pivot Foot Length (B) | 57.5 mm |
| Plug Code | PL_3500 |
| Pulley Type | SOLID |
| Pulley to Mount Distance (A) | 93 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Land Cruiser 4.2 | [2F] | 01.1975-04.1986 |
| TOYOTA | Land Cruiser 4.2 D | [1H-Z] | 07.1990-05.1996 |
| TOYOTA | Land Cruiser 4.2 TD | [1H-Z] | 01.1990- |
| TOYOTA | Land Cruiser 4.2 TD | [1HD-T] | 10.1992-12.1997 |
| TOYOTA | Land Cruiser 4.2 TD 24V | [1HD-TF] | 03.1995-12.1997 |
Reference Information
CGB-13717 CAL40450AS CAL40450GS 2040450 27060-17020 CAL40450ES ALT30043 401294RI 446977 401295RI 111781 100211-6120 27060-17030 A12DE0721A2 290-5344 CAL40450OS BOM CAL40450 UNIT 195.566.080 195.566.060 CAL40450RS 100211-7840 100211-8410 27060-17040 20132054BN UD12530AVideo/Publications
100211-6120 100211-7840 100211-8410 111781 195.566.060 195.566.080 20132054BN 2040450 27060-17020 27060-17030 27060-17040 401294RI 401295RI ALT30043 CAL40450 CAL40450AS CAL40450ES CAL40450GS CAL40450OS CAL40450RS CGB-13717 UD12530A UNIT BOM 290-5344Add Your Number
