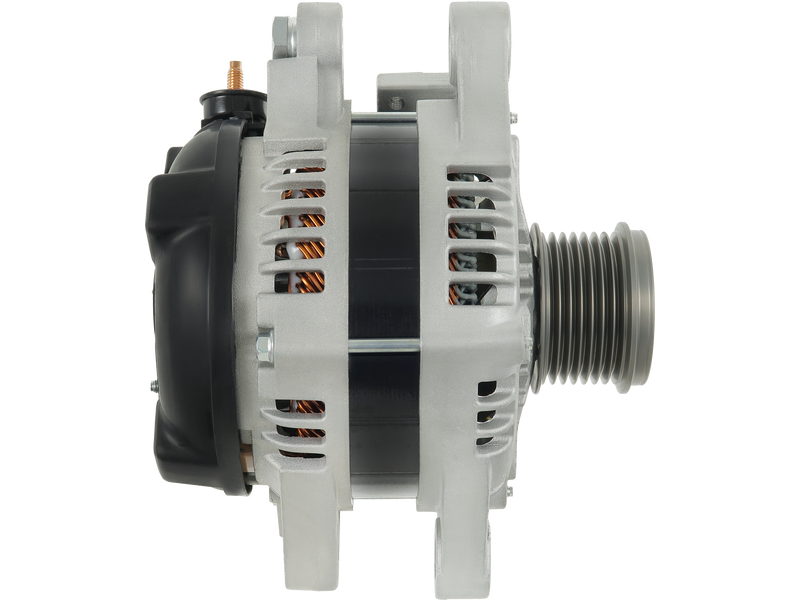

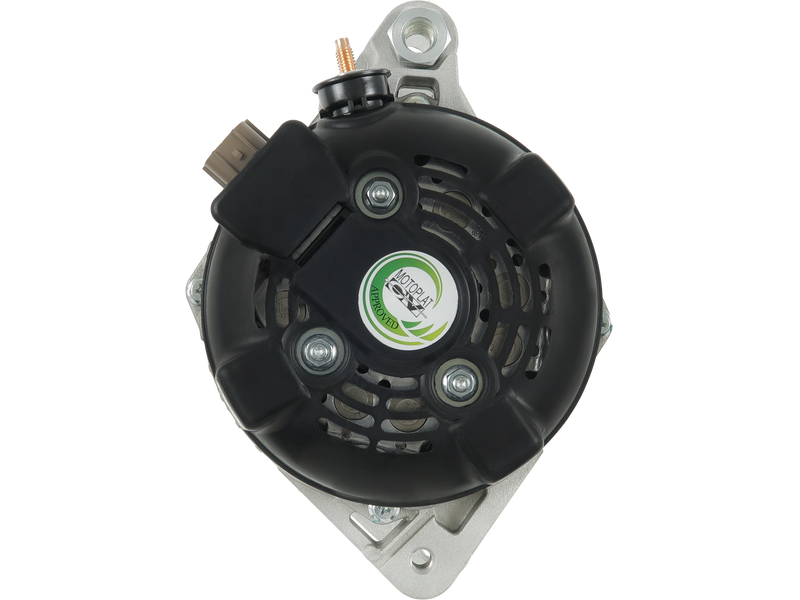

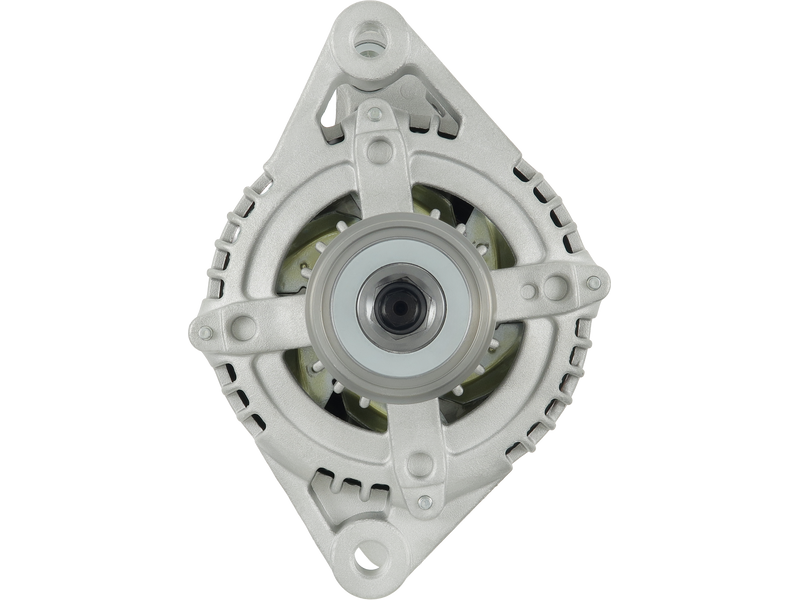

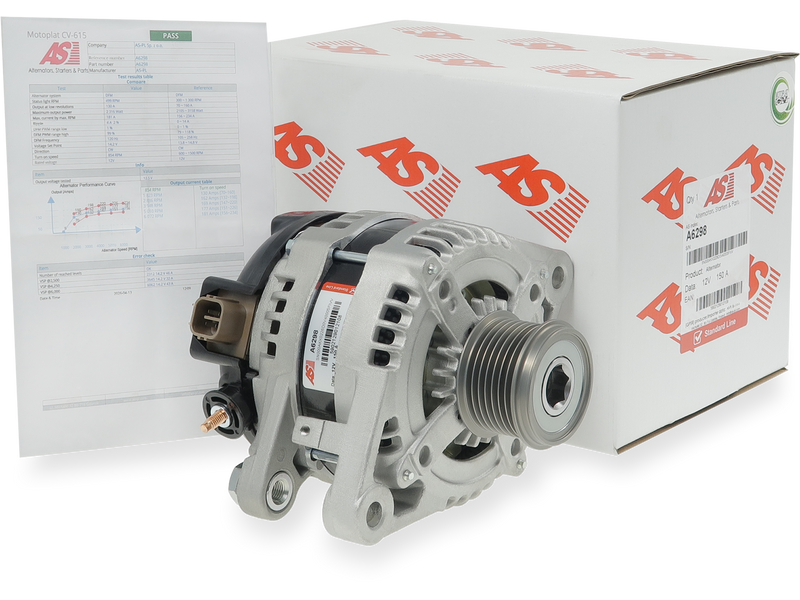

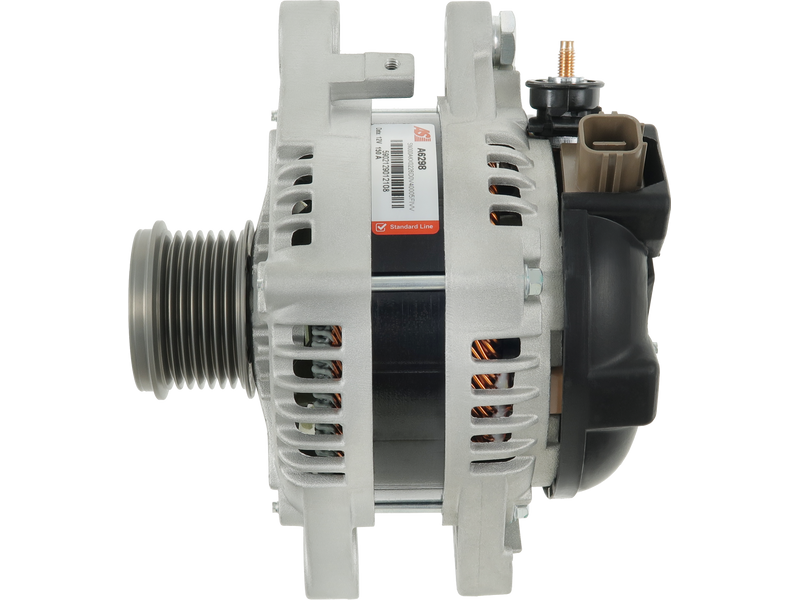

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 550.51 including GST
NZ$ 478.70 excluding GST
or four payments of $137.63
with
Learn More
each
A6298
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-5510Associated Numbers
104210-2140 104210-2141 104210-5510 104210-5511 104210-5512 104210-5513 104210-5514 104210-5515 11325R 11326R 12865 27060-0P240 27060-0P241 27060-31161 27060-31162 554085RI 90-29-5705 94757 A-80345 A-80390 ALN0122 UD11466A UD11506A 104210-5530 1042102140 1042102141 1042102142Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 35 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | ES350 3.5 | 01.2013-12.2014 | |
| LEXUS | ES 350 3.5 V6 | 01.2013- | |
| LEXUS | RX 350 3.5 | 01.2010-12.2013 | |
| LEXUS | RX 350 3.5 V6 | 01.2010- | |
| TOYOTA | Highlander 3.5 | 01.2008-12.2015 | |
| TOYOTA | Highlander 3.5 V6 | 01.2008- | |
| TOYOTA | RAV4 3.5 | 01.2009-12.2012 | |
| TOYOTA | RAV4 3.5 V6 | 01.2009- | |
| TOYOTA | Sienna 3.5 | 01.2007-12.2015 | |
| TOYOTA | Sienna 3.5 V6 | 01.2007- | |
| TOYOTA | Venza 3.5 | [2GR-FE] | 01.2009-12.2015 |
| TOYOTA | Venza 3.5 V6 | 01.2010- |
Reference Information
| 104210-2140 | DENSO |
| 104210-2141 | DENSO |
| 104210-5510 | DENSO |
| 104210-5511 | DENSO |
| 104210-5512 | DENSO |
| 104210-5513 | DENSO |
| 104210-5514 | DENSO |
| 104210-5515 | DENSO |
| 11325R | WAI / TRANSPO |
| 12865 | DELCO |
| 195.316.150.050 | PSH |
| 20132515BN | REAL |
| 2040515.0 | SANDO |
| 27060-0P240 | TOYOTA |
| 27060-0P241 | TOYOTA |
| 27060-31161 | TOYOTA |
| 27060-31162 | TOYOTA |
| 554085RI | KUHNER |
| 90-29-5705 | WILSON |
| 94757 | DELCO |
| A131.375 | PSH |
| A6298 | AS-PL |
| A-80345 | DIXIE |
| A-80390 | DIXIE |
| ALN0122 | KRAUF |
| CAL40515AS | CASCO |
| UD11466A | AS-PL |
| UD11506A | AS-PL |
Video/Publications
A6298Related Items
