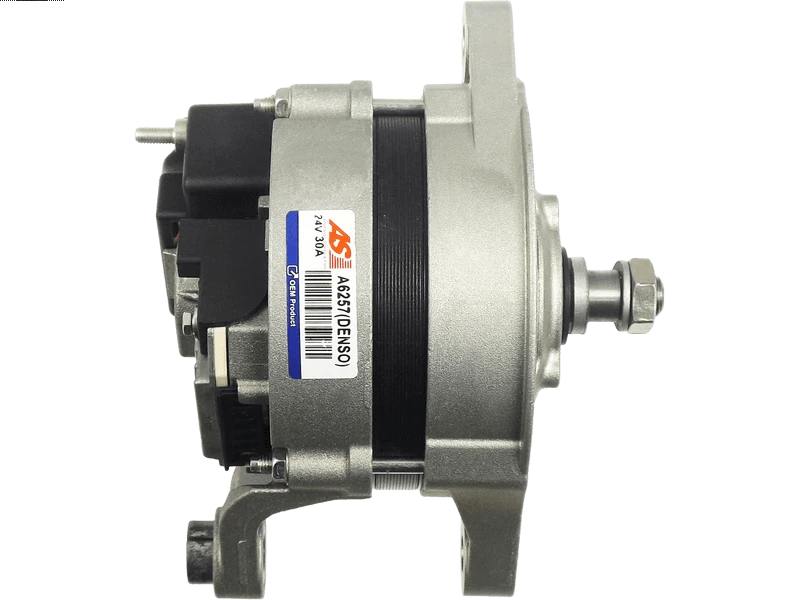

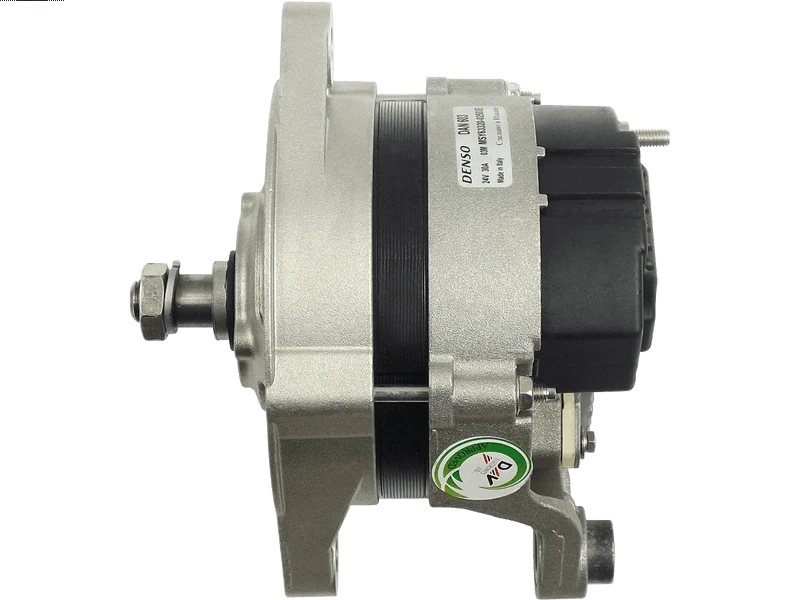

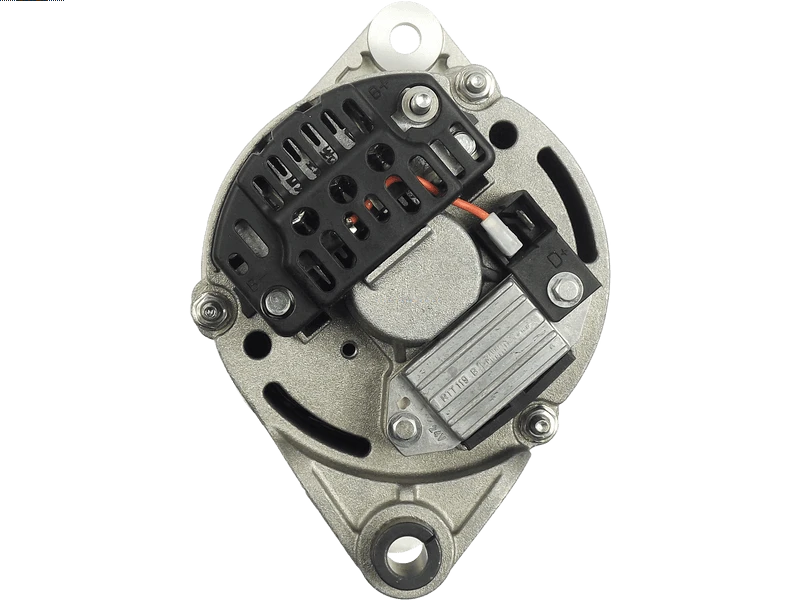

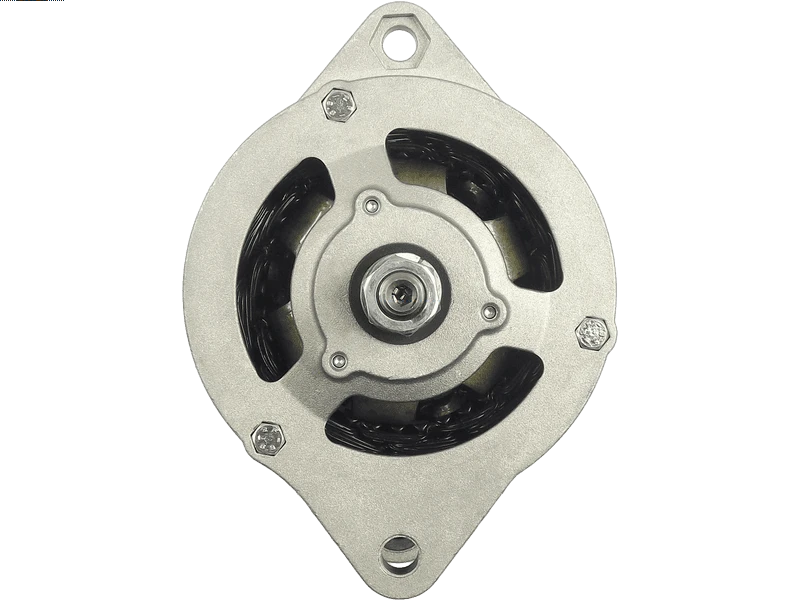

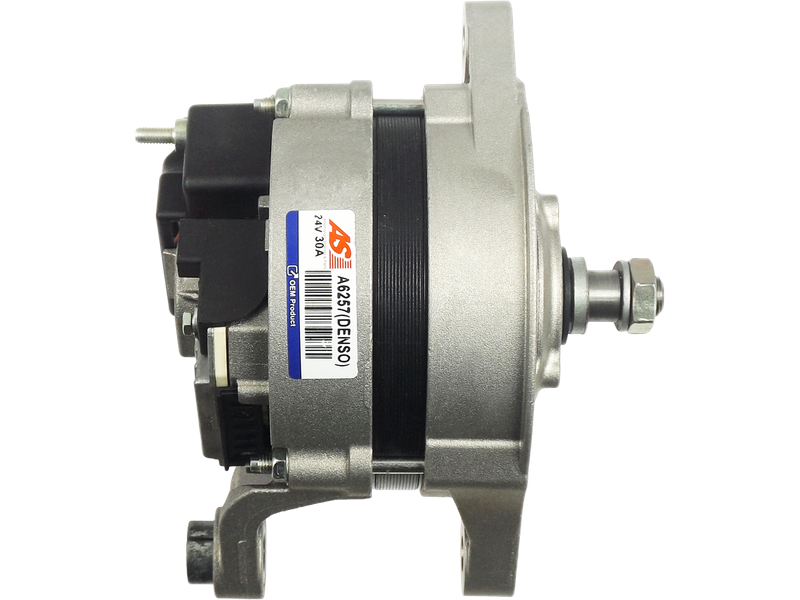

A6257(DENSO) - Brand new OEM DENSO Alternator

Specifications

Amp	30 A
Bottom Mounting Foot Width (B)	17 mm
Diameter (D.1)	11 mm
Diameter (D.2)	12 mm
Diameter (D.3)	12 mm
Length (L.1)	168 mm
Mount Inside Length or Pad Mount C-C (C)	65 mm
OEM Product	Yes
Product Line	Premium Line
Product Type	Brand new
Pulley Type	NO PULLEY
Unit Type	DENSO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
ALLIS CHALMERS	Various Models
ASTRA	BM20M
ASTRA	BM25
ASTRA	BM304
ASTRA	MR
FAHR	M1000 Series
IVECO	100 E 15 6.0	[8060.25.4200LTC]	01.1991-
IVECO	100 E 15 6.0	[8060.45.5000]	01.1991-
IVECO	100 E 15 6.0	[8060.45.5001]	01.1991-
IVECO	100 E 15 6.0	[8060.45.5003]	01.1991-
IVECO	100 E 15 6.0	[8060.45.5005]	01.1991-
IVECO	100 E 18 6.0	[8060.25V.4000]	01.1991-
IVECO	100 E 18 6.0	[8060.25V.4000TC]	01.1991-
IVECO	100 E 21 6.0	[8060.45.4100TCA]	01.1991-
IVECO	100 E 21 6.0	[8060.45.4180TCA]	01.1991-
IVECO	120 E 15 6.0	[8060.254200]	01.1991-
IVECO	120 E 15 6.0	[8060.25.4280LTC]	01.1991-
IVECO	120 E 15 6.0	[8060.25.4280LTC]	01.1992-
IVECO	120 E 18 6.0	[8060.25V.4080]	01.1992-
IVECO	120 E 18 6.0	[8060.25V.4080TC]	01.1992-
IVECO	120 E 23 6.0	[8060.45.6090]	01.1992-
IVECO	120 E 23 6.0	[8060.45S.6800]	01.1992-
IVECO	130 E 15 6.0	[8060.25.4280LTC]	01.1994-
IVECO	130 E 18 6.0	[8060.25V.4080TC]	01.1992-
IVECO	130 E 23 6.0	[8060.45.6090]	01.1992-
IVECO	130 E 23 6.0	[8060.45S.6000TCA]	01.1992-
IVECO	150 E 15 6.0	[8060.25.4280LTC]	01.1992-12.1996
IVECO	150 E 18 6.0	[8060.25V.4000]	01.1992-
IVECO	150 E 18 6.0	[8060.25V.4000TC]	01.1992-
IVECO	150 E 18 6.0	[8060.25V.4080]	01.1992-
IVECO	150 E 18 6.0	[8060.25V.4080TC]	01.1992-
IVECO	150 E 23 6.0	[8060.45.6090]	01.1992-
IVECO	150 E 23 6.0	[8060.45S.6800TCA]	01.1992-
IVECO	170 E 23 5.8	[8060.45STCA]	01.1994-
IVECO	180 E 18 5.8	[8060.25VTC]	01.1994-
IVECO	180 E 21 6.0	[8060.45.4100TCA]	01.1991-
IVECO	180 E 23 5.8	[8060.45STCA]	01.1994-
IVECO	190-30 H 13.8	[8210..]	09.1987-09.1999
IVECO	190-30 N 13.8	[8210..]	09.1987-09.1999
IVECO	240-26 9.5	[8460.21.102]	07.1990-11.2000
IVECO	260-30 H 13.8	[8210..]	06.1984-10.1991
IVECO	260 E 23 6.0	[8060.45S.6000]	01.1992-
IVECO	260 E 23 KE 5.9	[8060.45STCA]	01.1992-
IVECO	280 E 23 6.0	[8060.45S.6000TCA]	01.1992-
IVECO	320-30 H 13.8	[8210..]	01.1984-07.1996
IVECO	330-30 H 13.8	[8210..]	06.1984-12.1992
IVECO	330-30 N 13.8	[8210..]	10.1989-12.1992
IVECO	330-36 H 13.8	[8210..]	01.1989-12.1999
IVECO	330-36 HW 13.8	[8210..]	02.1989-12.1998
IVECO	60 E 10 4.0	[8040.25B.4200LTC]	01.1991-08.1996
IVECO	60 E 12 4.0	[8040.25X.4000TC]	01.1991-12.1996
IVECO	60 E 14 4.0	[8040.45.4000TCA]	01.1991-12.1996
IVECO	65 E 10 4.0	[8040.25B.4200LTC]	01.1991-12.1996
IVECO	65 E 12 4.0	[8040.25X.4000TC]	01.1991-02.2000
IVECO	65 E 12 4.0	[8040.25X.4000TC]	01.1991-12.2000
IVECO	65 E 14 4.0	[8040.45.4000TCA]	01.1991-02.2000
IVECO	75 E 12 4.0	[8040.25X.4000TC]	01.1991-02.2000
IVECO	75 E 12 4.0	[8040.25X.4000TC]	01.1997-
IVECO	75 E 14 4.0	[8040.45.4000]	01.1991-
IVECO	75 E 14 4.0	[8040.45.4000TCA]	01.1997-
IVECO	75 E 15 6.0	[8060.25.4200LTC]	01.1991-09.2000
IVECO	80 E 15 6.0	[8060.25.4200LTC]	01.1991-
IVECO	80 E 15 6.0	[8060.25.4200LTC]	01.1991-09.2000
IVECO	80 E 18 6.0	[8060.25V.4000TC]	01.1991-
IVECO	80 E 21 6.0	[8060.45.4100TCA]	01.1991-
IVECO	80 E 21 6.0	[8060.45.4180TCA]	01.1991-
IVECO	8210 13.0	[8210.22.170]	01.1990-
IVECO	8210 13.8	[8210..]	03.1985-
IVECO	8210 13.9	[8210M22.10]	09.1986-
IVECO	8281 17.2	[8281.02..]	06.1983-
IVECO	90-13A 6.1	[BF6L913T]	01.1983-12.1991
IVECO	P/PA 190-30 13.8	[8210.22.210]	04.1987-12.1990
IVECO	P/PA 190-30 13.8	[8210.22.236]	04.1987-12.1990
IVECO	P/PA 330-30 13.8	[8210.22X.235]	01.1991-12.1992
IVECO	Various Models
LAVERDA	3900
LAVERDA	MX 300

Reference Information

11.201.055 AAK1209 2939520 4808519 553060 77050550 GA320025-A 98417209 0120489792 0120489793 0120489794 0120489795 4738563 0120489796 4474592 48-0541 LRA839 63306370 DENDAN603 63304075 4738569 63308310 88206020 G10212M-R 516 210662 63306379 63321115 20104006OE 4717509 4738571 4738570 63320025 CAL30600OS 11.201.468 1516529R 63308380 943320025 63304061 2997074 0120489414 42498213 63306360 4808520 63304100 63306000 63308300 369 63306089 UD804988(DENSO)A 4223787 88206010 63321104 4808528 LRA00839 4808526 CAL30600GS 4715786 63304090 0120489410 0120489412 63304091 63304093 63308330 63304095 63304010 63304012 63304011 61146532 301448RI 38520135A DAN603 63304081 63304083 63308320 63304082 CAL30600ES 4220539 63304084 63304087 63304120 0120489638 63306300 0120489639 553232RIK 63304001 4786913 553232RIL 63304000 63304088 553232RIM 63304002 1516473R 63306301 63306389 4808268 4721890 63306302 210298 A24MA0154A2 AAK1110 2030600 63321045 63321046 63321047 20104006BN 63321048 CAL30600RS 63321163 0986031340 A24MA0001A2 63321161 63306050 12026N 63304030 30212RI 63308350 63304031 CA212IR MG 112097 19025044 98417133 98417134 4722724 860141 12134N 4738775 4738774 4738773 4738772 63320060 038520135A 0120489612 63308340 CAL30600 0120488253 4220357 63304021 MSY63320-02503E 0120488252 4220356 63304020 63304022 19025057 11.201.075 30212RIM 63321063 436416 2011 4702305 4702308 63308370 63306070 63304050 63306350 DRA1340 63304051 AAK3564 63306079 42498164 42498165 42498163 77445410 111142 4152610 AEA8139 4474902 4717871 63321052 04717509 63321055 4699242 63321050 63306060 63308360 553474 98417201 098417208 63304041 63304040 CAL30600AS 98417208 77040550 42498271 30212RIL 63321049 30212RIK
