Associated Numbers
100211-1620 100211-4160 100211-4410 100211-6750 111616 20132211BN 2040112 27060-58010 27060-72080 27060-72081 27060-72111 27060-87707 27060-87709 28-1524 40553RI 40763RI 8EL726352-001 8EL730097-001 CAL40112AS LRA01373 UD02272A UNIT BOM 290-5341 UNIT BOM 290-5341ASpecifications
Amp | 45 A |
Bottom Mounting Foot Width (B) | 58 mm |
Diameter (D.1) | M8x1.25 mm |
Diameter (D.2) | 10.5 mm |
Grooves | 1 qty |
Groove Width (W.1) | 16 mm |
Length (L.1) | 148 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 50 mm |
Outside Diameter (O.D.2) | 86.5 mm |

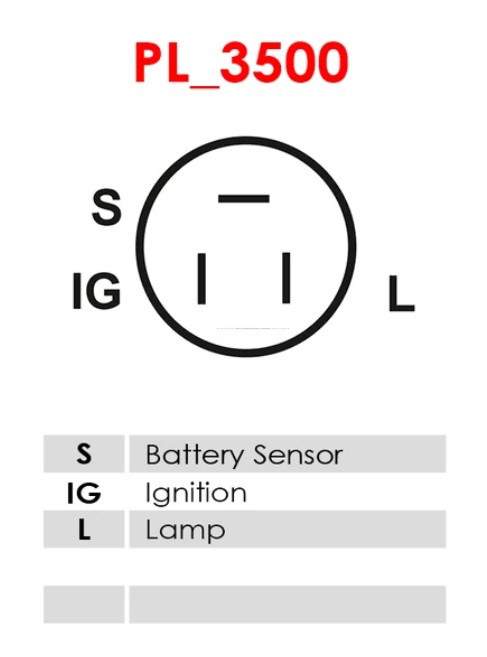

Plug Code | PL_3500 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 97 mm |
Pulley Type | SOLID |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
DAIHATSU | Rocky 2.0 | [3Y] | 02.1985-04.1993 |
TOYOTA | Dyna 100 1.8 | [2Y] | 08.1985-05.1995 |
TOYOTA | Dyna 100 1.8 | [2Y] | 08.1987-04.1995 |
TOYOTA | Dyna 150 2.0 | [3Y] | 08.1985-09.1987 |
TOYOTA | Hiace 1.8 | [2Y] | 03.1983-11.1989 |
TOYOTA | Hiace 1.8 | 08.1987-04.1995 | |
TOYOTA | Hiace 2.0 | [1Z] | 02.1990-08.1995 |
TOYOTA | Hiace 2.0 | [1Z] | 08.1989-08.1995 |
Reference Information
8EL726352-001 20132211BN 27060-58010 2.70607E+11 LRA1373 UD02272A 002-T445 2040112 ALT445 111616 27060-72111 28-1524 27060-72080-84 100211-4160 8EL730097-001 BOM 40763RI UNIT 290-5341 LRA01373 CAL40112AS 27060-87709 100211-1620 2T445 100211-6750 100211-4410 290-5341A 27060-72081 27060-87707 ALT421120 40553RI 27060-72080Video/Publications
002-T445 100211-1620 100211-4160 100211-4410 100211-6750 111616 20132211BN 2040112 27060-58010 27060-72080 27060-72081 27060-72111 27060-87707 27060-87709 28-1524 2T445 40553RI 40763RI 8EL726352-001 8EL730097-001 ALT421120 ALT445 CAL40112AS LRA01373 LRA1373 UD02272A UNIT BOM 290-5341 UNIT BOM 290-5341AAdd Your Number
