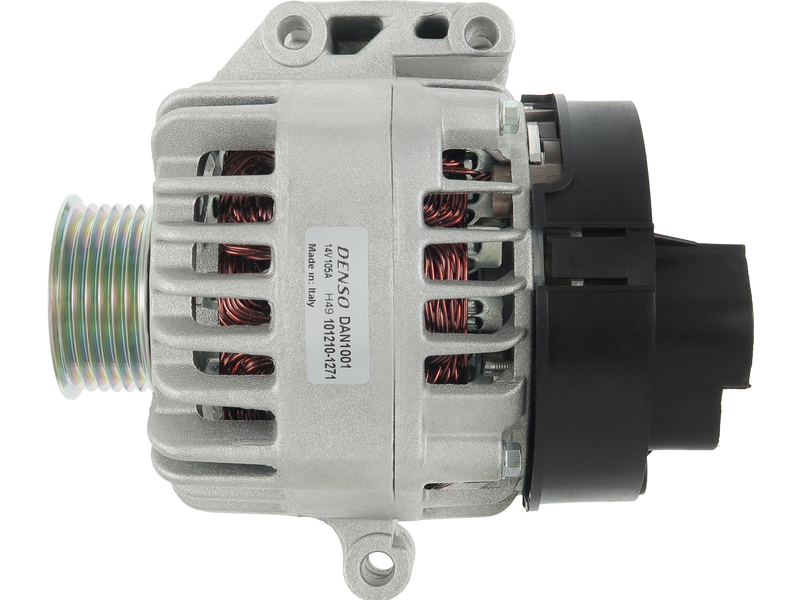

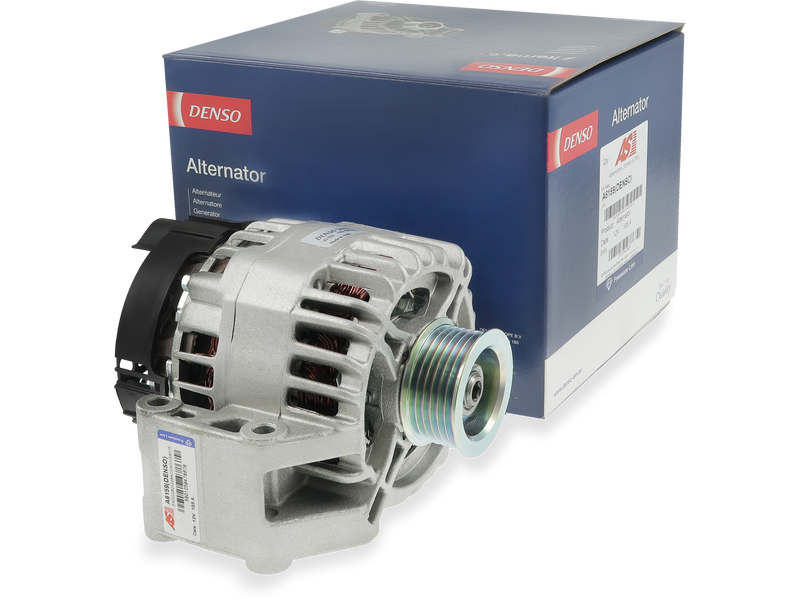

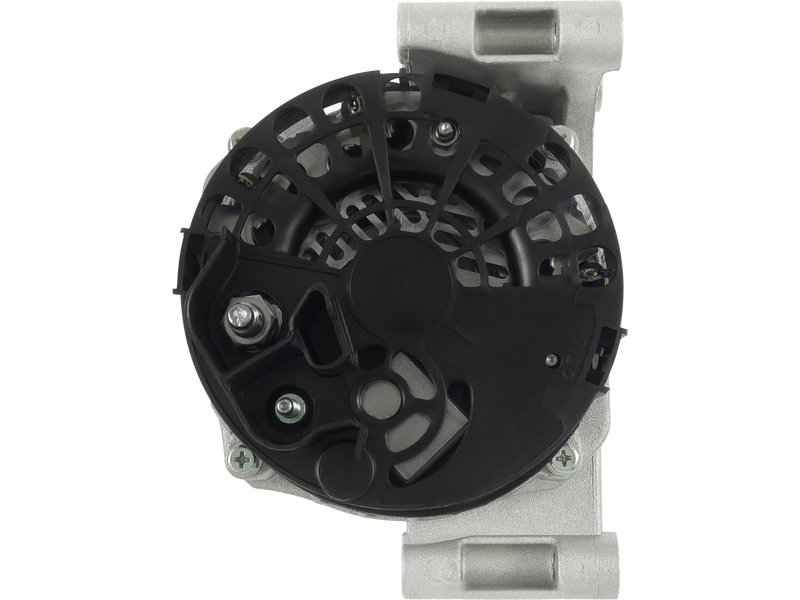

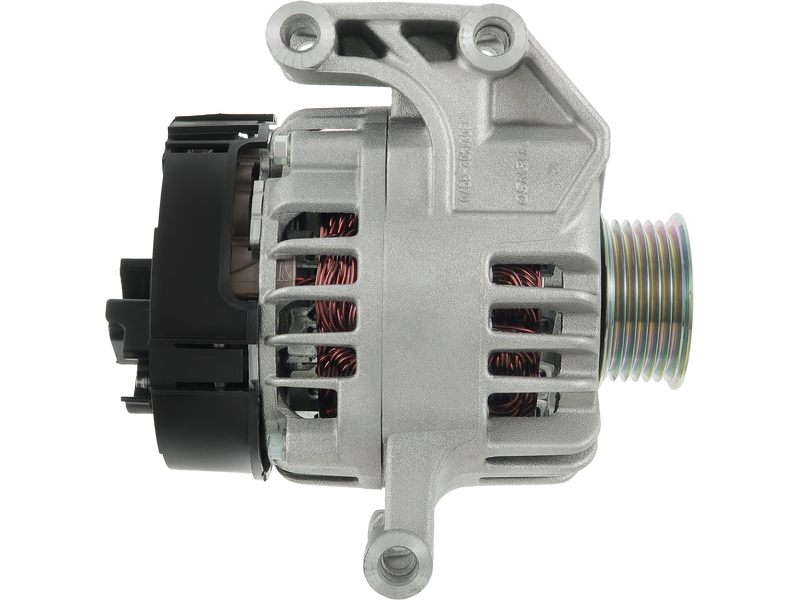

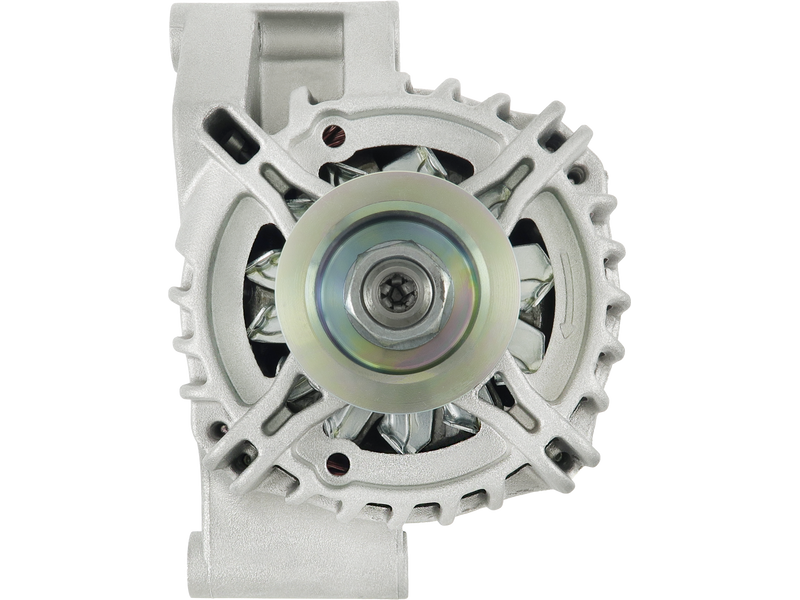

Brand new OEM DENSO Alternator
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 712.47 including GST
NZ$ 619.54 excluding GST
or four payments of $178.12
with
Learn More
each
A6159(DENSO)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
DAN1001Associated Numbers
101210-1271 28-6503 301934RI 301934RID 301934RIV 51810284 51854907 63377025 AEK3391 DAN1001 DENDAN1001 LRA03391Specifications
| Amp | 105 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 188.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | Yes |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64.60 mm |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | MiTo 1.3 JTDM | [B1.000] | 10.2009- |
| FIAT | Doblo 1.3 JTD | [A2.000] | 01.2010- |
| FIAT | Doblo 1.3 JTD | [A3.000] | 01.2010- |
| FIAT | Punto Evo 1.3 Multijet | [B1.000] | 10.2009- |
Reference Information
| 063377025010 | MAGNETI MARELLI |
| 063731585210 | MAGNETI MARELLI |
| 101210-1220 | DENSO |
| 101210-1221 | DENSO |
| 101210-1270 | DENSO |
| 101210-1271 | DENSO |
| 101210-1272 | DENSO |
| 114159 | FARCOM |
| 115852 | CARGO |
| 1202269 | GM |
| 1204443 | GM |
| 12090776 | EUROTEC |
| 20030232AV | ITAB AUTOMOTIVE |
| 20030232OV | ITAB AUTOMOTIVE |
| 20097N | WAI / TRANSPO |
| 20104232BN | REAL |
| 20104232OE | REAL |
| 20-1219 | AIRSTAL |
| 2030232.0 | SANDO |
| 2030232.1 | SANDO |
| 210839 | ERA |
| 2183191052 | DRI |
| 28-6503 | ELSTOCK |
| 298ST75 | STARTCAR |
| 301934RI | KUHNER |
| 301934RID | KUHNER |
| 301934RIV | KUHNER |
| 3119364 | HENKEL PARTS |
| 3119365 | HENKEL PARTS |
| 440934 | VALEO |
| 443286 | VALEO |
| 445192 | LOGISTIK |
| 4536 | CEVAM |
| 505.567.105.050 | PSH |
| 505.567.105.260 | PSH |
| 505.567.105.440 | PSH |
| 505.567.105.460 | PSH |
| 5180284 | FIAT |
| 51805804 | FIAT |
| 51810284 | FIAT |
| 5184907 | FIAT |
| 51854906 | FIAT |
| 51854907 | FIAT |
| 52003513 | FIAT |
| 555251RI | KUHNER |
| 555251RID | KUHNER |
| 57298 | EAI |
| 63377025 | MAGNETI MARELLI |
| 802-16077 | IAP QUALITY PARTS |
| 8EL011712-901 | HELLA |
| 9090652 | FRIESEN |
| 95511910 | GM |
| 95520022 | GM |
| 95523609 | GM |
| 95523611 | GM |
| A133.504 | PSH |
| AAL1744 | APEC |
| AEK3391 | AUTOELECTRO |
| AL03020 | TMI |
| ALN2271 | KRAUF |
| ALT30580 | WOODAUTO |
| ALT6488 | ELECTROLOG |
| ALTF026 | 3EFFE |
| AMM232 | AUTOTEAM |
| AMM232A | AUTOTEAM |
| ANM32597X | ANDEL |
| ANM33398 | ANDEL |
| BREF032115852 | CARWOOD GROUP |
| CAL30232AS | CASCO |
| CAL30232GS | CASCO |
| DAN1001 | DENSO |
| DENDAN1001 | WOODAUTO |
| DRA1178 | DELCO |
| F032115852 | CARGO |
| FI8128 | SNRA |
| G101430 | BTS TURBO |
| IR5507 | PROTECH |
| L51490 | ATL AUTOTECHNIK |
| LRA03391 | LUCAS |
| LRA3391 | LUCAS |
| MAV376950A | SIOM |
| NPANAL1744 | NAPA |
| RAA12289 | DELCO |
| WAL00442 | WALKER |
| WG1916703 | WILMINK GROUP |
| WOOALT30580 | WOODAUTO |
Video/Publications
