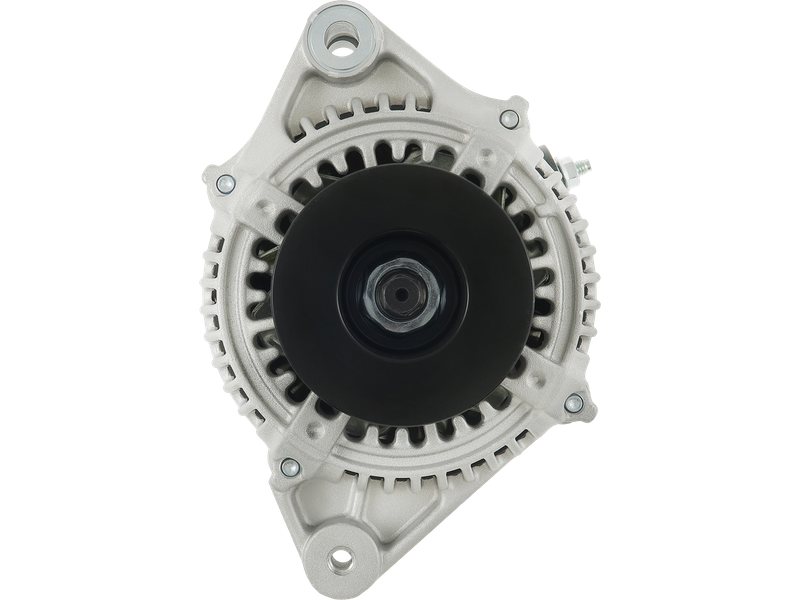

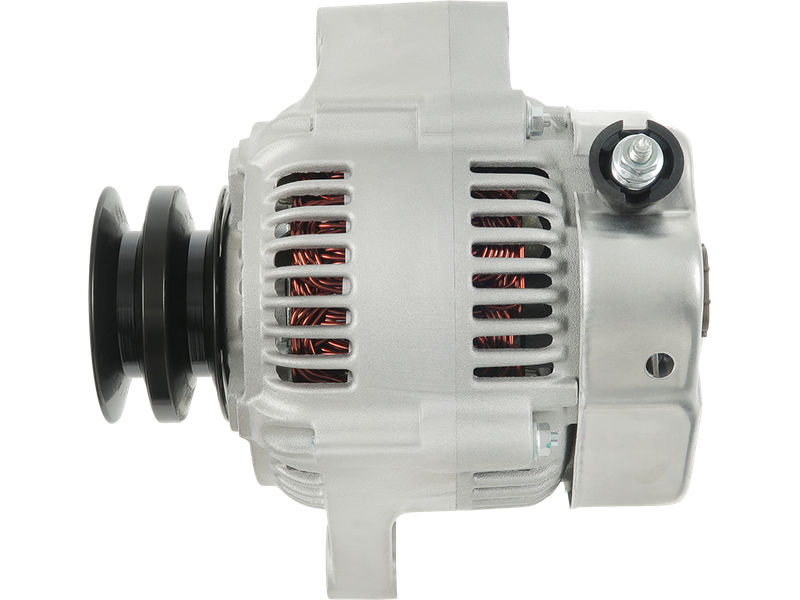

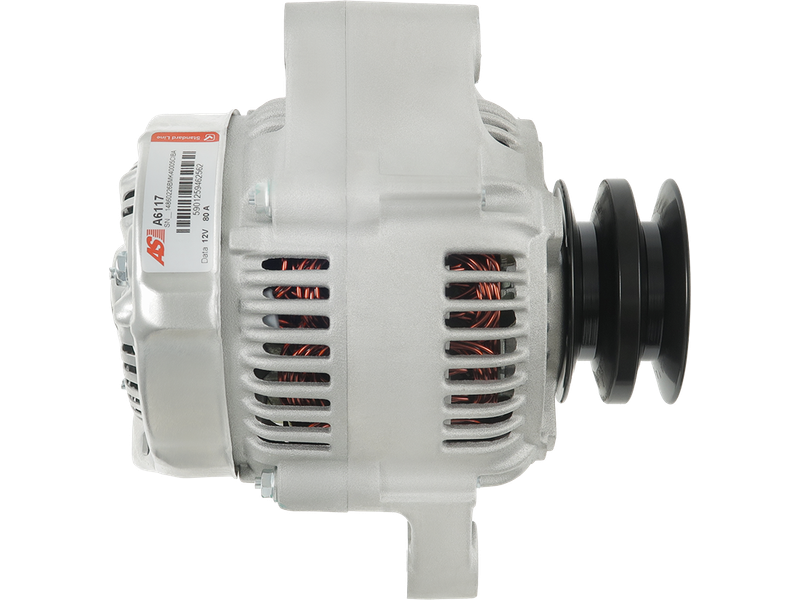

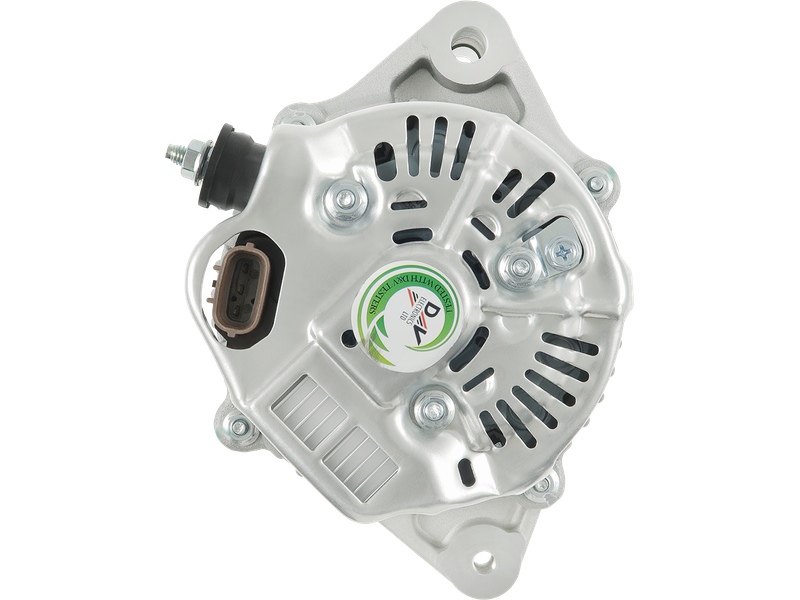

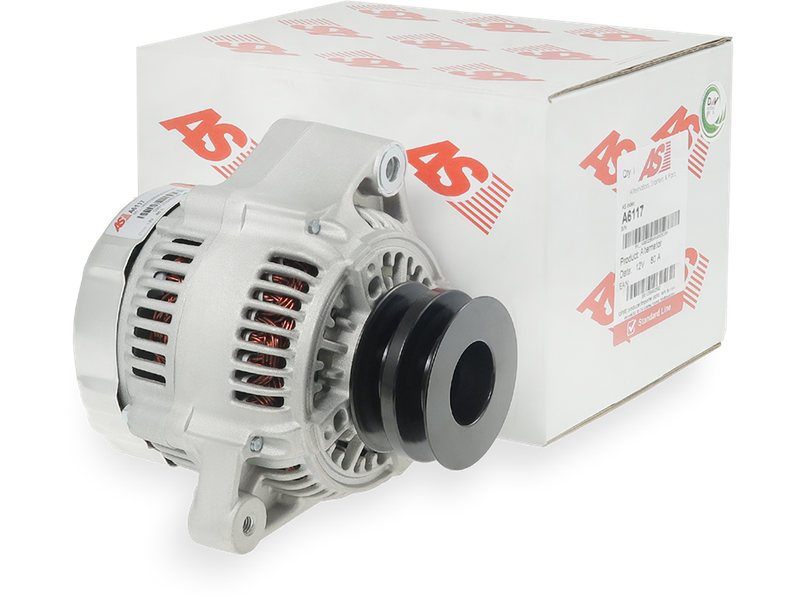

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 371.48 including GST
NZ$ 323.03 excluding GST
or four payments of $92.87
with
Learn More
each
A6117
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1012115270Associated Numbers
1-1865-01ND 101211-5270 113078 13497N 20132674BN 2040476 27060-66070 401534RI 555075RI 944390512950 ALT5059B CAL40476AS DRA3517 EAA-221575Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 173 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12 mm |
| Pulley Outside Diameter (O.D.1) | 44 mm |
| Pulley Outside Diameter (O.D.2) | 71 mm |
| Pulley to Mount Distance (A) | 93 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | LX 450 4.5 | [1FZ-FE] | 01.1996-01.1997 |
| TOYOTA | Land Cruiser 4.5 | [1FZ-FE] | 01.1993-01.1995 |
| TOYOTA | Land Cruiser 4.5 | [1FZ-FE] | 01.1996-01.1997 |
Reference Information
| 002-T538 | ASHIKA |
| 002-T594 | ASHIKA |
| 101211-5270 | DENSO |
| 113078 | CARGO |
| 1-1865-01ND | WAI / TRANSPO |
| 13497N | WAI / TRANSPO |
| 20132674BN | REAL |
| 2040476 | SANDO |
| 27060-66060 | TOYOTA |
| 27060-66070 | TOYOTA |
| 28-4609 | ELSTOCK |
| 2T538 | JAPKO |
| 2T594 | JAPKO |
| 401534RI | KUHNER |
| 446638 | LOGISTIK |
| 555075RI | KUHNER |
| 944390512950 | MAGNETI MARELLI |
| A6117 | AS-PL |
| ALT422170 | SIOM |
| ALT5059B | WOODAUTO |
| ALT538 | JAPANPARTS |
| ALT594 | JAPANPARTS |
| ALT6088 | ELECTROLOG |
| CAL40476AS | CASCO |
| CGB-13517 | AINDE |
| DRA3517 | DELCO |
| F032113078 | CARGO |
| LRA02157 | LUCAS |
| LRA2157 | LUCAS |
| STX101916 | STARDAX |
