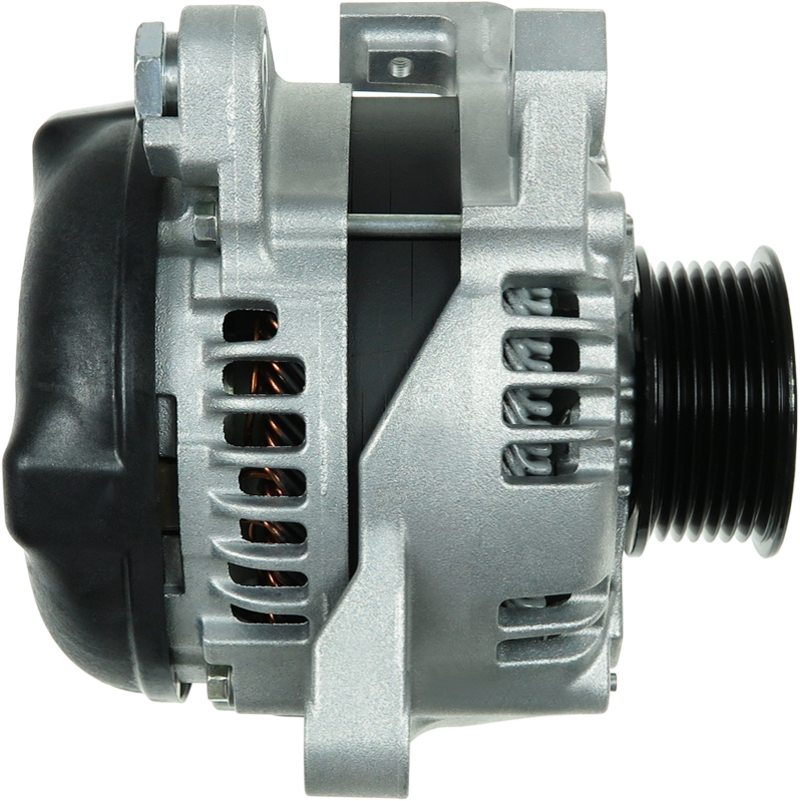

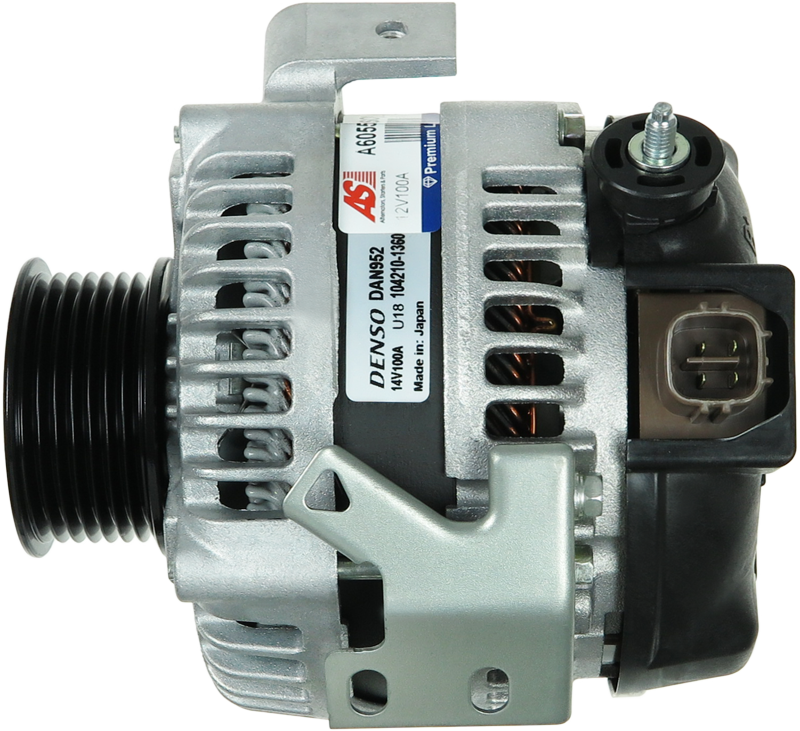

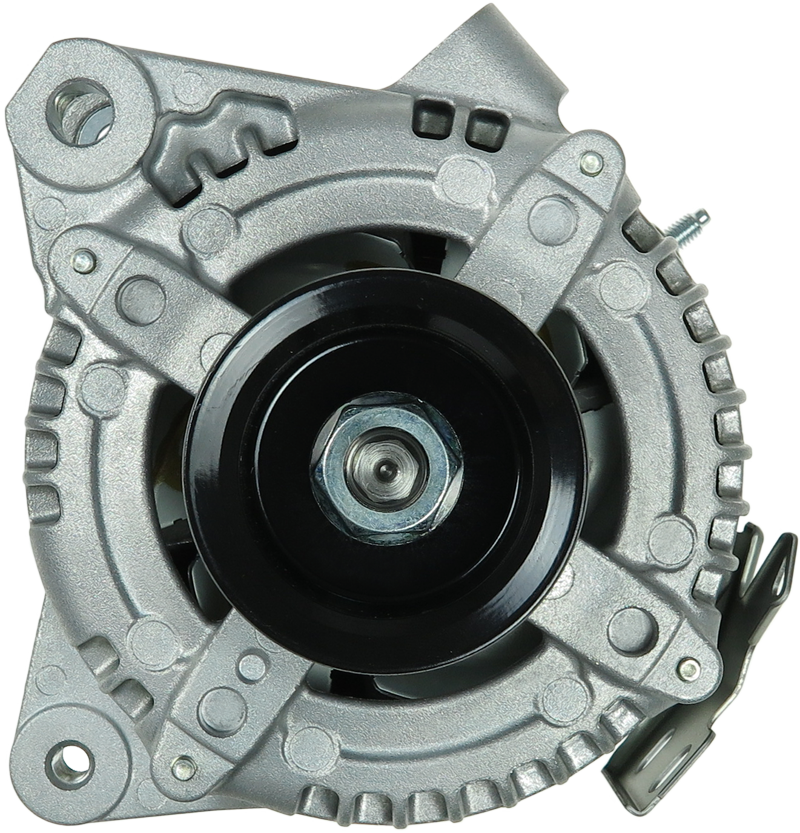

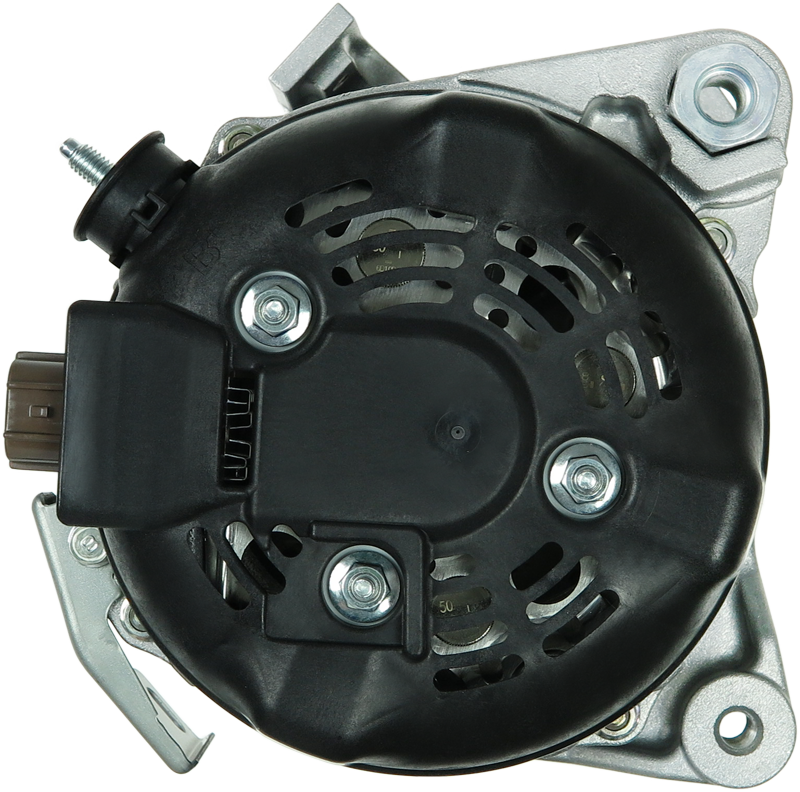

A6055(DENSO) - Brand new OEM DENSO Alternator

Specifications

Amp	100 A
Bottom Mounting Foot Width (B)	18 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	11 mm
Diameter (D.3)	M10x1.25 mm
Grooves	7 qty
Length (L.1)	159 mm
Mount Inside Length or Pad Mount C-C (C)	45 mm
OEM Product	Yes
Outside Diameter (O.D.1)	60 mm
Plug Code	PL_4000
Product Line	Premium Line
Product Type	Brand new
Pulley to Mount Distance (A)	36.5 mm
Pulley Type	SOLID
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	Avensis 2.0	[1AZ-FSE]	01.2003-12.2008
TOYOTA	Avensis 2.0 VVT-i	[1AZ-FE]	01.2003-12.2008
TOYOTA	Avensis 2.0 VVT-i Verso	[1AZ-FE]	01.2001-
TOYOTA	Avensis 2.4	[2AZ-FSE]	01.2003-12.2008
TOYOTA	Previa 2.4 16V	[2AZ-FE]	01.2000-12.2006
TOYOTA	Rav4 2.0 VVT-i 4WD	[1AZ-FE]	01.2003-12.2005

Reference Information

90-29-5610 40388 DAN952 8EL012241-001 A12DE0236A2 A-80287 27060-28260 209421 LRA2189 27060-28160 89213906 ALN1316 UD11469A 446662 114273 986082060 102211-0750 A12DE0236 104210-2462 11088N 11088 2.70603E+11 28-4652 2040382 57070 11088R 195.550.100 J5112149 27060-0H070 401613RID LRA02189 27060-28070 0986082060 401613RI CAL40382AS 2706025260 DENDAN952 102211-0921 104210-3780 102211-0920 20132283BN 270600H100 2706028270 104210-1360 90-29-5610N ALT6255 2706028350

Video/Publications

0986082060 102211-0750 102211-0920 102211-0921 104210-1360 104210-2462 104210-3780 11088 11088N 11088R 114273 195.550.100 20132283BN 2040382.0 27060-0H070 27060-28070 27060-28160 27060-28260 28-4652 401613RI 401613RID 40388 57070 89213906 8EL012241-001 90-29-5610 90-29-5610N A-80287 ALN1316 CAL40382AS DAN952 DENDAN952 J5112149 LRA02189 LRA2189 UD11469A 209421
