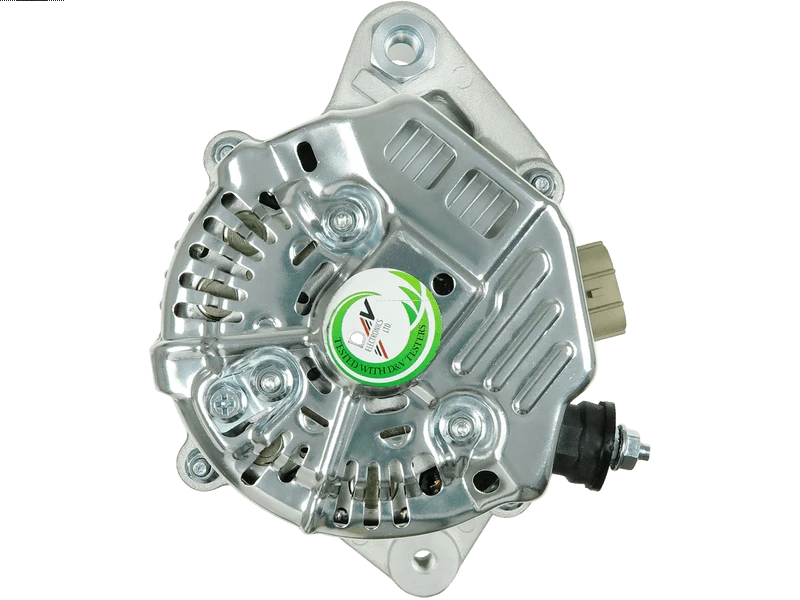

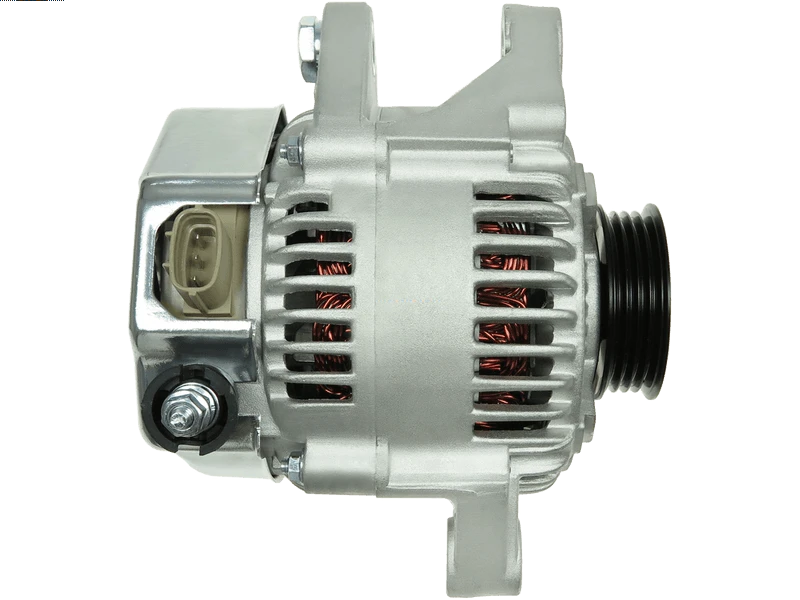

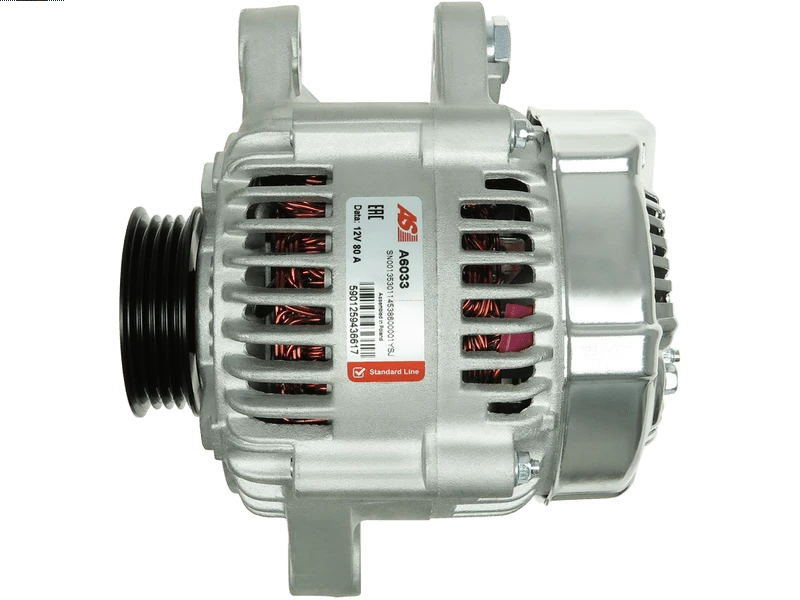

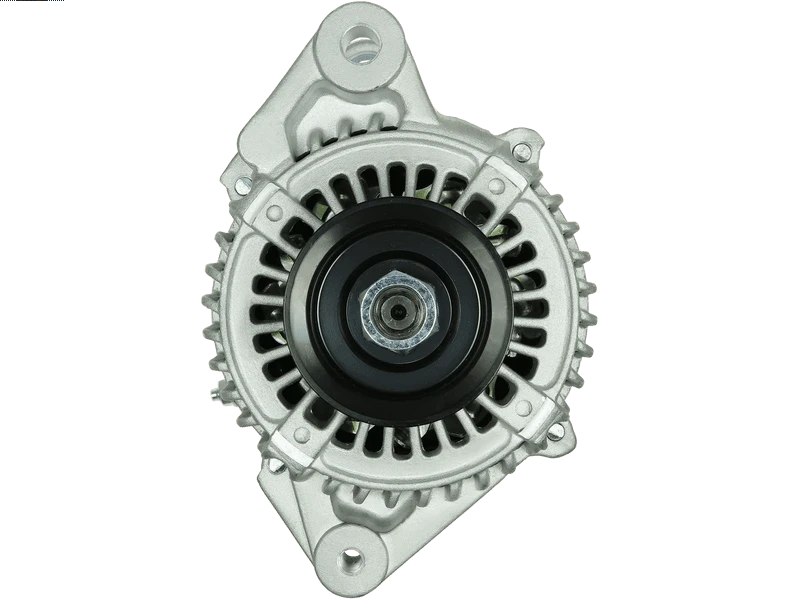

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 428.42 including GST
NZ$ 372.54 excluding GST
or four payments of $107.11
with
Learn More
each
A6028
A6033
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
- Related Items
Information
1022111950Associated Numbers
0986045831 102211-1950 102211-1951 102211-9070 102211-9100 11.1794 11.1794M 11085N 13857N 20132012BN 2040210 27060-21030 27060-21031 27060-21140 28-3871 401794RI 89213427 8EL738226-001 9062106 9213427 9267 AEA4272 ALT30353 CAL40210AS DAN959 DRB5831 JA1794IR LRA01971Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 18.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 163 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41.50 mm |
| OEM Product | No |
| Plug Code | PL_3312 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.3 16V | (NCP10)[2NZ-FE] | 11.1999- |
| TOYOTA | Yaris 1.5 | [1NZ-FE] | 11.2005- |
| TOYOTA | Yaris 1.5 i 16V | (NCP13)[1NZ-FE] | 04.2001- |
| TOYOTA | Yaris 1.5 TS | (_CP10_)[1NZ-FE] | 01.2001- |
| TOYOTA | Yaris 1.5 VVT-i TS | (_CP10)[1NZ-FE] | 03.2003-07.2005 |
| TOYOTA | Yaris Verso 1.3 | (NCP2_)[2NZ-FE] | 08.1999- |
| TOYOTA | Yaris Verso 1.5 16V | (NCP21)[1NZ-FE] | 03.2000- |
| TOYOTA | Yaris Verso 1.5 TS | (NCP2_)[1NZ-FE] | 08.1999- |
Alternatives >>>
A6028 - 90 Amp
Reference Information
| 0986045831 | BOSCH |
| 102211-1950 | DENSO |
| 102211-1951 | DENSO |
| 102211-9070 | DENSO |
| 102211-9100 | DENSO |
| 11085N | WAI / TRANSPO |
| 11.1794 | LAUBER |
| 11.1794M | LAUBER |
| 13857N | WAI / TRANSPO |
| 20132012BN | REAL |
| 2040210 | SANDO |
| 209371 | ERA |
| 209377 | ERA |
| 27060-21030 | TOYOTA |
| 27060-21031 | TOYOTA |
| 27060-21140 | TOYOTA |
| 28-3871 | ELSTOCK |
| 401794RI | KUHNER |
| 447180 | LOGISTIK |
| 5540491 | MEAT & DORIA |
| 89213427 | POWERMAX |
| 8EL738226-001 | HELLA |
| 9062106 | FRIESEN |
| 9213427 | POWERMAX |
| 9267 | CEVAM |
| A12DE0486A2 | SIDAT |
| A6033 | AS-PL |
| AEA4272 | AUTOELECTRO |
| ALT258 | ROLLCO |
| ALT263 | ROLLCO |
| ALT30353 | WOODAUTO |
| ALT422100 | SIOM |
| ALT6544 | ELECTROLOG |
| ALTS266 | 3EFFE |
| ANM48051X | ANDEL |
| CAL40210AS | CASCO |
| CGB-15831 | AINDE |
| DAN959 | DENSO |
| DRB5831 | DELCO |
| J5112106 | HERTH+BUSS |
| JA1794IR | HC PARTS |
| LRA01971 | LUCAS |
| LRA1971 | LUCAS |
| STX100371 | STARDAX |
| STX100371R | STARDAX |
| STX100609 | STARDAX |
Video/Publications
A6033Related Items
