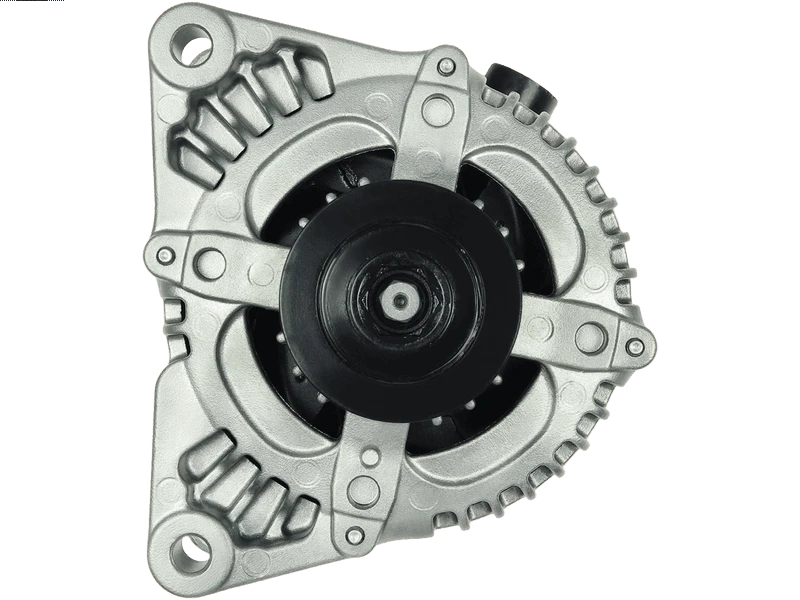

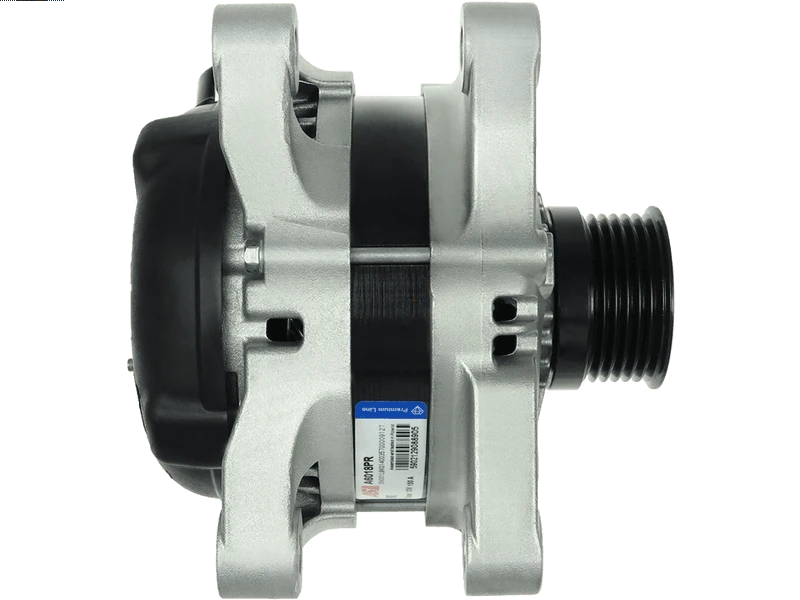

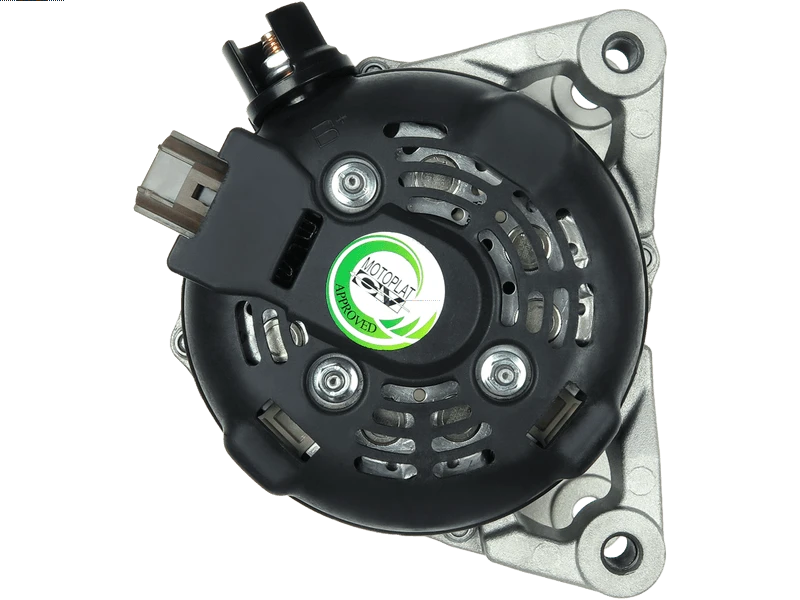

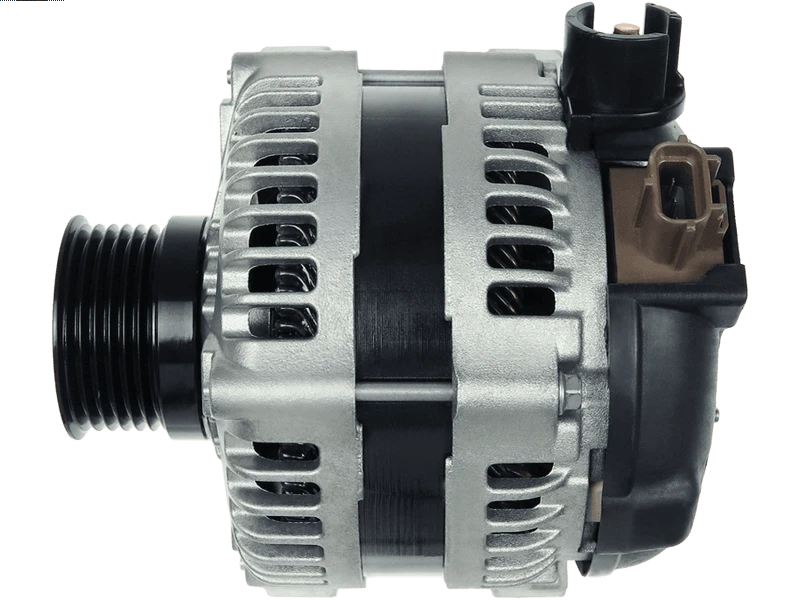

A6018PR - Remanufactured AS-PL Alternator

Specifications

Amp	150 A
Diameter (D.1)	10 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	M10x1.5 mm
Diameter (D.4)	M10x1.5 mm
Grooves	6 qty
Length (L.1)	164 mm
Outside Diameter (O.D.1)	54 mm
Pivot Foot Length (B)	21 mm
Pivot Inside Length (C)	45 mm
Plug Code	PL_3402
Pulley Type	CLUTCH
Pulley to Mount Distance (A)	42.5 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	C-Max 1.6 TDCi	[G8DA]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[G8DB]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[G8DC]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[G8DD]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[GPDA]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[HHDA]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[HHDB]	02.2007-09.2010
FORD	C-Max 1.6 TDCi	[MTDA]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DA]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DB]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DC]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DD]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DE]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DF]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[G6DG]	02.2007-09.2010
FORD	C-Max 2.0 TDCi	[IXDA]	02.2008-09.2010
FORD	Fiesta 1.6 TDCi	[HHJA]	11.2004-06.2008
FORD	Fiesta 1.6 TDCi	[HHJB]	11.2004-06.2008
FORD	Focus 1.6 TDCi	[G8DA]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[G8DA]	07.2004-09.2012
FORD	Focus 1.6 TDCi	[G8DB]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[G8DB]	07.2004-09.2012
FORD	Focus 1.6 TDCi	[G8DC]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[G8DC]	07.2004-09.2012
FORD	Focus 1.6 TDCi	[G8DD]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[G8DD]	07.2004-09.2012
FORD	Focus 1.6 TDCi	[G8DE]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[G8DE]	07.2004-09.2012
FORD	Focus 1.6 TDCi	[G8DF]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[G8DF]	07.2004-09.2012
FORD	Focus 1.6 TDCi	[GPDA]	01.2005-09.2012
FORD	Focus 1.6 TDCi	[GPDA]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[GPDA]	12.2007-09.2012
FORD	Focus 1.6 TDCi	[GPDB]	01.2005-09.2012
FORD	Focus 1.6 TDCi	[GPDB]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[GPDB]	12.2007-09.2012
FORD	Focus 1.6 TDCi	[GPDC]	01.2005-09.2012
FORD	Focus 1.6 TDCi	[GPDC]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[GPDC]	12.2007-09.2012
FORD	Focus 1.6 TDCi	[HHDA]	01.2005-09.2012
FORD	Focus 1.6 TDCi	[HHDA]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[HHDA]	12.2007-09.2012
FORD	Focus 1.6 TDCi	[HHDB]	01.2005-09.2012
FORD	Focus 1.6 TDCi	[HHDB]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[HHDB]	12.2007-09.2012
FORD	Focus 1.6 TDCi	[MTDA]	04.2005-09.2012
FORD	Focus 1.6 TDCi	[MTDA]	07.2004-09.2012
FORD	Focus 2.0 TDCi	[G6DA]	04.2005-09.2012
FORD	Focus 2.0 TDCi	[G6DA]	07.2004-09.2012
FORD	Focus 2.0 TDCi	[G6DA]	10.2006-09.2010
FORD	Focus 2.0 TDCi	[G6DB]	04.2005-09.2012
FORD	Focus 2.0 TDCi	[G6DB]	07.2004-09.2012
FORD	Focus 2.0 TDCi	[G6DB]	10.2006-09.2010
FORD	Focus 2.0 TDCi	[G6DD]	04.2005-09.2012
FORD	Focus 2.0 TDCi	[G6DD]	07.2004-09.2012
FORD	Focus 2.0 TDCi	[G6DD]	10.2006-09.2010
FORD	Focus 2.0 TDCi	[G6DE]	07.2004-01.2008
FORD	Focus 2.0 TDCi	[G6DF]	07.2004-01.2008
FORD	Focus 2.0 TDCi	[G6DG]	04.2005-09.2012
FORD	Focus 2.0 TDCi	[G6DG]	07.2004-09.2012
FORD	Focus 2.0 TDCi	[G6DG]	10.2006-09.2010
FORD	Focus 2.0 TDCi	[IXDA]	02.2008-07.2011
FORD	Focus C-Max 1.6 TDCi	[G8DA]	10.2003-03.2007
FORD	Focus C-Max 1.6 TDCi	[G8DB]	10.2003-03.2007
FORD	Focus C-Max 1.6 TDCi	[G8DD]	10.2003-03.2007
FORD	Focus C-Max 1.6 TDCi	[G8DE]	10.2003-03.2007
FORD	Focus C-Max 1.6 TDCi	[G8DF]	10.2003-03.2007
FORD	Focus C-Max 1.6 TDCi	[HHDA]	02.2005-03.2007
FORD	Focus C-Max 1.6 TDCi	[HHDB]	02.2005-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DA]	10.2003-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DB]	10.2003-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DC]	10.2003-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DD]	10.2003-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DE]	10.2003-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DF]	10.2003-03.2007
FORD	Focus C-Max 2.0 TDCi	[G6DG]	10.2003-03.2007
FORD	Fusion 1.6 TDCi	[HHJA]	11.2004-12.2012
FORD	Fusion 1.6 TDCi	[HHJB]	11.2004-12.2012
FORD	Kuga 2.0 TDCi	[G6DG]	03.2008-11.2012
FORD	Kuga 2.0 TDCi	[UFDA]	03.2010-11.2012
FORD	Kuga 2.0 TDCi	[UKDA]	03.2008-11.2012
FORD	Kuga 2.0 TDCi 4x4	[G6DG]	03.2008-11.2012
FORD	Kuga 2.0 TDCi 4x4	[TXDA]	03.2010-11.2012
FORD	Kuga 2.0 TDCi 4x4	[UFDA]	03.2010-11.2012
FORD	Kuga 2.0 TDCi 4x4	[UKDA]	03.2008-11.2012
MAZDA	3 1.6 Di Turbo	[Y601]	06.2004-06.2009
MAZDA	3 1.6 Di Turbo	[Y603]	06.2004-06.2009
MAZDA	3 1.6 Di Turbo	[Y605]	06.2004-06.2009
MAZDA	3 1.6 Di Turbo	[Y642]	06.2004-06.2009
MAZDA	3 1.6 MZ-CD	[Y642]	12.2008-05.2013
MAZDA	3 1.6 MZR CD	[Y642]	12.2008-05.2013
VOLVO	C30 1.6 D	[D4164T]	10.2006-12.2012
VOLVO	C30 2.0 D	[D4204T]	10.2006-12.2012
VOLVO	C70 2.0 D	[D4204T]	01.2008-10.2009
VOLVO	S40 1.6 D	[D4164T]	01.2005-12.2012
VOLVO	S40 2.0 CDi	[D4204T2]	07.2005-12.2006
VOLVO	S40 2.0 D	[D4204T]	01.2004-12.2010
VOLVO	S40 2.0 D4	[D4204T2]	07.2005-12.2006
VOLVO	V50 1.6 D	[D4164T]	01.2005-12.2011
VOLVO	V50 1.6 D	[D4164T]	03.2005-12.2012
VOLVO	V50 2.0 CDi	[D4204T2]	12.2003-12.2006
VOLVO	V50 2.0 D	[D4204T]	04.2004-12.2010
VOLVO	V50 2.0 D4	[D4204T2[	07.2005-12.2006

Reference Information

8M5T-10300-YA 986049071 8M5T-10300-YB 440411 1229259 3M5T-10300-YE 1255711 3M5T-10300-YD 31288155 DA5349 LRA2815 36000599 31255595 3M5T-10300-YC 3M5T-10300-YB ALTL430 ALT421950RS 6.3181.9 ALT421950R 89216391 EAA-222130 2040195 LRA02815 23821N MQA1834 27-4933 104210-5711 301834RID 1748630 104210-5710 200003 ALN1834 CAL40195RS ALT421950 PRAL430 301834RIR ALT600CP 1477738 8688163C PRAL430U ALTL430U 595.545.150.050 104210-3520 104210-3521 104210-3522 104210-3523 104210-2710 104210-3524 MAN7416 446923 5540354 20132591BN CAL40195AS AI-90047 30795423 DAN930 A12DE0006A2 2242403 30667068 9.44391E+11 CGB-74933 31285595 DRA4239X 20132591RC 20132591RE Y601-18-300 2040195.4 36002577 8EL011711-801 DRA4239 2040195.2 2040195.1 116294 32118710 Y601-18-300B CAL40195GS 63377416 63377416010 CAL40195OS 113849 4G0003 31285593 DENDAN930 GADAN930D-R MAN7551 210358 8688163 AG0646 595.545.150.265 443071 595.545.150.260 ALT421950A GADAN930-A 57041 RAA15340 36050997 RE3M5T-10300-YD CA1834IR 1704085 20132591OE ALT30159 1708322 RE8M5T-10300-YB 4717 A12DE0006 8603183 63731834010 GADAN930-N MRA90434

Video/Publications

063377416010 0986049071 104210-2710 104210-3520 104210-3521 104210-3522 104210-3523 104210-3524 104210-5710 104210-5711 113849 1229259 1255711 1477738 1704085 1708322 1748630 20132591BN 20132591OE 20132591RC 20132591RE 2040195.0 2040195.1 2040195.2 2040195.4 210358 2242403 23821N 23821R 27-4933 301834RID 30667068 30795423 31255595 31285593 31285595 31288155 32118710 36000599 36002577 36050997 3M5T-10300-YB 3M5T-10300-YC 3M5T-10300-YD 3M5T-10300-YE 4717 57041 595.545.150 6.3181.9 8603183 8688163C 89216391 8EL011711-801 8EL738211-331 8M5T-10300-YA 8M5T-10300-YB 944390904340 AG0646 ALN1834 ALN9834 ALT30159 ALT421950 ALT600CP ALTL430 AX 1194 CA1834IR CAL40195AS CAL40195GS CAL40195OS CAL40195RS DA5349 DAN930 DENDAN930 DRA4239 EAA-222130 G101834M-R GA377416-A LRA02815 LRA2815 MRA90434 RAA15340 RE3M5T-10300-YD RE8M5T-10300-YB
