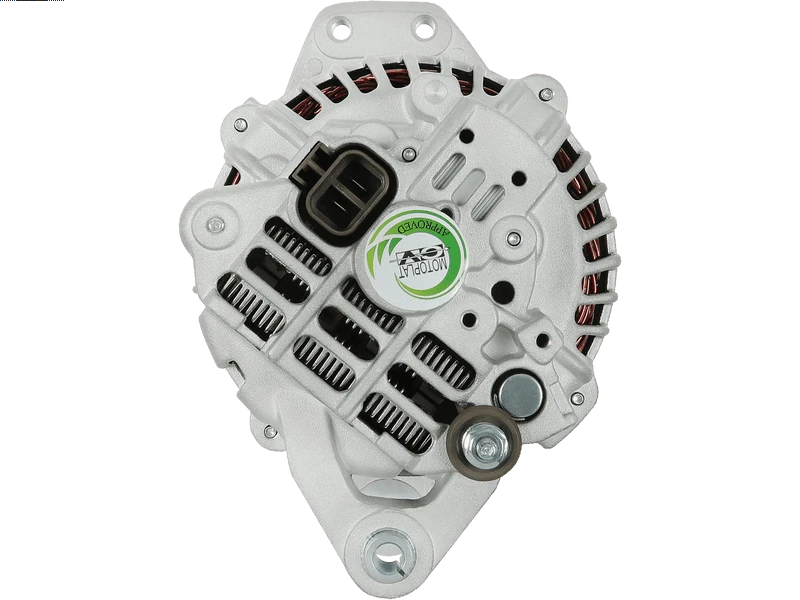

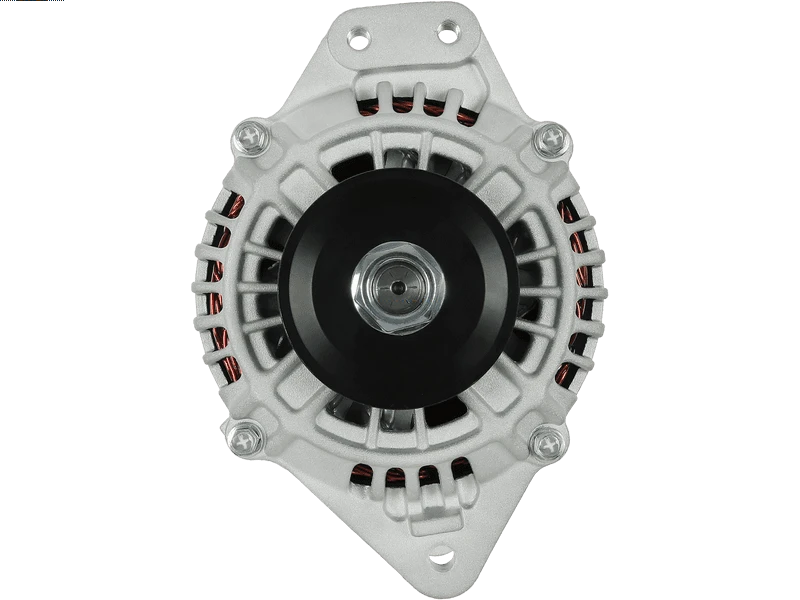

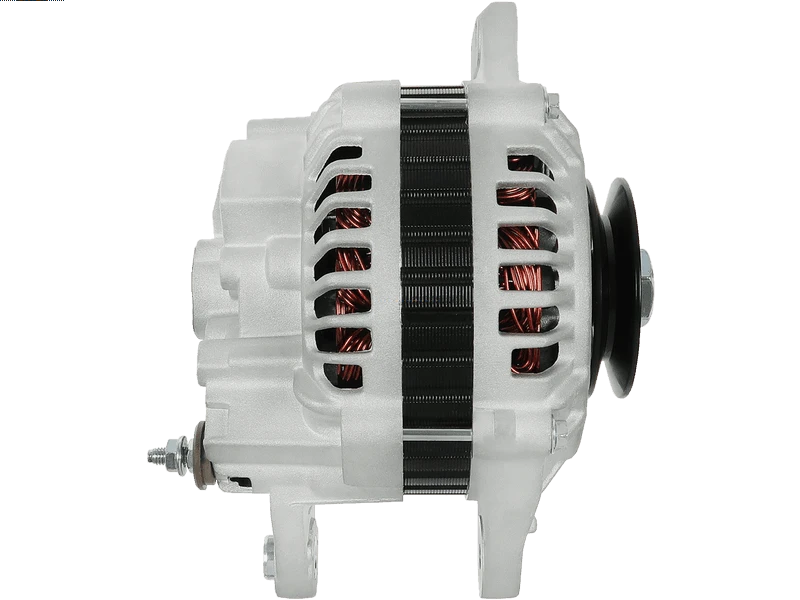

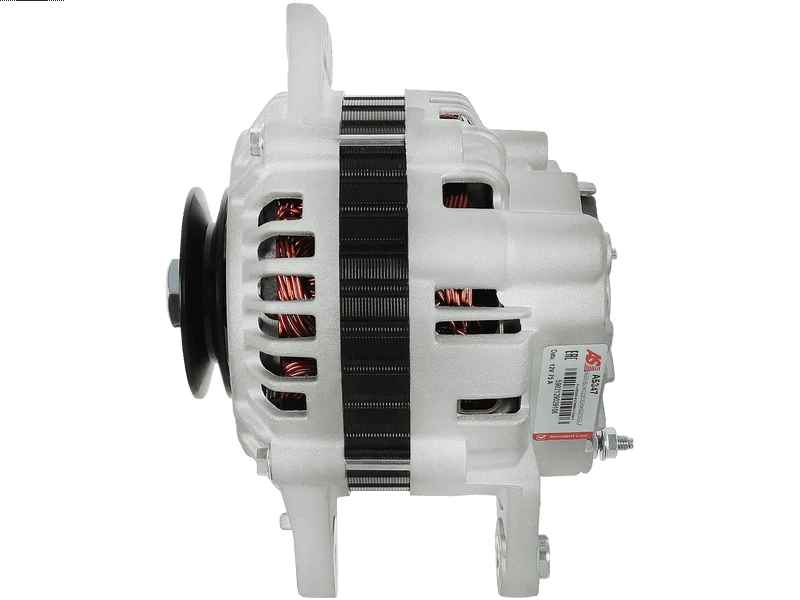

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 405.59 including GST
NZ$ 352.69 excluding GST
or four payments of $101.40
with
Learn More
UOM:
each
Product Code:
A5347
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0986040551 11.0973 13238N 155.508.075.265 155.508.075.415 20137731BN 2035137 28-1807 40973RI 56755 89212309 8EL732738-001 9028 944390515450 A003T41376 A003T41876 A3T41376 A3T41876 AEA2233 CAL35137AS DRA3938 J5115045 LRA01382 MD111233 UD12293ASpecifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 8.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9.50 mm |
| Pulley Outside Diameter (O.D.1) | 74 mm |
| Pulley Outside Diameter (O.D.2) | 49 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | L 300 2.0 | [4G63] | 01.1986-12.1991 |
| MITSUBISHI | L 300 2.0 4WD | [4G63] | 01.1988-12.1994 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 4WD (P23W, P03W, P13W) | 4G63(SOHC8V) | 11.1986-05.2004 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 4WD (P23W, P03W, P13W) | 4G63(SOHC8V) | 12.1986-05.2004 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 (P03W, P13W) | 4G63(SOHC8V) | 11.1986-05.2004 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.0 (P03W, P13W) | G63B | 11.1986-05.2004 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.4 4WD (P24W) | 4G64(8V) | 08.1986-05.2004 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.4 4WD (P24W) | G64B | 11.1986-12.1990 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.4 (P04W, P14W) | 4G64(8V) | 11.1990-05.2004 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.0 4WD (P23W, P23V) | 4G63(SOHC8V) | 08.1988-05.1994 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.0 (P03V, P13V) | 4G63(SOHC16V) | 06.1994-05.1996 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.0 (P03V, P13V) | G63B | 11.1986-05.1996 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.4 4WD (P24V, P24W) | 4G64(8V) | 11.1986-08.1997 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.4 4WD (P24V, P24W) | G64B | 11.1986-08.1997 |
| MITSUBISHI | Pajero 2.4 | [4G64] | 01.1990-12.1994 |
| MITSUBISHI | PAJERO II Canvas Top (V2_C, V4_C) 2.4 (V21C) | 4G64(8V) | 04.1991-04.2000 |
| MITSUBISHI | PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.4 (V21W) | 4G64(8V) | 04.1991-10.1999 |
Reference Information
| 002-C975 | ASHIKA |
| 0986040551 | BOSCH |
| 11.0973 | LAUBER |
| 13238N | WAI |
| 155.508.075.265 | WAI |
| 155.508.075.415 | WAI |
| 20137731BN | REAL |
| 2035137 | SANDO |
| 28-1807 | ELSTOCK |
| 2C975 | JAPKO |
| 40973RI | KUHNER |
| 446022 | LOGISTIK |
| 56755 | EAI |
| 89212309 | POWERMAX |
| 8EL732738-001 | HELLA |
| 9028 | CEVAM |
| 944390515450 | MAGNETI MARELLI |
| A003T41376 | MITSUBISHI |
| A003T41876 | MITSUBISHI |
| A149.457 | WAI |
| A3T41376 | MITSUBISHI |
| A3T41876 | MITSUBISHI |
| AEA2233 | AUTOELECTRO |
| ALC975 | JAPANPARTS |
| ALT371370 | SIOM |
| ALT5235 | ELECTROLOG |
| ALTF665 | 3EFFE |
| CAL35137AS | CASCO |
| DRA3938 | DELCO |
| J5115045 | HERTH+BUSS |
| LRA01382 | LUCAS |
| LRA1382 | LUCAS |
| MD111233 | MITSUBISHI |
| STX100649 | STARDAX |
| UD12293A | AS-PL |
Video/Publications
A5347Related Items
