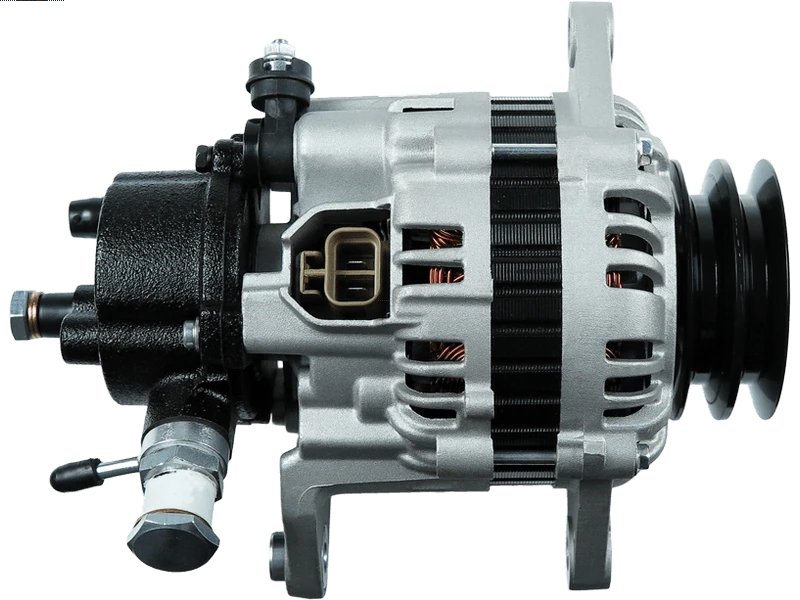

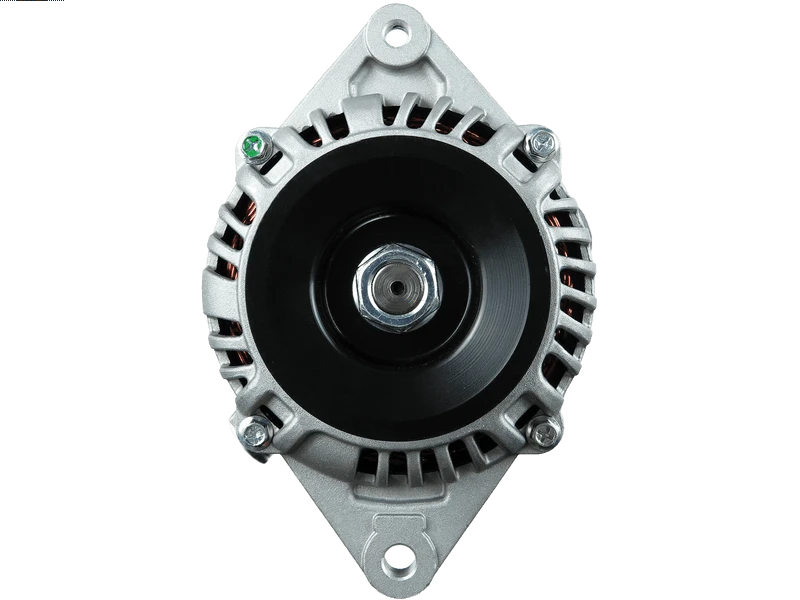

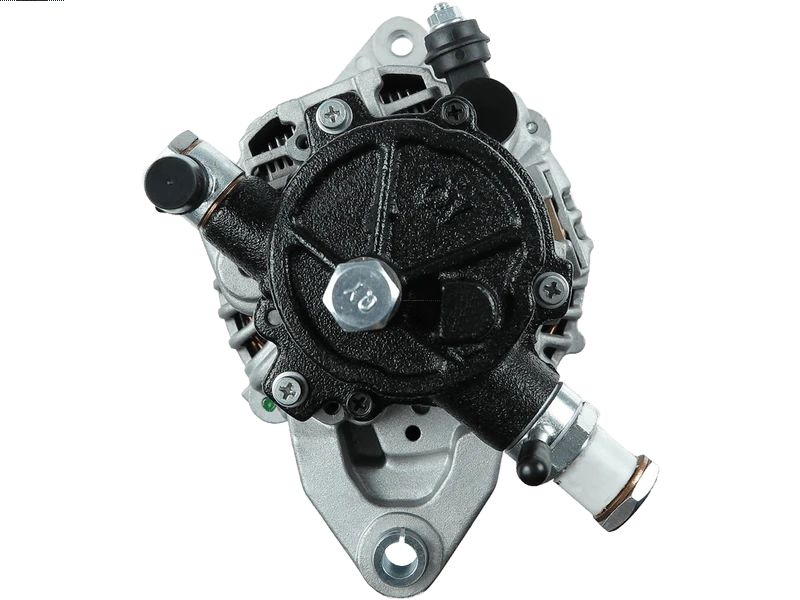

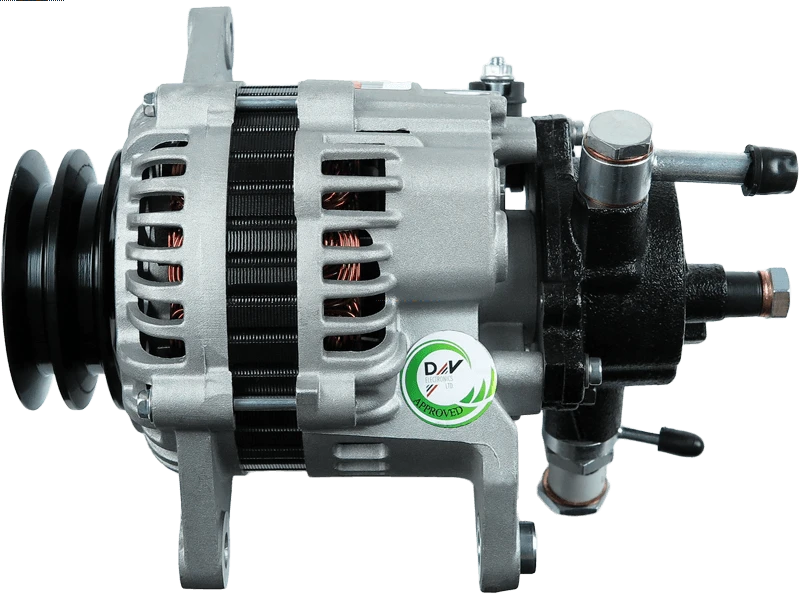

A5166 - Brand new AS-PL Alternator

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	15 mm
Diameter (D.1)	8 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Grooves	2 qty
Groove Width (W.1)	12.5 mm
Length (L.1)	253 mm
Mount Inside Length or Pad Mount C-C (C)	82.5 mm
OEM Product	No
Outside Diameter (O.D.1)	64 mm
Outside Diameter (O.D.2)	88 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	43 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	Patrol 2.8 TD	[RD28T]	05.1986-06.1990
NISSAN	Patrol 2.8 TD	[RD28T]	06.1989-11.1995
NISSAN	Patrol 2.8 TD	[RD28T]	09.1988-06.1997

Reference Information

CAL35127OS J5111066 20137721OE 9.44391E+11 40677RIV 20130146 ALT371270 ALT5317 23100-22Y10 56454 20137721BN UD11292A 9051190 CAL35127GS ANM35429X 437695 002-D977 165.602.070 2D977 111747 LRA1359 A5166 A3T03099 11.0677 210596 0986040561 11.0677M 8EL012426-411 SA507 23100-22J10 28-1748 A003T03099 986040561 2035127 CAL35127AS SB115 445726 165.011.070 DRA3209 CAL35127 CAL35127ES JA677IR LRA01359 9213235 A12MH0330A2 CGB-13209 EAA-211020 2310022Y10 9054 CAL35127RS AEB1368 23100-22J10-EP 22359R GAT03099-A 8EL726392-001 ALD977 ALTL732

Video/Publications

002-D977 0986040561 11.0677 11.0677M 111747 165.011.070 165.602.070 20130146 20137721BN 20137721OE 2035127 22359R 23100-22J10 23100-22J10-EP 28-1748 2D977 40677RIV 437695 56454 8EL012426-411 8EL726392-001 9051190 9054 9213235 944390511900 A003T03099 A3T03099 A5166 AEB1368 ALD977 ALT371270 ALTL732 CAL35127 CAL35127AS CAL35127ES CAL35127GS CAL35127OS CAL35127RS CGB-13209 DRA3209 EAA-211020 GAT03099-A J5111066 JA677IR LRA01359 LRA1359 SA507 SB115 UD11292A 210596
