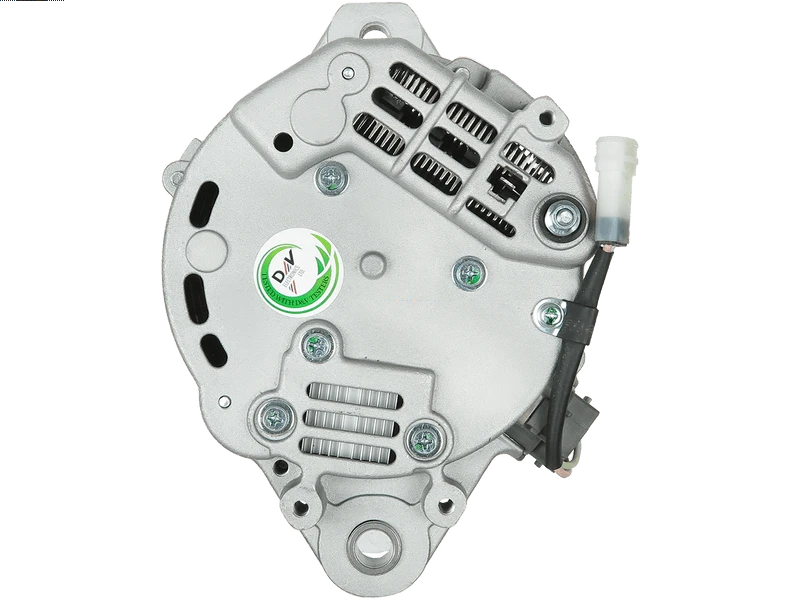

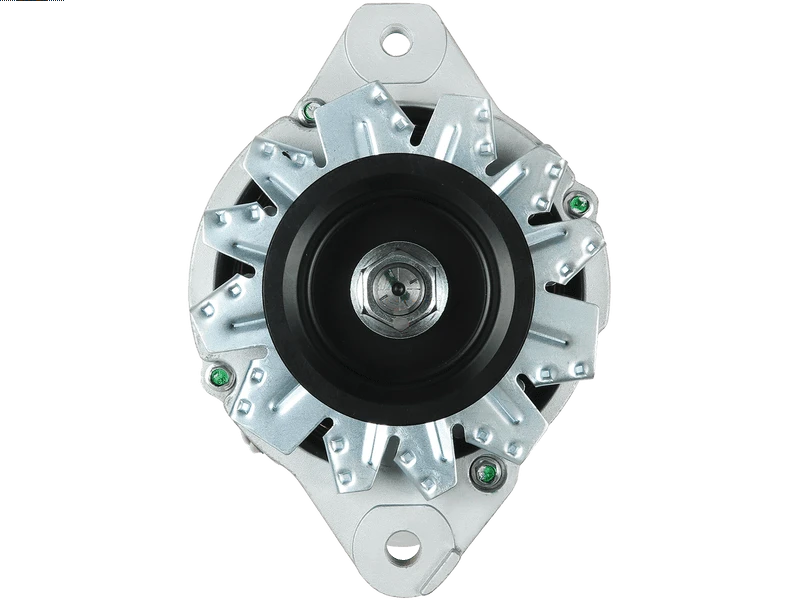

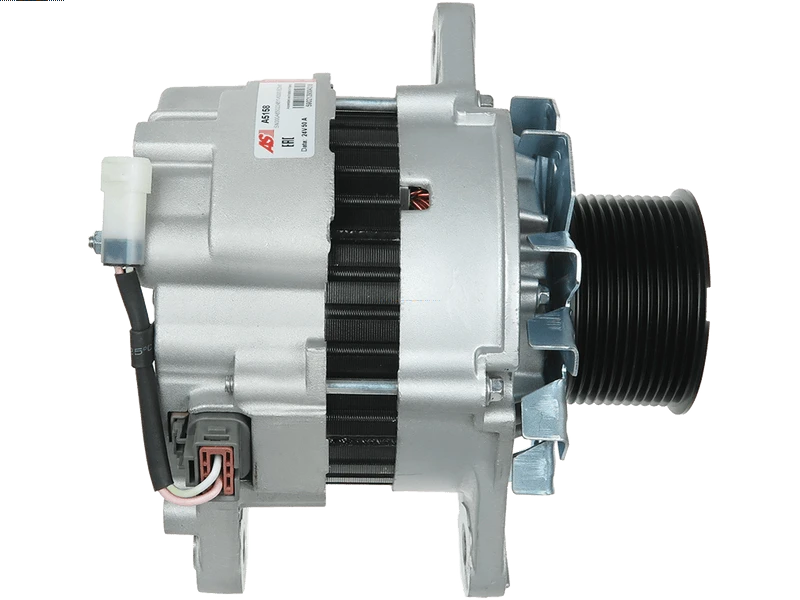

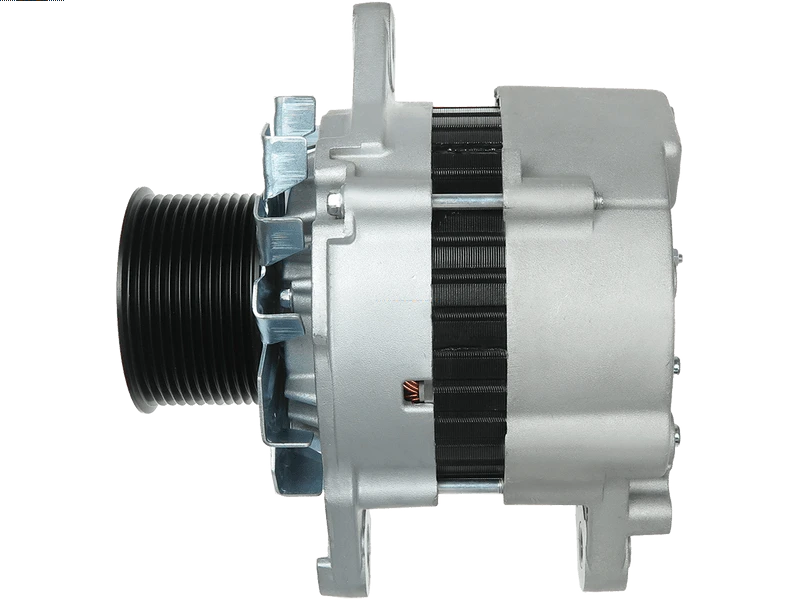

A5158 - Brand new AS-PL Alternator

Specifications

Amp	50 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	M12x1.25 mm
Diameter (D.2)	12.5 mm
Diameter (D.3)	12.5 mm
Grooves	12 qty
Length (L.1)	216 mm
Mount Inside Length or Pad Mount C-C (C)	80.5 mm
OEM Product	No
Outside Diameter (O.D.1)	80.5 mm
Plug Code	PL_2003
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	38 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	320B LL
CATERPILLAR	320B RB
CATERPILLAR	320C
CATERPILLAR	320C-FM
CATERPILLAR	320C-L
CATERPILLAR	320C LL
CATERPILLAR	320D
CATERPILLAR	320D-FM
CATERPILLAR	320D-FMRR
CATERPILLAR	320D-GC
CATERPILLAR	320D-L
CATERPILLAR	320D-LN
CATERPILLAR	320D-LRR
CATERPILLAR	320D-RR
CATERPILLAR	321C
CATERPILLAR	321D-LCR
CATERPILLAR	323D
CATERPILLAR	323D-L
CATERPILLAR	323D-LN
CATERPILLAR	323D-S
CATERPILLAR	323D-SA

Reference Information

212-8561 90-27-3280 646.034.050.130 A004TUF099 34368-03800 CAL35622GS A004TU3599 CAL35622AS A004TU3599AM A4TUF099 646.034.050.370 A24MH0146A2 2035622 A4TU3599ZC 20035622AV 230-40121 2565 20111N A4TUF099AM A4TU3599 ALT5151 20137226BN 554381RIM 5I7982 554381RI 446073 A004TUF099AM 2035622.1 A5158 A4TU3599AM 116164 A004TU3599ZC UD11281A ALM9935 5635143 10R7561 WOOALT31252

Video/Publications

20111N 20137226BN 20137226OE 2035622 212-8561 34368-03800 554381RI 646.034.050 A004TU3599 A4TU3599 ALTS491 CAL35622 CAL35622AS CAL35622ES CAL35622GS CAL35622OS CAL35622RS UD11281A
