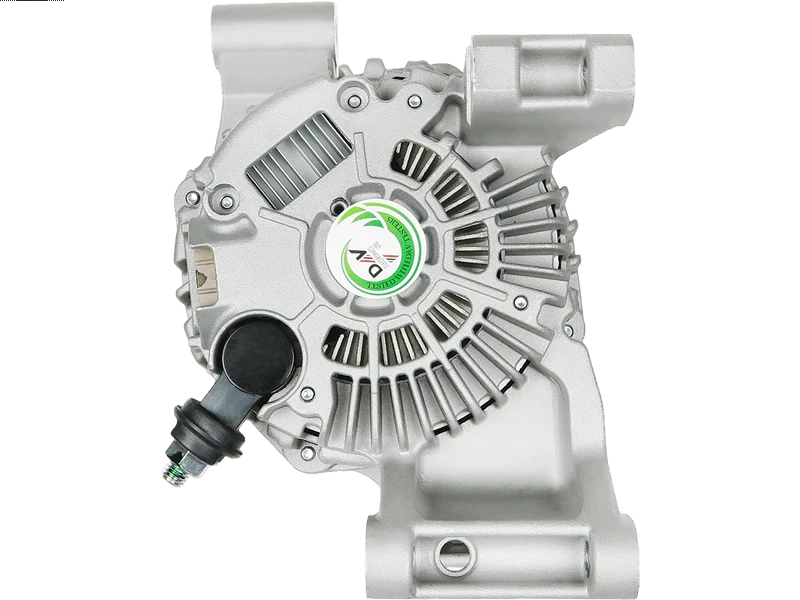

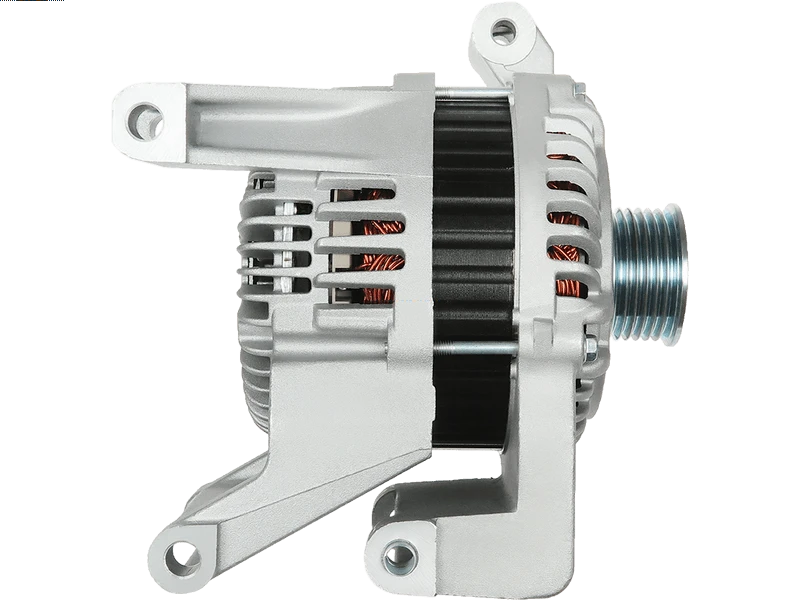

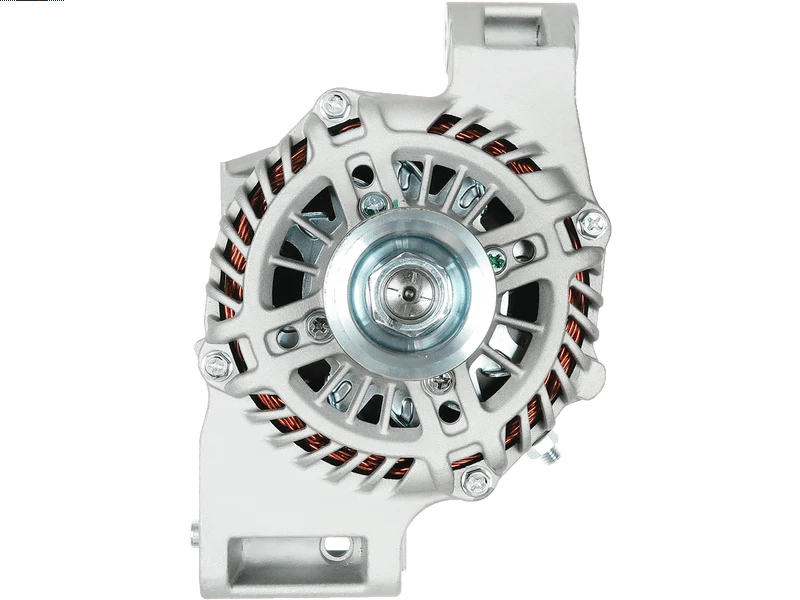

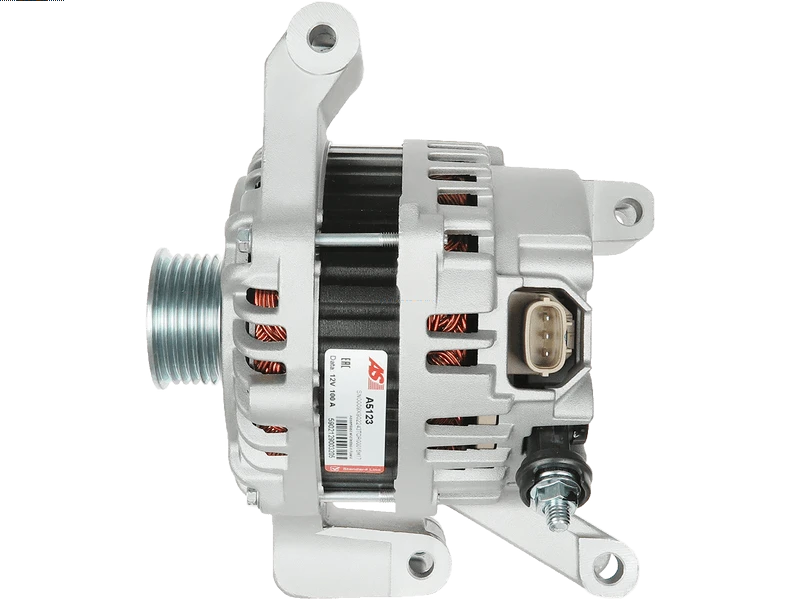

A5123 - Brand new AS-PL Alternator

Specifications

Amp	100 A
Diameter (D.1)	8.5 mm
Diameter (D.2)	9.5 mm
Diameter (D.3)	10.5 mm
Diameter (D.4)	10.5 mm
Grooves	6 qty
Length (L.1)	188 mm
Mount Inside Length or Pad Mount C-C (C)	69 mm
OEM Product	No
Outside Diameter (O.D.1)	49 mm
Pad mount thickness (E.1)	45 mm
Pad mount thickness (E.2)	75 mm
Pad mount thickness (E.3)	45 mm
Pad mount thickness (E.4)	75 mm
Plug Code	PL_3310
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	76 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	3 2.0	[PEY2]	09.2011-09.2014
MAZDA	3 2.0 MZR	[LF..]	01.2009-
MAZDA	3 2.0 MZR	[LF5H]	01.2009-09.2014
MAZDA	3 2.0 MZR	[LF5W]	01.2009-09.2014
MAZDA	3 2.0 MZR DISI	[LF..]	01.2009-
MAZDA	3 2.0 MZR DISI	[LFZ2]	02.2009-05.2013
MAZDA	3 2.0 MZR DISI	[LFZ2]	12.2008-05.2013
MAZDA	5 2.0 MZR	[LF..]	01.2010-

Reference Information

CAL35395GS 27-6973 A2TJ0791 446182 LRA03863 A002TJ0791AM A002TJ0791 ALT31358 DRA1284 ALT2369 145.577.100.138 556056RI PRAF895 4382 89215219 ALM4791 LF8J-18-300 145.577.100.130 20137593OE 145.577.100.370 A2TJ0791AM LF8J LRA3863 UD11014A A5123 ALTF895 ALT5407 57834 11342N 90-27-3399 2035395.1

Video/Publications

27-6973 A002TJ0791 A2TJ0791 A5123 AEK3494 ALTF895 DRA1284 LF8J LF8J-18-300 LRA03863 LRA3863 UD11014A
