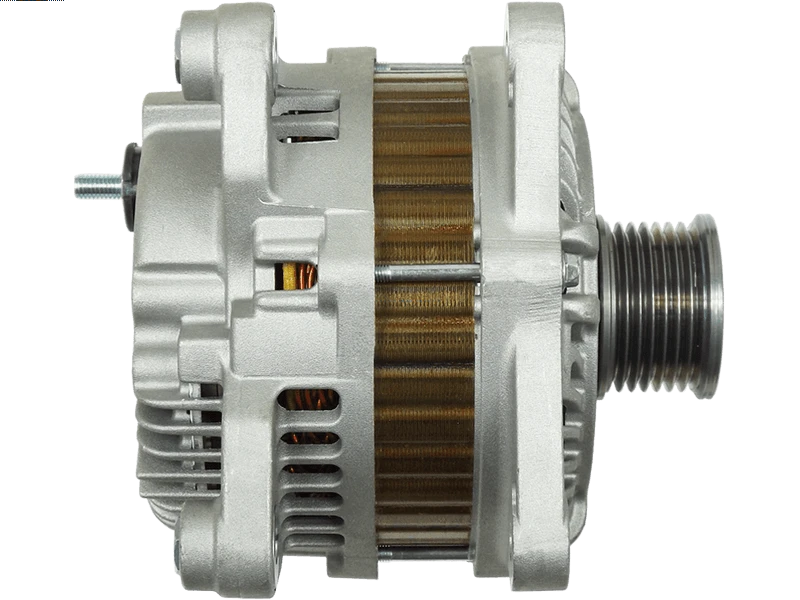

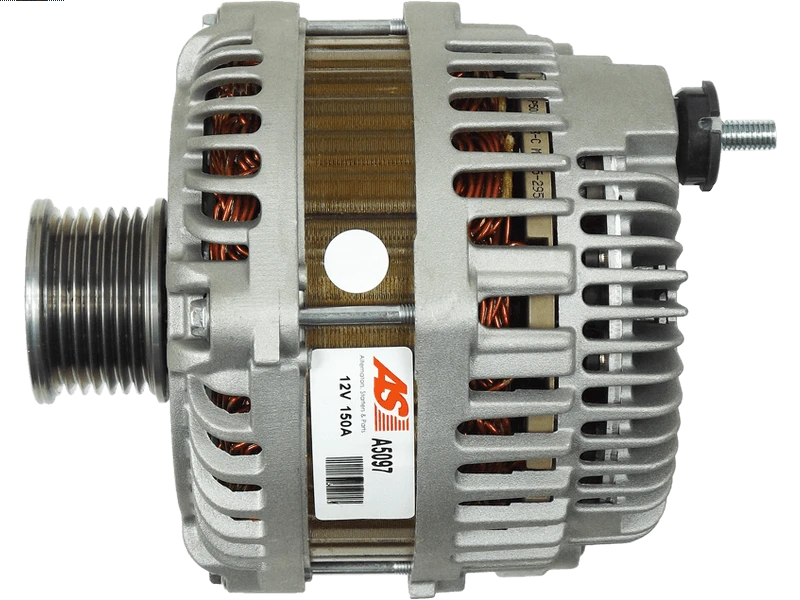

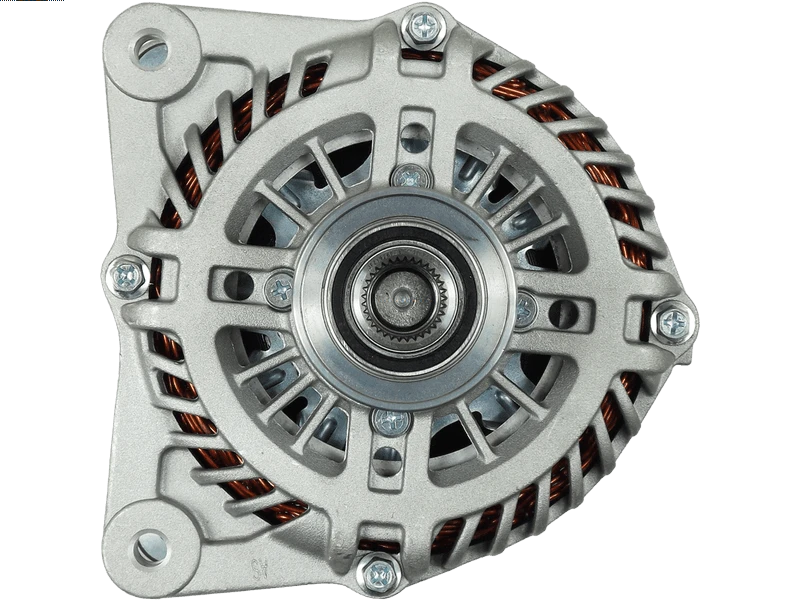

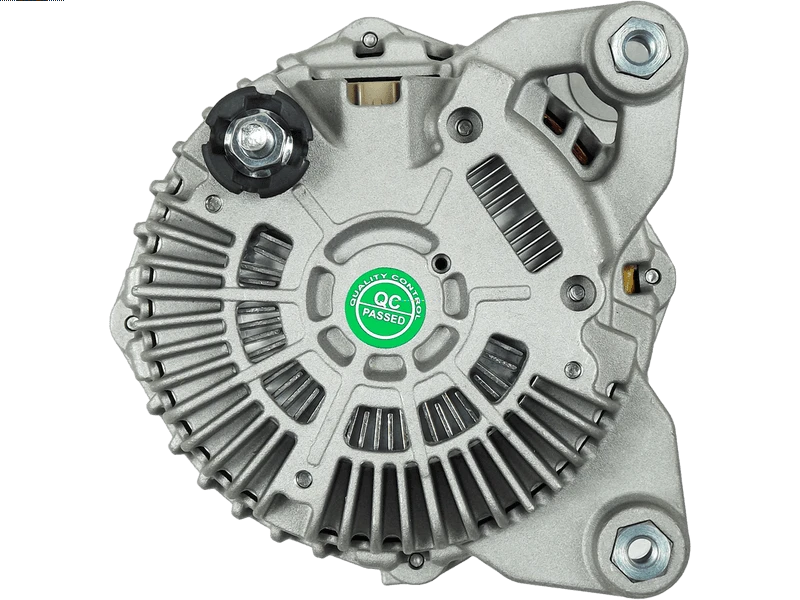

A5097 - Brand new AS-PL Alternator

Specifications

Amp	150 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	7 qty
Length (L.1)	189 mm
Mount Inside Length or Pad Mount C-C (C)	60.5 mm
OEM Product	No
Outside Diameter (O.D.1)	49 mm
Plug Code	PL_3308
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	33.5 mm
Pulley Type	CLUTCH
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	Qashqai 1.6 dCi	[R9M]	01.2011-
NISSAN	Qashqai 1.6 dCi 4WD	[R9M]	01.2011-
NISSAN	Qashqai 2.0 dCi	[M9..]	01.2011-
NISSAN	Qashqai 2.0 dCi 4WD	[M9..]	01.2011-
NISSAN	X-TRAIL 2.0 dCi	[M9..]	01.2011-
NISSAN	X-TRAIL 2.0 dCi 4WD	[M9..]	01.2011-

Reference Information

115519 A12MH0479 A003TJ3881AE CAL35202AS CA2185IR 554166RI AEK3653 CAL35202ES CAL35202GS 23100JD71A 2035362 RNLA3TJ3881 A3TJ2481 23100-JG71B 23100-JG71A LRA3653 A003TJ2481 2035202 ALTF102 DRA1201 20137263OE A5097 28-6793 ALT5353 A003TJ3881A A003TJ3881ZE CAL35202 CAL35202OS UD10998A 23100JG71A CAL35362GS A3TJ3881AE LRA03653 A3TJ3881 A12MH0479A2 A3TJ3881A A3TJ2481ZE CAL35202RS A003TJ2481ZE 23100-JD71B A003TJ3881 23100-JD71A A3TJ3881AM 23100-JD75M A3TJ3881ZE 23100JD75M

Video/Publications

115519 20137263OE 2035202 2035362 23100-JD71B 23100-JG71B 28-6793 554166RI A3TJ3881 A3TJ3881ZE A5097 AEK3653 ALTF102 CAL35202 CAL35202AS CAL35202ES CAL35202GS CAL35202OS CAL35202RS CAL35362GS DRA1201 LRA03653 LRA3653 RNLA3TJ3881 UD10998A
