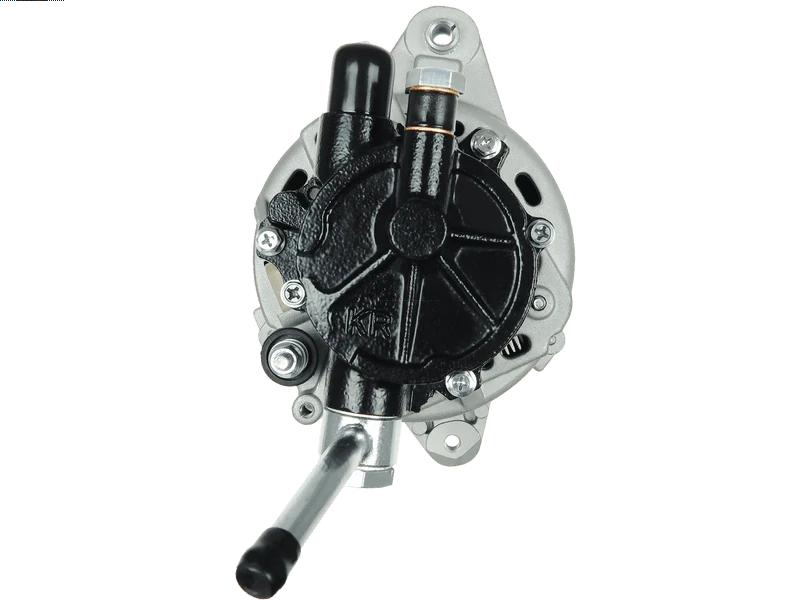

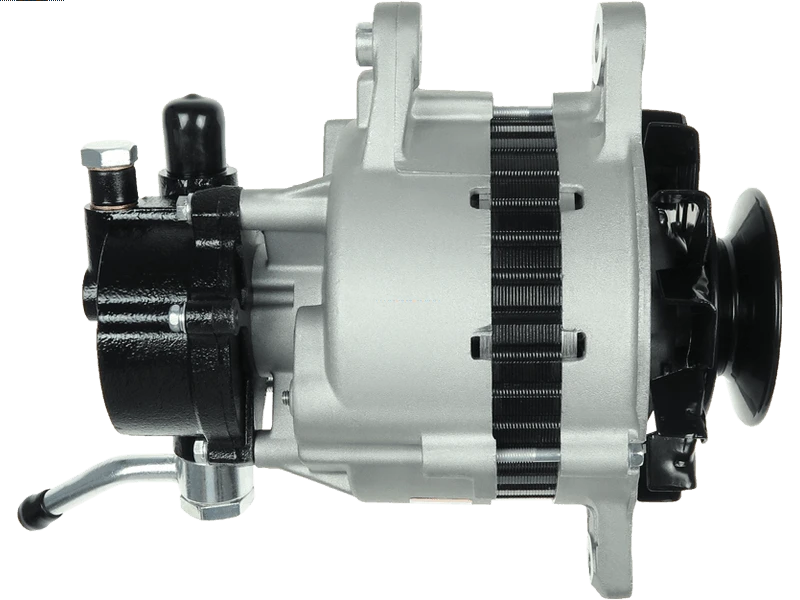

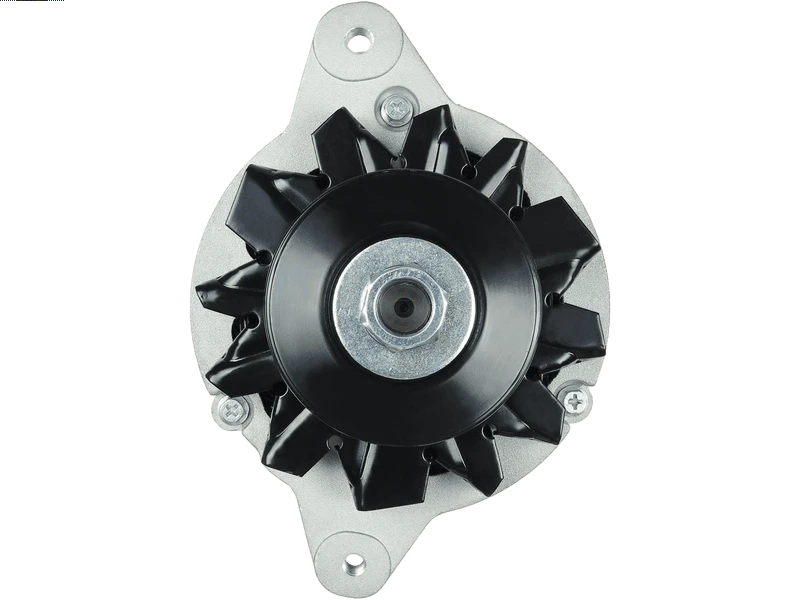

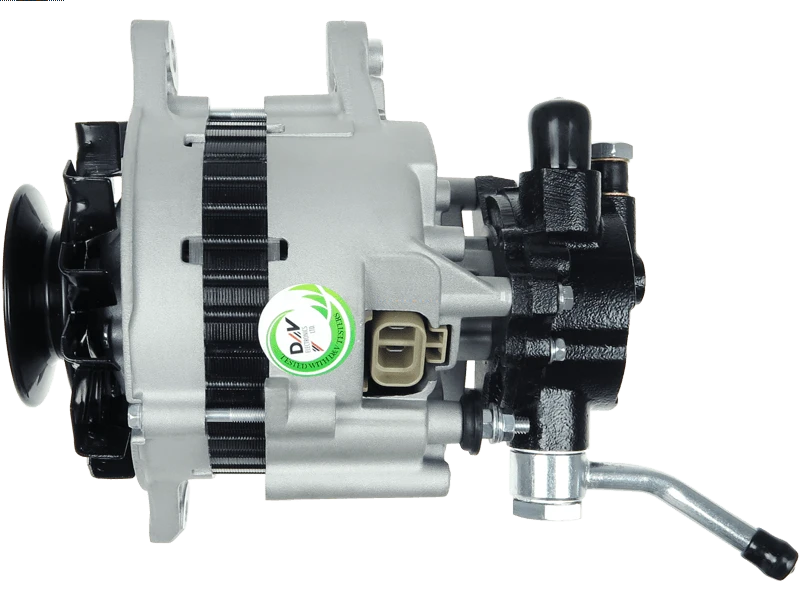

A5018 - Brand new AS-PL Alternator

Associated Numbers

0986042311 11.0674 11.0674M 111339 12627N 20110225 20137711OE 2035117 28-1701 40674RI 56622 600003 89213316 8EL726389-001 9026 9213316 A2T11783 A2T17783 A2T27883 A5018 AEA2235 ALT31056 CAL35117GS DRA3194 EAA-221246 GAT27883-A HAD165504 JA674IR LRB00225 MD140189 MD147245

Specifications

Amp	65 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	8 mm
Diameter (D.3)	8.50 mm
Length (L.1)	223 mm
Mount Inside Length or Pad Mount C-C (C)	55 mm
OEM Product	No
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	15 mm
Pulley Outside Diameter (O.D.1)	82 mm
Pulley Outside Diameter (O.D.2)	48 mm
Pulley to Mount Distance (A)	44 mm
Pulley Type	Solid
Unit Type	MITSUBISHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MITSUBISHI	GALANT VI (E3_A) 1.8 Turbo-D (E34A)	4D65T	11.1988-10.1992
MITSUBISHI	L 300 2.5 D	[4D56]	09.1991-09.2003
MITSUBISHI	L 300 2.5 D	[4D56]	11.1986-02.2006
MITSUBISHI	L 300 2.5 D	[4D56]	11.1986-05.2004
MITSUBISHI	L 300 2.5 Diesel	(P05V,W,15V)[4D56]	11.1988-05.1994
MITSUBISHI	L 300 2.5 Diesel	(PO5V,PO5W,P15V)[4D56]	11.1988-05.1994
MITSUBISHI	L 300 2.5 TD	[4D56-T]	02.1987-05.2003
MITSUBISHI	L 300 2.5 TD 4WD	[4D56-T]	11.1991-05.2003
MITSUBISHI	L 300 2.5 TD 4WD	[4D56-T]	12.1987-05.2004
MITSUBISHI	L 300 2.5 TD 4WD	(P25V,W)[4D56T]	11.1988-10.1991
MITSUBISHI	L 300 / DELICA II Platform/Chassis (L03_P) 2.5 D (L039P)	4D56(8V)	11.1986-04.1994
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W)	4D56(8V)	09.1991-09.2003
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W, P25W)	4D56(8V)	11.1986-05.2004
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD 4WD (P25W, P35W)	4D56-T	12.1987-05.2004
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD (P05W)	4D56-T	02.1987-05.2003
MITSUBISHI	L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P05W, P15V)	4D56(8V)	11.1986-02.2006
MITSUBISHI	L 300 III Van (P0_V, P1_V, P2_V) 2.5 TD 4WD (P25V)	4D56-T	11.1991-05.2003
MITSUBISHI	Pajero 2.5 TD	(V24C,W)[4D56TD]	12.1990-10.1993
MITSUBISHI	Pajero 2.5 TDiC	[4D56-T]	03.1991-08.1999
MITSUBISHI	PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G)	4D56-T	05.1986-10.1989
MITSUBISHI	PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G)	4D56-T	11.1989-11.1990
MITSUBISHI	PAJERO II Canvas Top (V2_C, V4_C) 2.5 TD 4WD (V24C)	4D56-TD	12.1990-04.2000
MITSUBISHI	PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.5 TD 4WD (V24W)	4D56-TD	12.1990-10.1999
MITSUBISHI	PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.5 TDiC (V44W, V24W)	4D56-T	03.1991-08.1999
MITSUBISHI	PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G)	4D56-T	04.1987-12.1991
MITSUBISHI	PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G)	4D56-T	11.1989-11.1990
MITSUBISHI	Shogun 2.5 TD	(P25W)[4D56]	11.1988-12.1996

Reference Information

002-C973	ASHIKA
0986042311	BOSCH
11.0674	LAUBER
11.0674M	LAUBER
111339	CARGO
12627N	WAI
155.809.065.130	WAI
155.809.065.360	WAI
20110225	PRESTOLITE
20137711BN	REAL
20137711OE	REAL
2035117.0	SANDO
2035117.1	SANDO
210281	ERA
28-1701	ELSTOCK
2C973	JAPKO
40674RI	KUHNER
56622	EAI
600003	VALEO
89213316	POWERMAX
8EL726389-001	HELLA
9026	CEVAM
A002T11783	MITSUBISHI
A002T17783	MITSUBISHI
A002T27883	MITSUBISHI
A12MH0170A2	SIDAT
A130.351	WAI
A147.318	WAI
A2T11783	MITSUBISHI
A2T17783	MITSUBISHI
A2T27883	MITSUBISHI
A5018	AS-PL
AEA2235	AUTOELECTRO
ALC973	JAPANPARTS
ALT31056	WOODAUTO
ALT6520	SIOM
ALT8764	ELECTROLOG
ALTL037	3EFFE
ANM35414X	ANDEL
CAL35117AS	CASCO
CAL35117GS	CASCO
CGB-13004	AINDE
DRA3194	DELCO
F032111339	CARGO
GAT27883-A	GPARTS
HAD165504	HALLA
JA674IR	HC PARTS
LRB00225	LUCAS
LRB225	LUCAS
MD140189	MITSUBISHI
MD140189R	MITSUBISHI
MD147245	MITSUBISHI
MD147245R	MITSUBISHI
PRAL037	3EFFE
STX101157	STARDAX
STX101157R	STARDAX
