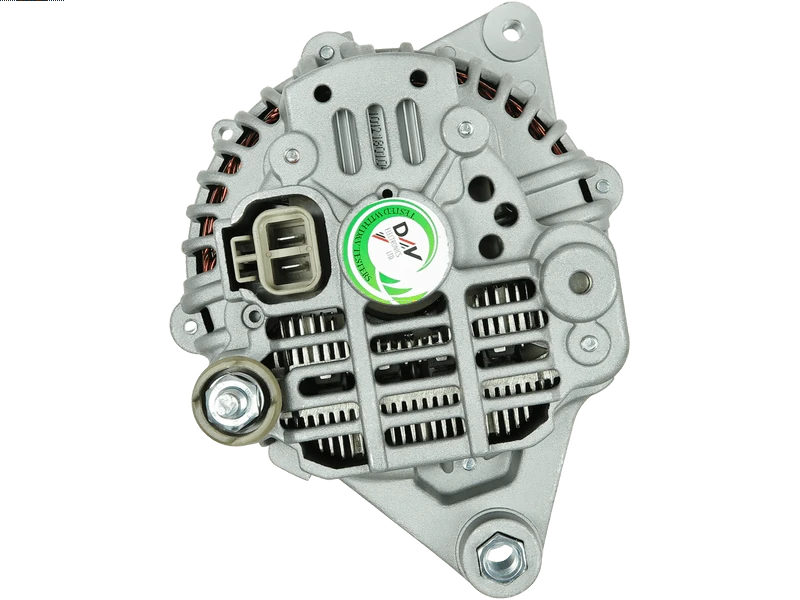

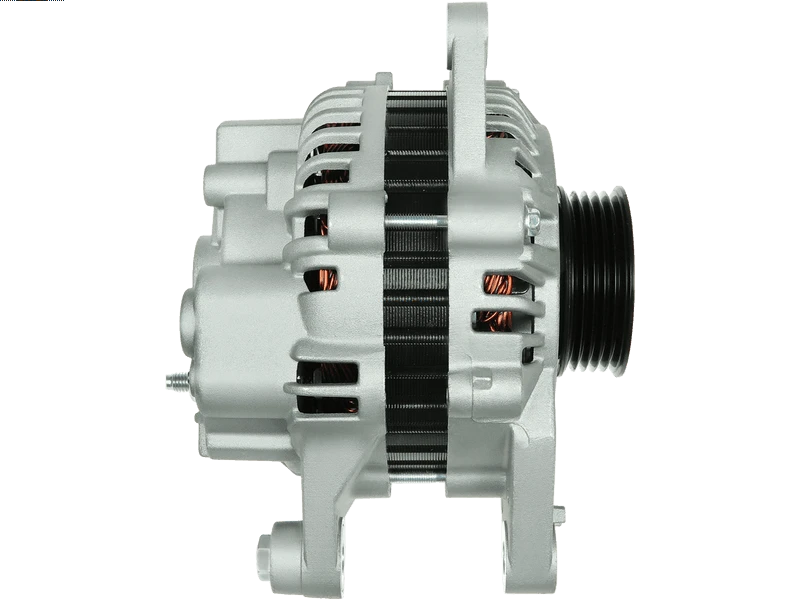

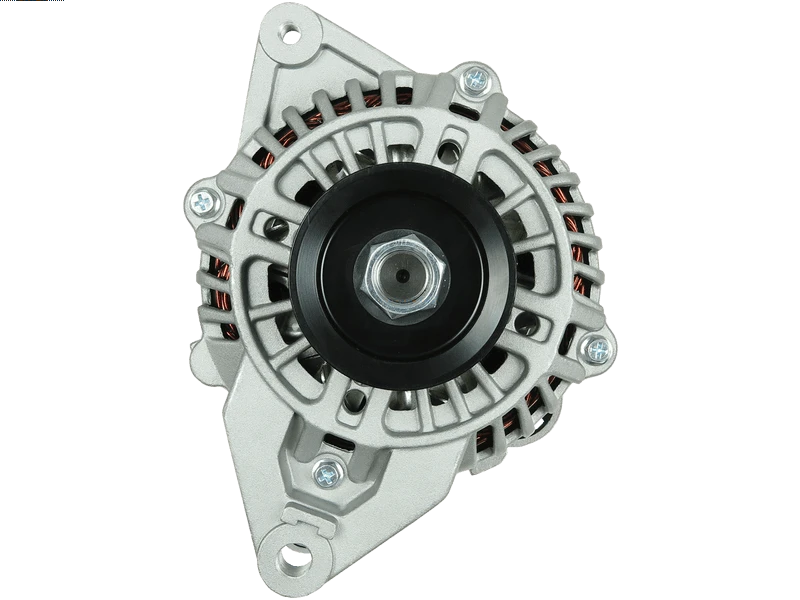

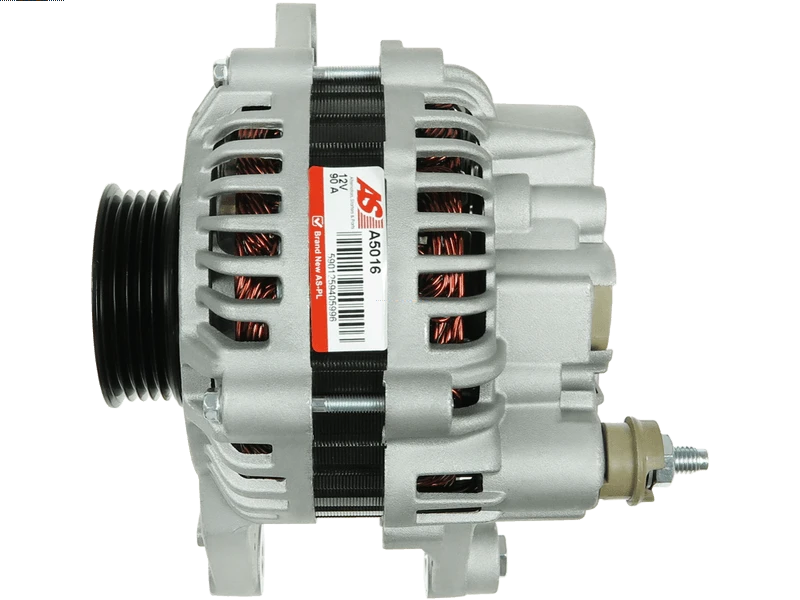

A5016 - Brand new AS-PL Alternator

Specifications

Amp	90 A
Bottom Mounting Foot Width (B)	17 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	M10x1.25 mm
Grooves	5 qty
Length (L.1)	173 mm
Mount Inside Length or Pad Mount C-C (C)	54.5 mm
OEM Product	No
Outside Diameter (O.D.1)	65.5 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	24 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MITSUBISHI	Pajero 3.0 24V	(V2_W,V4_W)[6G72]	06.1994-05.1997
MITSUBISHI	Pajero 3.0 V6 24V	(V2_,W,V4_W)[6G72]	06.1997-04.2000
MITSUBISHI	Pajero 3.0 V6 Sport	(K90)[6G72]	03.2003-
MITSUBISHI	Pajero 3.0 V6 Sport	(K9_)[6G72]	08.1998-
MITSUBISHI	Pajero 3.5 V6 24V	(V25W,V45W)[6G74]	11.1993-04.2000
MITSUBISHI	Pajero 3.5 V6 24V	(V2_W,V4_W)[6G74]	11.1993-02.2000

Reference Information

MD313395 MD317119 13692N 401601RI A003TA0791 LRA2743 CGB-13696 56456 A3T00692 11.1180M 28-3548 A3TA1191A ALTF384 20137412BN 401180RI MD350608R A3T04292 210623 13786N 8EL737324-001 MD350609 89212702 LRA02743 A12MH0666A2 A3T14491 MD350608 11.118 CAL35214AS ALT0791 A3TA1191 9367 ALT31270 SA103 EAA-221318 20110234 JA1180IR ALTF002 401275RI 3730035010 13615N A3TA0791A ANM35916X A3TA0791 13615R A003TA0791A 9212702 AEA2234 SA019 A003TA1191 111806 MD303481 A5016 J5115034 A003TA1191A 9051556 A003T00692 MD112323 MD112322 2035214 DRA3696 A003T14491 DRA3699 ALT5069 A2T00692

Video/Publications

11.1180 11.1180M 111806 13615N 13615R 13692N 13786N 20110234 20137412BN 2035214 28-3548 401180RI 401275RI 401601RI 56456 89212702 8EL737324-001 9051556 9367 A3T14491 A3TA0791 A3TA0791A A3TA1191 A3TA1191A A5016 AEA2234 ALT0791 ALT31270 ALTF002 ALTF384 CAL35214AS CGB-13696 DRA3696 DRA3699 EAA-221318 J5115034 JA1180IR LRA02743 LRA2743 MD313395 MD317119 MD350608 SA019 SA103 210623
