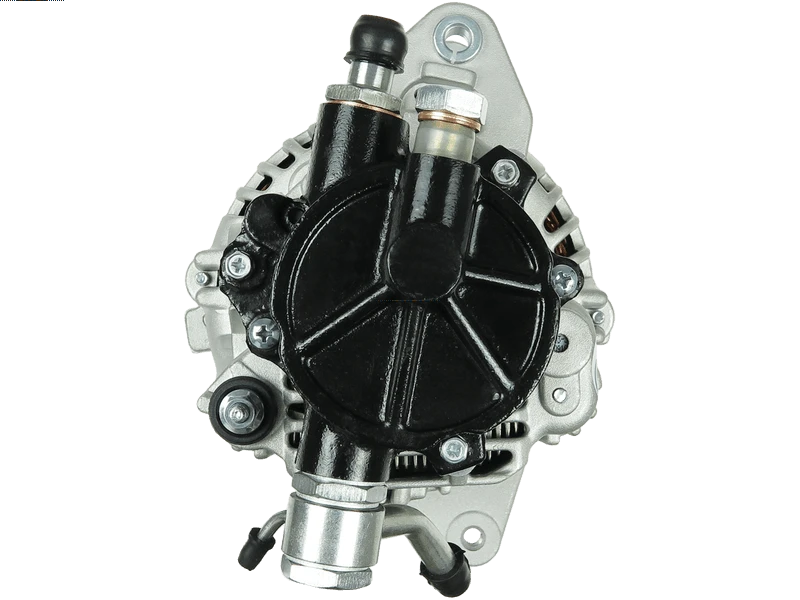

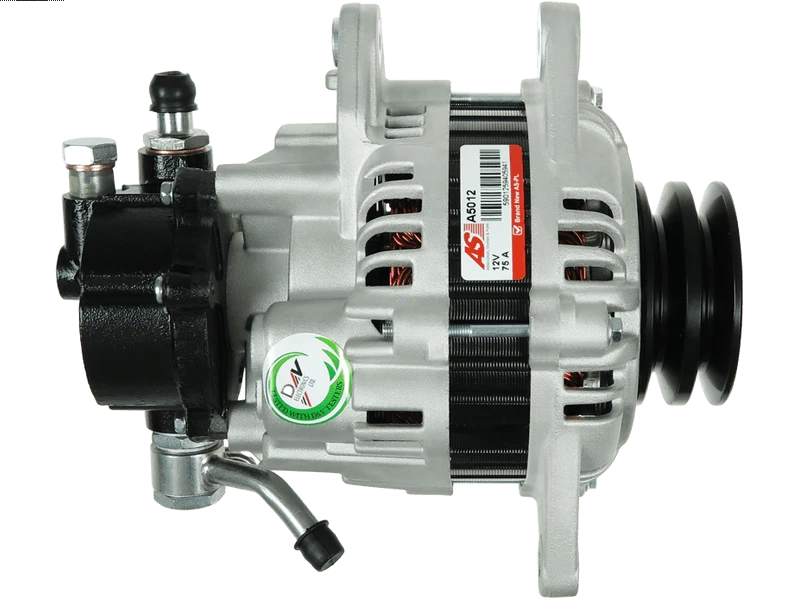

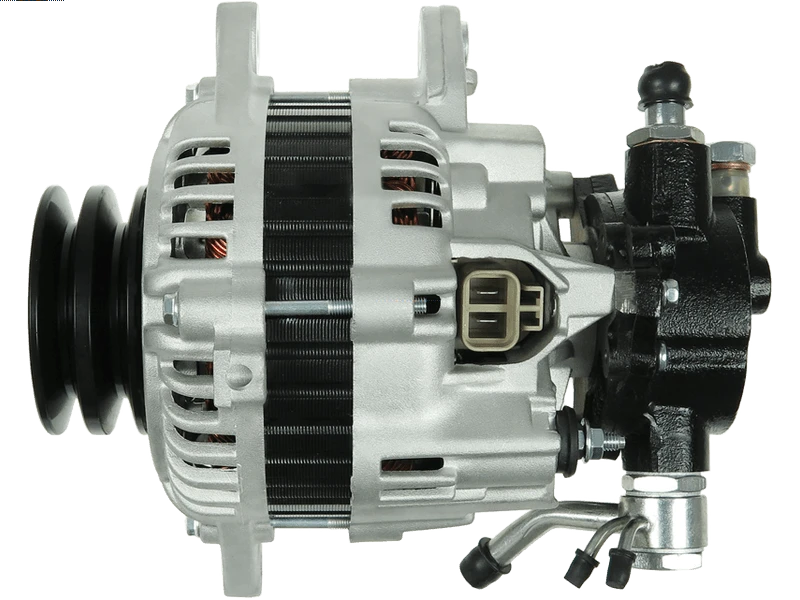

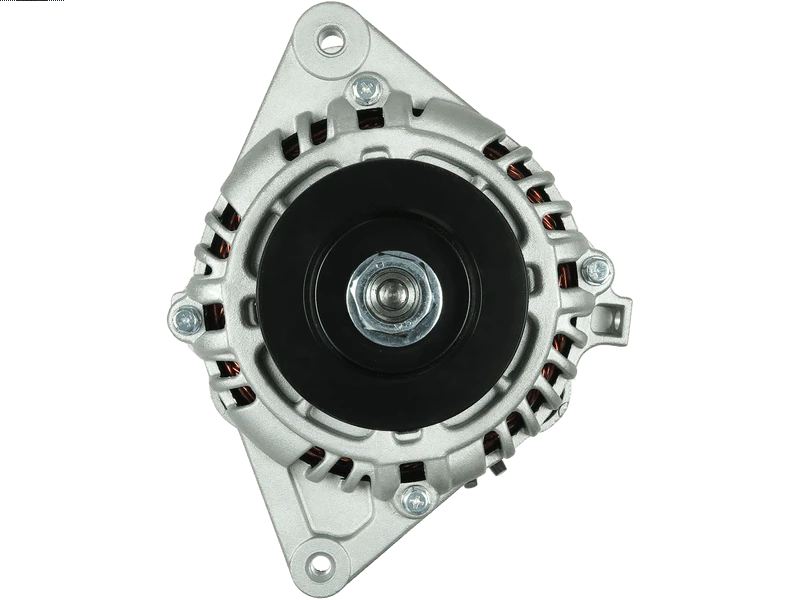

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 453.97 including GST
NZ$ 394.76 excluding GST
or four payments of $113.49
with
Learn More
UOM:
each
Product Code:
A5012
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A3T00599Associated Numbers
0986046361 11.0983 11.0983M 111491 20130141 20193431OE 2032134 28-1808 40983RI 40983RIM 437147 56295 8EL737058-001 9020 9213035 A3T00599 A3T05499 AEB1419 ALT31052 CAL32134GS DRA3377 EAA-221436 JA983IR LRA01383 MD111932 MD141119 SA830 SB123Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 238 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 82 mm |
| Pulley Outside Diameter (O.D.2) | 58 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | L 300 2.5 | 4D56 | 11.1986- |
| HYUNDAI | L 300 2.5 | 4D56 | 11.1986-02.2006 |
| MITSUBISHI | L 300 2.5 Diesel | [4D56] | 11.1986-12.2000 |
| MITSUBISHI | L 300 2.5 Diesel | (P05V,W,15V)[4D56] | 11.1986-05.1996 |
| MITSUBISHI | L 300 2.5 Diesel | (PO5V,PO5W,P15V)[4D56] | 11.1986-05.1996 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W) | 4D56(8V) | 09.1991-09.2003 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W, P25W) | 4D56(8V) | 11.1986-05.2004 |
| MITSUBISHI | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD (P05W) | 4D56-T | 02.1987-05.2003 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P05W, P15V) | 4D56(8V) | 11.1986-02.2006 |
| MITSUBISHI | L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P15V) | 4D56(8V) | 09.1991-09.2003 |
| MITSUBISHI | PAJERO I (L04_G, L14_G) 2.5 TD 4WD (L049G, L149G) | 4D56-T | 10.1986-05.1991 |
Reference Information
| 0986046361 | BOSCH |
| 11.0983 | LAUBER |
| 11.0983M | LAUBER |
| 111491 | CARGO |
| 20130141 | PRESTOLITE |
| 20193431OE | REAL |
| 2032134 | SANDO |
| 210645 | ERA |
| 28-1808 | ELSTOCK |
| 3730042750 | HYUNDAI / KIA |
| 40983RI | KUHNER |
| 40983RIM | KUHNER |
| 437147 | VALEO |
| 56295 | EAI |
| 8EL737058-001 | HELLA |
| 9020 | CEVAM |
| 9213035 | POWERMAX |
| A002T10083 | MITSUBISHI |
| A003T00599 | MITSUBISHI |
| A003T05499 | MITSUBISHI |
| A2T10083 | MITSUBISHI |
| A3T00599 | MITSUBISHI |
| A3T05499 | MITSUBISHI |
| A5012 | AS-PL |
| ALT31052 | WOODAUTO |
| ALT5040 | ELECTROLOG |
| ALT6260 | SIOM |
| ALTF478 | 3EFFE |
| CAL32134GS | CASCO |
| CGB-13005 | AINDE |
| DRA3377 | DELCO |
| F032111491 | CARGO |
| JA983IR | HC PARTS |
| LRA01383 | LUCAS |
| LRA1383 | LUCAS |
| MD106320 | MITSUBISHI |
| MD111932 | MITSUBISHI |
| MD111932R | MITSUBISHI |
| MD141119 | MITSUBISHI |
| MD304129 | MITSUBISHI |
| MD313939 | MITSUBISHI |
| SA830 | SOVEREIGN |
| SB123 | SOVEREIGN |
| STX100173 | STARDAX |
| STX100173R | STARDAX |
| STX100201 | STARDAX |
| STX100432 | STARDAX |
| STX100507 | STARDAX |
| STX101794 | STARDAX |
