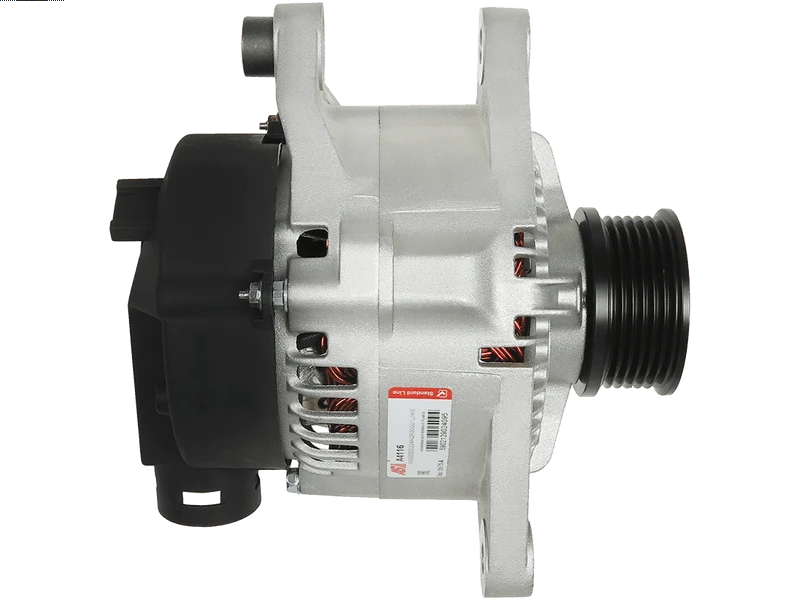

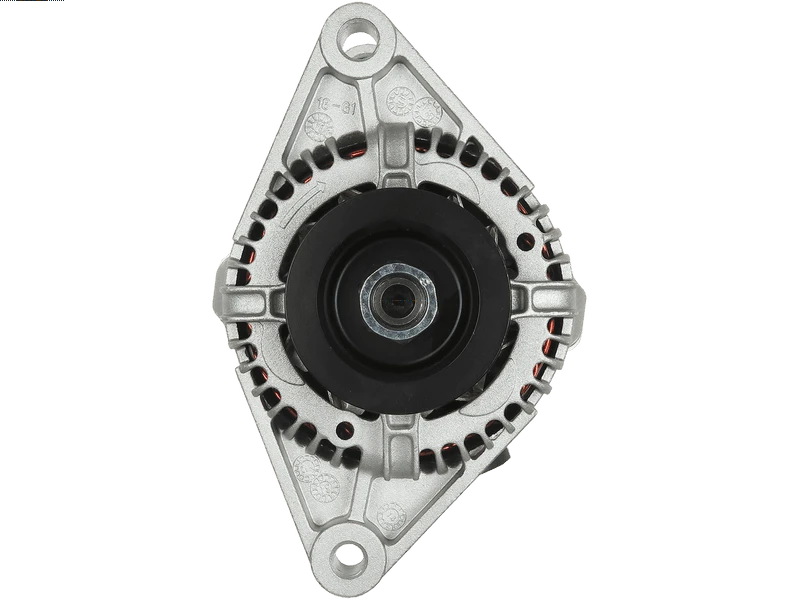

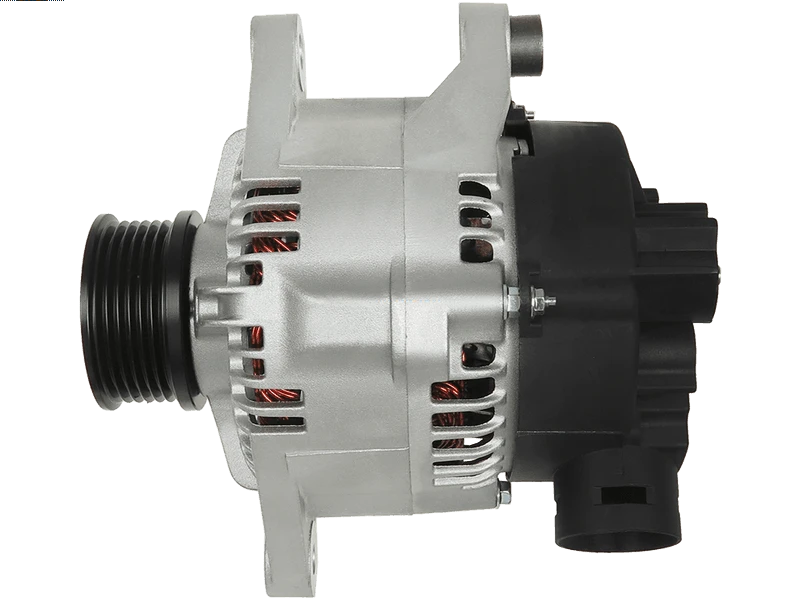

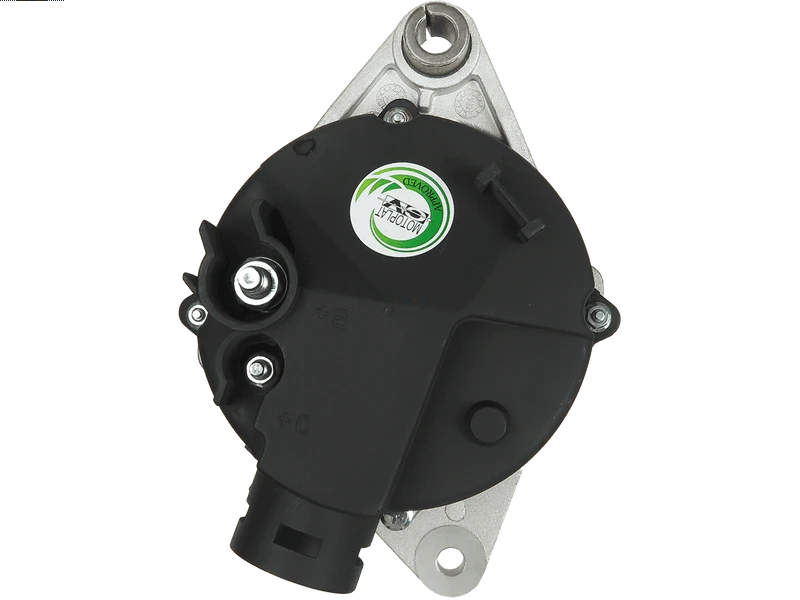

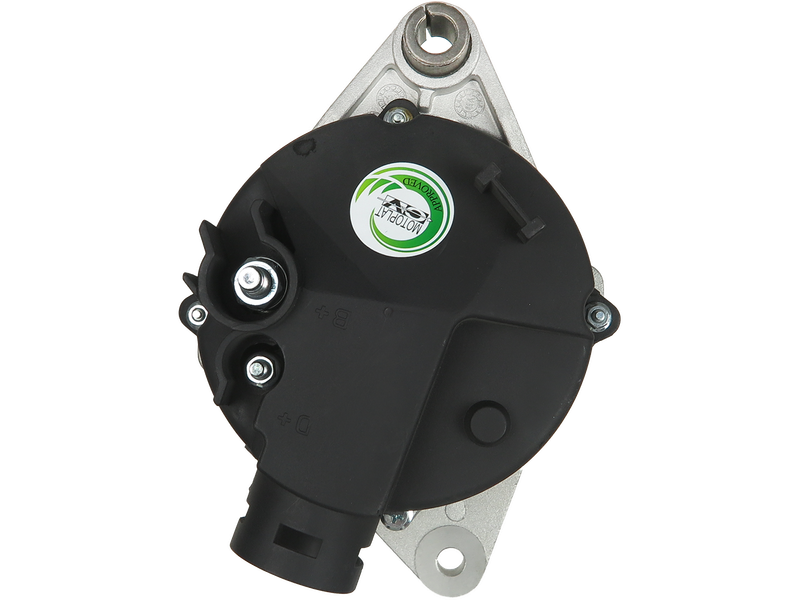

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 347.10 including GST
NZ$ 301.83 excluding GST
or four payments of $86.78
with
Learn More
UOM:
each
Product Code:
A4116
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986040691 20104051BN 20104051OE 20110330 2030150 210153 23067N 28-2732 301190RI 32040691 437735 4499 46231722 46412679 46428729 46544330 505.504.065 505.504.075 505.504.085 63320510 63321312 63321613 71721202 89213690 944390406910 A4116 AEA3230 AG0191 ALT12121 CA1190IR CAL30150 CAL30150AS CAL30150ES CAL30150GS CAL30150OS CAL30150RS DRA3399 EAA-211544 EAA-221199 EAA-221763 EAA-251837 IA9030 LRA02711 LRB00330 SA080 UD12212A UD12697ASpecifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 199 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55.60 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 62 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | BARCHETTA (183_) 1.8 16V | 183A1.000 | 04.1995-05.2005 |
| FIAT | BARCHETTA (183_) 1.8 16V | 188A6.000 | 04.1995-05.2005 |
| FIAT | BRAVA (182_) 1.4 12 V (182.BA) | 182A3.000 | 10.1995-08.1998 |
| FIAT | BRAVA (182_) 1.4 (182.BG) | 182A5.000 | 10.1995-10.2001 |
| FIAT | BRAVA (182_) 1.8 GT 16V (182.BC) | 182A2.000 | 10.1995-08.2001 |
| FIAT | BRAVA (182_) 1.9 TD 100 S (182.BF) | 182A7.000 | 03.1996-10.2001 |
| FIAT | BRAVA (182_) 1.9 TD 75 S (182.BF) | 182A8.000 | 03.1996-10.2001 |
| FIAT | Brava 1.8 GT 16V | [182A2.000] | 01.1995-12.1996 |
| FIAT | Brava 1.9 TD 75S | [182A8.000] | 01.1996-12.2001 |
| FIAT | Bravo 1.8 GT | [182A2.000] | 01.1995-12.1996 |
| FIAT | Bravo 1.9 TD 100S | [182A7.000] | 01.1996-12.2001 |
| FIAT | Bravo 1.9 TD 75S | [182A8.000] | 01.1996-12.2001 |
| FIAT | BRAVO I (182_) 1.4 (182.AA) | 182A3.000 | 10.1995-10.2001 |
| FIAT | BRAVO I (182_) 1.4 (182.AG) | 182A5.000 | 10.1995-10.2001 |
| FIAT | BRAVO I (182_) 1.8 GT (182.AC) | 182A2.000 | 10.1995-10.2001 |
| FIAT | BRAVO I (182_) 1.9 TD 100 S (182.AF) | 182A7.000 | 03.1996-10.2001 |
| FIAT | BRAVO I (182_) 1.9 TD 75 S (182.AF) | 182A8.000 | 03.1996-10.2001 |
| FIAT | Marea 1.8 16V | [182A2.000] | 01.1996-12.2002 |
| FIAT | MAREA (185_) 1.4 80 12V | 182A3.000 | 09.1996-05.2002 |
| FIAT | MAREA (185_) 1.8 115 16V | 182A2.000 | 09.1996-05.2002 |
| FIAT | MAREA (185_) 1.9 TD 100 (185AX_) | 182A7.000 | 05.1996-12.2002 |
| FIAT | MAREA (185_) 1.9 TD 75 | 182A8.000 | 09.1996-05.2002 |
| FIAT | MAREA (185_) 2.4 TD 125 | 185A2.000 | 09.1996-04.1999 |
| FIAT | Marea 1.9 TD | [182A7.000] | 01.1996-12.2002 |
| FIAT | Marea 1.9 TD | [182A8.000] | 01.1996-12.2002 |
| FIAT | MAREA Weekend (185_) 1.4 80 12V | 182A3.000 | 09.1996-05.2002 |
| FIAT | MAREA Weekend (185_) 1.8 115 16V | 182A2.000 | 09.1996-05.2002 |
| FIAT | MAREA Weekend (185_) 1.9 TD 100 (185BX_) | 182A7.000 | 09.1996-06.2003 |
| FIAT | MAREA Weekend (185_) 1.9 TD 100 (185BX_) | 182B9.000 | 09.1996-06.2003 |
| FIAT | MAREA Weekend (185_) 1.9 TD 75 | 182A8.000 | 09.1996-05.2002 |
| FIAT | MAREA Weekend (185_) 2.4 TD 125 | 185A2.000 | 09.1996-04.1999 |
| FIAT | Marengo 1.9 TD | [182A8.000] | 01.1999-12.2002 |
| FIAT | PUNTO (176_) 1.6 | 176A9.000 | 01.1994-04.1997 |
| FIAT | PUNTO (188_) 1.9 DS 60 (188.031, .051, .231, .251) | 188A3.000 | 09.1999-03.2012 |
| FIAT | PUNTO Convertible (176_) 90 1.6 | 176A9.000 | 04.1994-04.1997 |
| FIAT | PUNTO Hatchback Van (188_) 1.9 D 60 | 188A3.000 | 02.2000-10.2009 |
| LANCIA | Y (840_) 1.4 12V (840AC) | 840A4.000 | 03.1996-09.2003 |
Reference Information
| 0986040691 | BOSCH |
| 20104051BN | REAL |
| 20104051OE | REAL |
| 20110330 | PRESTOLITE |
| 2030150 | SANDO |
| 210153 | ERA |
| 23067N | WAI |
| 28-2732 | ELSTOCK |
| 301190RI | KUHNER |
| 32040691 | HERTH+BUSS |
| 437735 | VALEO |
| 4499 | CEVAM |
| 46231722 | FIAT |
| 46412679 | FIAT |
| 46428729 | FIAT |
| 46448433 | FIAT |
| 46544330 | FIAT |
| 505.504.075 | WAI |
| 505.504.075.390 | WAI |
| 505.504.075.608 | WAI |
| 505.504.085 | WAI |
| 63320510 | MAGNETI MARELLI |
| 63321312 | MAGNETI MARELLI |
| 63321613 | MAGNETI MARELLI |
| 71721202 | FIAT |
| 89213690 | POWERMAX |
| 944390406910 | MAGNETI MARELLI |
| A132.709 | WAI |
| A132.710 | WAI |
| A146.132 | WAI |
| A149.481 | WAI |
| A4116 | AS-PL |
| AEA3230 | AUTOELECTRO |
| AG0191 | GHIBAUDI |
| ALT12121 | WOODAUTO |
| ALT2160 | SIOM |
| ALT321500 | SIOM |
| ALT322010 | SIOM |
| ALT90086 | ELECTROLOG |
| ALTL200 | 3EFFE |
| ANM35619X | ANDEL |
| CA1190IR | HC PARTS |
| CAL30150 | CASCO |
| CAL30150AS | CASCO |
| CAL30150ES | CASCO |
| CAL30150GS | CASCO |
| CAL30150OS | CASCO |
| CAL30150RS | CASCO |
| DRA3399 | DELCO |
| IA9030 | ISKRA / LETRIKA |
| LRA02711 | LUCAS |
| LRA2711 | LUCAS |
| LRB00330 | LUCAS |
| LRB330 | LUCAS |
| SA080 | SOVEREIGN |
| STA0190R | BOVEZ |
| STX100212 | STARDAX |
| STX100366 | STARDAX |
| STX100366R | STARDAX |
| UD12212A | AS-PL |
| UD12697A | AS-PL |
