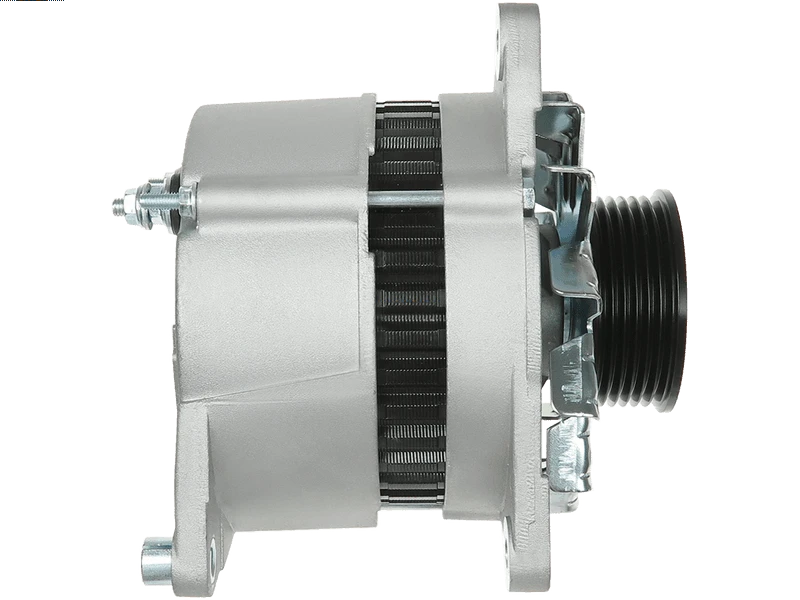

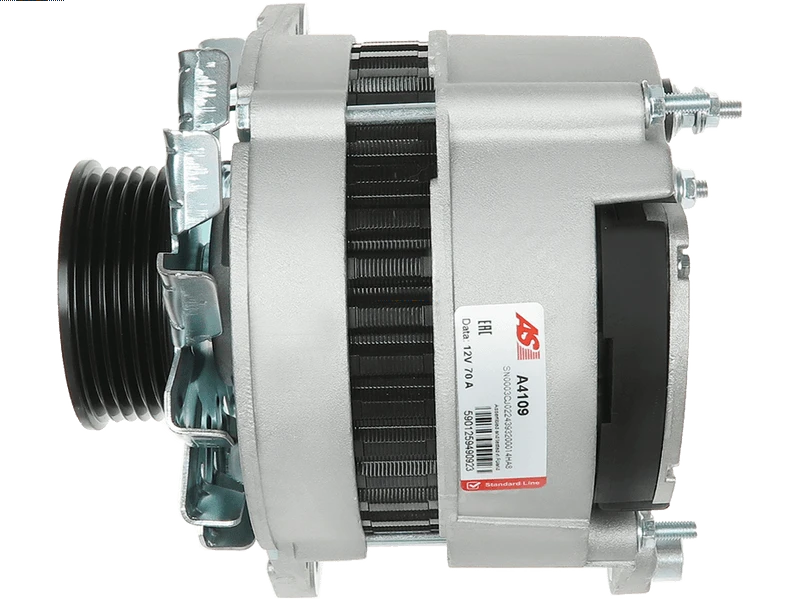

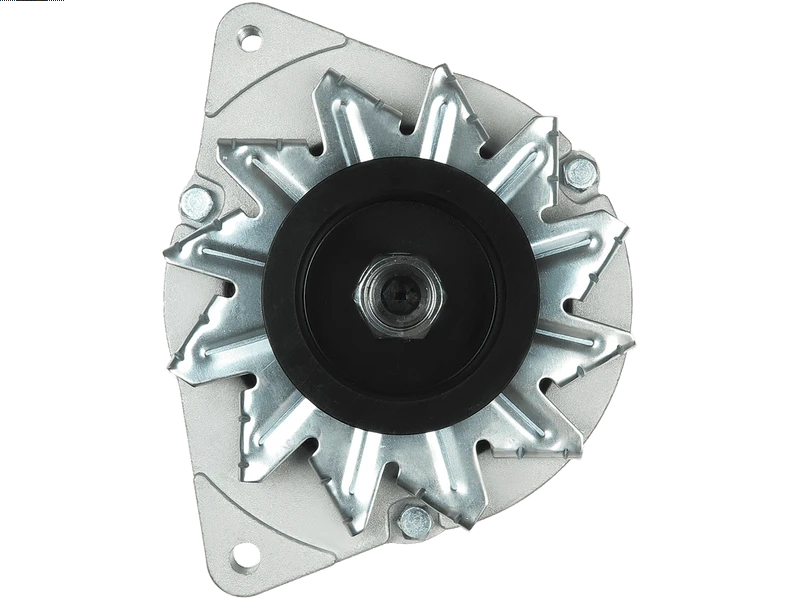

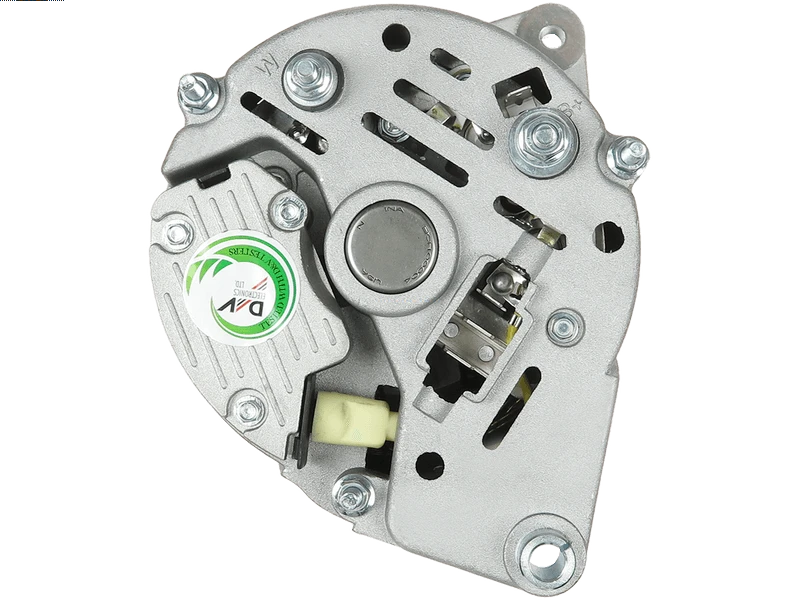

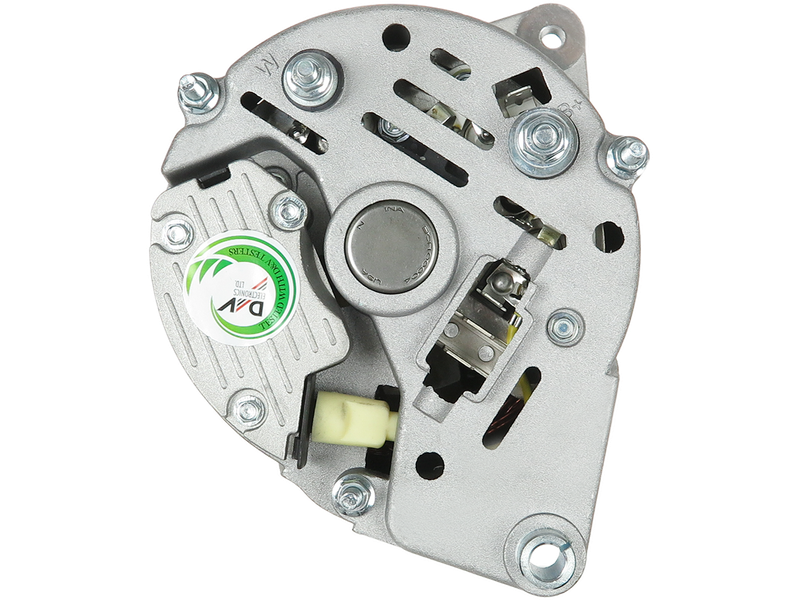

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 324.50 including GST
NZ$ 282.17 excluding GST
or four payments of $81.13
with
Learn More
each
A4113
A4109
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
112722 24322 24322A 24322B 24407 24450 28-1777 301494RI 301494RIL 3701909M91 3701910M91 3701911M91 3701913M91 3714944M1 3819332M91 54022437 54022528 54022529 54022530 54022532 54022560 54022561 54022580 54022656 54022746 54022751 63324407 714-26100 A4109 ALI0564 ALL0564 ALT16067 CA1494IR LRA00958 LRA958 YLE10065Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 12 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8.5 mm |
| Length (L.1) | 169 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83 mm |
| OEM Product | No |
| Plug Code | PL_3200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 67 mm |
| Pulley to Mount Distance (A) | 32.5 mm |
| Pulley Type | SOLID |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | 3085 | 01.1988- | |
| MASSEY FERGUSON | 3645 | 01.1989-01.1991 | |
| MASSEY FERGUSON | 3655 | 01.1990-01.1995 | |
| MASSEY FERGUSON | 6160 | 01.1996- | |
| MASSEY FERGUSON | 6170 | [6.365] | 01.1996- |
| MASSEY FERGUSON | 6180 | [6.365] | 01.1996- |
| MASSEY FERGUSON | 6190 | 01.1996- | |
| MASSEY FERGUSON | 6280 | 01.1999- | |
| MASSEY FERGUSON | 6290 | 01.1999- |
Reference Information
112722 GEU2115 ALTL002 54022529 54022528 ADU9750 STX100529 714-26100 LRA958 24450 3698017M91 3611576M91 R86AX10300DB 3714944M1 3698015R91 3701910M91 873F10300BA 54022751 1005349 54022437 110770 K311697 K311698 3701909M91 A4109 2871A141 2871A147 28-1777 YLE10066 2871A148 3698016M91 YLE10065 STX101112 ALT4153 3701911M91 54022561 54022560 ASU1693 LRA00958 1406058 3819332M91 86VB10300AA 301494RI STX101521 54022746 714922M1 2871A154 ADU8880 1695614M91 YLE10011 301494RIL 3714922M1 63324407 24407 54022532 3701913M91 54022530 54022656 91FF10300VA 24322 ALT16067 714/12500 STX101805 86VB10300A2 STX100368 ADU9548 24322B 24322A 86VB10300A2A RTC5845 CA1494IR CA600IR STX100480 54022580 GXE2115Video/Publications
A4109Related Items
