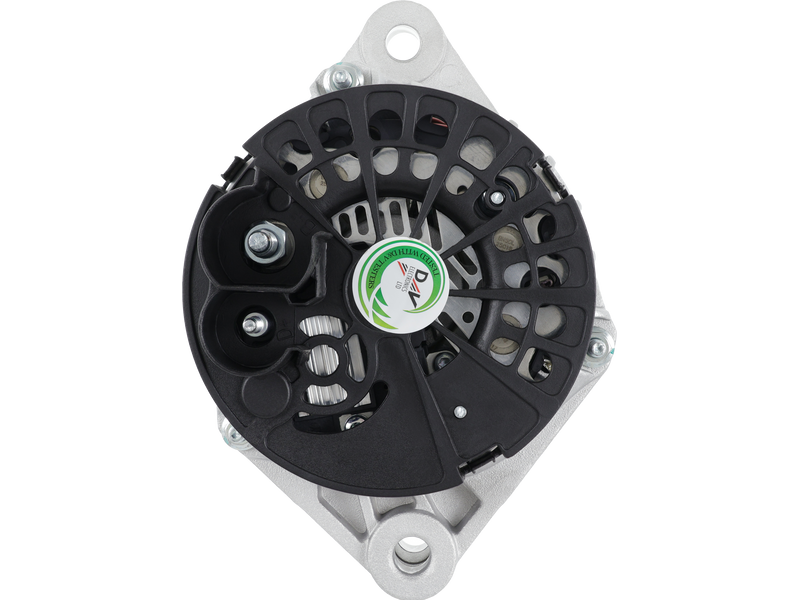

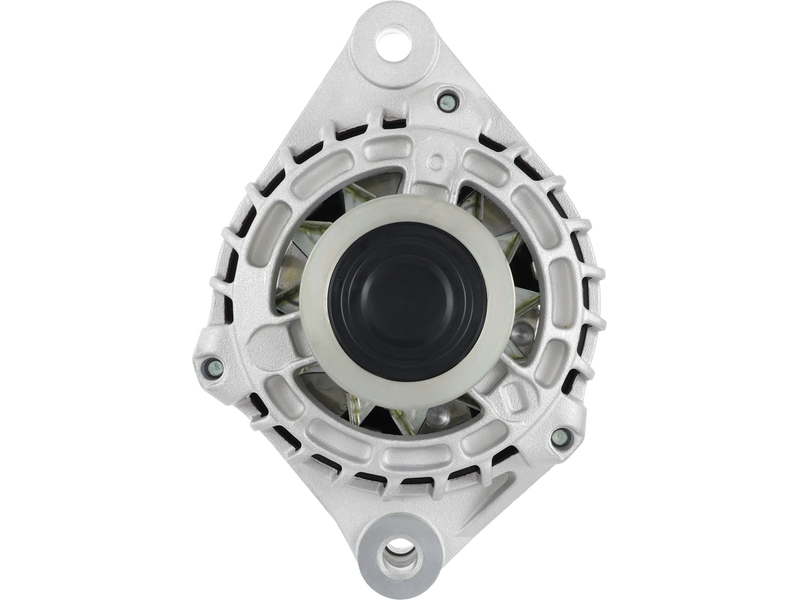

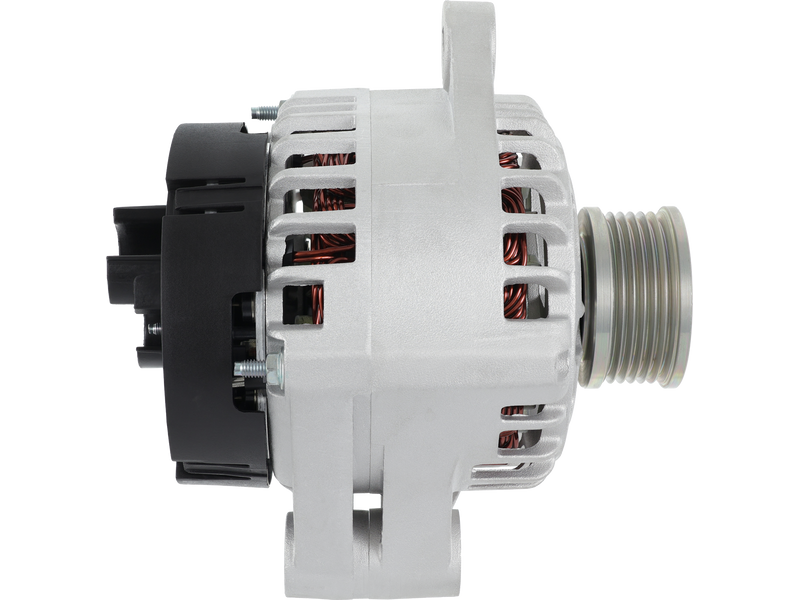

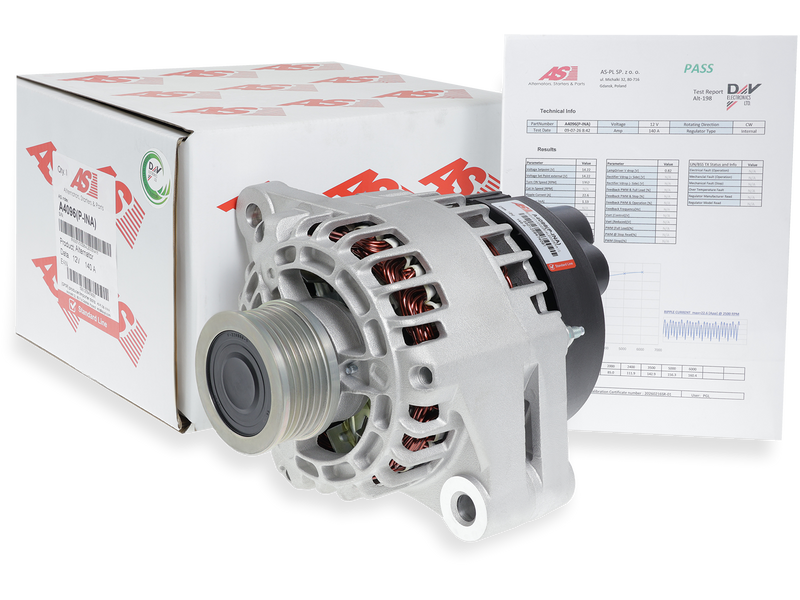

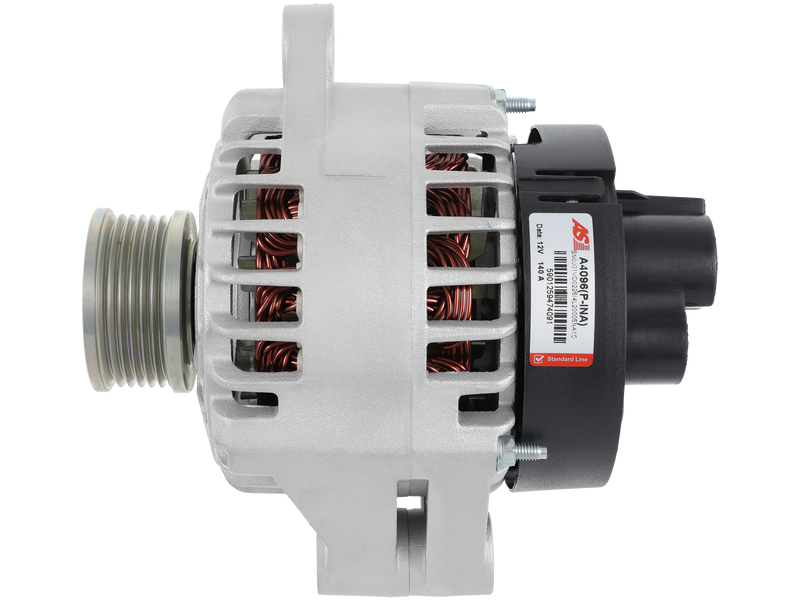

Brand new AS-PL Alternator with INA freewheel pulley

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MAGNETI MARELLI

Price:

NZ$ 570.47 including GST

NZ$ 496.06 excluding GST

or four payments of $142.62 with
Learn More

UOM:

each

Product Code:

A4096(P-INA)

Quantity In Stock Nationally

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

63377005

101210-0990 102211-8270 28-4926 301995RI 301995RID 301995RIM 301995RIR 31400-79J00 32377491 63321940 63377005 71746673 73501591 AEK2808 ALT12116 CA1995IR DAN1062 DRA0036 DRA0036X EAA-222255 GA377005-A GA377005M-R LRA02808 23809R

Amp	140 A
Bottom Mounting Foot Width (B)	61 mm
Diameter (D.1)	12 mm
Diameter (D.2)	12 mm
Length (L.1)	205 mm
OEM Product	No
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.2)	61 mm
Pulley to Mount Distance (A)	112 mm
Pulley Type	Clutch
Unit Type	MAGNETI MARELLI
Voltage	12 V

Make	Model	Type	Year
ALFA ROMEO	159 1.9 JTDM 16V	[937A8000]	01.2005-12.2008
ALFA ROMEO	159 1.9 JTDM 16V	[937A8000]	01.2006-12.2008
ALFA ROMEO	159 1.9 JTDM 16V	[939A2000]	01.2005-12.2008
ALFA ROMEO	159 1.9 JTDM 16V	[939A2000]	01.2006-12.2008
ALFA ROMEO	159 1.9 JTDM 8V	[937A7000]	01.2005-12.2008
ALFA ROMEO	159 1.9 JTDM 8V	[939A1000]	01.2005-12.2008
ALFA ROMEO	159 (939_) 1.9 JTDM 16V (939AXC1B, 939AXC12)	939A2.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 16V (939AXF1B, 939AXC1B)	937A8.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 16V (939AXF1B, 939AXC1B)	939A8.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 8V (939AXE1B)	939A1.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 8V (939AXE1B, 939BXE1B, 939BXH1B)	937A7.000	09.2005-11.2011
ALFA ROMEO	159 (939_) 1.9 JTDM 8V (939AXE1B, 939BXE1B, 939BXH1B)	939A7.000	09.2005-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 16V (939BXC1B)	937A8.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 16V (939BXC1B)	939A8.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 16V (939BXC1B, 939BXC12)	939A2.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 8V (939AXH1B, 939BXH1B)	937A7.000	03.2006-11.2011
ALFA ROMEO	159 Sportwagon (939_) 1.9 JTDM 8V (939BXE1B)	939A1.000	03.2006-11.2011
FIAT	Bravo 1.6 D Multijet	[198A2.000]	01.2007-
FIAT	Bravo 1.6 D Multijet	[198A3.000]	01.2007-
FIAT	Bravo 1.6 D Multijet	[198A4.000]	01.2007-
FIAT	BRAVO II (198_) 1.6 D Multijet (198AXH1B)	198A3.000	09.2007-12.2014
FIAT	BRAVO II (198_) 1.6 D Multijet (198AXH1B)	844A3.000	09.2007-12.2014
FIAT	BRAVO II (198_) 1.6 D Multijet (198AXL1B)	198A2.000	03.2008-12.2014
FIAT	BRAVO II (198_) 1.6 D Multijet (198AXM1B)	198A6.000	03.2008-12.2014
FIAT	BRAVO II (198_) 2.0 D Multijet (198AXN1B)	198A5.000	09.2008-12.2014
FIAT	CROMA (194_) 1.9 D Multijet	939A7.000	06.2005-12.2011
FIAT	CROMA (194_) 1.9 D Multijet	939A8.000	12.2005-10.2007
FIAT	CROMA (194_) 1.9 D Multijet (194AXB1B)	939A1.000	06.2005-12.2011
FIAT	CROMA (194_) 1.9 D Multijet (194AXC1B, 194AXC12)	939A2.000	06.2005-12.2011
FIAT	CROMA Estate Van (194_) 1.9 MJTD (194AXB1B)	939A1.000	04.2006-12.2011
FIAT	Grande Punto 1.6 D Multijet	[199A5.000]	01.2005-12.2009
FIAT	Grande Punto 1.6 D Multijet	[939A1.000]	01.2005-12.2009
FIAT	GRANDE PUNTO (199_) 1.6 D Multijet	955A3.000	07.2008-
FIAT	GRANDE PUNTO (199_) 1.9 D Multijet	199A5.000	10.2005-
FIAT	GRANDE PUNTO (199_) 1.9 D Multijet	939A1.000	10.2005-
FIAT	LINEA (323_, 110_) 1.6 D Multijet	198A3.000	06.2009-
FIAT	SEDICI (189_) 1.9 D Multijet	D19AA	06.2006-10.2011
FIAT	SEDICI (189_) 1.9 D Multijet 4x4	D19AA	06.2006-10.2011
FIAT	Sedici 1.9 D Multijet	[D19AA]	01.2006-
FIAT	STILO (192_) 1.9 D Multijet	937A5.000	09.2005-11.2006
FIAT	Stilo 1.9 D Multijet	[937A5.000]	01.2005-
FIAT	STILO Multi Wagon (192_) 1.9 D Multijet (192DXT1B)	937A5.000	09.2005-08.2008
LANCIA	Delta 1.6 D Multijet	[198A2.000]	01.2008-
LANCIA	Delta 1.9 D Multijet	[844A1.000]	01.2008-
LANCIA	Delta 2.0 D Multijet	[198A5.000]	01.2008-
LANCIA	Delta 2.0 D Multijet	[198A8.000]	01.2008-
LANCIA	Delta 2.0 D Multijet	[844A2.000]	01.2008-
LANCIA	DELTA III (844_) 1.6 D Multijet (844.AXC11, 844.AXC1A)	198A2.000	09.2008-08.2014
LANCIA	DELTA III (844_) 1.6 D Multijet (844.AXF11, 844.AXF1A)	955A4.000	08.2008-08.2014
LANCIA	DELTA III (844_) 1.9 D Multijet (844.AXE1A)	844A1.000	01.2009-08.2014
LANCIA	DELTA III (844_) 2.0 D Multijet (844.AXD1A, 844.AXM1A)	198A5.000	09.2008-08.2014
LANCIA	DELTA III (844_) 2.0 D Multijet (844.AXD1A, 844.AXM1A)	198A8.000	09.2008-08.2014
LANCIA	DELTA III (844_) 2.0 D Multijet (844.AXG1A, 844.AXN1A)	844A2.000	09.2008-08.2014
OPEL	Astra H 1.9 CDTi	[16V]	01.2004-12.2010
OPEL	Astra H 1.9 CDTi	[Z19DTH]	01.2004-12.2010
OPEL	Astra H 1.9 CDTi	[Z19DTJ]	01.2004-12.2010
OPEL	ASTRA H (A04) 1.9 CDTI 16V (L48)	Z19DTJ	04.2004-10.2010
OPEL	ASTRA H (A04) 1.9 CDTI (L48)	Z19DT	06.2004-10.2010
OPEL	ASTRA H (A04) 1.9 CDTI (L48)	Z19DTH	09.2004-10.2010
OPEL	ASTRA H (A04) 1.9 CDTI (L48)	Z19DTL	09.2005-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI 16V (L35)	Z19DTJ	08.2004-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI (L35)	Z19DT	09.2005-10.2010
OPEL	ASTRA H Estate (A04) 1.9 CDTI (L35)	Z19DTL	09.2005-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI 16V (L70)	Z19DTJ	08.2004-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI (L70)	Z19DT	09.2005-10.2010
OPEL	ASTRA H Estate Van (L70) 1.9 CDTI (L70)	Z19DTH	09.2004-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTi 16V (L08)	Z19DTJ	03.2005-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTi (L08)	Z19DTH	03.2005-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTI (L08)	Z19DT	09.2005-10.2010
OPEL	ASTRA H GTC (A04) 1.9 CDTI (L08)	Z19DTL	01.2006-10.2010
OPEL	ASTRA H TwinTop (A04) 1.9 CDTi (L67)	Z19DTH	09.2005-10.2010
OPEL	Signum 1.9 CDTi	[8V]	01.2004-12.2008
OPEL	Signum 1.9 CDTi	[Z19DT]	01.2004-12.2008
OPEL	SIGNUM Hatchback (Z03) 1.9 CDTI (F48)	Z19DT	04.2004-02.2008
OPEL	SIGNUM Hatchback (Z03) 1.9 CDTI (F48)	Z19DTH	04.2004-02.2008
OPEL	SIGNUM Hatchback (Z03) 1.9 CDTI (F48)	Z19DTL	08.2005-02.2008
OPEL	Vectra C 1.9 CDTi	[8V]	01.2004-12.2008
OPEL	Vectra C 1.9 CDTi	[Z19DTL]	01.2004-12.2008
OPEL	VECTRA C Estate (Z02) 1.9 CDTI (F35)	Z19DT	04.2004-01.2009
OPEL	VECTRA C Estate (Z02) 1.9 CDTI (F35)	Z19DTH	04.2004-08.2008
OPEL	VECTRA C Estate (Z02) 1.9 CDTI (F35)	Z19DTL	06.2005-08.2008
OPEL	VECTRA C GTS (Z02) 1.9 CDTI (F68)	Z19DT	04.2004-01.2009
OPEL	VECTRA C GTS (Z02) 1.9 CDTI (F68)	Z19DTH	04.2004-08.2008
OPEL	VECTRA C GTS (Z02) 1.9 CDTI (F68)	Z19DTL	06.2005-08.2008
OPEL	VECTRA C (Z02) 1.9 CDTI (F69)	Z19DT	04.2004-01.2009
OPEL	VECTRA C (Z02) 1.9 CDTI (F69)	Z19DTH	04.2004-08.2008
OPEL	VECTRA C (Z02) 1.9 CDTI (F69)	Z19DTL	10.2005-08.2008
OPEL	Zafira B 1.9 CDTi	[8V]	01.2005-
OPEL	Zafira B 1.9 CDTi	[Z19DT]	01.2005-
OPEL	Zafira B 1.9 CDTi	[Z19DTL]	01.2005-
OPEL	ZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75)	Z19DT	07.2005-04.2015
OPEL	ZAFIRA B Box Body/MPV (A05) 1.9 CDTI VAN (M75)	Z19DTH	07.2005-04.2015
OPEL	ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)	Z19DT	07.2005-04.2015
OPEL	ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)	Z19DTH	07.2005-04.2015
OPEL	ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75)	Z19DTL	07.2005-12.2010
SUZUKI	SX4 1.9 DDiS	[D19AA]	01.2006-
SUZUKI	SX4 1.9 DDiS 4X4	[D19AA]	01.2006-
SUZUKI	SX4 (EY, GY) 1.9 DDiS 4x4 (RW419D)	D19AA	06.2006-
SUZUKI	SX4 (EY, GY) 1.9 DDiS (RW419D)	D19AA	06.2006-
VAUXHALL	Astra H 1.9 CDTi	[16V]	01.2004-
VAUXHALL	Astra H 1.9 CDTi	[16V]	01.2005-
VAUXHALL	Astra H 1.9 CDTi	16V	01.2004-
VAUXHALL	Astra H 1.9 CDTi	16V	01.2005-
VAUXHALL	Astra H 1.9 CDTi	[Z19DTH]	01.2004-
VAUXHALL	Astra H 1.9 CDTi	[Z19DTH]	01.2005-
VAUXHALL	Astra H 1.9 CDTi	Z19DTH	01.2004-
VAUXHALL	Astra H 1.9 CDTi	Z19DTH	01.2005-
VAUXHALL	Astra H 1.9 CDTi	[Z19DTJ]	01.2004-
VAUXHALL	Astra H 1.9 CDTi	[Z19DTJ]	01.2005-
VAUXHALL	Astra H 1.9 CDTi	Z19DTJ	01.2004-
VAUXHALL	Astra H 1.9 CDTi	Z19DTJ	01.2005-
VAUXHALL	Signum 1.9 CDTi	[8V]	01.2004-12.2008
VAUXHALL	Signum 1.9 CDTi	8V	01.2004-12.2008
VAUXHALL	Signum 1.9 CDTi	[Z19DT]	01.2004-12.2008
VAUXHALL	Signum 1.9 CDTi	Z19DT	01.2004-12.2008
VAUXHALL	Signum 1.9 CDTi	[Z19DTL]	01.2004-12.2008
VAUXHALL	Signum 1.9 CDTi	Z19DTL	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	[16V]	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	16V	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	[Z19DT]	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	Z19DT	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	[Z19DTH]	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	Z19DTH	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	[Z19DTL]	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	Z19DTL	01.2004-12.2008
VAUXHALL	Zafira B 1.9 CDTi	[8V]	01.2005-
VAUXHALL	Zafira B 1.9 CDTi	8V	01.2005-
VAUXHALL	Zafira B 1.9 CDTi	[Z19DTL]	01.2005-
VAUXHALL	Zafira B 1.9 CDTi	Z19DTL	01.2005-

063377005010	MAGNETI MARELLI
0986048793	BOSCH
0986082620	BOSCH
101210-0990	DENSO
102211-8270	DENSO
11.1995	CQ
113996	CARGO
135.534.140.050	WAI
135.534.140.058	WAI
135.534.140.260	WAI
135.534.140.460	WAI
20104071BN	REAL
20104071OE	REAL
2030170.0	SANDO
2030170.1	SANDO
209494	ERA
210665	ERA
23808N	WAI
23809R	WAI
23809RW	WAI
28-4926	ELSTOCK
301995RI	KUHNER
301995RID	KUHNER
301995RIM	KUHNER
301995RIR	KUHNER
31400-79J0	SUZUKI
31400-79J00	SUZUKI
31400-79J00LCP	SUZUKI
440976	VALEO
4761	CEVAM
52003506	FIAT
57093	EAI
63321940	MAGNETI MARELLI
63377005	MAGNETI MARELLI
71746673	FIAT
71750297	FIAT
71769230	FIAT
71773263	FIAT
71789538	FIAT
71789539	FIAT
71792056	FIAT
73501591	FIAT
73503235	FIAT
849164	VALEO
89212244	POWERMAX
8EL012240-701	HELLA
8EL012430-801	HELLA
9090206	FRIESEN
944390902060	MAGNETI MARELLI
A12DE0009A2	SIDAT
A130.007	WAI
A147.699	WAI
AEK2808	AUTOELECTRO
AG0222	GHIBAUDI
ALE1995	KRAUF
ALN1995	KRAUF
ALT12116	WOODAUTO
ALT321640	SIOM
ALT321700	SIOM
ALT321700A	SIOM
ALT6243	ELECTROLOG
ALT9059	ELECTROLOG
ALTL695	3EFFE
ANM32256X	ANDEL
CA1995IR	HC PARTS
CAL30170AS	CASCO
CAL30170GS	CASCO
CGB-10036	AINDE
DAN1062	DENSO
DENDAN1062	WOODAUTO
DRA0036	DELCO
DRA0036X	DELCO
F000BL07FV	BOSCH
F032113996	CARGO
GA377005-A	GPARTS
GA377005M-R	GPARTS
LRA02808	LUCAS
LRA2808	LUCAS
MRA90206	MAGNETI MARELLI
NEK2808	AUTOELECTRO
PRAL695	3EFFE
RAA11147	DELCO
SB230	SOVEREIGN
STA0309R	BOVEZ
STX100145	STARDAX
STX100145R	STARDAX
UD105513A	AS-PL

A4096(P-INA)
