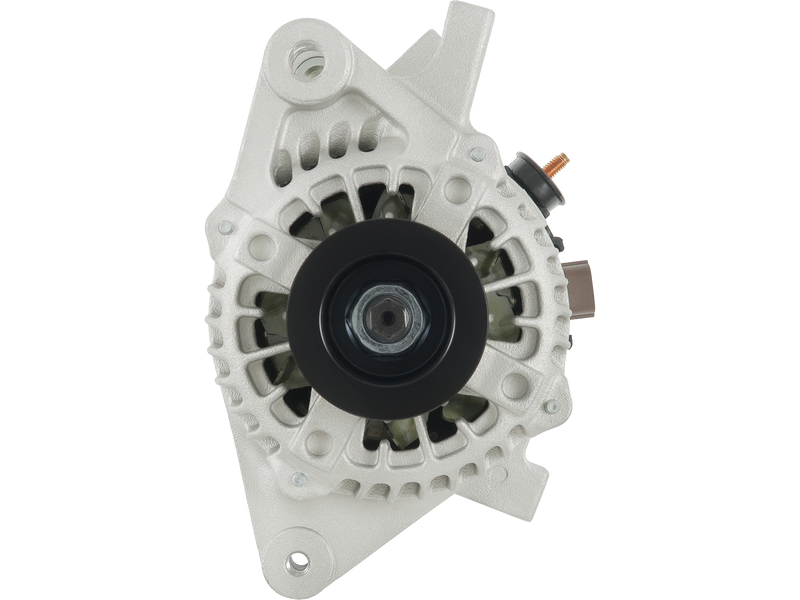

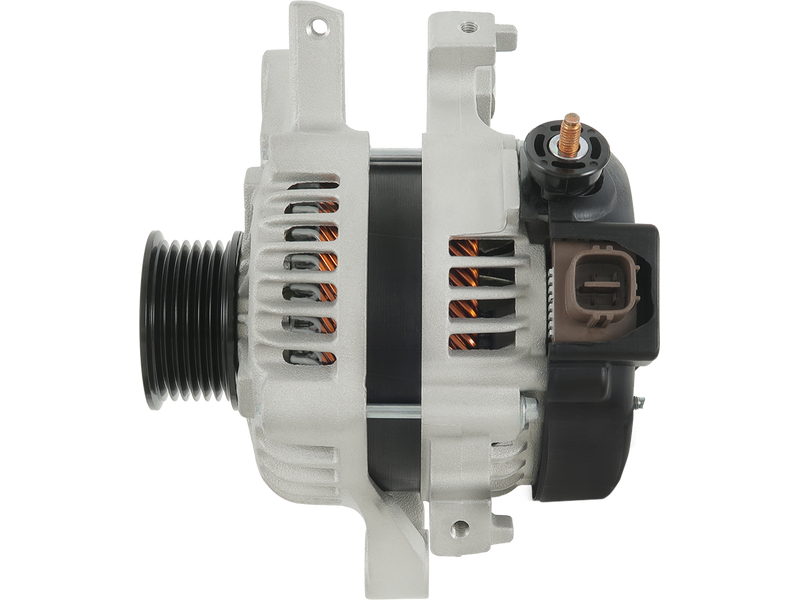

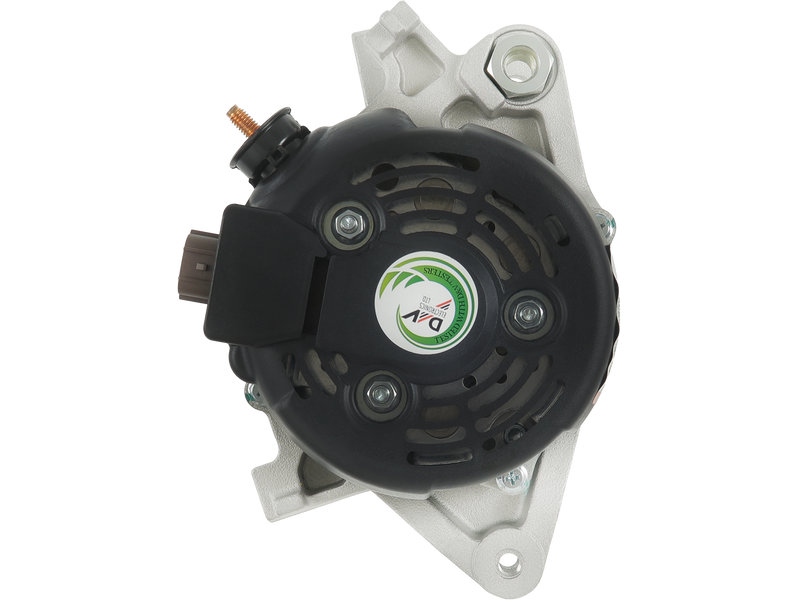

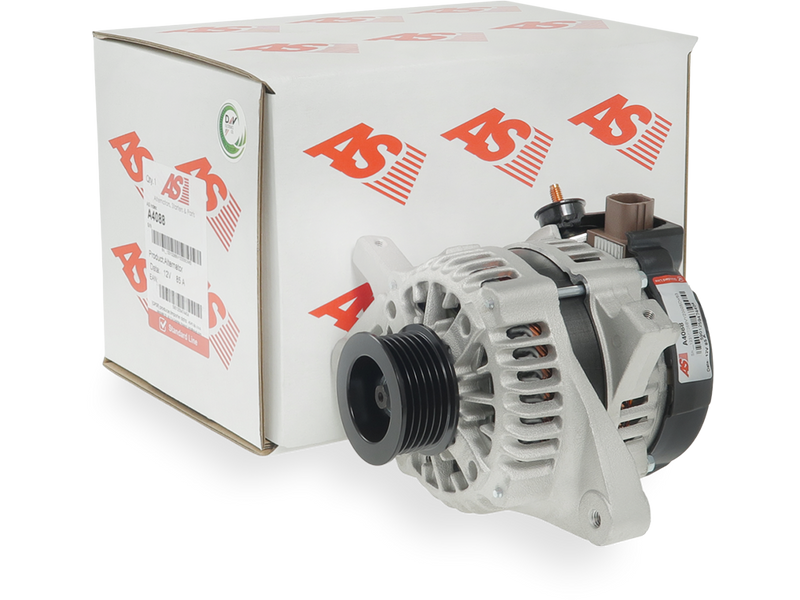

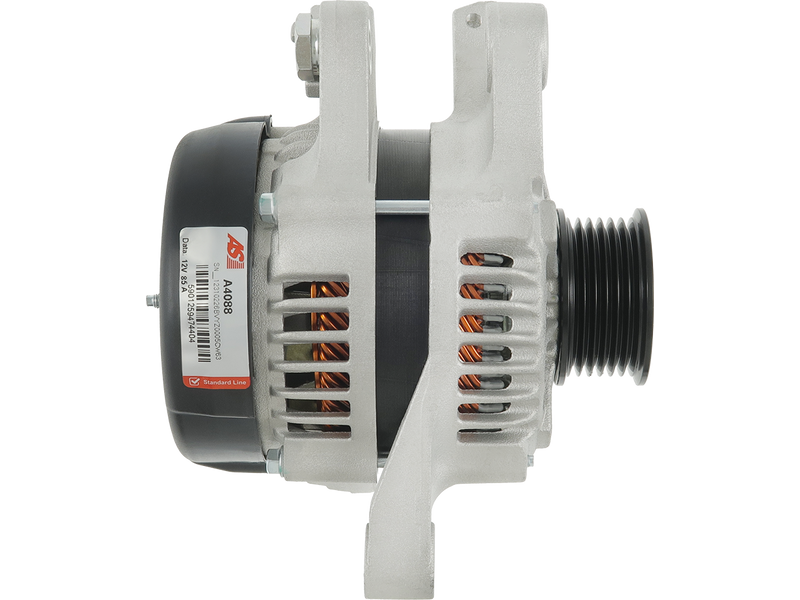

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 471.97 including GST
NZ$ 410.41 excluding GST
or four payments of $117.99
with
Learn More
each
A4088
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1042109250Associated Numbers
104210-9250 1042109250 27060-0H090 401809RI 553472RID A4088 DAN1025 DAN960Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 159 mm |
| Mount Inside Length or Pad Mount C-C (C) | 37 mm |
| OEM Product | No |
| Plug Code | PL_4002 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.33 WT-i | [1NR-FE] | 03.2009- |
Reference Information
| 1042109250 | DENSO |
| 104210-9250 | DENSO |
| 20132113OE | REAL |
| 2040311.1 | SANDO |
| 210765 | ERA |
| 27060-0H090 | TOYOTA |
| 2706047050 | TOYOTA |
| 28-5957 | ELSTOCK |
| 446009 | LOGISTIK |
| 553472RI | KUHNER |
| 553472RID | KUHNER |
| A4088 | AS-PL |
| ALT423110 | SIOM |
| ALT6362 | ELECTROLOG |
| ALTS251 | 3EFFE |
| ANM32912X | ANDEL |
| CAL40311GS | CASCO |
| DAN1025 | DENSO |
| LRA03345 | LUCAS |
| STX110225 | STARDAX |
| STX110225R | STARDAX |
Video/Publications
