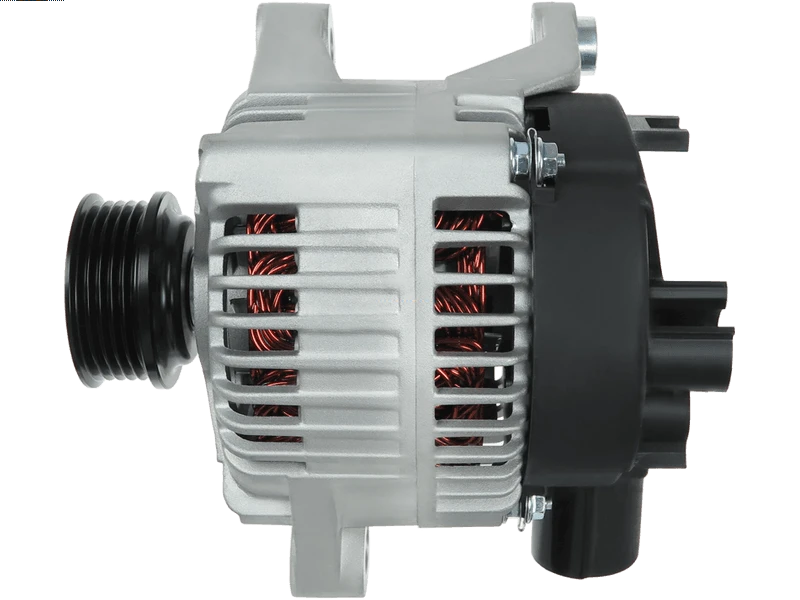

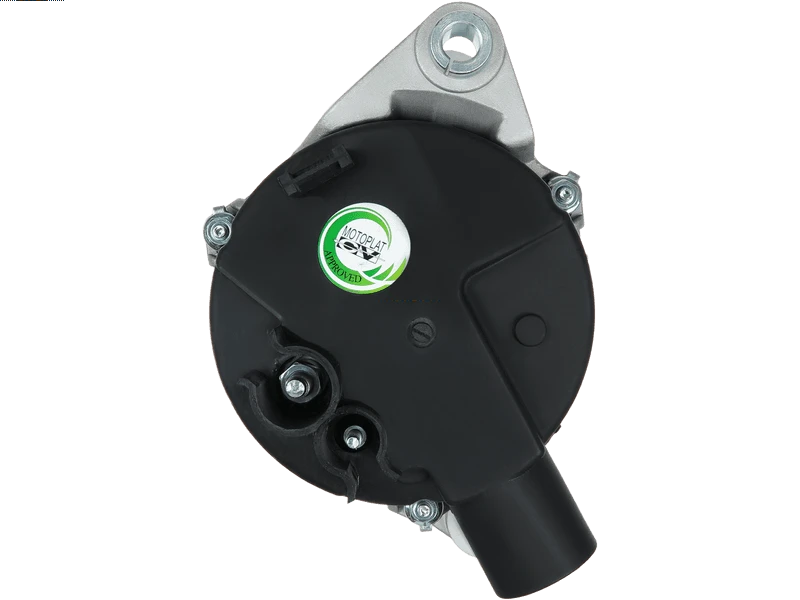

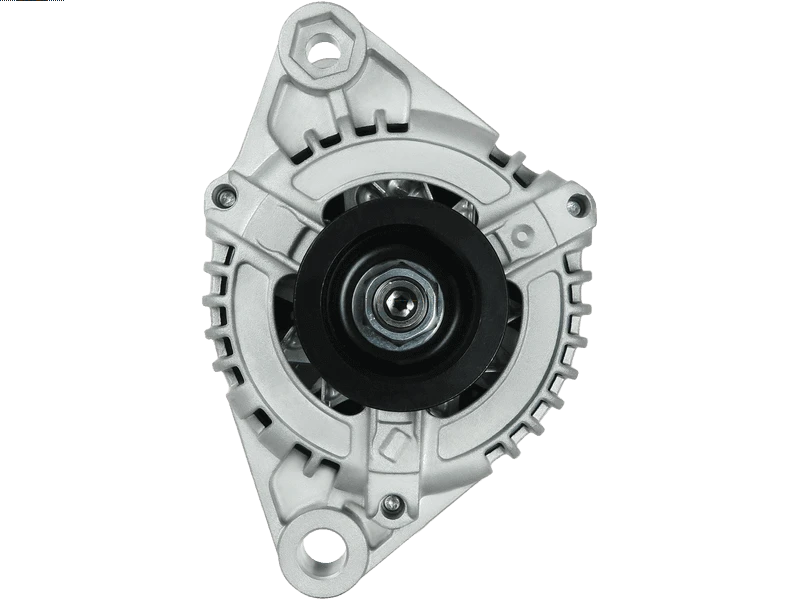

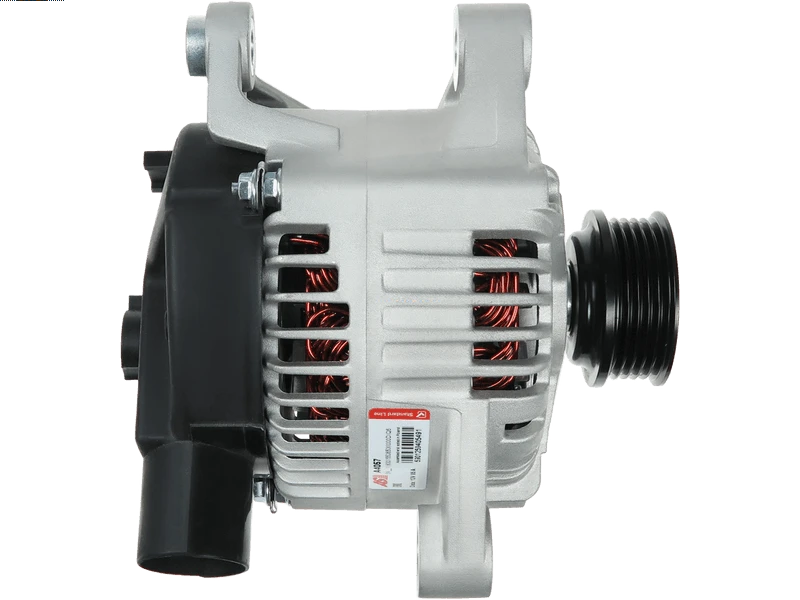

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 484.15 including GST
NZ$ 421.00 excluding GST
or four payments of $121.04
with
Learn More
UOM:
each
Product Code:
A4057
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321253Associated Numbers
11.1219 11.1219M 111584 20104441BN 20104441OE 20110327 2030144 22583N 28-2725 301219RI 301219RIM 4619 46420963 56501 63321253 63321340 89213841 8EL737287-001 9090203 9213841 AEA3229 ALT12053 CA1219IR CAL30144AS CAL30144GS DRA3767 EAA-221822 LRA01583Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 16.50 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 203 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 60 mm |
| Pulley to Mount Distance (A) | 59 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | BRAVA (182_) 1.6 16V (182.BB) | 182A4.000 | 02.1996-10.2001 |
| FIAT | BRAVA (182_) 1.6 16V (182.BH) | 182A6.000 | 10.1995-10.2001 |
| FIAT | BRAVO I (182_) 1.4 (182.AA) | 182A3.000 | 10.1995-10.2001 |
| FIAT | BRAVO I (182_) 1.6 16V (182.AB) | 182A4.000 | 03.1996-10.2001 |
| FIAT | BRAVO I (182_) 1.6 16V (182.AH) | 182A6.000 | 10.1995-10.2001 |
| FIAT | MAREA (185_) 1.4 80 12V | 182A3.000 | 09.1996-05.2002 |
| FIAT | MAREA (185_) 1.6 100 16V | 182A4.000 | 09.1996-05.2002 |
| FIAT | MAREA Weekend (185_) 1.4 80 12V | 182A3.000 | 09.1996-05.2002 |
| FIAT | MAREA Weekend (185_) 1.6 100 16V | 182A4.000 | 09.1996-05.2002 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996- |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-10.1999 |
| FIAT | PALIO (178_, 171_, 371_) 1.6 16V | 178B3.000 | 04.1996-10.2002 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V | 182B6.000 | 02.2001-01.2012 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V (178DXD1A) | 178B3.000 | 06.1996-02.2001 |
| FIAT | Punto 1.6 | [176A9.000] | 04.1994-04.1997 |
| FIAT | PUNTO (176_) 1.6 | 176A9.000 | 01.1994-04.1997 |
| FIAT | PUNTO Convertible (176_) 90 1.6 | 176A9.000 | 04.1994-04.1997 |
| FIAT | Siena 1.2 | [178B5.000] | 09.1998- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998- |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | 178B5.000 | 09.1998-12.2002 |
| FIAT | SIENA (178_, 172_, 372_) 1.6 16V | 178B3.000 | 09.1998-12.2009 |
| FIAT | STRADA Pickup (178_, 278_) 1.9 D | 223A6.000 | 12.2000- |
Reference Information
| 11.1219 | LAUBER |
| 11.1219M | LAUBER |
| 111584 | CARGO |
| 20104441BN | REAL |
| 20104441OE | REAL |
| 20110327 | PRESTOLITE |
| 2030144 | SANDO |
| 209305 | ERA |
| 22583N | WAI |
| 28-2725 | ELSTOCK |
| 301219RI | KUHNER |
| 301219RIM | KUHNER |
| 4619 | CEVAM |
| 46420963 | FIAT |
| 46432733 | FIAT |
| 56501 | EAI |
| 63321253 | MAGNETI MARELLI |
| 63321340 | MAGNETI MARELLI |
| 71721198 | FIAT |
| 7788684 | FIAT |
| 89213841 | POWERMAX |
| 8EL737287-001 | HELLA |
| 9090203 | FRIESEN |
| 9213841 | POWERMAX |
| AEA3229 | AUTOELECTRO |
| ALT12053 | WOODAUTO |
| ALT2120 | SIOM |
| ALT2250 | SIOM |
| ALT90066 | ELECTROLOG |
| ALTS175 | 3EFFE |
| ANM35987X | ANDEL |
| CA1219IR | HC PARTS |
| CAL30144AS | CASCO |
| CAL30144GS | CASCO |
| DRA3767 | DELCO |
| F032111584 | CARGO |
| LRA01583 | LUCAS |
| LRA1583 | LUCAS |
| STX100276 | STARDAX |
| STX100276R | STARDAX |
| STX100455 | STARDAX |
