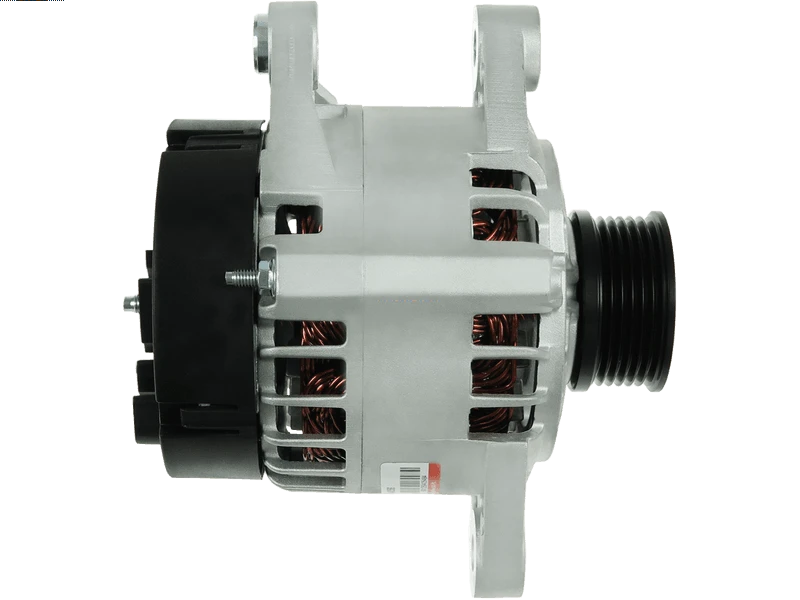

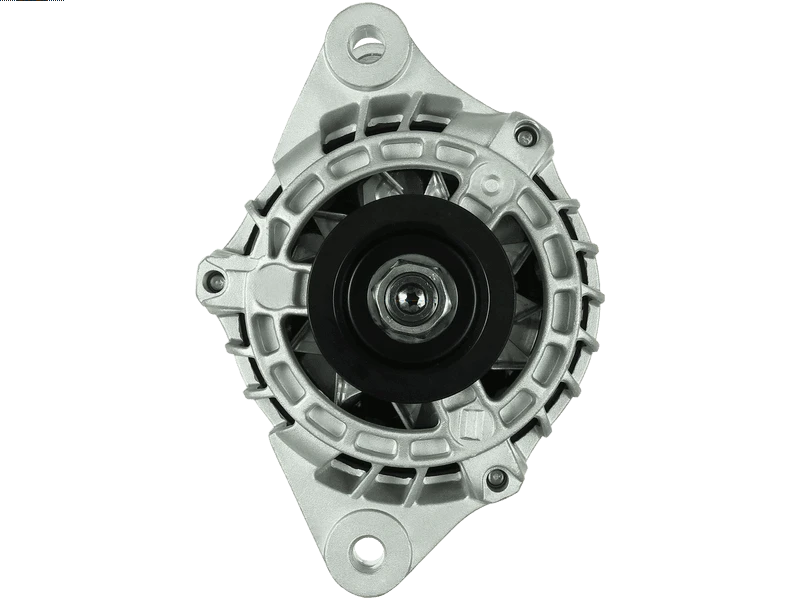

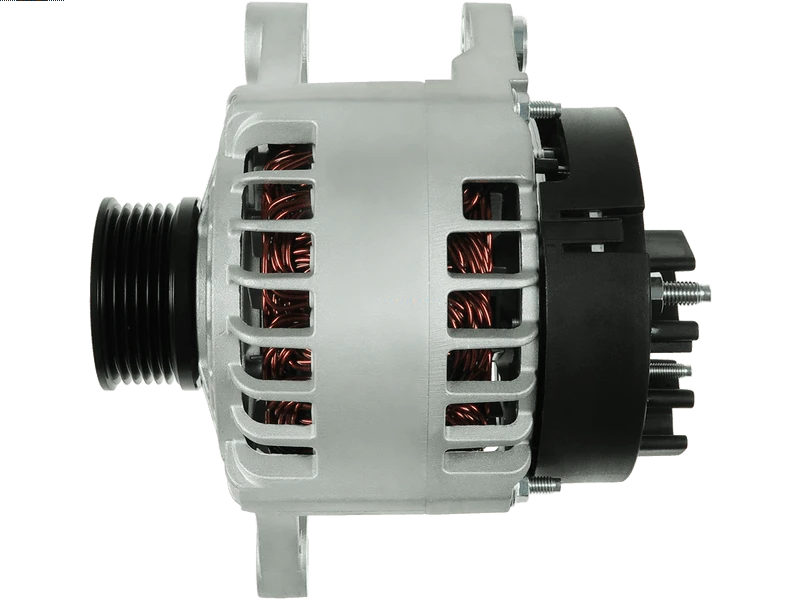

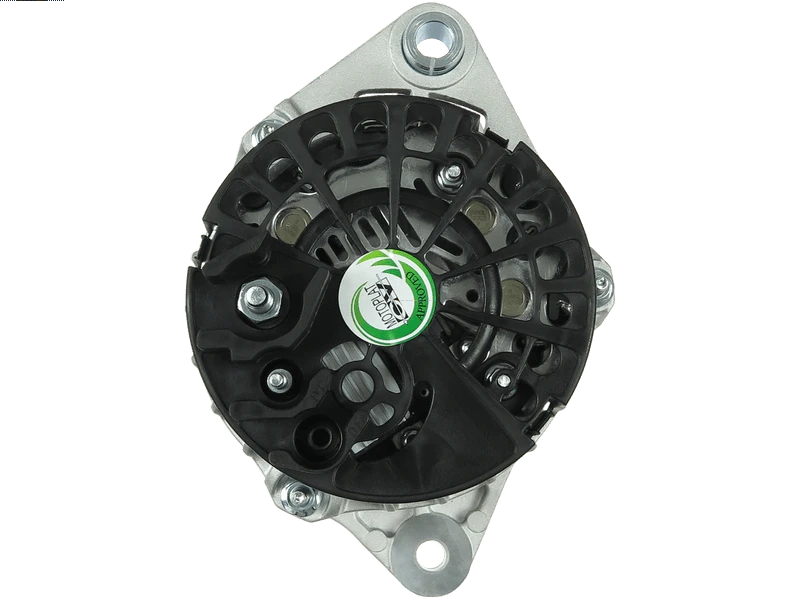

A4056 - Brand new AS-PL Alternator

Brand new AS-PL Alternator
Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 466.97 including GST

NZ$ 406.06 excluding GST


or four payments of $116.74 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
A4056
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

11.1753 11.1753M 113336 2030201 28-4805 301223RI 301753RI 46543023 505.504.120 57150 63321491 63321858 8EL738126-001 9213004 AEC1753 ALT12131 CA1753IR CAL30201GS DAN641 LRA02313 SA676
Amp120 A
Bottom Mounting Foot Width (B)22 mm
Diameter (D.1)12 mm
Diameter (D.2)11 mm
Diameter (D.3)12 mm
Length (L.1)197 mm
Mount Inside Length or Pad Mount C-C (C)54 mm
OEM ProductNo
Plug CodePL_9104
Product LineStandard Line
Product TypeBrand new
Pulley Grooves6 qty
Pulley Outside Diameter (O.D.2)62 mm
Pulley to Mount Distance (A)44 mm
Pulley TypeSolid
Unit TypeMAGNETI MARELLI
Voltage12 V
Make Model Type Year
ALFA ROMEO 147 (937_) 1.9 JTD (937AXD1A, 937BXD1A) 937A2.000 10.2000-08.2002
ALFA ROMEO 147 (937_) 1.9 JTD (937.AXD1A, 937.BXD1A, 937.AXV1A, 937.BXB1A,... 937A2.000 04.2001-03.2010
ALFA ROMEO 147 (937_) 1.9 JTD (937.AXD1A, 937.BXD1A, 937.AXV1A, 937.BXB1A,... 939A7.000 04.2001-03.2010
ALFA ROMEO 147 (937_) 1.9 JTD (937.AXF1A, 937.BXF1A) 182B9.000 06.2003-03.2010
ALFA ROMEO 156 (932_) 2.4 JTD (932AXF00) 841G.000 10.2003-09.2005
ALFA ROMEO 156 Sportwagon (932_) 2.4 JTD (932BXF00) 841G.000 10.2003-05.2006
ALFA ROMEO 166 (936_) 2.4 JTD (936AXD01, 936AXC00) 841M.000 10.2003-06.2007
ALFA ROMEO 166 (936_) 2.4 JTD (936AXD01, 936AXC00) 841N.000 10.2003-06.2007
FIAT BRAVA (182_) 1.9 JTD 182B9.000 09.2000-10.2001
FIAT BRAVA (182_) 1.9 JTD 105 182B4.000 12.1998-10.2001
FIAT BRAVO I (182_) 1.9 JTD 182B9.000 09.2000-10.2001
FIAT BRAVO I (182_) 1.9 JTD 105 182B4.000 12.1998-10.2001
FIAT BRAVO II (198_) 1.9 D Multijet (198AXD1A) 192A1.000 11.2006-12.2009
FIAT BRAVO II (198_) 1.9 D Multijet (198AXD1A) 192B4.000 11.2006-12.2009
FIAT IDEA (350_) 1.9 JTD 188B2.000 01.2004-
FIAT IDEA Van (350_) MJTD (350BXD1A) 188B2.000 10.2004-12.2010
FIAT MAREA (185_) 1.9 JTD 110 (185AXT1A) 186A6.000 09.2000-08.2002
FIAT MAREA Weekend (185_) 1.9 JTD 110 (185BXT1A) 186A6.000 09.2000-08.2002
FIAT MULTIPLA (186_) 1.9 JTD 110 186A6.000 03.2001-07.2002
FIAT PUNTO (188_) 1.9 DS 60 (188.031, .051, .231, .251) 188A3.000 09.1999-03.2012
FIAT Stilo 1.8 16V [192A4.000] 10.2001-02.2003
FIAT STILO (192_) 1.8 16V (192AXC1A, 192BXC1A) 192A4.000 10.2001-04.2007
FIAT STILO (192_) 1.9 JTD (192_XE1A) 192A1.000 10.2001-11.2006
FIAT STILO (192_) 1.9 JTD (192_XE1A) 192B4.000 10.2001-11.2006
FIAT STILO (192_) 1.9 JTD (192_XE1A) 937A7.000 10.2001-11.2006
FIAT STILO (192_) 1.9 JTD (192_XF1A) 192A3.000 02.2002-11.2006
FIAT STILO (192_) 2.4 20V (192_XD1A, 192AXD12) 192A2.000 10.2001-04.2007
FIAT STILO Multi Wagon (192_) 1.8 16V 192A4.000 01.2003-08.2008
FIAT STILO Multi Wagon (192_) 1.9 JTD 192A1.000 01.2003-08.2008
FIAT STILO Multi Wagon (192_) 1.9 JTD 192A3.000 01.2003-08.2008
FIAT STILO Multi Wagon (192_) 1.9 JTD 192B4.000 01.2003-08.2008
FIAT STILO Multi Wagon (192_) 1.9 JTD 937A7.000 01.2003-08.2008
FIAT STILO VAN (192_) 1.9 JTD (192DXE1A) 192A1.000 10.2001-08.2005
FIAT STILO VAN (192_) 1.9 JTD (192DXF1A) 192A3.000 10.2001-08.2005
LANCIA KAPPA SW (838_) 2.4 T.DS (838BH1AA) 838A3.000 07.1996-10.2001
LANCIA KAPPA SW (838_) 2.4 T.DS (838BH1AA) 838A7.000 07.1996-10.2001
LANCIA Lybra 1.8 16V [839A4.000] 07.1999-09.2000
LANCIA Lybra 1.8 16V [839A7.000] 09.2000-02.2002
LANCIA Lybra 1.8 16V [839A9.000] 07.1999-
LANCIA LYBRA (839_) 1.9 JTD (839AXD1A) AR32302 07.1999-09.2000
LANCIA LYBRA (839_) 1.9 JTD (839AXI1A) AR37101 09.2000-05.2001
LANCIA LYBRA (839_) 1.9 JTD (839.AXI1A, 839.AXN1A, 839.CXL1A) 937A2.000 05.2001-10.2005
LANCIA LYBRA (839_) 2.4 JTD (839.AXE1A) 841C.000 05.2002-10.2005
LANCIA LYBRA (839_) 2.4 JTD (839AXE1A) 839A5.000 07.1999-02.2001
LANCIA LYBRA (839_) 2.4 JTD (839AXE1A) AR32501 07.1999-02.2001
LANCIA LYBRA (839_) 2.4 JTD (839AXL1A) 839A6.000 09.2000-05.2002
LANCIA LYBRA SW (839_) 1.9 JTD (839BXD1A) AR32302 07.1999-09.2001
LANCIA LYBRA SW (839_) 1.9 JTD (839BXI1A) AR37101 09.2000-05.2001
LANCIA LYBRA SW (839_) 1.9 JTD (839.BXI1A, 839.BXN1A, 839.CXL1A) 937A2.000 05.2001-10.2005
LANCIA LYBRA SW (839_) 2.4 JTD (839.BXE1A) 841C.000 05.2002-10.2005
LANCIA LYBRA SW (839_) 2.4 JTD (839BXE1A) 839A5.000 10.1999-09.2000
LANCIA LYBRA SW (839_) 2.4 JTD (839BXE1A) AR32501 10.1999-09.2000
LANCIA LYBRA SW (839_) 2.4 JTD (839BXL1A) 839A6.000 09.2000-10.2005
LANCIA MUSA (350_) 1.9 D Multijet (350.AXC1A) 188B2.000 10.2004-09.2012
11.1753LAUBER
11.1753MLAUBER
113336CARGO
2030104.1SANDO
2030201SANDO
210759ERA
23315NWAI
28-4805ELSTOCK
301223RIKUHNER
301753RIKUHNER
46543023FIAT
46544330FIAT
46748353FIAT
505.504.120WAI
57150EAI
60815944FIAT
60816954FIAT
63321491MAGNETI MARELLI
63321858MAGNETI MARELLI
71721512FIAT
71773262FIAT
8EL738126-001HELLA
9213004POWERMAX
A4056AS-PL
AEC1753AUTOELECTRO
ALT12131WOODAUTO
ALT122620SIOM
ALT2200SIOM
ALT322010SIOM
ALT90074ELECTROLOG
ALTF0723EFFE
ALTS9483EFFE
CA1698IRHC PARTS
CA1753IRHC PARTS
CAL30201GSCASCO
DAN641DENSO
F032113336CARGO
LRA02313LUCAS
LRA2313LUCAS
SA676SOVEREIGN
STX100068STARDAX
STX100068RSTARDAX
STX102027STARDAX
A4056
