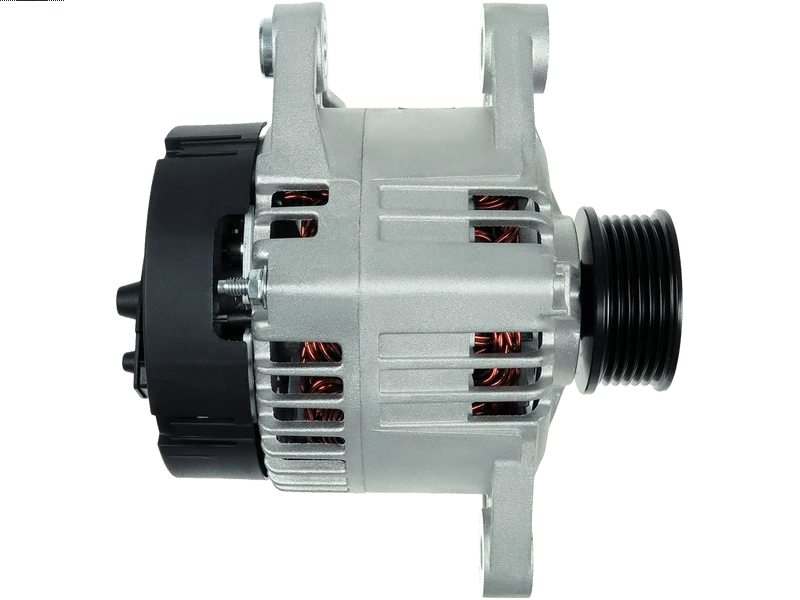

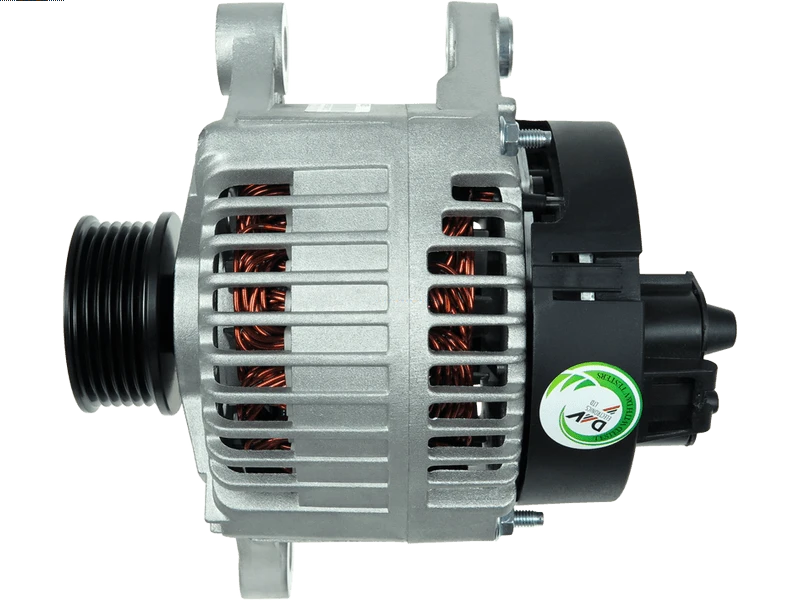

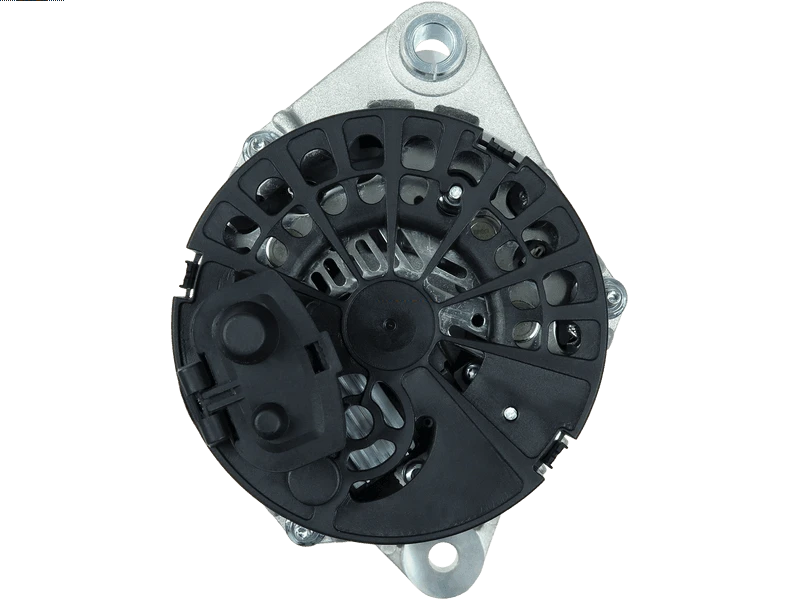

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 352.21 including GST
NZ$ 306.27 excluding GST
or four payments of $88.05
with
Learn More
each
A4025
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063321802010 0986040631 0986040641 111625 20110418 20130226 2030122 210035 22582N 28-2723 301189RI 301216RI 301216RID 301223RI 301743RI 301743RIM 4005 437577 46430531 46448434 46763532 505.503.085 60812814 60816047 63320332 63321232 63321313 63321316 63321418 63321802 89212694 8EL012428-551 8EL737284-001 944390406310 944390900260 ALE1216 ALT12081 CA1216IR CAL30122 CAL30122AS CAL30122ES CAL30122GS CAL30122OS CAL30122RS DA4513 DAN1037 DAN633 DRA3403 LRA01582 LRA1582 MAN1102 MRA90026 RAA14514Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 22.5 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 206 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 44.5 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 145 1.4 i.e. 16V Twin Spark | [AR33503] | 12.1996-01.2001 |
| ALFA ROMEO | 145 1.4 i.e. 16V Twin Spark | [AR38501] | 12.1996-01.2001 |
| ALFA ROMEO | 145 1.6 i.e. 16V Twin Spark | [AR38201] | 12.1996-01.2001 |
| ALFA ROMEO | 145 1.6 i.e. 16V Twin Spark | [AR67601] | 12.1996-01.2001 |
| ALFA ROMEO | 145 1.8 i.e. 16V | [AR32201] | 03.1998-01.2001 |
| ALFA ROMEO | 145 1.8 i.e. 16V Twin Spark | [AR38401] | 12.1996-12.1998 |
| ALFA ROMEO | 145 1.8 i.e. 16V Twin Spark | [AR67106] | 12.1996-12.1998 |
| ALFA ROMEO | 145 1.8 i.e. 16V Twin Spark | [AR67199] | 12.1996-12.1998 |
| ALFA ROMEO | 146 1.4 i.e. 16V Twin Spark | [AR33503] | 11.1996-01.2001 |
| ALFA ROMEO | 146 1.4 i.e. 16V Twin Spark | [AR38501] | 11.1996-01.2001 |
| ALFA ROMEO | 146 1.6 i.e. 16V Twin Spark | [AR38201] | 11.1996-10.2001 |
| ALFA ROMEO | 146 1.6 i.e. 16V Twin Spark | [AR67601] | 11.1996-10.2001 |
| ALFA ROMEO | 146 1.8 i.e. 16V Twin Spark | [AR32201] | 03.1998-01.2001 |
| ALFA ROMEO | 146 1.8 i.e. 16V Twin Spark | [AR38401] | 11.1996-01.2001 |
| ALFA ROMEO | 146 1.8 i.e. 16V Twin Spark | [AR67106] | 11.1996-01.2001 |
| ALFA ROMEO | 147 1.6 16V Twin Spark | [AR32104] | 01.2001-03.2010 |
| ALFA ROMEO | 147 1.6 16V Twin Spark ECO | [AR37203] | 01.2001-03.2010 |
| ALFA ROMEO | 155 1.6 16V Twin Spark | [AR67601] | 05.1996-12.1997 |
| ALFA ROMEO | 155 1.7 Twin Spark 16V | [AR67106] | 05.1996-12.1997 |
| ALFA ROMEO | 155 1.8 Twin Spark | [AR67402] | 02.1992-12.1997 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR32102] | 05.2000-05.2006 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR32102] | 09.1997-09.2005 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR32103] | 05.2000-05.2006 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR32103] | 09.1997-09.2005 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR32104] | 05.2000-05.2006 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR32104] | 09.1997-09.2005 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR67601] | 05.2000-05.2006 |
| ALFA ROMEO | 156 1.6 16V Twin Spark | [AR67601] | 09.1997-09.2005 |
| ALFA ROMEO | 1561.6 16V Twin Spark | [AR32102] | 09.1997-09.2005 |
| ALFA ROMEO | 156 1.8 16V Twin Spark | [AR32201] | 05.2000-10.2000 |
| ALFA ROMEO | 156 1.8 16V Twin Spark | [AR32201] | 09.1997-10.2000 |
| ALFA ROMEO | 156 1.8 16V Twin Spark | [AR32205] | 02.1997-05.2006 |
| ALFA ROMEO | 156 1.8 16V Twin Spark | [AR32205] | 10.2000-09.2005 |
| ALFA ROMEO | 156 2.0 16V Twin Spark | [AR32301] | 09.1997-06.2002 |
| ALFA ROMEO | 156 2.0 16V Twin Spark | [AR32310] | 09.1997-06.2002 |
| ALFA ROMEO | GTV 1.8 16V | [AR32201] | 05.1998-10.2005 |
| ALFA ROMEO | Spider 1.8 16V | [AR32201] | 05.1998-04.2005 |
| FIAT | Barchetta 1.8 16V | [183A1.000] | 04.1995-05.2005 |
| FIAT | Barchetta 1.8 16V | [188A6.000] | 04.1995-05.2005 |
| FIAT | Brava 1.8 GT 16V | [182A2.000] | 10.1995-08.2001 |
| FIAT | Brava 1.9 JTD | [182B4.000] | 12.1998-10.2001 |
| FIAT | Bravo 1.8 GT | [182A2.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.9 JTD | [182B4.000] | 12.1998-10.2001 |
| FIAT | Coupe 1.8 16V | [183A1.000] | 03.1996-08.2000 |
| FIAT | Marea 1.8 16V | [182A2.000] | 09.1996-05.2002 |
| FIAT | Marea 1.9 JTD | [182B4.000] | 12.1998-12.2002 |
| FIAT | Marea 1.9 TD | [182A7.000] | 05.1996-12.2002 |
| FIAT | Marea 1.9 TD | [182A7.000] | 09.1996-06.2003 |
| FIAT | Marea 1.9 TD | [182A8.000] | 09.1996-05.2002 |
| FIAT | Marea 1.9 TD | [182B9.000] | 09.1996-06.2003 |
| FIAT | Marea 2.4 JTD | [185A6.000] | 04.1999-05.2002 |
| FIAT | Marea 2.4 JTD | [839A5.000] | 04.1999-05.2002 |
| FIAT | Marea 2.4 TD | [185A2.000] | 09.1996-04.1999 |
| FIAT | Punto 1.9 JTD | [188A2.000] | 09.1999-03.2012 |
| FIAT | Punto 1.9 JTD | [188A7.000] | 10.2001-03.2012 |
| LANCIA | Dedra 1.8 16V LE | [182A2.000] | 03.1996-07.1999 |
| LANCIA | Delta 1.8 i.e. 16V | [182A2.000] | 03.1996-08.1999 |
| LANCIA | Kappa 2.0 16V Turbo | [838A4.000] | 02.1995-10.2001 |
| LANCIA | Kappa 2.0 16V Turbo | [838A4.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.0 16V Turbo | [838A4.000] | 11.1996-03.2001 |
| LANCIA | Kappa 2.0 20V | [838A6.000] | 07.1996-03.2001 |
| LANCIA | Kappa 2.0 20V | [838A6.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.0 20V Turbo | [175A3.000] | 06.1998-03.2001 |
| LANCIA | Kappa 2.0 20V Turbo | [175A3.000] | 06.1998-10.2001 |
| LANCIA | Kappa 2.4 20V | [838A2.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.4 20V | [838A2.000] | 11.1996-03.2001 |
| LANCIA | Kappa 2.4 JTD | [838A8.000] | 06.1998-10.2001 |
| LANCIA | Kappa 2.4 TDS | [838A3.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.4 TDS | [838A7.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.4 T.DS | [838A3.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.4 T.DS | [838A7.000] | 07.1996-10.2001 |
| LANCIA | Lybra 1.9 JTD | [937A2.000] | 05.2001-10.2005 |
| LANCIA | Lybra 1.9 JTD | [AR32302] | 07.1999-09.2001 |
Reference Information
7782314 CAL30122RS 46769369 20110418 46231671 ALE1216 301223RI 9.44391E+11 LRA01582 20130226 210947 46765837 71721172 60812814 STX100245R 4005 437577 46763532 63321313 63321316 301216RID 63321232 ALT9093 301216RI ALTL156 CAL30122OS RAA14514 46231724 111625 CAL30122GS 63321802010 STX100540 STX100066 210035 STX100066R 0986040641 CAL30122 DAN1037 DAN633 301189RI 8EL737284-001 63320332 71780047 46430533 46430531 9.4439E+11 MAN1102 A12MA1196A2 22582N DA4513 CA1216IR DRA3403 ALT122620 210246 ALT12081 63321418 210249 60812713 0986040631 46448434 MRA90026 46445660 46430529 8EL012428-551 A12DE1234A2 7781075 60816046 LRA1582 ALTS001 46412681 71724853 2030122 ALT2430 28-2723 60816047 505.503.085 CAL30122ES STX100245 46428730 71773260 STX100287 STA0501R 46445658 63321802 CAL30122AS 46740243 89212694 71773261Video/Publications
