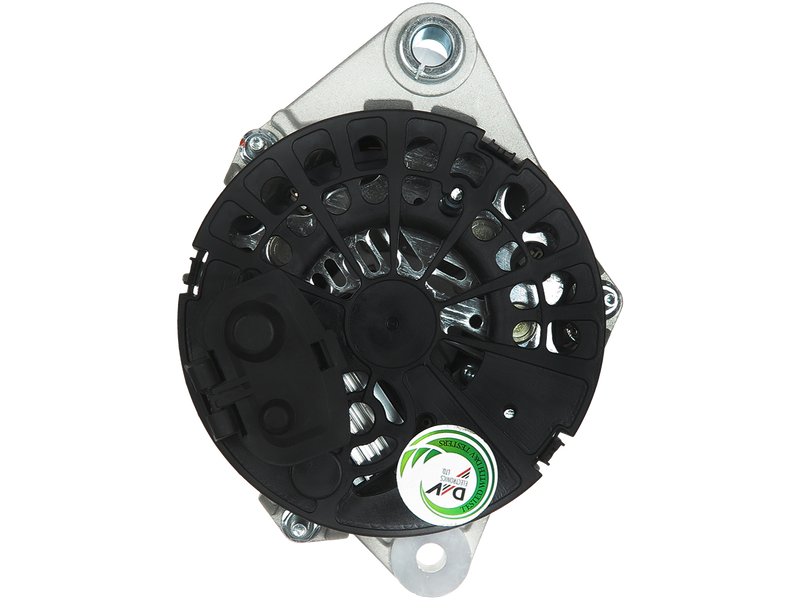

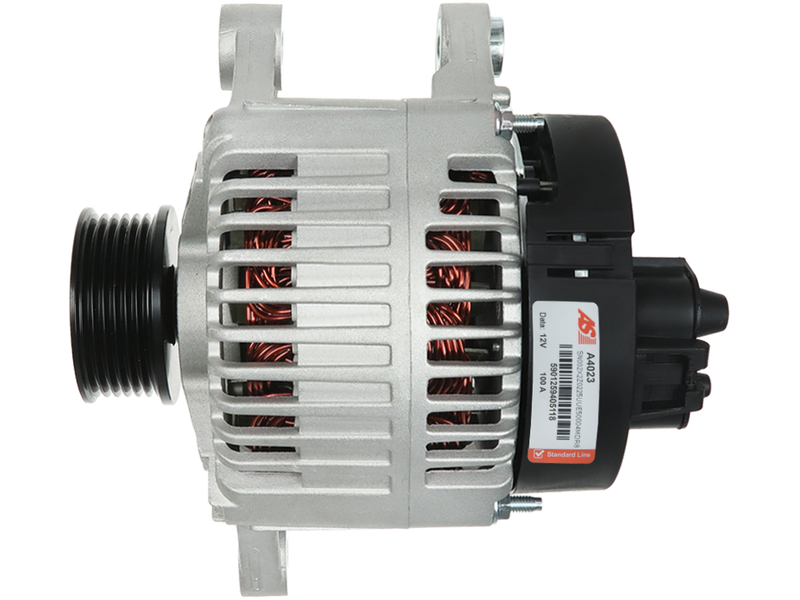

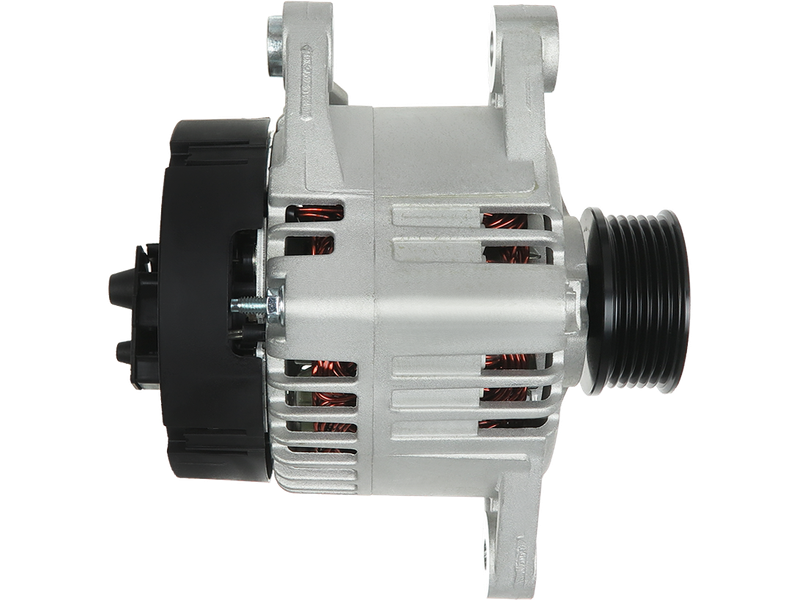

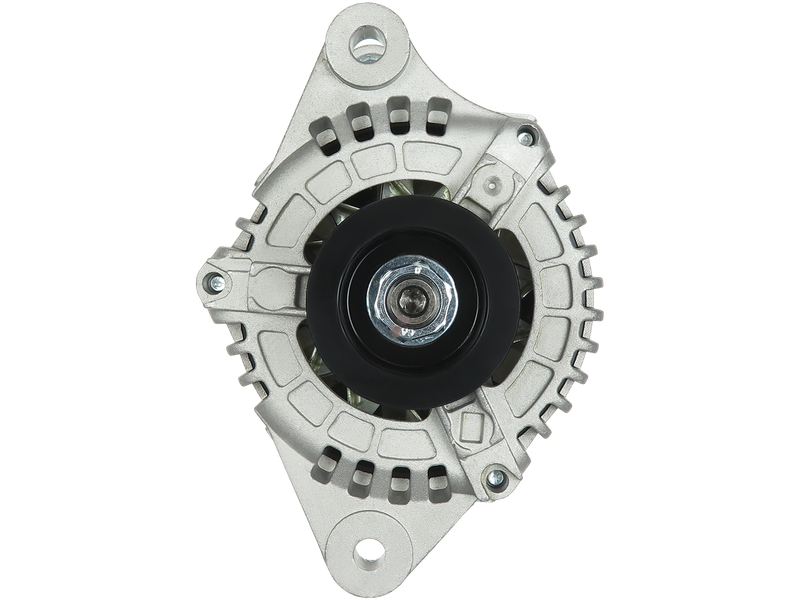

A4023 - Brand new AS-PL Alternator

Specifications

Amp	100 A
Bottom Mounting Foot Width (B)	21.5 mm
Diameter (D.1)	11.5 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	11.5 mm
Grooves	6 qty
Length (L.1)	207 mm
Mount Inside Length or Pad Mount C-C (C)	54.5 mm
OEM Product	No
Outside Diameter (O.D.1)	63 mm
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	44 mm
Pulley Type	SOLID
Unit Type	LUCAS/MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALFA ROMEO	145 1.4 i.e. 16V	[AR33503]	12.1996-01.2001
ALFA ROMEO	145 1.4 i.e. 16V	[AR38501]	12.1996-01.2001
ALFA ROMEO	145 1.6 i.e. 16V	[AR38201]	12.1996-
ALFA ROMEO	145 1.6 i.e. 16V	[AR67601]	12.1996-02.1999
ALFA ROMEO	145 1.8 i.e. 16V	[AR32201]	03.1998-12.2000
ALFA ROMEO	145 1.8 i.e. 16V	[AR38401]	12.1996-12.1998
ALFA ROMEO	145 1.8 i.e. 16V	[AR67106]	12.1996-04.1998
ALFA ROMEO	145 2.0 16V	[AR32301]	03.1998-01.2001
ALFA ROMEO	147 1.6 Twin Spark 16V	[AR37203]	11.2000-
ALFA ROMEO	147 2.0 Twin Spark 16V	[AR32310]	01.2001-
ALFA ROMEO	155 1.6 Twin Spark	[AR67601]	05.1996-10.1997
ALFA ROMEO	155 1.7 Twin Spark 16V	[AR67106]	05.1996-12.1997
ALFA ROMEO	155 1.8 Twin Spark	[AR67402]	05.1996-12.1997
ALFA ROMEO	156 1.6 Twin Spark 16V	[AR32102]	04.1998-09.2000
ALFA ROMEO	156 1.6 Twin Spark 16V	[AR32103]	09.2000-05.2006
ALFA ROMEO	156 1.6 Twin Spark 16V	[AR32104]	08.2000-05.2006
ALFA ROMEO	156 1.6 Twin Spark 16V	[AR67601]	10.1997-09.2000
ALFA ROMEO	156 1.8 Twin Spark 16V	[AR32201]	05.2000-10.2000
ALFA ROMEO	156 1.8 Twin Spark 16V	[AR32201]	09.1997-10.2000
ALFA ROMEO	156 1.8 Twin Spark 16V	[AR32205]	10.2000-05.2006
ALFA ROMEO	156 1.9 JTD	[AR32302]	09.1997-10.2000
ALFA ROMEO	156 2.0 Twin Spark 16V	[AR32301]	09.1997-10.2000
ALFA ROMEO	156 2.0 Twin Spark 16V	[AR32310]	10.2000-03.2002
ALFA ROMEO	156 2.4 JTD	[839A6.000]	10.2000-05.2006
ALFA ROMEO	156 2.4 JTD	[AR32501]	09.1997-10.2000
ALFA ROMEO	166 2.0 Twin Spark	[AR34103]	09.1998-10.2000
ALFA ROMEO	166 2.0 Twin Spark	[AR36301]	10.2000-
ALFA ROMEO	166 2.4 JTD	[839A6.000]	10.2000-
ALFA ROMEO	166 2.4 JTD	[AR34202]	07.2005-
ALFA ROMEO	166 2.4 JTD	[AR34202]	09.1998-10.2000
ALFA ROMEO	Alfa 146 1.4 i.e. 16V	[AR33503]	11.1996-01.2001
ALFA ROMEO	Alfa 146 1.4 i.e. 16V	[AR38501]	11.1996-01.2001
ALFA ROMEO	Alfa 146 1.6 i.e. 16V	[AR38201]	11.1996-01.2001
ALFA ROMEO	Alfa 146 1.6 i.e. 16V	[AR67601]	11.1996-02.1999
ALFA ROMEO	Alfa 146 1.8 i.e. 16V	[AR67106]	11.1996-04.1998
ALFA ROMEO	Alfa 146 1.8 Twin Spark i.e. 16V	[AR32201]	05.1998-12.2000
ALFA ROMEO	Alfa 146 2.0 16V	[AR32301]	03.1998-01.2001
ALFA ROMEO	Alfa 146 2.0 Twin Spark 16V	[AR67204]	10.1995-10.2001
ALFA ROMEO	Alfa 147 1.6 Twin Spark 16V	[AR32104]	11.2000-
ALFA ROMEO	GTV 1.8 16V	[AR32201]	05.1998-
ALFA ROMEO	GTV 2.0 16V	[AR32301]	05.1998-08.2000
ALFA ROMEO	GTV 2.0 Twin Spark 16V	[AR16201]	10.1999-09.2000
ALFA ROMEO	Spider 1.8 16V	[AR32201]	05.1998-04.2005
ALFA ROMEO	Spider 2.0 16V	[AR32301]	05.1998-08.2000
ALFA ROMEO	Spider 2.0 Twin Spark 16V	[AR32310]	10.1999-09.2002
FIAT	Barchetta 1.8 16V	[183A1.000]	04.1995-09.2000
FIAT	Barchetta 1.8 16V	[188A6.000]	10.2000-12.2004
FIAT	Brava 1.8 16V GT	[182A2.000]	12.1995-01.2001
FIAT	Brava 1.9 JTD	[182B4.000]	12.1998-10.2001
FIAT	Bravo 1.9 JTD	[182B4.000]	12.1998-10.2001
FIAT	Coupe 1.8 16V	[183A1.000]	03.1996-08.2000
FIAT	Marea 1.9 JTD	[182B4.000]	04.1999-01.2001
FIAT	Marea 1.9 JTD	[186A6.000]	01.2001-
FIAT	Marea 2.4 TD	[185A2.000]	09.1996-04.1999
FIAT	Multipla 1.9 JTD	[182B4.000]	04.1999-
FIAT	Multipla 1.9 JTD	[186A6.000]	03.2001-
FIAT	Punto 1.8 HGT	[183A1.000]	09.1999-02.2002
FIAT	Punto 1.8 HGT	[188A6.000]	09.1999-02.2002
FIAT	Punto 1.9 JTD	[188A2.000]	09.1999-
LANCIA	Kappa 2.0 20V	[838A1.000]	10.1994-10.2001
LANCIA	Kappa 2.0 20V LE	[838A6.000]	07.1996-12.2000
LANCIA	Kappa 2.0 Turbo 16V	[838A4.000]	11.1994-06.1998
LANCIA	Kappa 2.4 20V	[838A2.000]	08.1994-11.2001
LANCIA	Kappa 2.4 20V	[838A2.027]	08.1994-11.2001
LANCIA	Kappa 2.4 TD	[838A3.000]	11.1994-10.2001
LANCIA	Kappa 2.4 TD	[838A7.000]	06.1996-10.2001
LANCIA	Lybra 1.8 16V	[839A4.000]	07.1999-09.2000
LANCIA	Lybra 1.8 16V	[839A7.000]	09.2000-02.2002
LANCIA	Lybra 1.8 16V	[839A9.000]	07.1999-02.2002
LANCIA	Lybra 1.9 JTD	[AR32302]	07.1999-09.1999

Reference Information

7782314 20104541OE AEA4225 46447117 20110418 46769369 ALT321450 46748343 LRB00425 301223RI LRB418 60816173 ANM45000X EAA-221377 46709068 GA321418-A 71721172 20104541BN 60812814 4005 60812535 46763532 0124415015 46765835 56659 46765836 AEA4218 63321232 301216RID 63321310 ALT322010 437635 9212445 301216RI ALTL156 LRB425 SA158 LRB00418 124415015 CAL30145GS 28-4522 2030145 23069R 0986042780 210035 AEC1223 0986040641 DRB2780 STA0134R LRA2083 CAL10262RS 21448N 46430533 46430531 SB160 46430530 A4023 986042780 A12MA1196A2 28-3647 986040641 46305329 ALT122620 ALT2620 210246 2010262 9042780 63321418 60812713 46448434 89212445 8EL012428-471 ALT12020 CA1208IR 7781075 60816046 111409 11.1223M 46412681 CA1223IR LRA02083 ALT2430 ALT1386 60816047 63321801 46428730 71773260 46445658 CAL30145AS 11.1223

Video/Publications

0124415015 0986040641 0986042780 11.1223 11.1223M 111409 2010262 20104221BN 20104541BN 20104541OE 20110418 2030122 2030145 21448N 23069R 28-3647 28-4522 301216RI 301216RID 301223RI 4005 437635 46305329 46445658 46765836 46769369 56659 60812535 60816046 60816173 63321232 63321310 63321418 63321801 7782314 89212445 8EL012428-471 9042780 A4023 AEA4218 AEA4225 AEC1223 ALT12020 ALT122620 ALT2430 ALT2620 ALT321450 ALT322010 ALTL156 CA1208IR CA1223IR CAL10262RS CAL30122AS CAL30122GS CAL30145AS CAL30145GS DRB2780 EAA-221377 GA321418-A LRA02083 LRA2083 LRB00418 LRB00425 LRB418 LRB425 SA158 SB160 210035 210246
