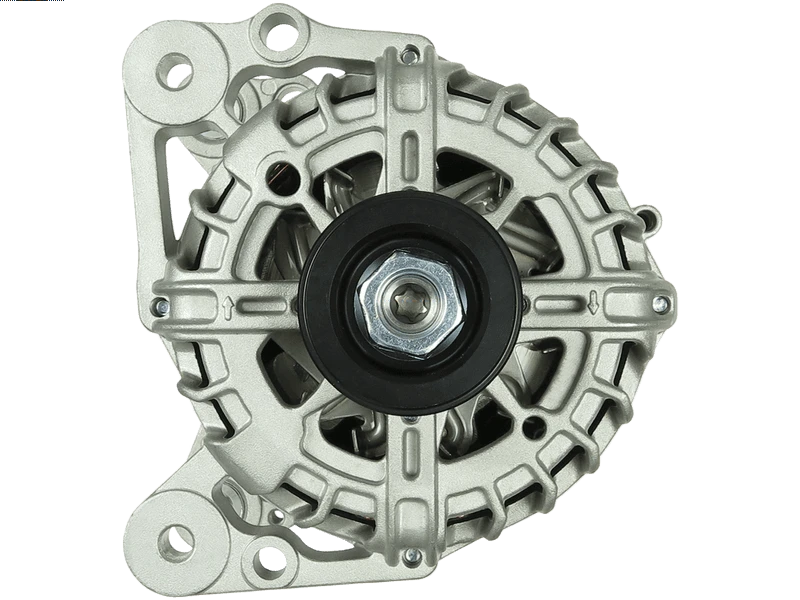

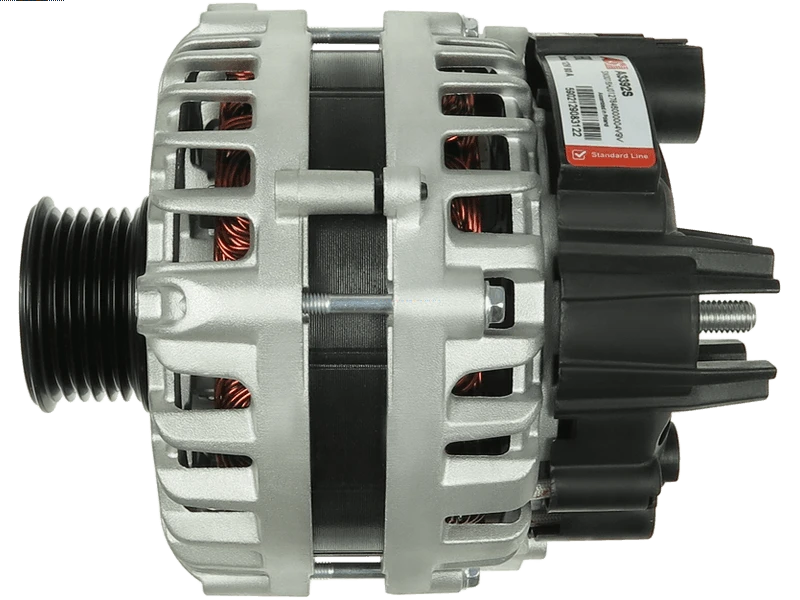

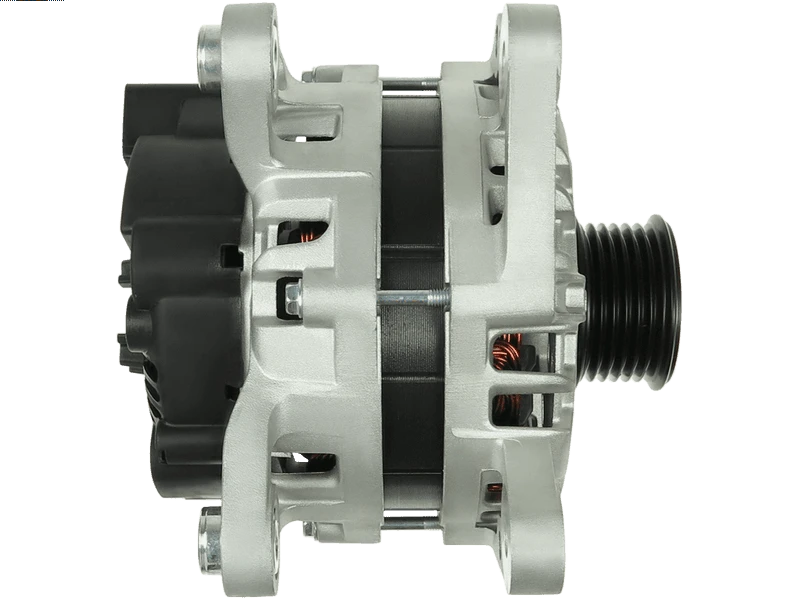

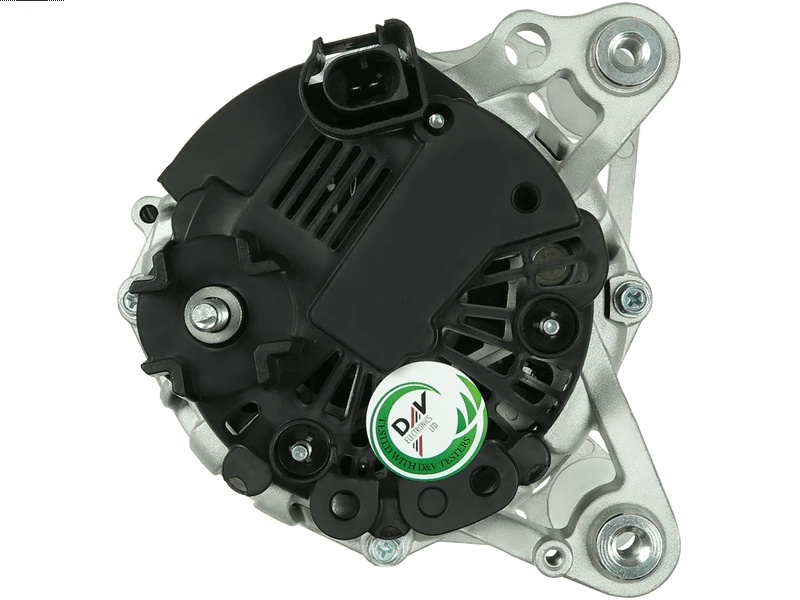

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 423.20 including GST
NZ$ 368.00 excluding GST
or four payments of $105.80
with
Learn More
UOM:
each
Product Code:
A3392S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
TG9S122Associated Numbers
04C903023G 305.993.090 TG9S122 UD14872ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 173 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 49.50 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Mii (KF1, KE1) 1.0 | CHYA | 10.2011-07.2019 |
| SEAT | Mii (KF1, KE1) 1.0 | CHYB | 10.2011-07.2019 |
| SEAT | Mii (KF1, KE1) 1.0 EcoFuel | CPGA | 10.2012-07.2019 |
| SKODA | CITIGO (NF1) 1.0 | CHYA | 10.2011-08.2019 |
| SKODA | CITIGO (NF1) 1.0 | CHYB | 10.2011-08.2019 |
| VW | Fox 1.6 | ||
| VW | Gol | ||
| VW | GOL III 1.6 | UNF | 01.2002-08.2006 |
| VW | GOL IV 1.6 | UNF | 10.2005-12.2013 |
| VW | GOL IV 1.6 TotalFlex | UNF | 09.2005-05.2008 |
| VW | LOAD UP (121, 122, BL1, BL2) 1.0 | CHYA | 12.2014-11.2019 |
| VW | LOAD UP (121, 122, BL1, BL2) 1.0 | DAFA | 12.2014-11.2019 |
| VW | LOAD UP (121, 122, BL1, BL2) 1.0 BlueMotion | CHYB | 05.2016-11.2019 |
| VW | LOAD UP (121, 122, BL1, BL2) 1.0 EcoFuel | CPGA | 12.2014-08.2020 |
| VW | Up | ||
| VW | UP! (121, 122, BL1, BL2, BL3, 123) 1.0 | CHYA | 08.2011-08.2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) 1.0 | CHYB | 08.2011-11.2019 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) 1.0 | CHYE | 08.2011-08.2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) 1.0 | CWRA | 08.2011-11.2019 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) 1.0 | DAFA | 08.2011-08.2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) 1.0 EcoFuel | CPGA | 11.2012-11.2023 |
Reference Information
| 04C903023G | VW |
| 305.993.090.008 | WAI |
| 456403 | VALEO |
| ALT0150 | ELECTROLOG |
| ALTJ376 | 3EFFE |
| G107386 | BTS TURBO |
| TG9S122 | VALEO |
| UD14872A | AS-PL |
| WG2472087 | WILMINK GROUP |
Video/Publications
A3392SRelated Items
