Associated Numbers
0121615012 0121615027 0121615127 0125711011 0125711078 0986048740 0986048747 115604 12317553009 12317562388 12317574365 12317575650 12317575779 12317575873 12317604782 12317613445 2015415 210828 225.555.150 28-5580 302006RIB 302006RIV 439759 440351 553835RIB 553835RIV 5702-L3 5702G3 5702H9 5702L3 5705-NR 5705JG 5705KF 5705NR 57104 7575650 89212923 9666997980 9666998080 AEK2966 CAL15415 CAL15415AS CAL15415ES CAL15415GS CAL15415OS CAL15415RS DA1324 DRA0214 FG15T044 FG15T072 LRA02966 LRA2966 UD14855A VAL439759
0986048747 Bosch ruil
0986081827 Bosch ruil
115604 Cargo
12048740 EuroTec
12090483 EuroTec
20403 Lester
225555150 PSH
285580 Elstock
439759 Valeo show
440351 Valeo show
5702G3 PSA
5702L3 PSA
5705KF PSA
5705NR PSA
616938 Valeo
6457SP Spidan
738212391 Hella
7553009 Fiat
90156587 Wilson
930214 EDR
9666997980 PSA
9666998080 PSA
AL0883X Bosch (USA)
AL0888X Bosch (USA)
CA2006IR HC
DRA0214 Remy
FG15T044 Valeo show
FG15T044OR +line
FG15T072 Valeo show
FGN15T072 Valeo
HCA2006IR HC
LRA02966 Lucas
V757712180 PSA
47-548

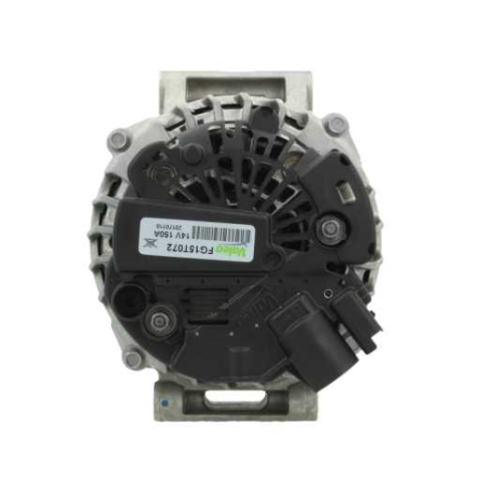

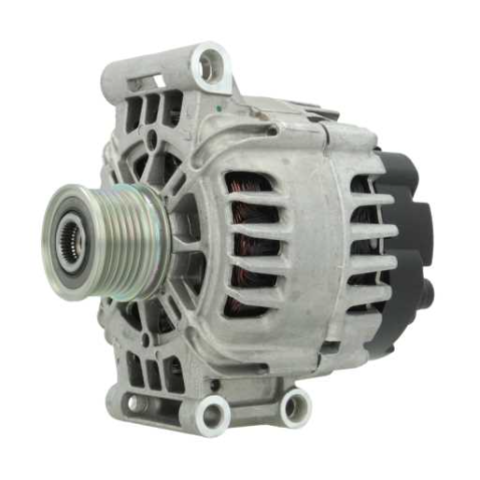

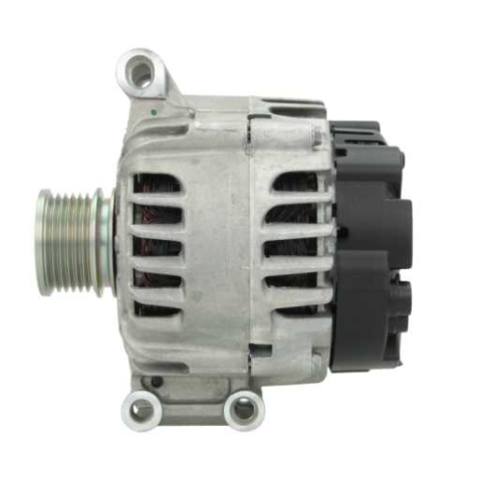

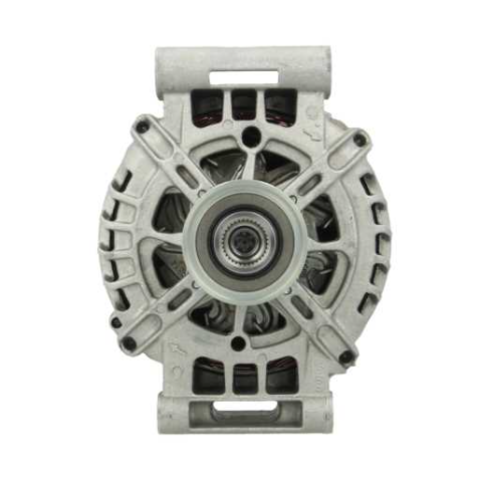

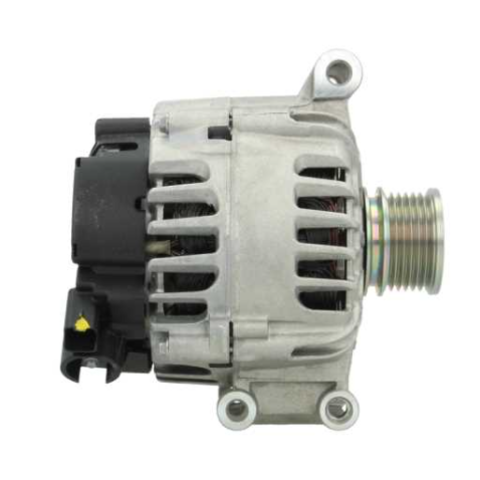

Specifications
BOSCH and VALEO are NOT interchangeable
Faulty Battery Module fuse box brings up warning light / charging fault. Beware as this may cause misdiagnosis of faulty alternator.
| Amp | 150 A |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 47.5 mm |
| OEM Product | Yes |
| Pad mount thickness (E.1) | 80 mm |
| Pad mount thickness (E.2) | 80 mm |
| Plug Code | PL_2403 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 27 mm |
| Pulley Type | CLUTCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Berlingo 1.6 VTi 120 | [5FS(EP6C)] | 11.2009- |
| CITROEN | Berlingo 1.6 VTi 95 | [5FK(EP6CB)] | 07.2010- |
| CITROEN | C4 1.6 THP 155 | [5FV(EP6CDT)] | 11.2009- |
| CITROEN | C4 Grand Picasso 1.6 THP 155 | [5FV(EP6CDT)] | 09.2010- |
| CITROEN | C4 Picasso 1.6 THP 155 | [5FV(EP6CDT)] | 09.2010-08.2013 |
| CITROEN | C4 Picasso 1.6 VTi 120 | [5FW(EP6)] | 07.2008-08.2013 |
| CITROEN | C5 1.6 THP 155 | [5FV(EP6CDT)] | 04.2009- |
| CITROEN | C5 1.6 VTi 120 | [5FS(EP6C)] | 07.2010- |
| CITROEN | DS4 1.6 THP 155 | [5FV(EP6CDT)] | 04.2001-07.2015 |
| CITROEN | DS4 1.6 THP 200 | [5FU(EP6DTX)] | 04.2001-07.2015 |
| CITROEN | DS4 1.6 VTi 120 | [5FS(EP6C)] | 04.2001-07.2015 |
| CITROEN | DS5 1.6 THP 155 | [5FV(EP6CDT)] | 11.2011-07.2015 |
| CITROEN | DS5 1.6 THP 200 | [5FU(EP6DTX)] | 11.2011-07.2015 |
| PEUGEOT | 207 1.6 16V Turbo | [5FR(EP6DT)] | 10.2009- |
| PEUGEOT | 207 CC 1.6 16V Turbo | [5FR(EP6DT)] | 10.2009- |
| PEUGEOT | 207 CC 1.6 16V Turbo | [5FV(EP6CDT)] | 10.2009- |
| PEUGEOT | 3008 1.6 THP | [5FE(EP6CDTM)] | 06.2009- |
| PEUGEOT | 3008 1.6 THP | [5FE(EP6CDTMD)] | 06.2009- |
| PEUGEOT | 3008 1.6 THP | [5FV(EP6CDT)] | 06.2009- |
| PEUGEOT | 3008 1.6 THP | [5FX(EP6DT)] | 06.2009- |
| PEUGEOT | 3008 1.6 VTi | [5FS(EP6C)] | 06.2009- |
| PEUGEOT | 3008 1.6 VTi | [5FW(EP6)] | 06.2009- |
| PEUGEOT | 3008 1.6 VTi | [EP6] | 06.2009- |
| PEUGEOT | 308 1.4 16V | [8FR(EP3)] | 12.2009- |
| PEUGEOT | 308 1.4 16V | [8FS(EP3)] | 09.2007- |
| PEUGEOT | 308 1.4 16V | [EP3] | 09.2007- |
| PEUGEOT | 308 1.6 16V | [5FV(EP6CDT)] | 10.2009- |
| PEUGEOT | 308 1.6 16V | [5FW(EP6)] | 09.2007- |
| PEUGEOT | 308 1.6 16V | [EP6] | 09.2007- |
| PEUGEOT | 308 1.6 GTi | [EP6CDTX] | 07.2010- |
| PEUGEOT | 308 CC 1.6 THP | [EP6CDTX] | 10.2010- |
| PEUGEOT | 308 SW 1.4 16V | [8FR(EP3)] | 12.2009- |
| PEUGEOT | 308 SW 1.4 16V | [8FS(EP3)] | 09.2007- |
| PEUGEOT | 308 SW 1.6 16V | [5FV(EP6CDT)] | 10.2009- |
| PEUGEOT | 308 SW 1.6 16V | [5FW(EP6)] | 09.2007- |
| PEUGEOT | 308 SW 1.6 16V | [EP6] | 09.2007- |
| PEUGEOT | 5008 1.6 16V | [5FS(EP6C)] | 09.2009- |
| PEUGEOT | 5008 1.6 16V | [5FW(EP6)] | 09.2009- |
| PEUGEOT | 5008 1.6 16V | [EP6] | 09.2009- |
| PEUGEOT | 508 1.6 THP | [5FV(EP6CDT)] | 11.2010- |
| PEUGEOT | 508 1.6 VTi | [5FS(EP6C)] | 11.2010- |
| PEUGEOT | 508 SW 1.6 THP | [5FV(EP6CDT)] | 11.2010- |
| PEUGEOT | 508 SW 1.6 VTi | [5FS(EP6C)] | 11.2010- |
Reference Information
0121615012 0121615027 0121615127 0125711011 0125711078 0986048740 0986048747 115604 12317553009 12317562388 12317574365 12317575650 12317575779 12317575873 12317604782 12317613445 2015415 210828 225.555.150 28-5580 302006RIB 302006RIV 439759 440351 553835RIB 553835RIV 5702-L3 5702G3 5702H9 5702L3 5705-NR 5705JG 5705KF 5705NR 57104 7575650 89212923 9666997980 9666998080 AEK2966 CAL15415 CAL15415AS CAL15415ES CAL15415GS CAL15415OS CAL15415RS DA1324 DRA0214 FG15T044 FG15T072 LRA02966 LRA2966 UD14855A VAL439759View your shopping basket or Browse other items in Alternators.
