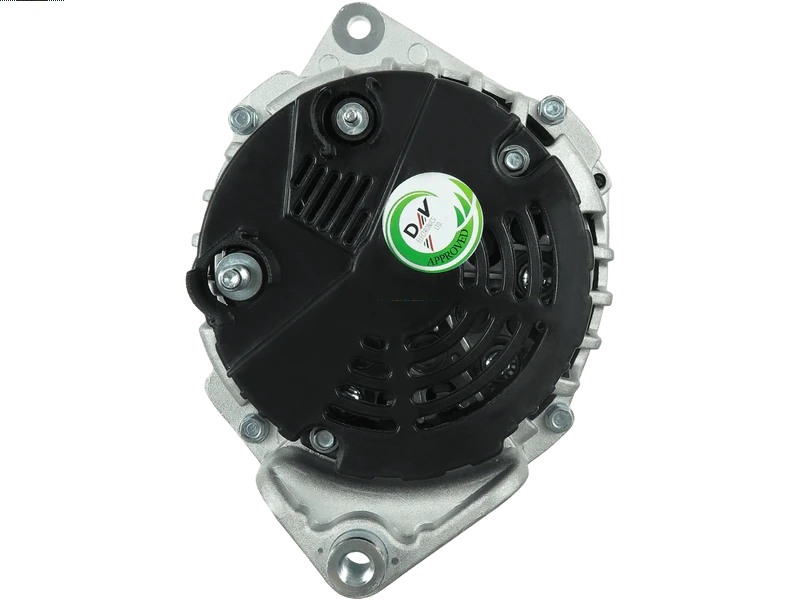

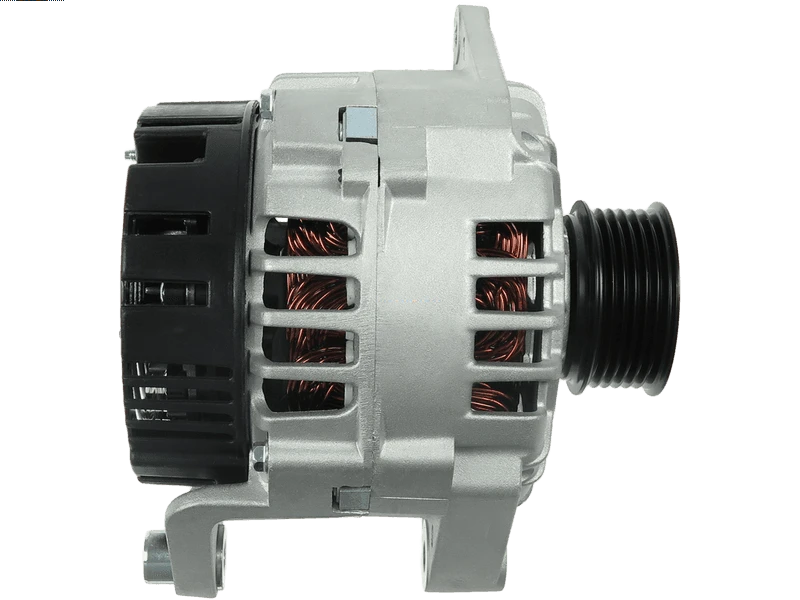

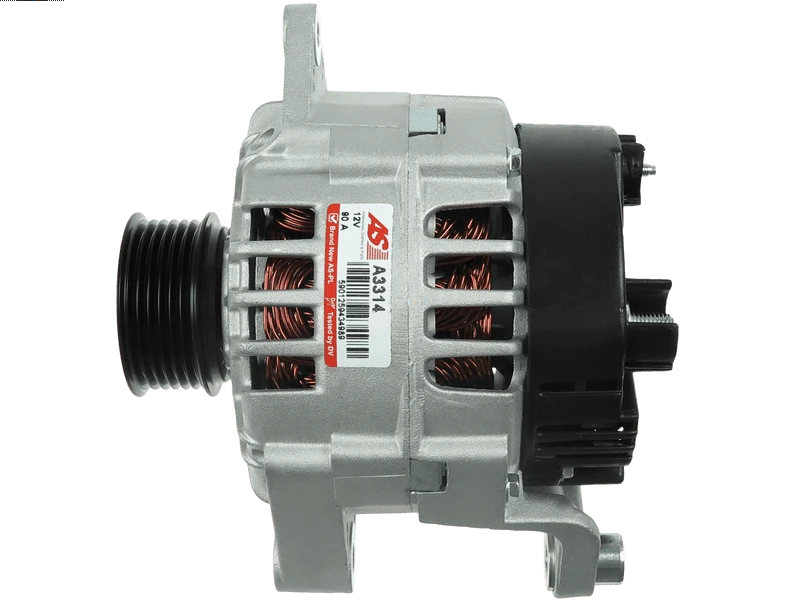

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 429.15 including GST
NZ$ 373.17 excluding GST
or four payments of $107.29
with
Learn More
each
A3314
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SG9B054Associated Numbers
0986080030 113950 2015313 20179313OE 210586 225.532.090 2542708 2542708A 2542708B 28-4689 301781RI 437431 439472 4759 504033459 5705AK 57079 71780140 89212954 8EL012426-361 8EL738191-001 9212954 944390901980 A3314 AEC1781 CA1781IR CAL15313 CAL15313AS CAL15313ES CAL15313GS CAL15313OS CAL15313RS DRA4267 EAA-241297 EAA-251050 LRA02218 SA811 SG9B054 UD12519ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |

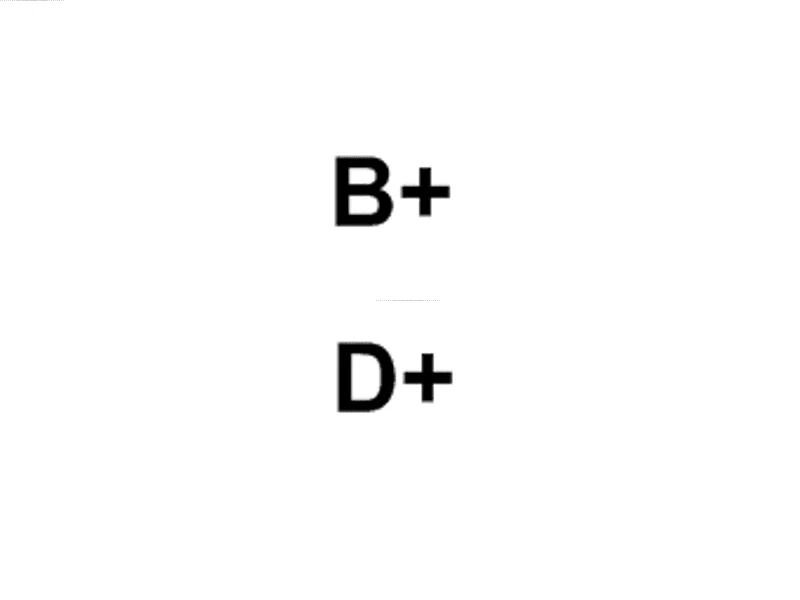

| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 52 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 01.2000-12.2002 |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 09.2000-04.2002 |
| CITROEN | Relay 2.8 HDi | [8140.43S] | 01.2000-12.2002 |
| FIAT | Ducato 10 2.8 JTD | [8140.43S] | 01.2000-12.2002 |
| FIAT | Ducato 11 2.8 JTD | [8140.43N] | 01.2004-12.2006 |
| FIAT | Ducato 11 2.8 JTD | [8140.43S] | 01.2002-12.2006 |
| FIAT | Ducato 14 2.8 JTD | [8140.43S] | 01.2000-12.2002 |
| FIAT | Ducato 15 2.8 JTD | [8140.43N] | 01.2004-12.2006 |
| FIAT | Ducato 15 2.8 JTD | [8140.43S] | 01.2002-12.2006 |
| FIAT | Ducato 18 2.8 JTD | [8140.43N] | 01.2004-12.2006 |
| FIAT | Ducato 18 2.8 JTD | [8140.43S] | 01.2000-12.2002 |
| FIAT | Ducato 18 2.8 JTD | [8140.43S] | 01.2002-12.2006 |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 10.2002- |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S] | 01.2000- |
| PEUGEOT | Boxer 2.8 HDi 4x4 | [8140.43S] | 04.2002- |
Reference Information
| 0986080030 | BOSCH |
| 113950 | CARGO |
| 2015313 | SANDO |
| 20179313OE | REAL |
| 210586 | ERA |
| 225.532.090 | PSH |
| 2542708 | VALEO |
| 2542708A | VALEO |
| 2542708B | VALEO |
| 28-4689 | ELSTOCK |
| 301781RI | KUHNER |
| 437431 | VALEO |
| 439472 | VALEO |
| 441928 | LOGISTIK |
| 4759 | CEVAM |
| 504033459 | FIAT |
| 55151186 | MEAT & DORIA |
| 5705AK | PEUGEOT |
| 57079 | EAI |
| 71780140 | FIAT |
| 89212954 | POWERMAX |
| 8EL012426-361 | HELLA |
| 8EL738191-001 | HELLA |
| 9212954 | POWERMAX |
| 944390901980 | MAGNETI MARELLI |
| A12VA0807 | SIDAT |
| A12VA0807A2 | SIDAT |
| A131.936 | PSH |
| A146.544 | PSH |
| A3314 | AS-PL |
| AEC1781 | AUTOELECTRO |
| ALT0026 | ELECTROLOG |
| ALT173130 | SIOM |
| ALTL801 | 3EFFE |
| ANM36487X | ANDEL |
| CA1781IR | HC PARTS |
| CAL15313 | CASCO |
| CAL15313AS | CASCO |
| CAL15313ES | CASCO |
| CAL15313GS | CASCO |
| CAL15313OS | CASCO |
| CAL15313RS | CASCO |
| DRA4267 | DELCO |
| F032113950 | CARGO |
| LRA02218 | LUCAS |
| LRA2218 | LUCAS |
| SA811 | SOVEREIGN |
| SG9B054 | VALEO |
| STA0509R | BOVEZ |
| STX100106 | STARDAX |
| UD12519A | AS-PL |
Video/Publications
A3314View your shopping basket or Browse other items in Alternators.
